Model # 706650470 Official Craftsman 3-drawer heavy-duty rally cabinet

Here are the diagrams and repair parts for Official Craftsman 706650470 3-drawer heavy-duty rally cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 10 parts  |
Pull M7856A2
#9

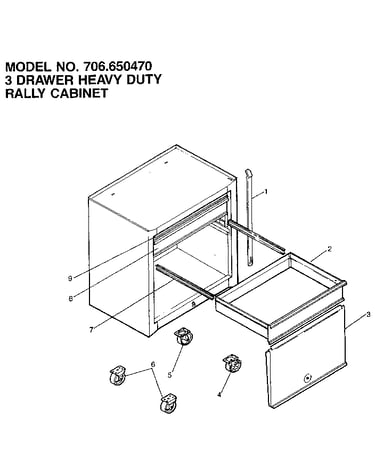

3 drawer heavy duty rally cabinet diagram

Pull

Part #M7856A2

The manufacturer no longer makes this part, and there's no substitute part

Caster 3in A5548
#6

3 drawer heavy duty rally cabinet diagram

Caster 3in

Part #A5548

The manufacturer no longer makes this part, and there's no substitute part

Weldment A9110-RED
#2

3 drawer heavy duty rally cabinet diagram

Weldment

Part #A9110-RED

The manufacturer no longer makes this part, and there's no substitute part

Weldment A9109-RED
#8

3 drawer heavy duty rally cabinet diagram

Weldment

Part #A9109-RED

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar T14769
#1

3 drawer heavy duty rally cabinet diagram

Lock bar

Part #T14769

The manufacturer no longer makes this part, and there's no substitute part

Instructions F470A1

#NI

All parts diagram

Instructions

Part #F470A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Slide T14153A5
#7

3 drawer heavy duty rally cabinet diagram

Tool chest drawer slide

Part #T14153A5

The manufacturer no longer makes this part, and there's no substitute part

Panel T14488
#3

3 drawer heavy duty rally cabinet diagram

Panel

Part #T14488

The manufacturer no longer makes this part, and there's no substitute part

Caster 3in A7416
#4

3 drawer heavy duty rally cabinet diagram

Caster 3in

Part #A7416

The manufacturer no longer makes this part, and there's no substitute part

Swivel Caste A8146
#5

3 drawer heavy duty rally cabinet diagram

Swivel caste

Part #A8146

The manufacturer no longer makes this part, and there's no substitute part
