Frigidaire CPLMB209DCB microwave Parts

Here are the diagrams and repair parts for Frigidaire CPLMB209DCB microwave, as well as links to manuals and error code tables, if available.

Frigidaire CPLMB209DCB microwave

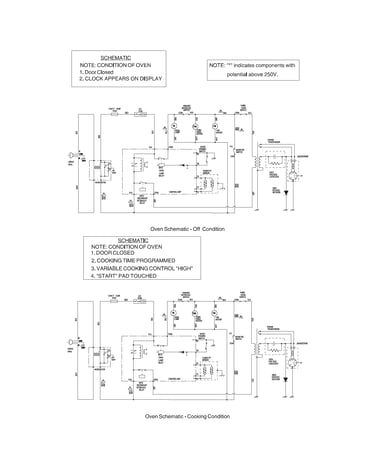

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CPLMB209DCB Microwaves

  • Microwave Door Release Lever for Frigidaire CPLMB209DCB - Part 5304485407

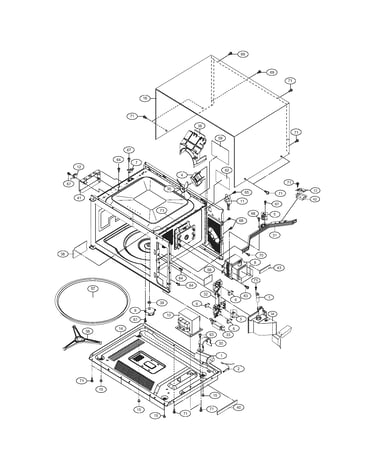

    Oven/cabinet diagram

    Switch

    Part #5304440841

    Replaced by #5304485407

    Info Icon
    Manufacturer substitution
    This part replaces 5304440841. Substitute parts can look different from the original.
    In Stock
    $54.57
    10% OFF Phone Price : $60.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Latch Body for Frigidaire CPLMB209DCB - Part 5304503439

    Oven/cabinet diagram

    Latch

    Part #5304440840

    Replaced by #5304503439

    Info Icon
    Manufacturer substitution
    This part replaces 5304440840. Substitute parts can look different from the original.
    In Stock
    $35.21
    31% OFF Was : $51.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Thermal Fuse, 20-amp for Frigidaire CPLMB209DCB - Part 5304440780

    Oven/cabinet diagram

    Wall Oven Microwave Thermal Fuse, 20-amp

    Part #5304440780
    In Stock
    $77.87
    7% OFF Phone Price : $83.87Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Frigidaire CPLMB209DCB - Part 5304440026

    Oven/cabinet diagram

    Microwave Door Interlock Switch

    Part #5304440026
    In Stock
    $44.79
    12% OFF Phone Price : $50.79Info Icon
    Minus Item
    Qty
    Plus Item
  • Wall Oven Microwave Door Latch for Frigidaire CPLMB209DCB - Part 5304441893

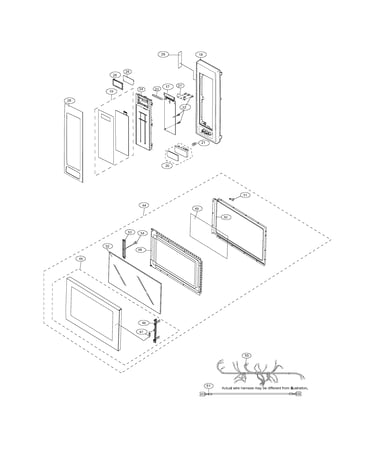

    Control panel/door diagram

    Latch

    Part #5304440856

    Replaced by #5304441893

    Info Icon
    Manufacturer substitution
    This part replaces 5304440856. Substitute parts can look different from the original.
    In Stock
    $28.41
    36% OFF Was : $44.25Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Release Button Spring for Frigidaire CPLMB209DCB - Part 5304440831

    Control panel/door diagram

    Microwave Door Release Button Spring

    Part #5304440831
    This item is not returnable
    In Stock
    $24.02
    20% OFF Phone Price : $30.02Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave High-voltage Transformer for Frigidaire CPLMB209DCB - Part 5304473321

    Oven/cabinet diagram

    Transformer

    Part #5304440876

    Replaced by #5304473321

    Info Icon
    Manufacturer substitution
    This part replaces 5304440876. Substitute parts can look different from the original.
    In Stock
    $204.56
    6% OFF Phone Price : $216.56Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Microwave Light Bulb for Frigidaire CPLMB209DCB - Part 5304500304

    Oven/cabinet diagram

    Receptacle

    Part #5304440779

    Replaced by #5304500304

    Info Icon
    Manufacturer substitution
    This part replaces 5304440779. Substitute parts can look different from the original.
    In Stock
    $54.99
    10% OFF Phone Price : $60.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Electronic Control Board Display Cover for Frigidaire CPLMB209DCB - Part 5304493204

    Control panel/door diagram

    Display

    Part #5304440834

    Replaced by #5304493204

    Info Icon
    Manufacturer substitution
    This part replaces 5304440834. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $51.36
    Minus Item
    Qty
    Plus Item
  • Label for Frigidaire CPLMB209DCB - Part 5304440348

    Oven/cabinet diagram

    Label

    Part #5304440348
    In Stock
    $30.01
    Minus Item
    Qty
    Plus Item
