Model # DXL-150 Official Dunkirk boiler

Here are the diagrams and repair parts for Official Dunkirk DXL-150 boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

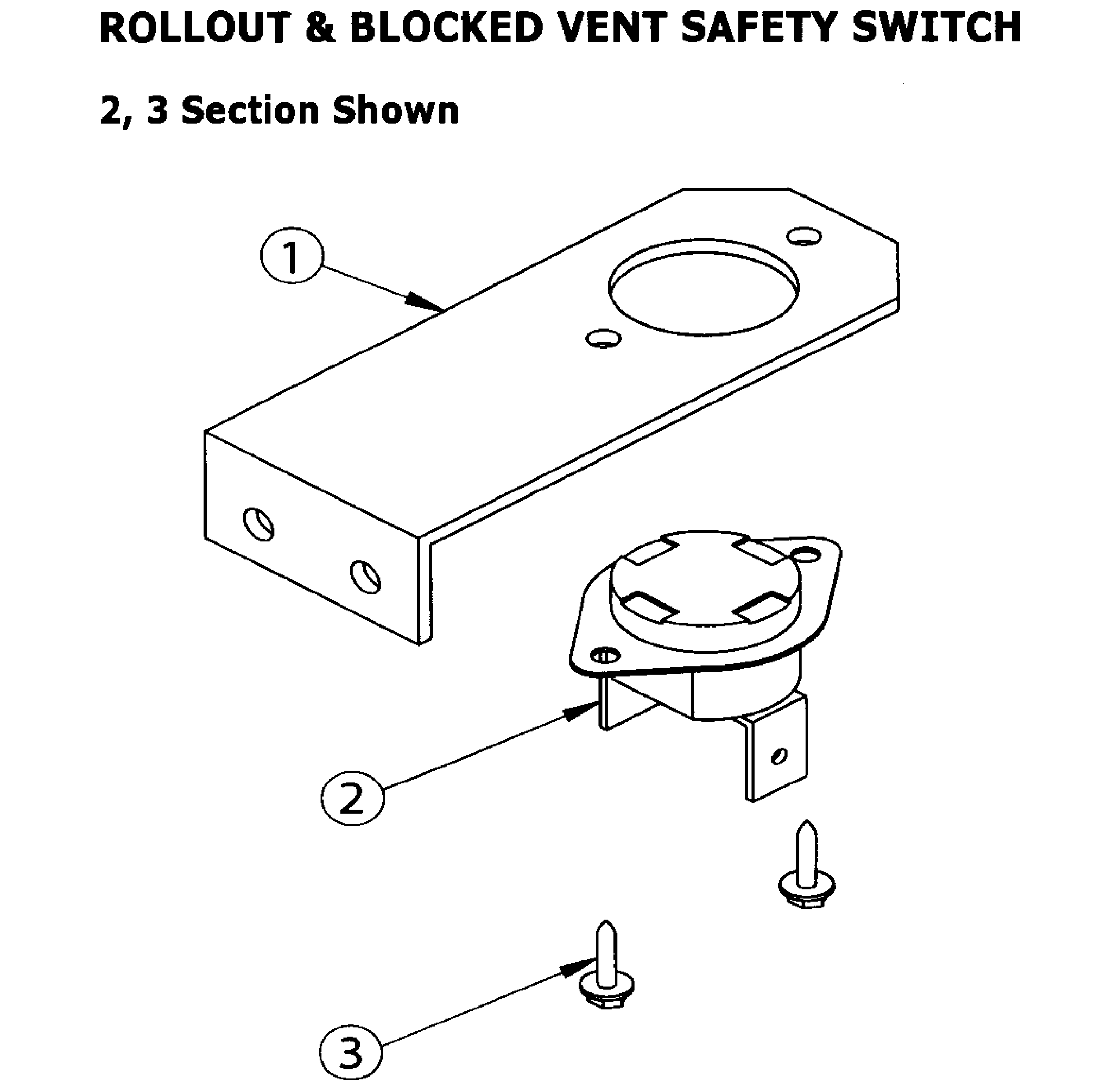

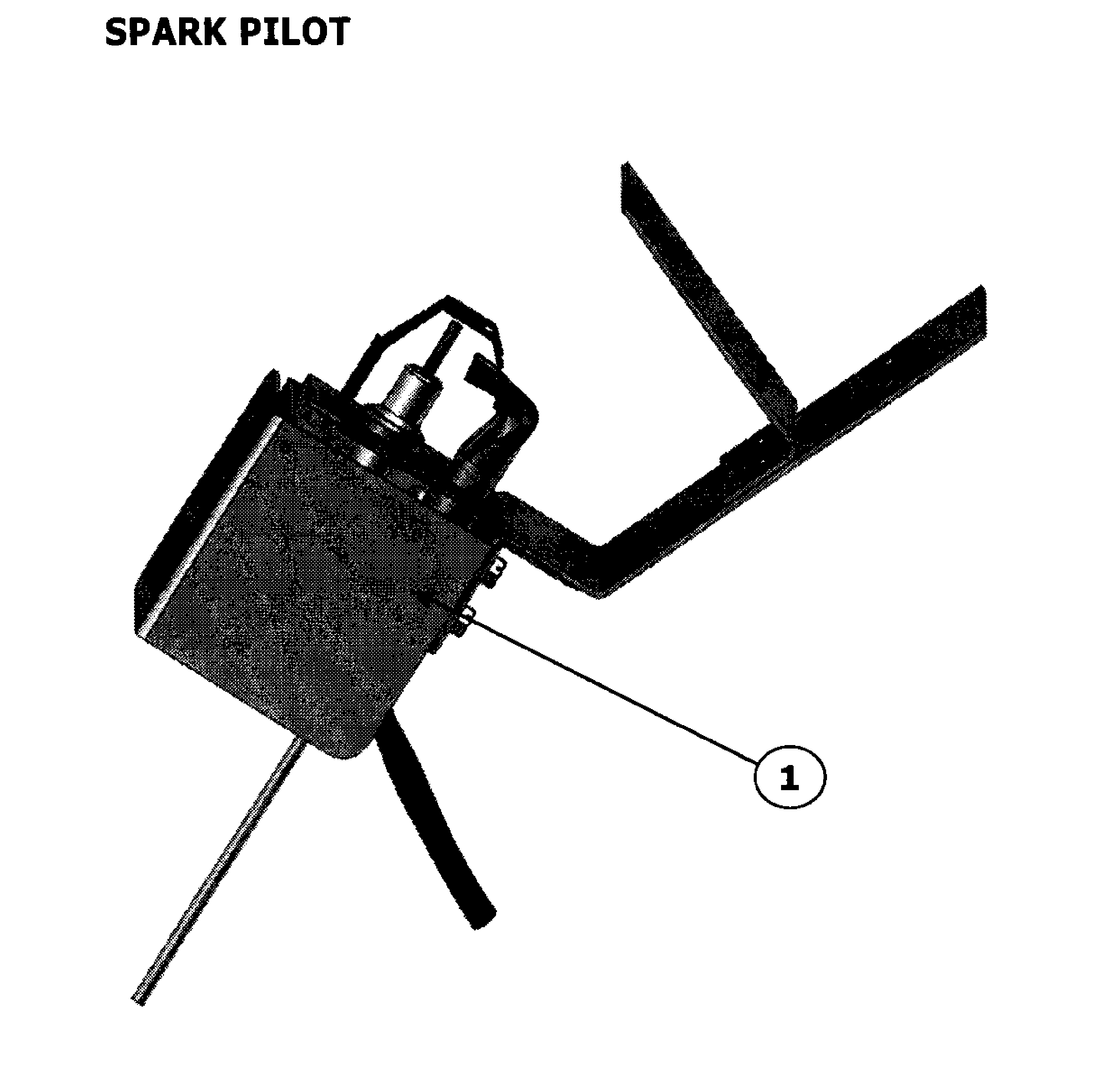

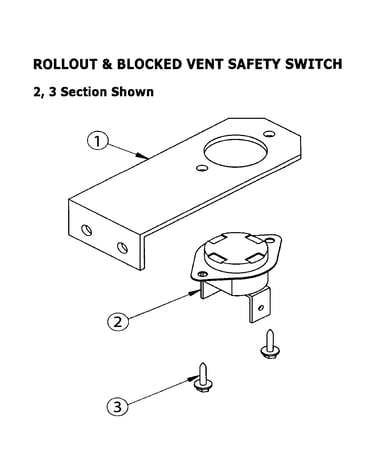

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Boiler Ignition Control Module 14662070
#2

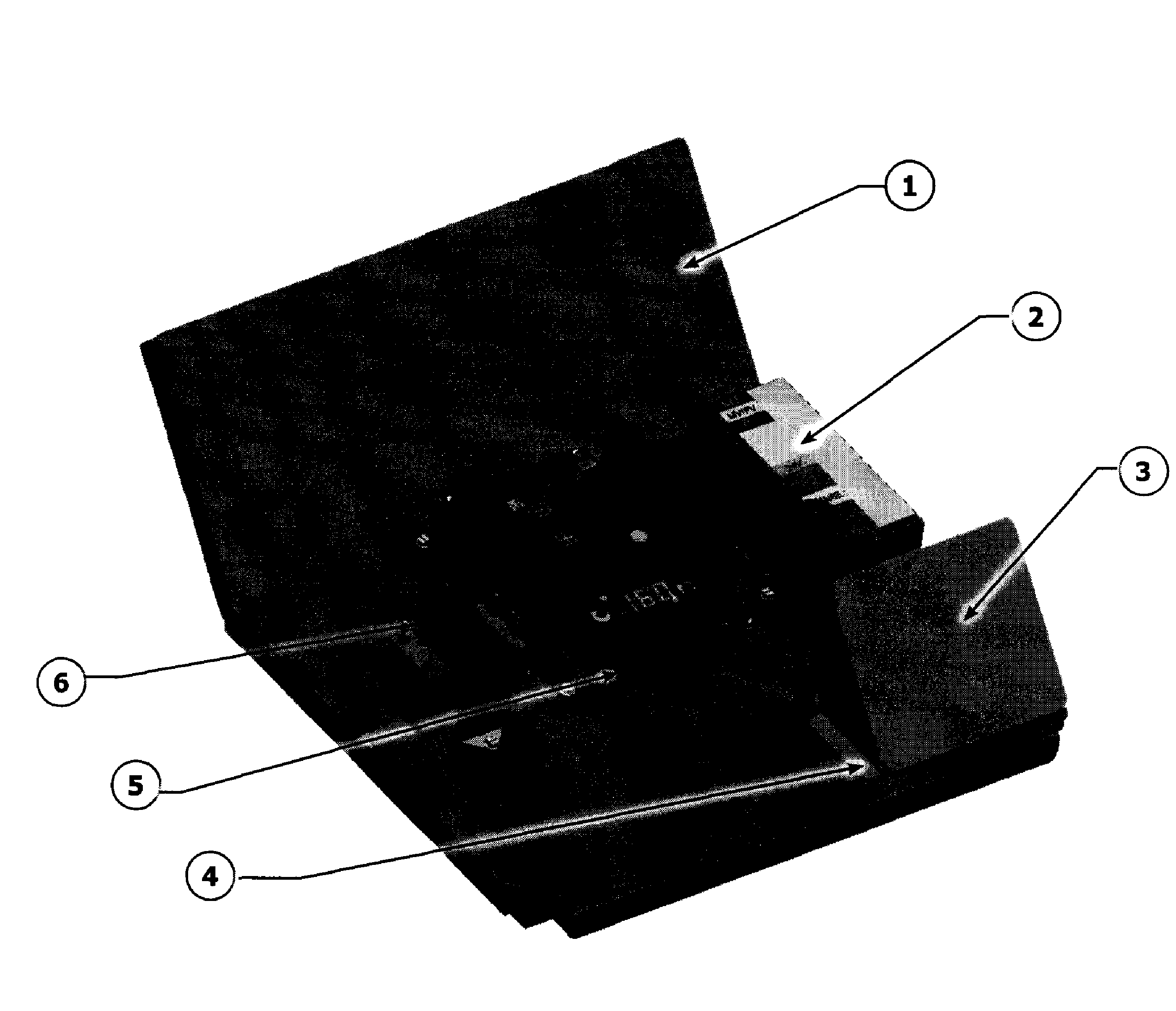

Control module diagram

Boiler ignition control module

Part #14662070

$104.90 |
9% OFF Phone Price : $114.90
In Stock
Transformer 240007897
#6

Control module diagram

Transformer

Part #240007897

$60.27
In Stock
Sensor 240007708
#NI

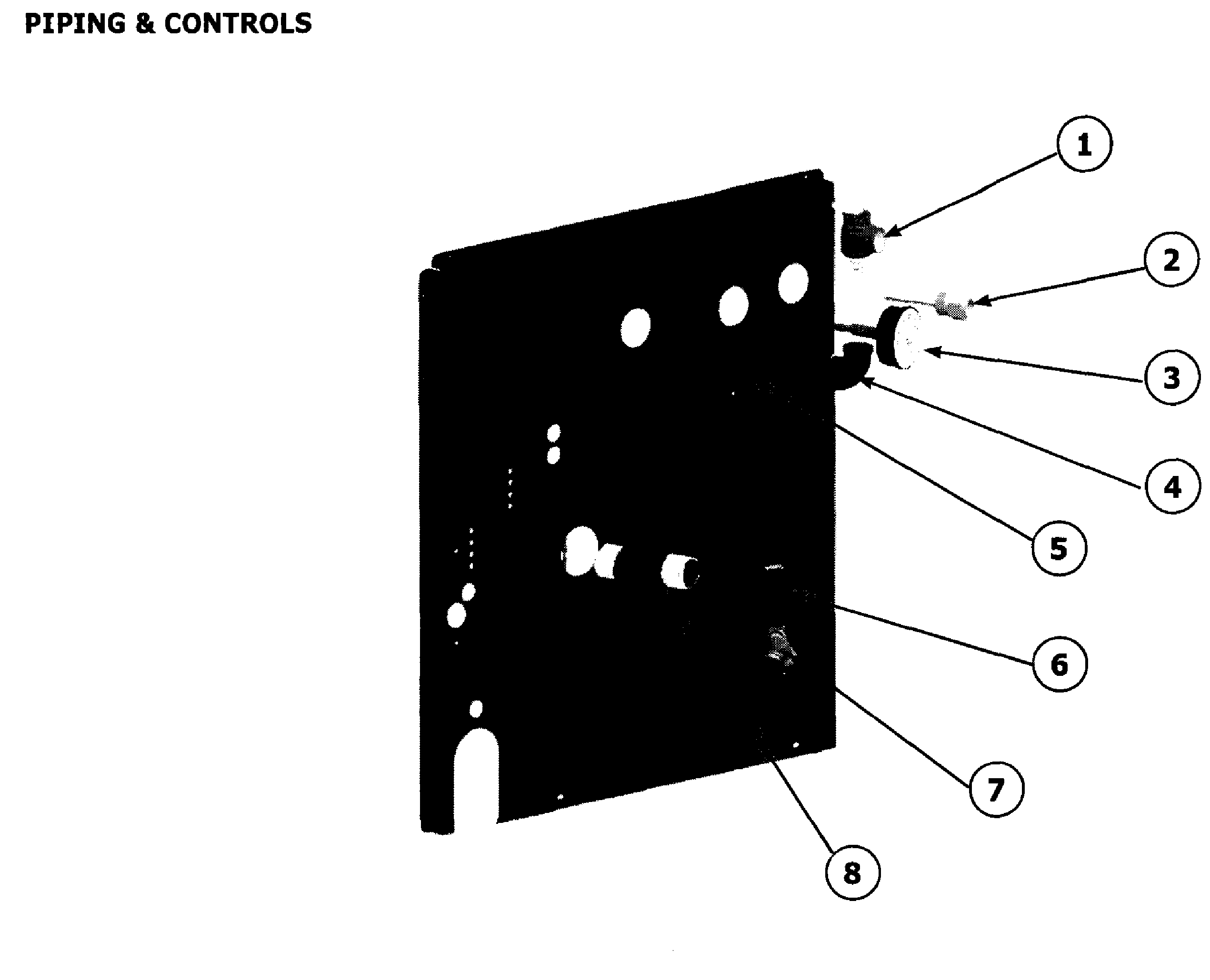

Piping & controls diagram

Sensor

Part #240007708

$73.51
In Stock
Spring Kit,ecr Mfg 1272030
#NI

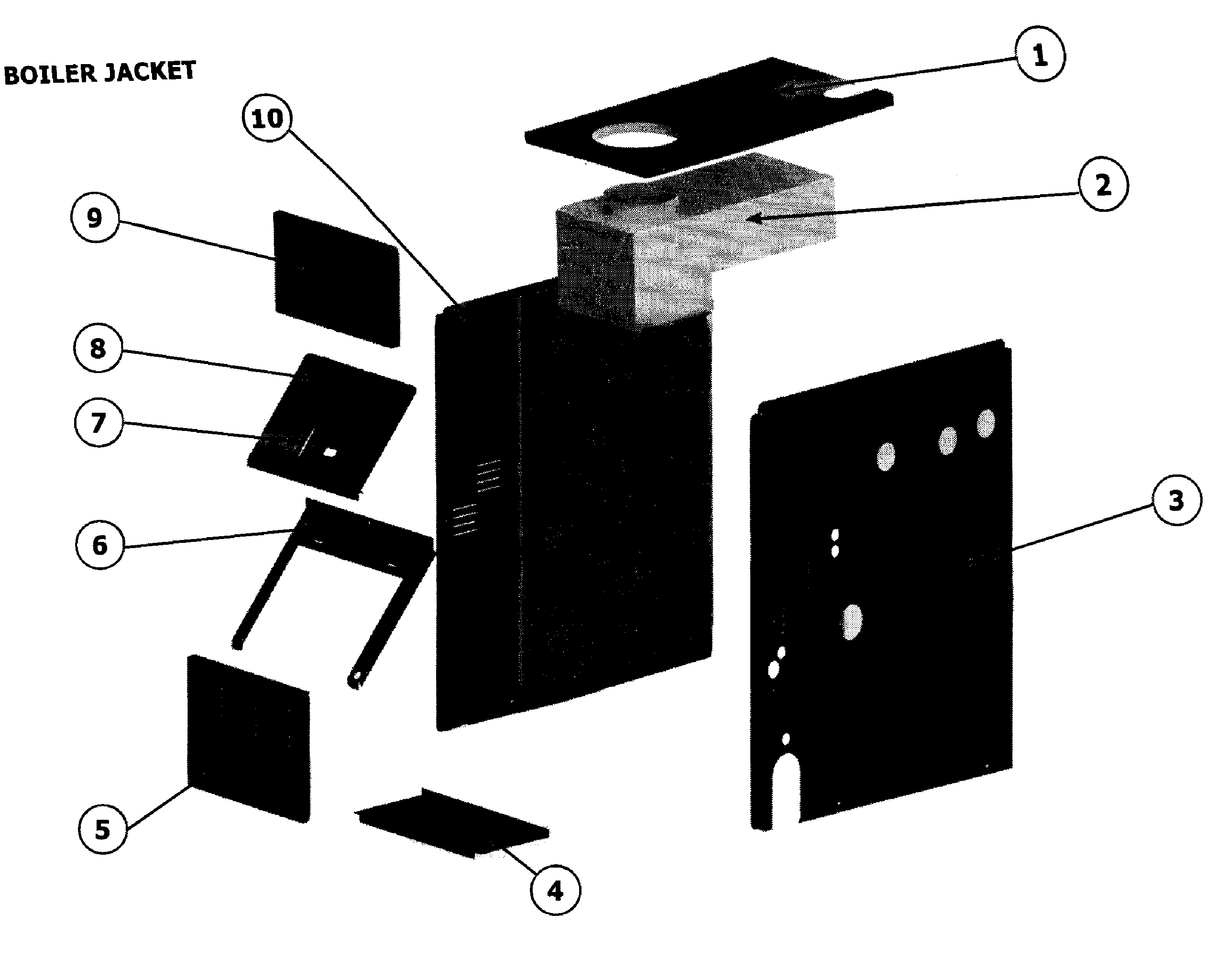

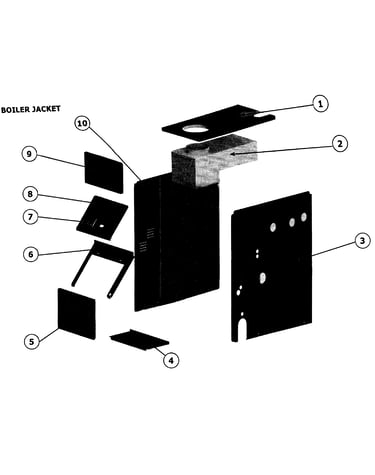

Jacket parts diagram

Spring kit,ecr mfg

Part #1272030

$29.71
In Stock
Harness 240009075
#NI

Control module diagram

Harness

Part #240009075

$82.31
In Stock
Dunkirk Dxl/mgb Rear Pnl 3162603AC
#NI

Jacket parts diagram

Dunkirk dxl/mgb rear pnl

Part #3162603AC

$109.82
In Stock
Cover J-box 212000018
#3A

Control module diagram

Cover j-box

Part #212000018

This item is not returnable
$6.37
In Stock
Flue Collector 3462103
#2

Jacket parts diagram

Flue collector

Part #3462103

$195.04
In Stock
Dunkirk Vent Damper Wire Harness 240006309
#NI

Piping & controls diagram

Dunkirk vent damper wire harness

Part #240006309

$66.16
In Stock
Heat Exchange,2section 912000001
#NI

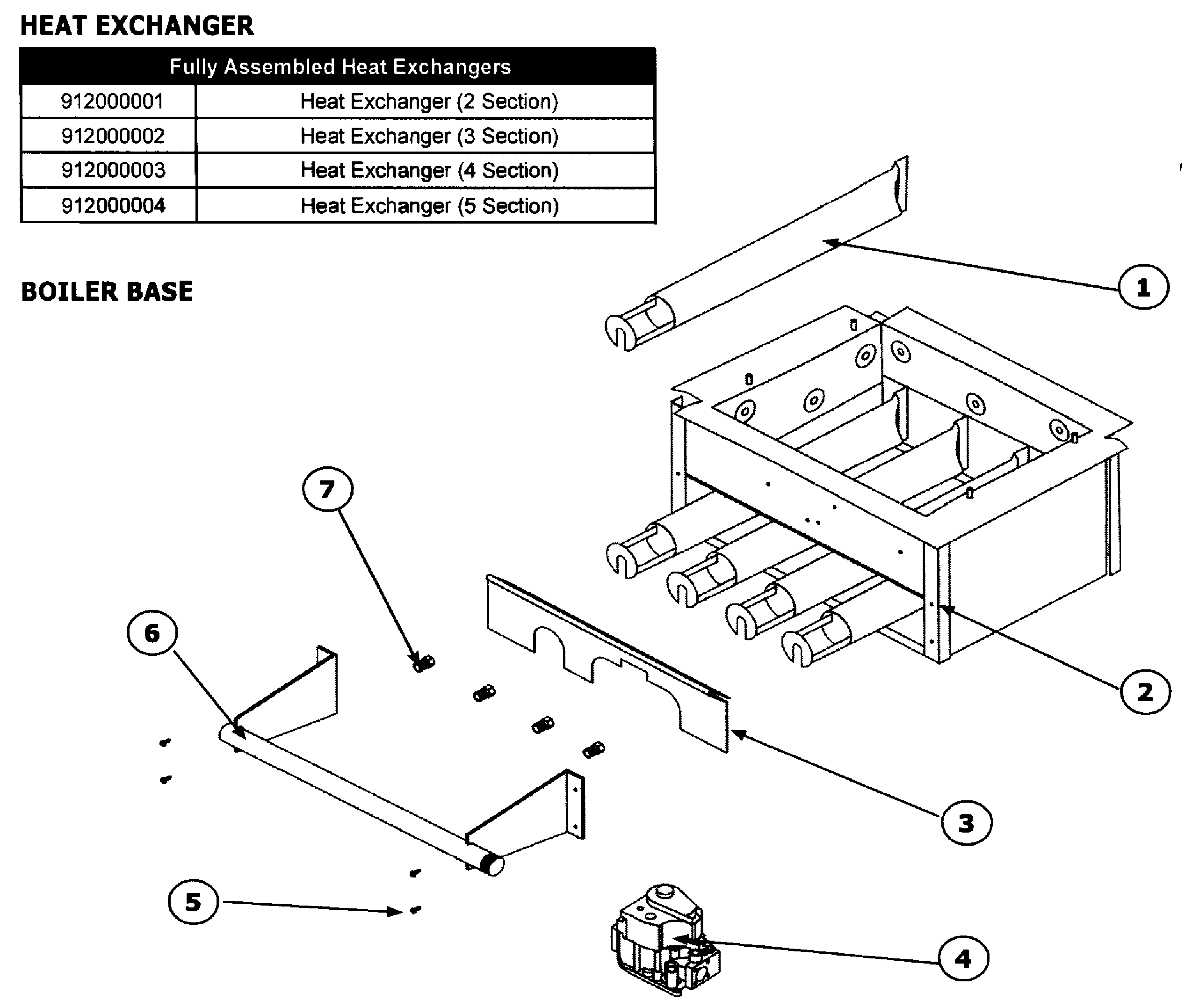

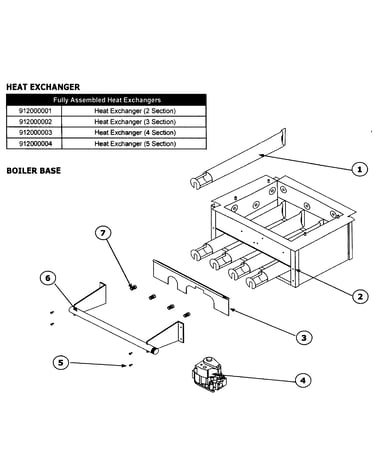

Heat exchange & base diagram

Heat exchange,2section

Part #912000001

$782.95
In Stock
