Model # 21759732 Official Craftsman remote gasoline tank

Here are the diagrams and repair parts for Official Craftsman 21759732 remote gasoline tank, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 11 parts |

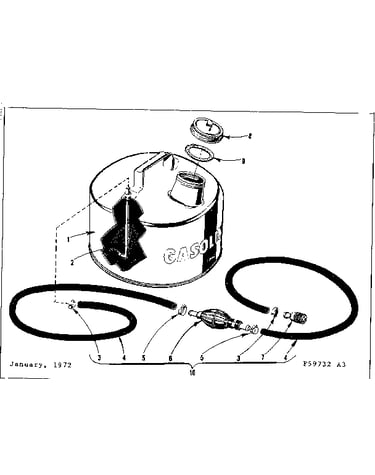

Fuel tank and line diagram

Bulb clamp

Part #96132

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Coupling

Part #96124

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

O clamp

Part #96134

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Fuel pick-up

Part #96509

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Gasket

Part #96217

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Cap fuel

Part #96548

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Fuel line

Part #96133

The manufacturer no longer makes this part, and there's no substitute part

#11

Fuel tank and line diagram

Tank

Part #1172C

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Gas tank

Part #96547

The manufacturer no longer makes this part, and there's no substitute part

Fuel tank and line diagram

Primer bulb

Part #97115

The manufacturer no longer makes this part, and there's no substitute part
