Model # AL095N1A1 Official White-Westinghouse room air conditioner - lw34090030

Here are the diagrams and repair parts for Official White-Westinghouse AL095N1A1 room air conditioner - lw34090030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Room Air Conditioner Filter Dryer 5300265301
#2

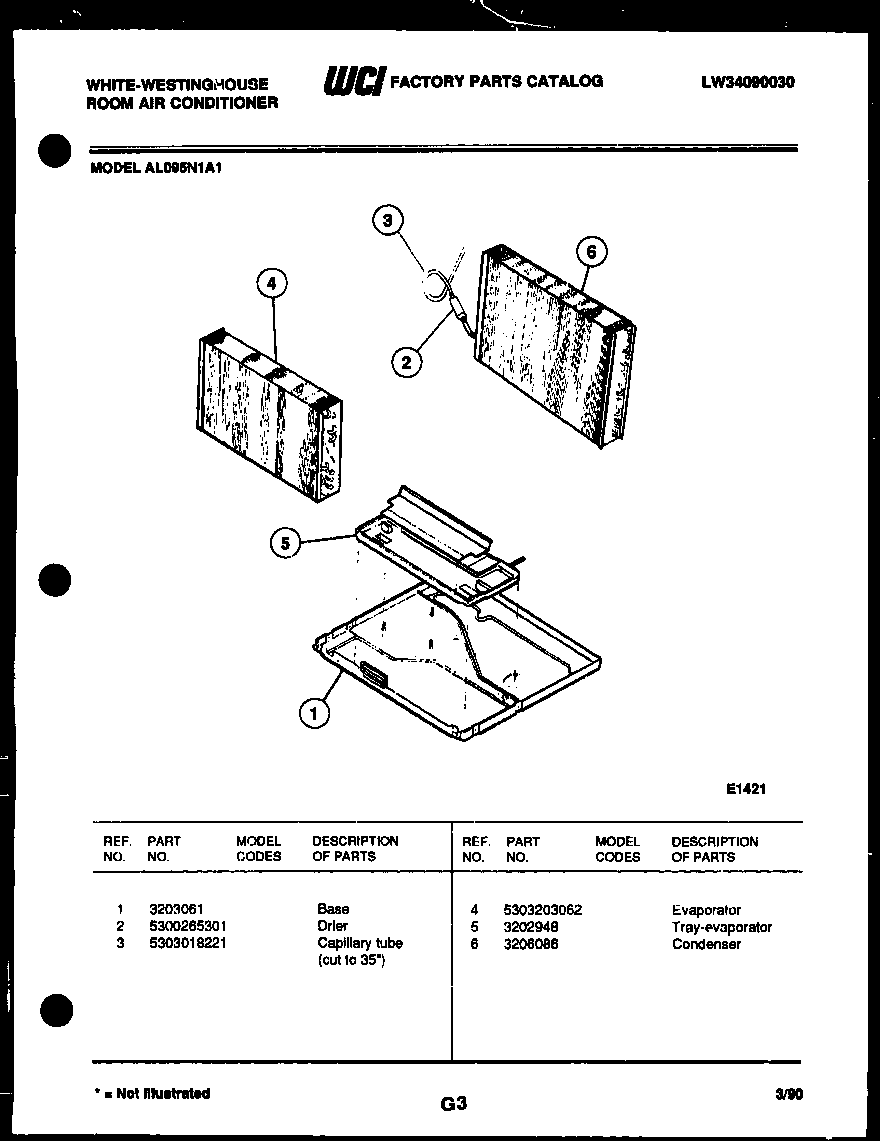

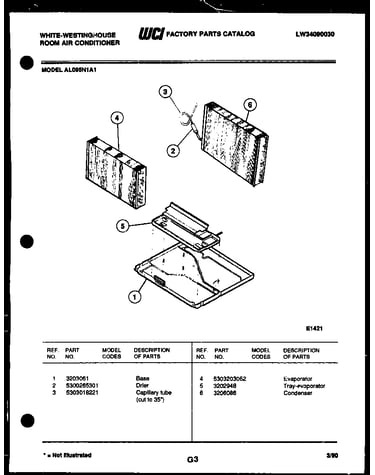

Unit parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Nut-hex 3017023
#6

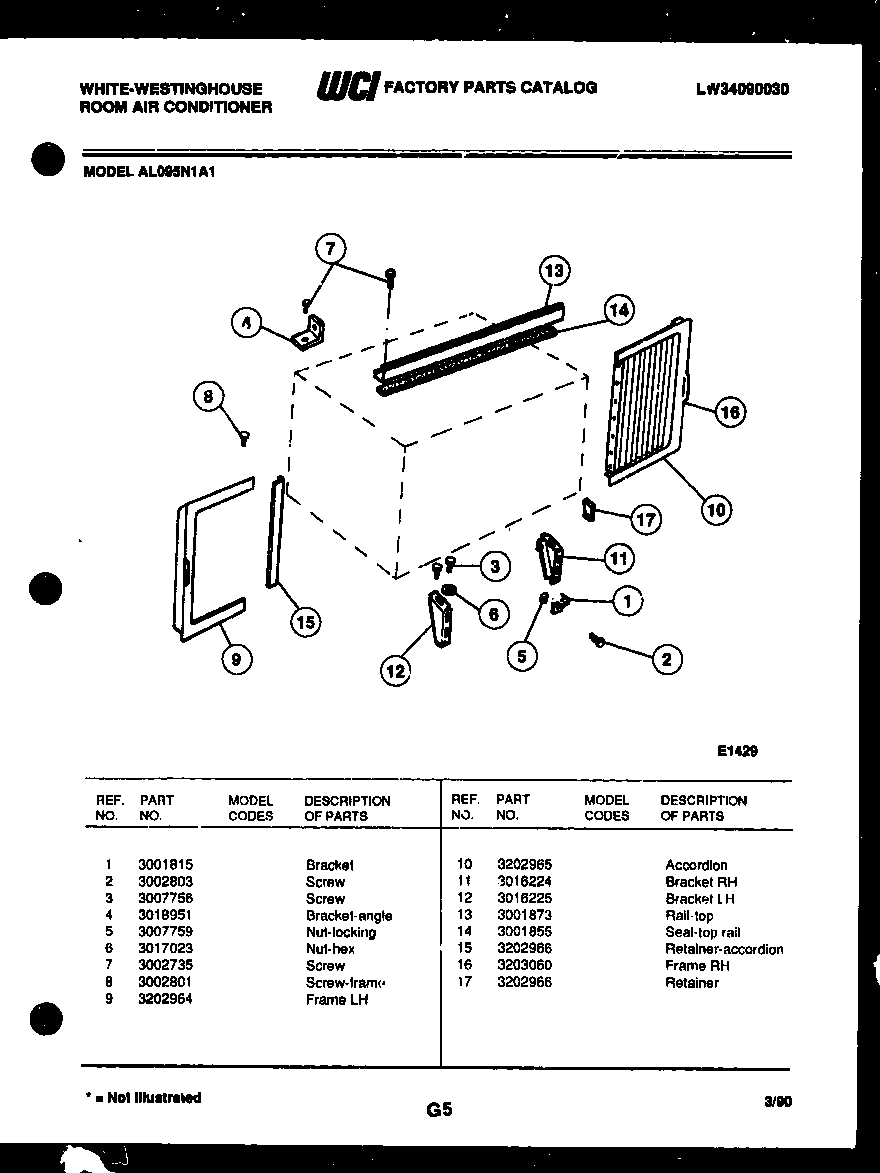

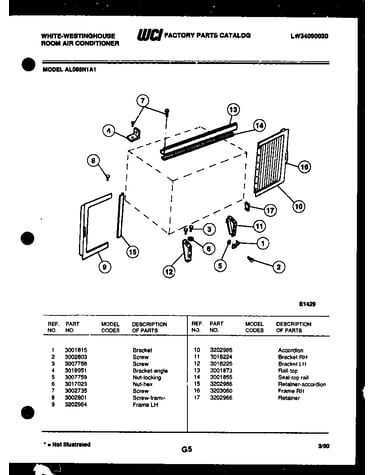

Cabinet and installation parts diagram

Nut-hex

Part #3017023

Replaced by #316205500

?
Manufacturer substitution
This part replaces 3017023. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
220v Cord 5308017362
#8

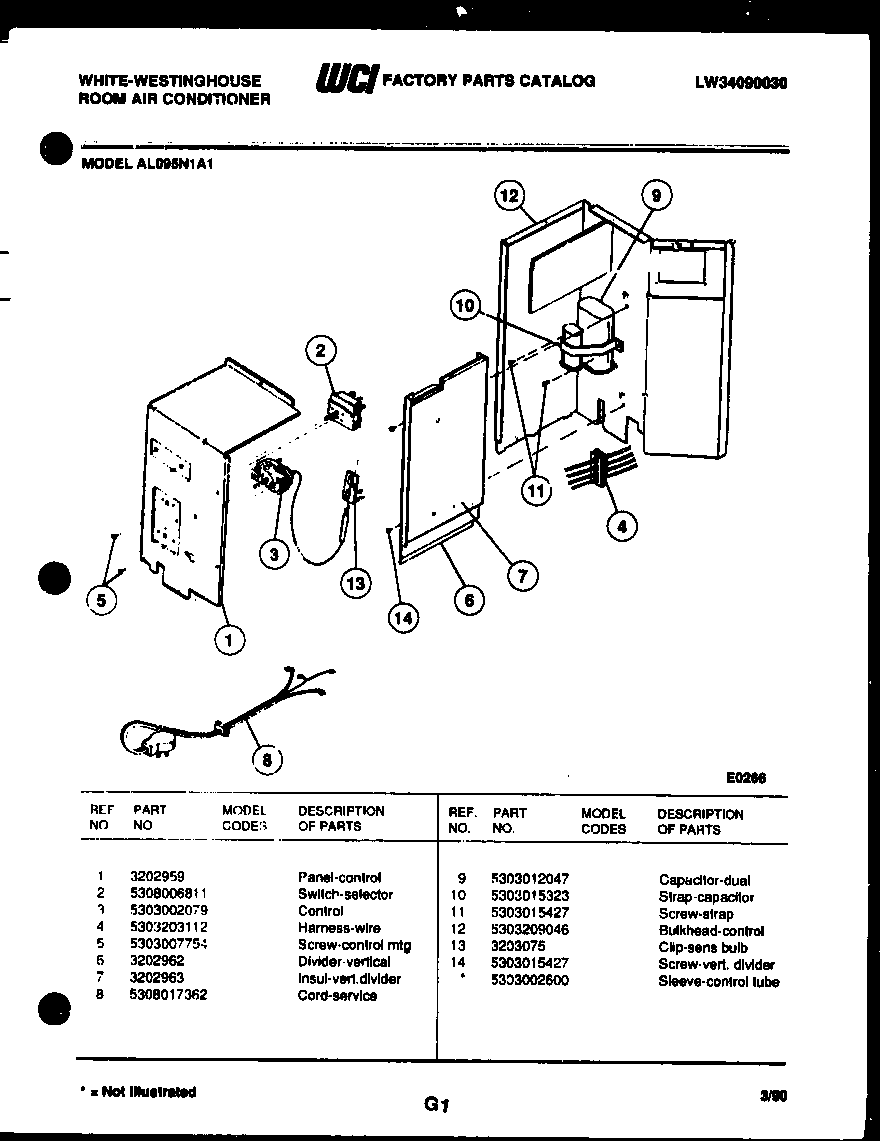

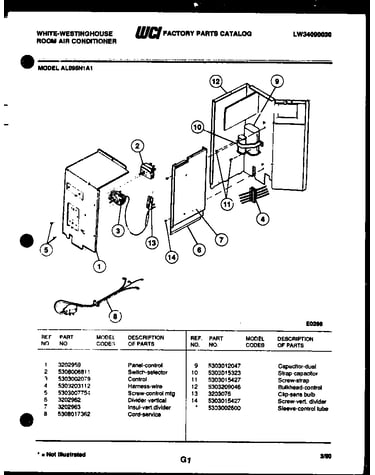

Electrical parts diagram

220v cord

Part #5308017362

Replaced by #5303301021

?
Manufacturer substitution
This part replaces 5308017362. Substitute parts can look different from the original.
$49.98
In Stock
Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Frame 3202964
#9

Cabinet and installation parts diagram

Frame

Part #3202964

The manufacturer no longer makes this part, and there's no substitute part

Dial Plate 3016866
#2

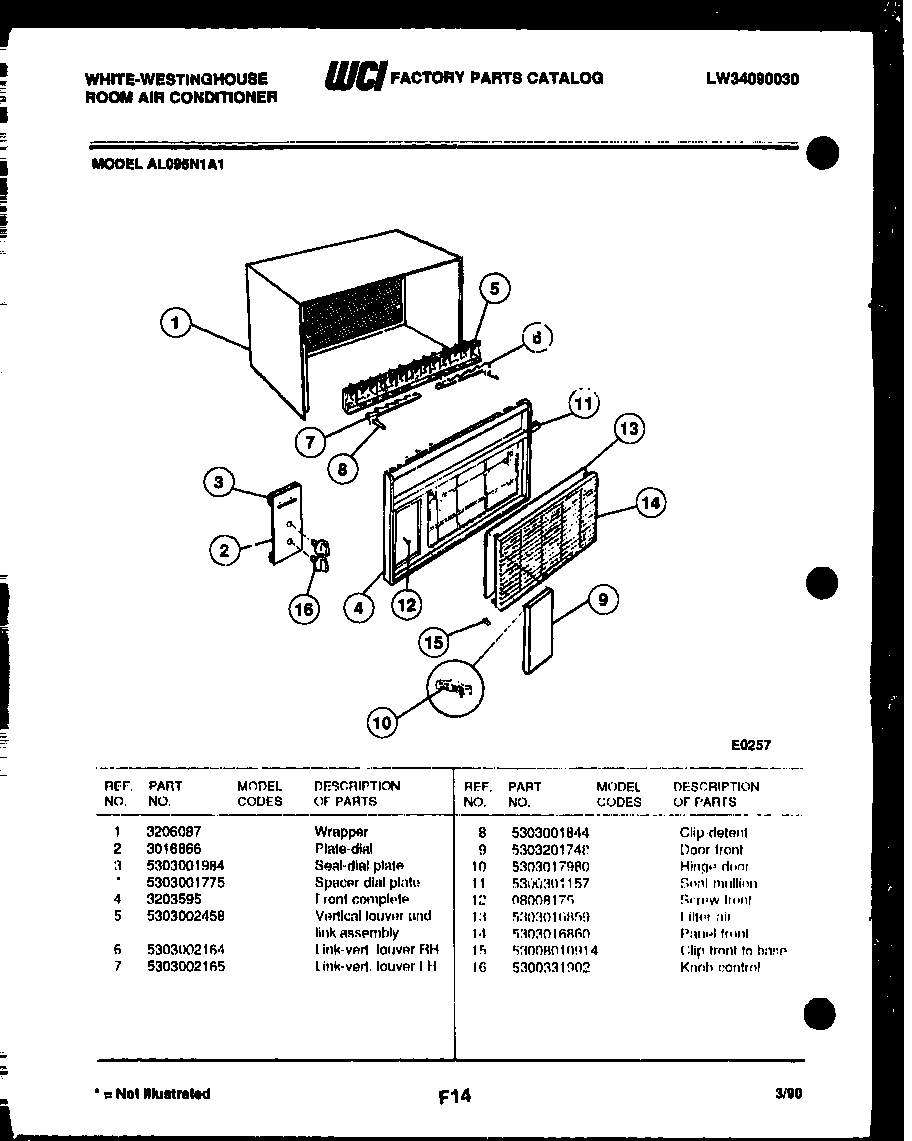

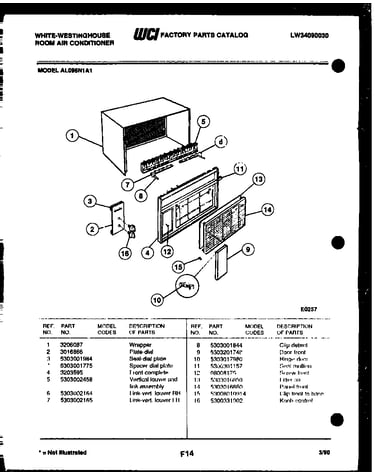

Cabinet parts diagram

Dial plate

Part #3016866

The manufacturer no longer makes this part, and there's no substitute part

Cover 3202957
#10

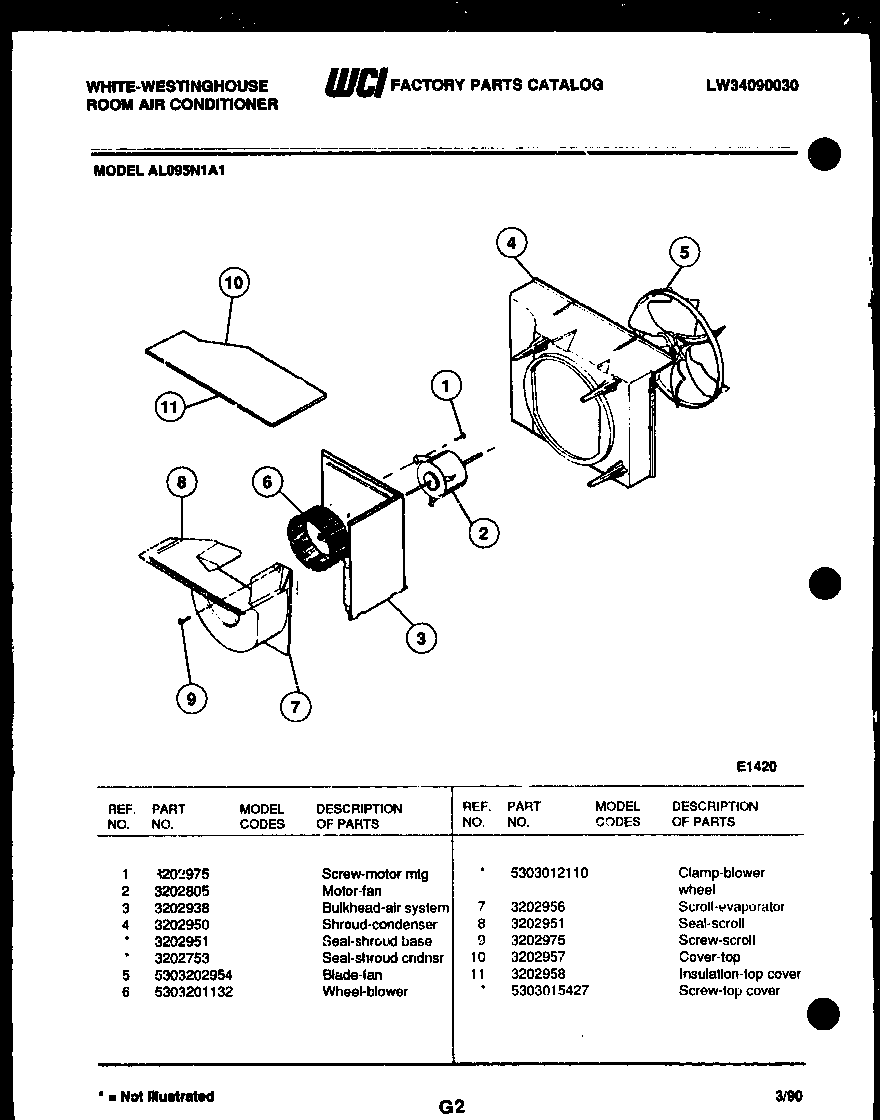

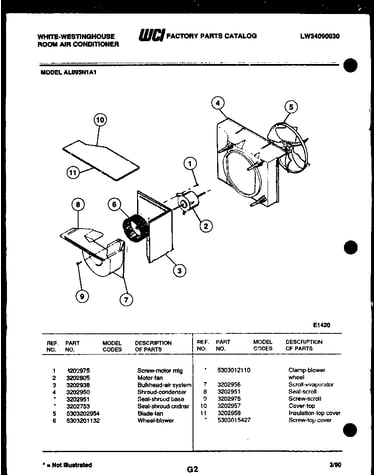

Air handling parts diagram

Cover

Part #3202957

The manufacturer no longer makes this part, and there's no substitute part

Startr Kit 5303201723
#8

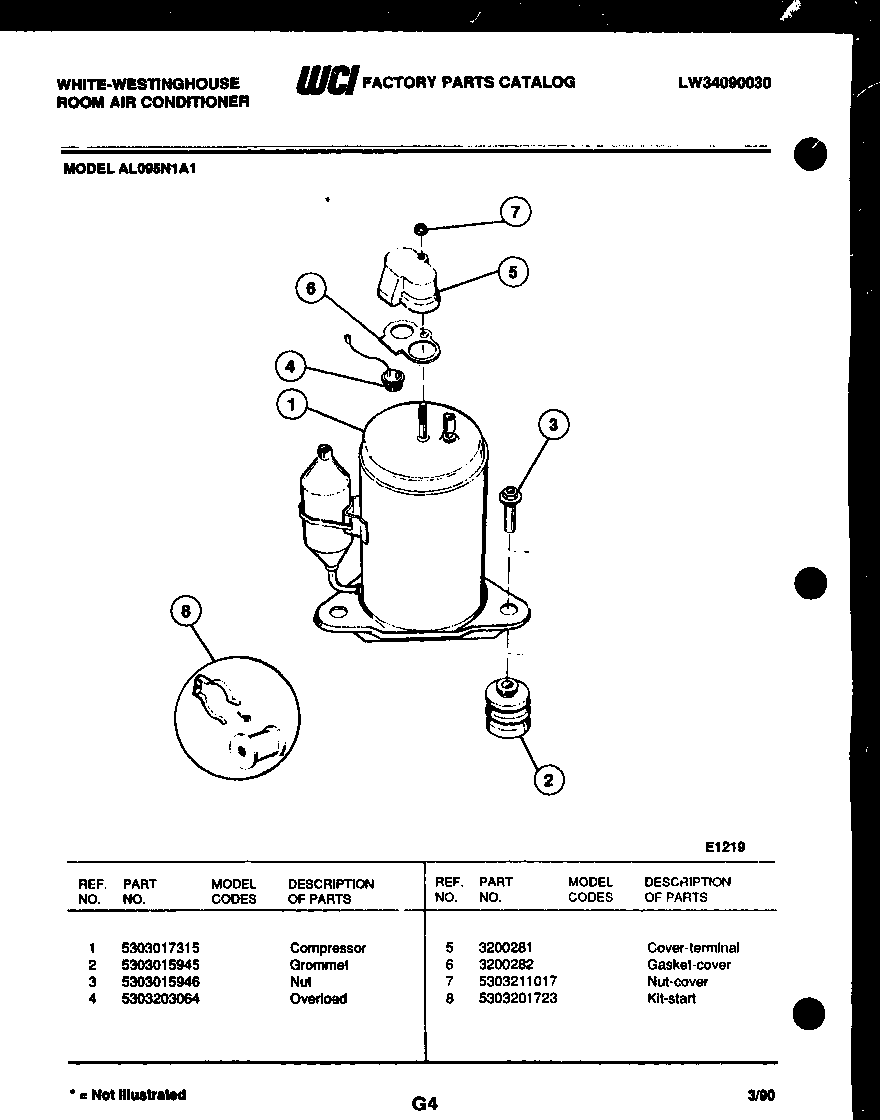

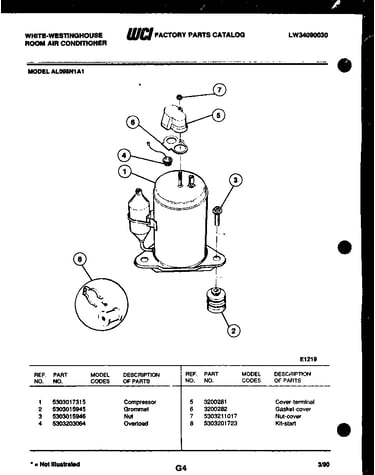

Compressor parts diagram

Startr kit

Part #5303201723

The manufacturer no longer makes this part, and there's no substitute part

Screw 3007756
#3

Cabinet and installation parts diagram

Screw

Part #3007756

The manufacturer no longer makes this part, and there's no substitute part
