Model # 58CLR10510112 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58CLR10510112 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Baffle B01826-01
#53

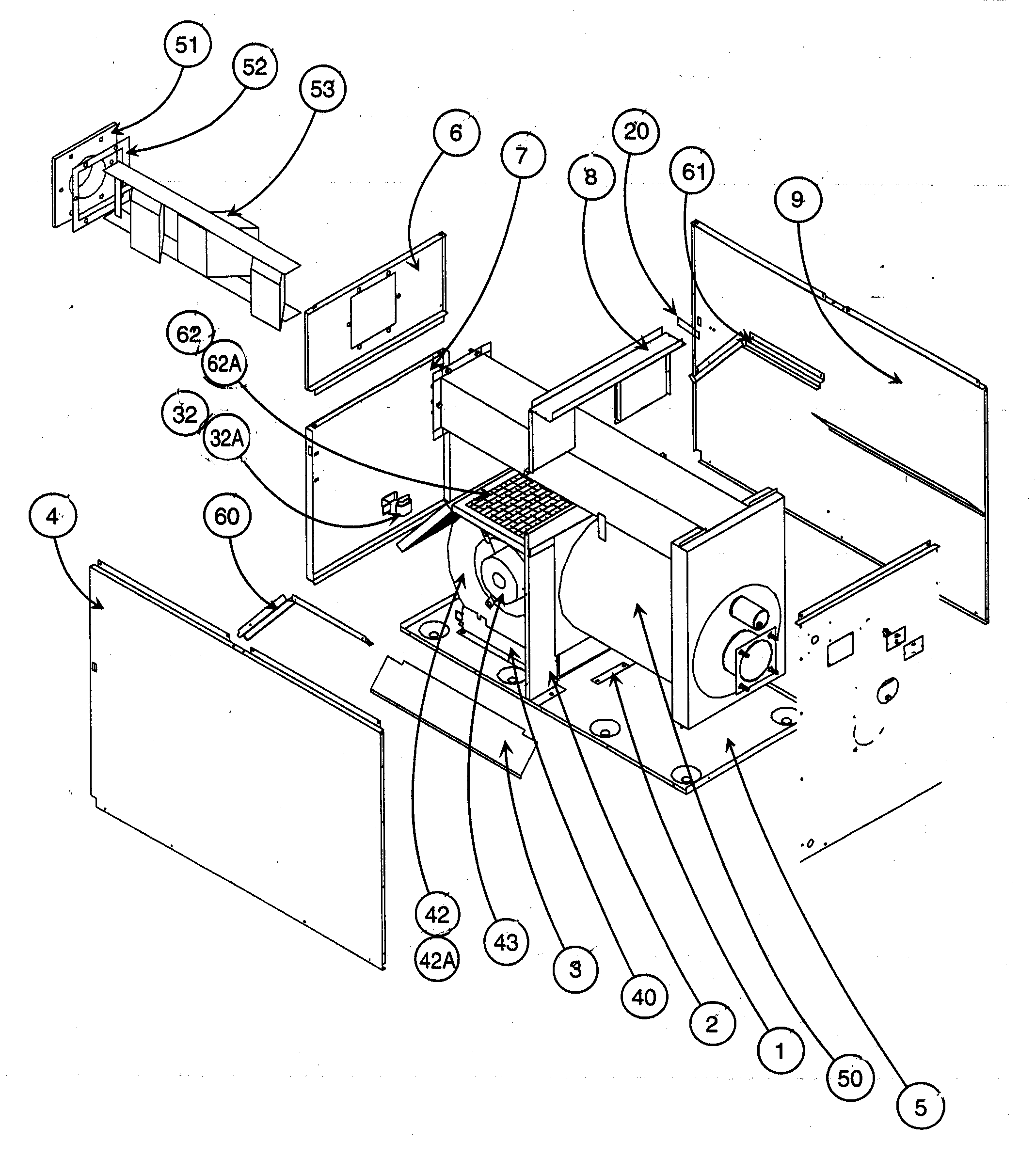

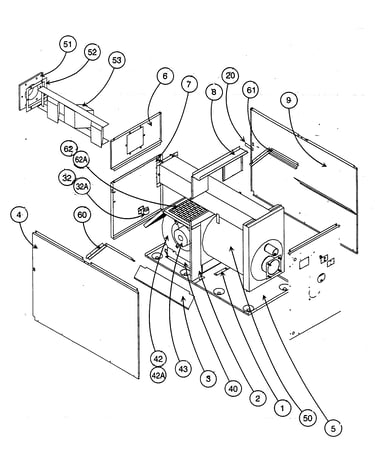

Cabinet parts 1 diagram

Baffle

Part #B01826-01

$317.84
In Stock
Cover B01697
#51

Cabinet parts 1 diagram

Cover

Part #B01697

$61.04
In Stock
Capacitor L01I001
#32

Cabinet parts 1 diagram

Capacitor

Part #L01I001

$22.46
In Stock
Oil Pump C7001010
#NI

Cabinet parts 1 diagram

Oil pump

Part #C7001010

$514.27
In Stock
Door Assembly B02111
#54

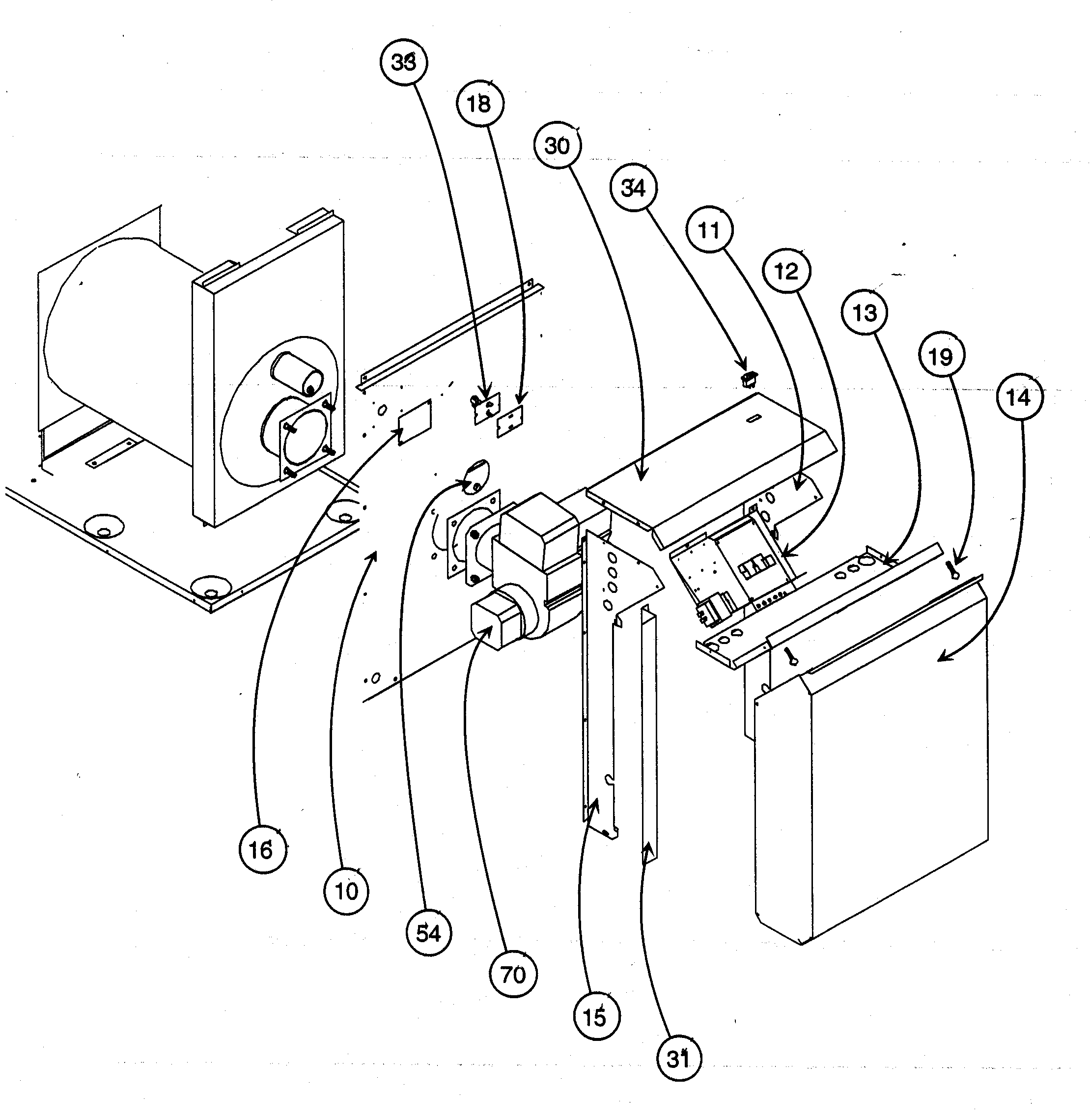

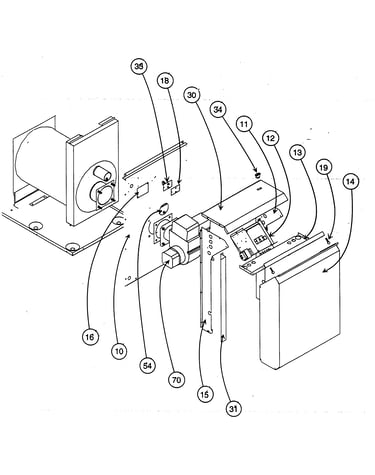

Cabinet parts 2 diagram

Door assembly

Part #B02111

$40.60
In Stock
Collar B01214
#52

Cabinet parts 1 diagram

Collar

Part #B01214

$19.89
In Stock
Control R02R003
#33

Cabinet parts 2 diagram

Control

Part #R02R003

$36.76
In Stock
Exchanger B01701
#50

Cabinet parts 1 diagram

Exchanger

Part #B01701

$1267.15
In Stock
Housing Z01I002
#42

Cabinet parts 1 diagram

Housing

Part #Z01I002

Replaced by #B03720-02

?
Manufacturer substitution
This part replaces Z01I002. Substitute parts can look different from the original.
$474.00
In Stock
Fan Timer R99G002
#36

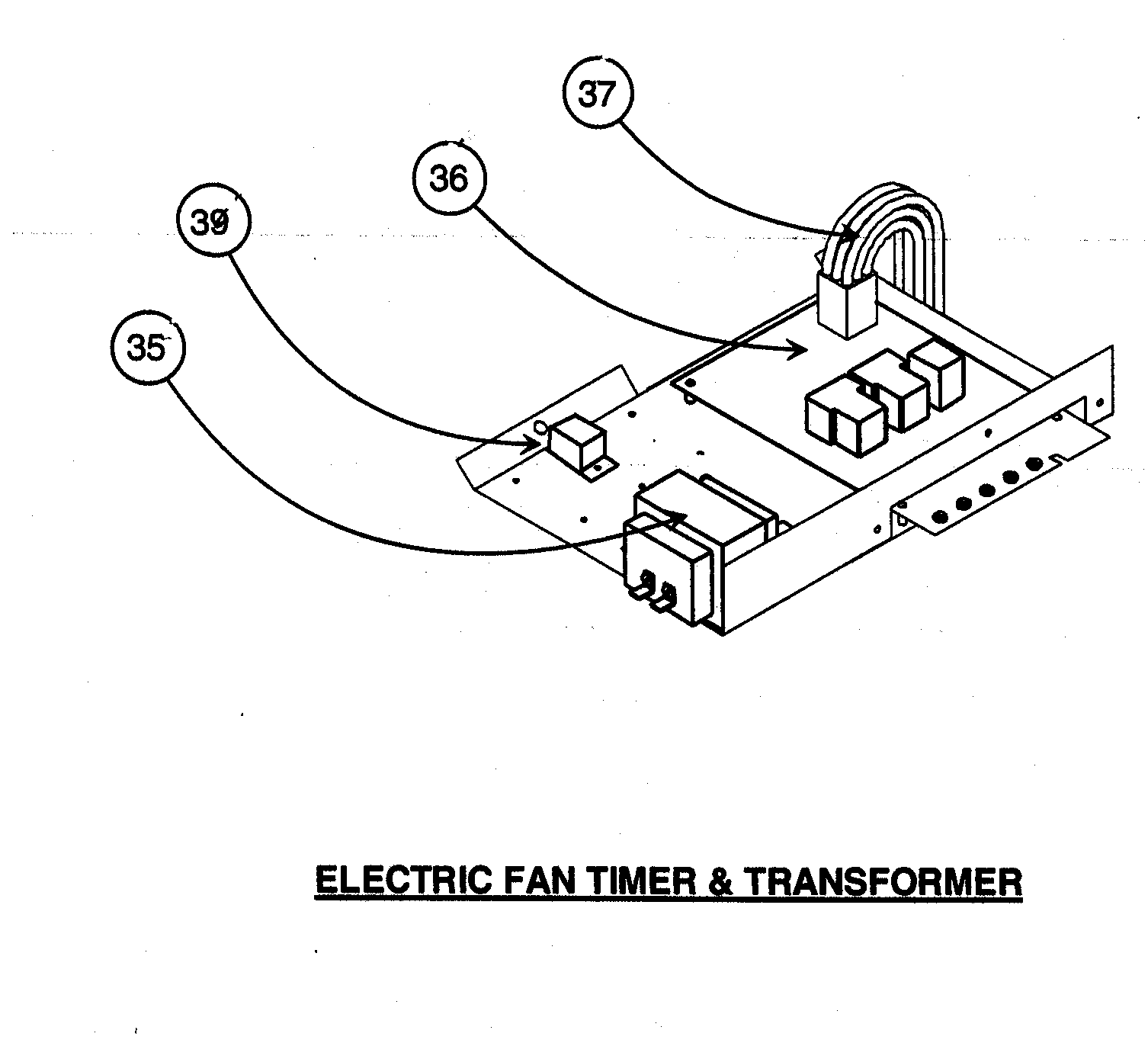

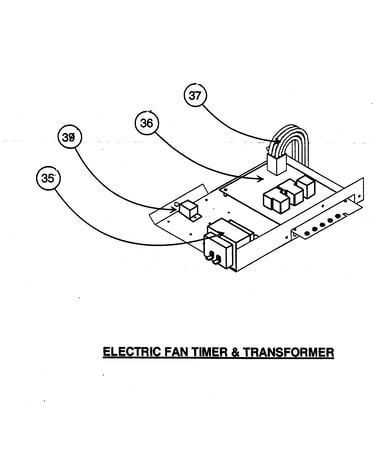

Electric fan timer/transformer diagram

Fan timer

Part #R99G002

Replaced by #R99G004

?
Manufacturer substitution
This part replaces R99G002. Substitute parts can look different from the original.
$266.49
In Stock
