Model # WUW55X24DS01 Official Whirlpool wine cellar

Here are the diagrams and repair parts for Official Whirlpool WUW55X24DS01 wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Pin For Fix W10782192
#NI

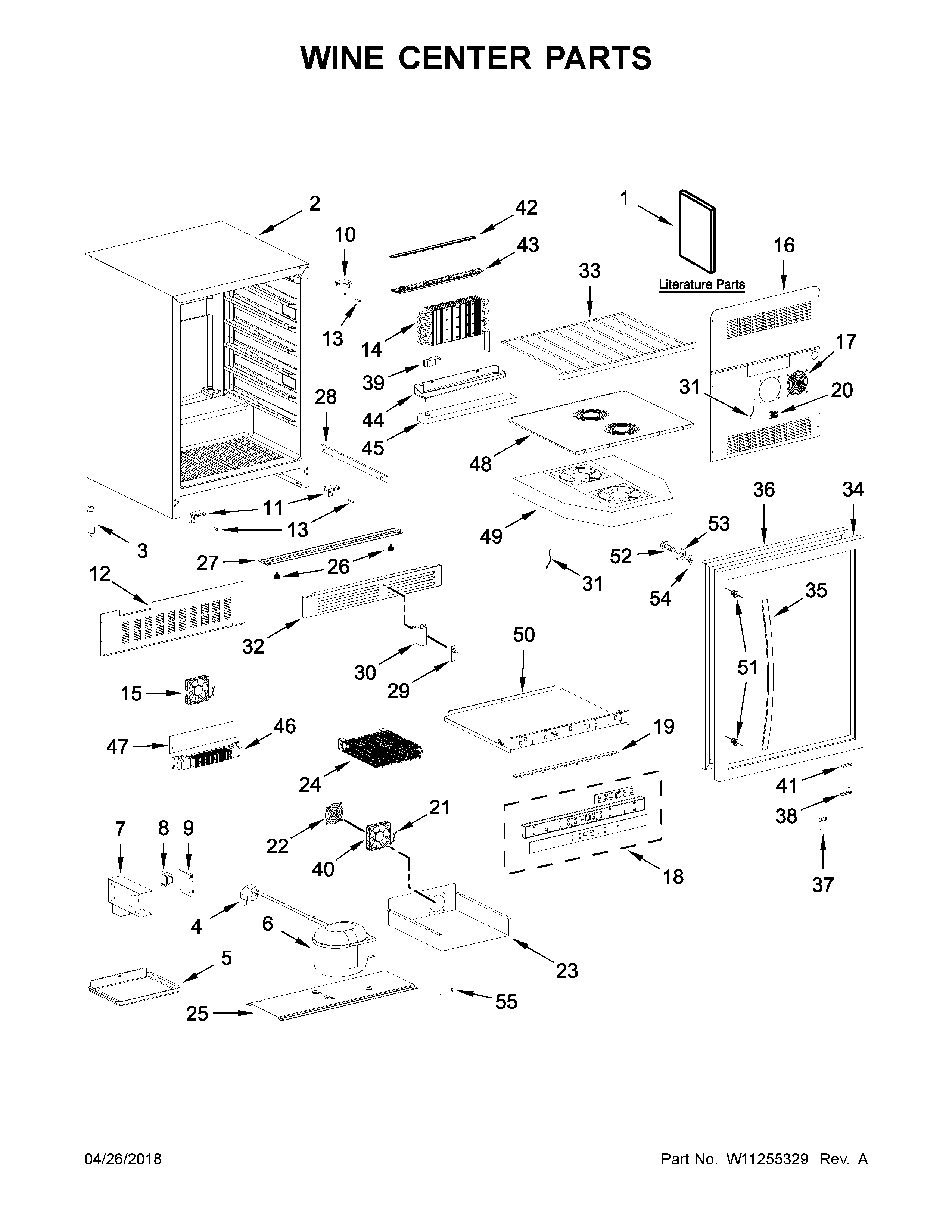

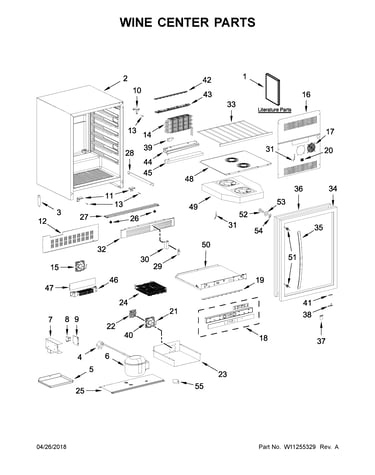

Wine center parts diagram

Pin for fix

Part #W10782192

This item is not returnable
$7.23
In Stock
Pcb Cover W11255151
#7

Wine center parts diagram

Pcb cover

Part #W11255151

$34.53
In Stock
Foam W11255620
#39

Wine center parts diagram

Foam

Part #W11255620

$15.36
In Stock
Pan-drip W11243789
#5

Wine center parts diagram

Pan-drip

Part #W11243789

$61.98
In Stock
Hinge W10782260
#10A

Wine center parts diagram

Hinge

Part #W10782260

$31.09 |
14% OFF Phone Price : $36.09
In Stock
Handle W10792640
#51

Wine center parts diagram

Handle

Part #W10792640

$14.00
In Stock
Rear Cover W11255346
#12

Wine center parts diagram

Rear cover

Part #W11255346

$80.56
In Stock
Screw W10782261
#13

Wine center parts diagram

Screw

Part #W10782261

This item is not returnable
$7.17
In Stock
Evaporator W10792631
#49

Wine center parts diagram

Evaporator

Part #W10792631

$85.79 |
22% OFF MSRP : $110.00
In Stock
Hinge, Lower Left W11255250
#11A

Wine center parts diagram

Hinge, lower left

Part #W11255250

$30.29
In Stock
