Model # HDR-PJ580V Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-PJ580V camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

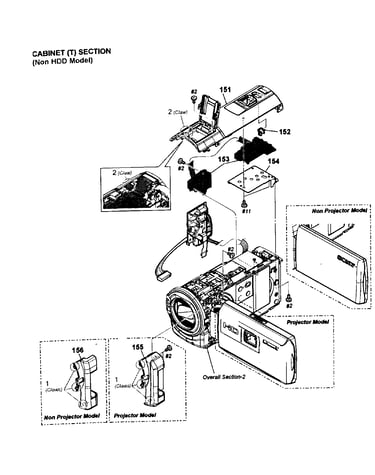

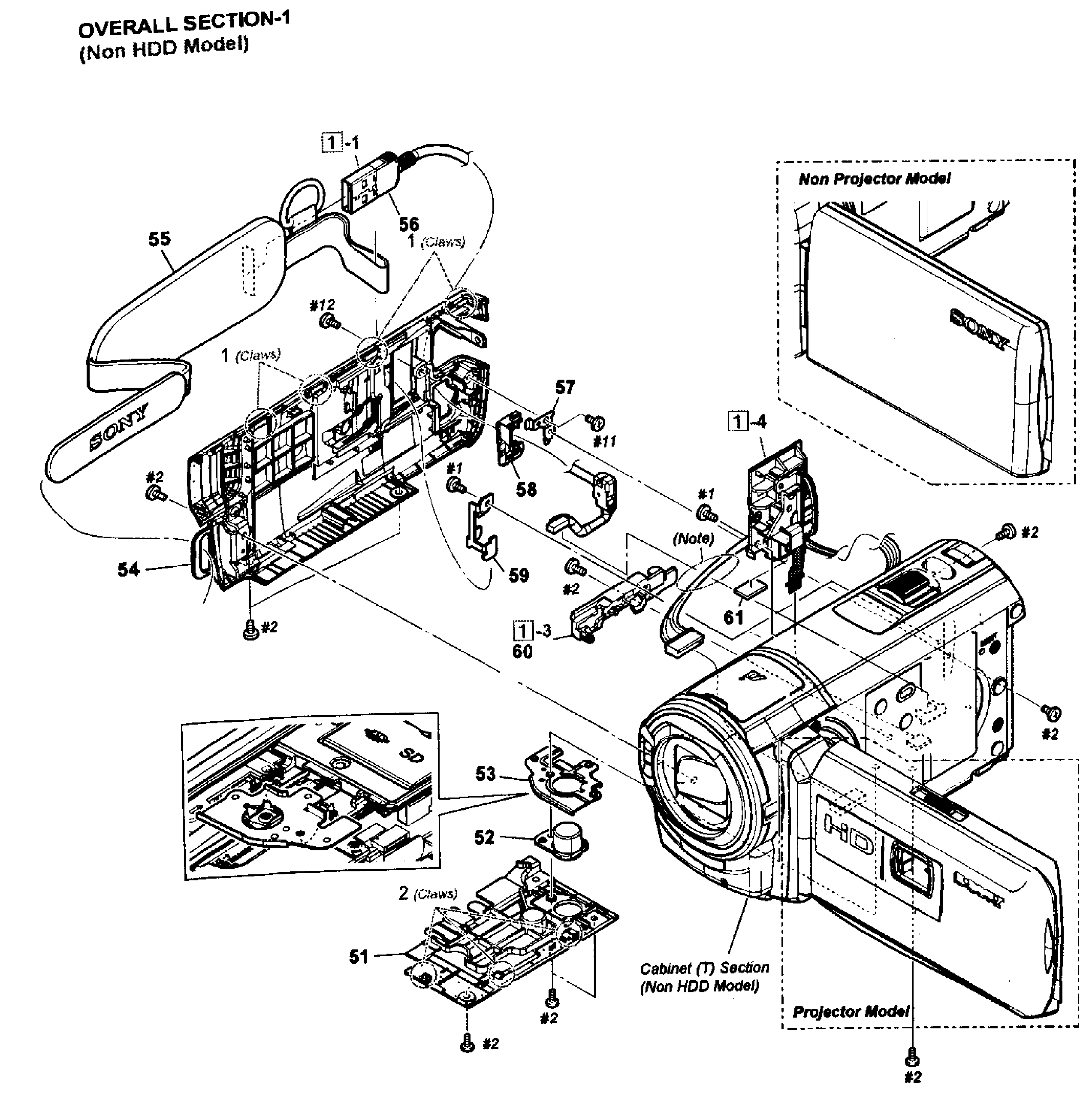

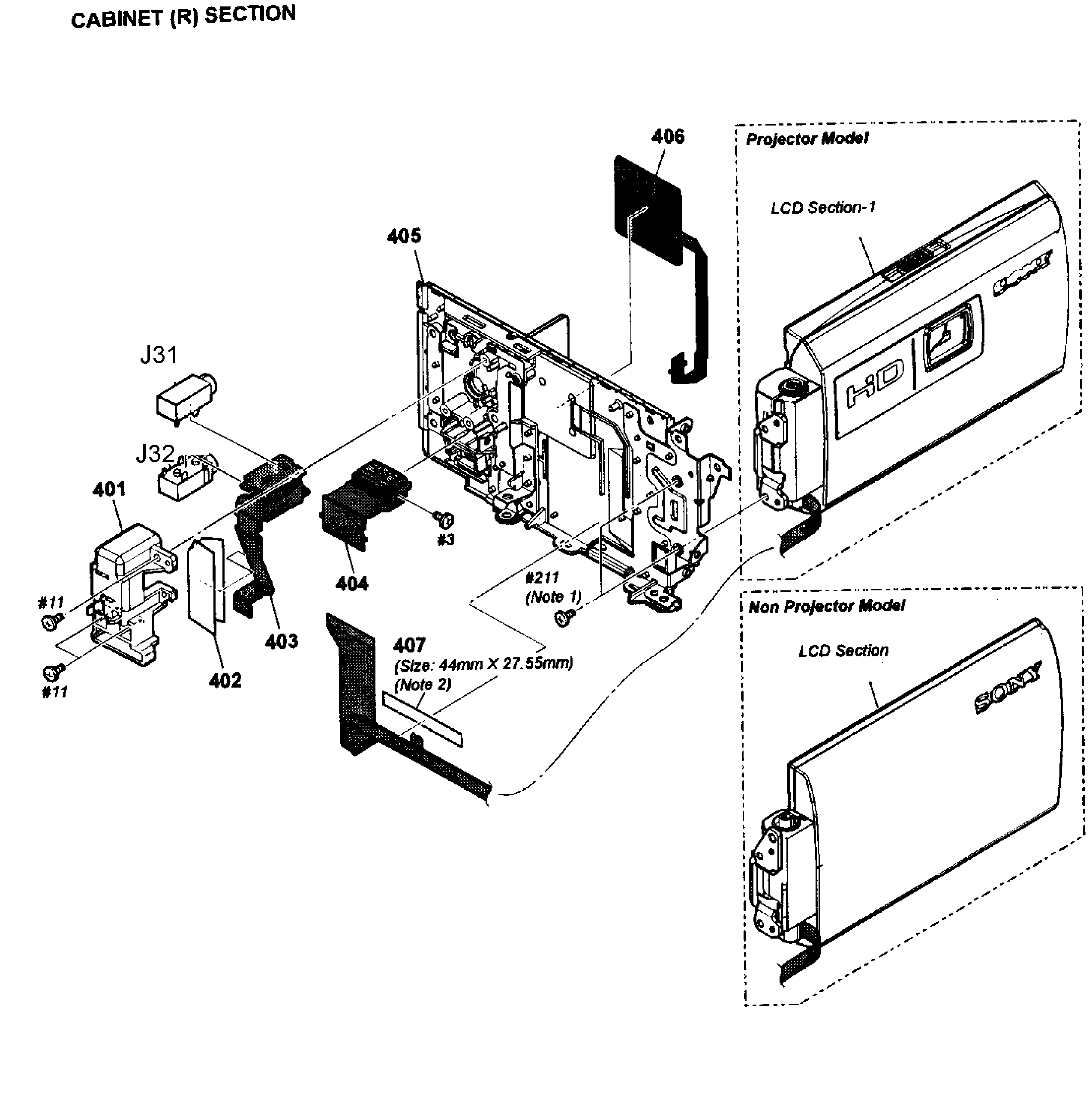

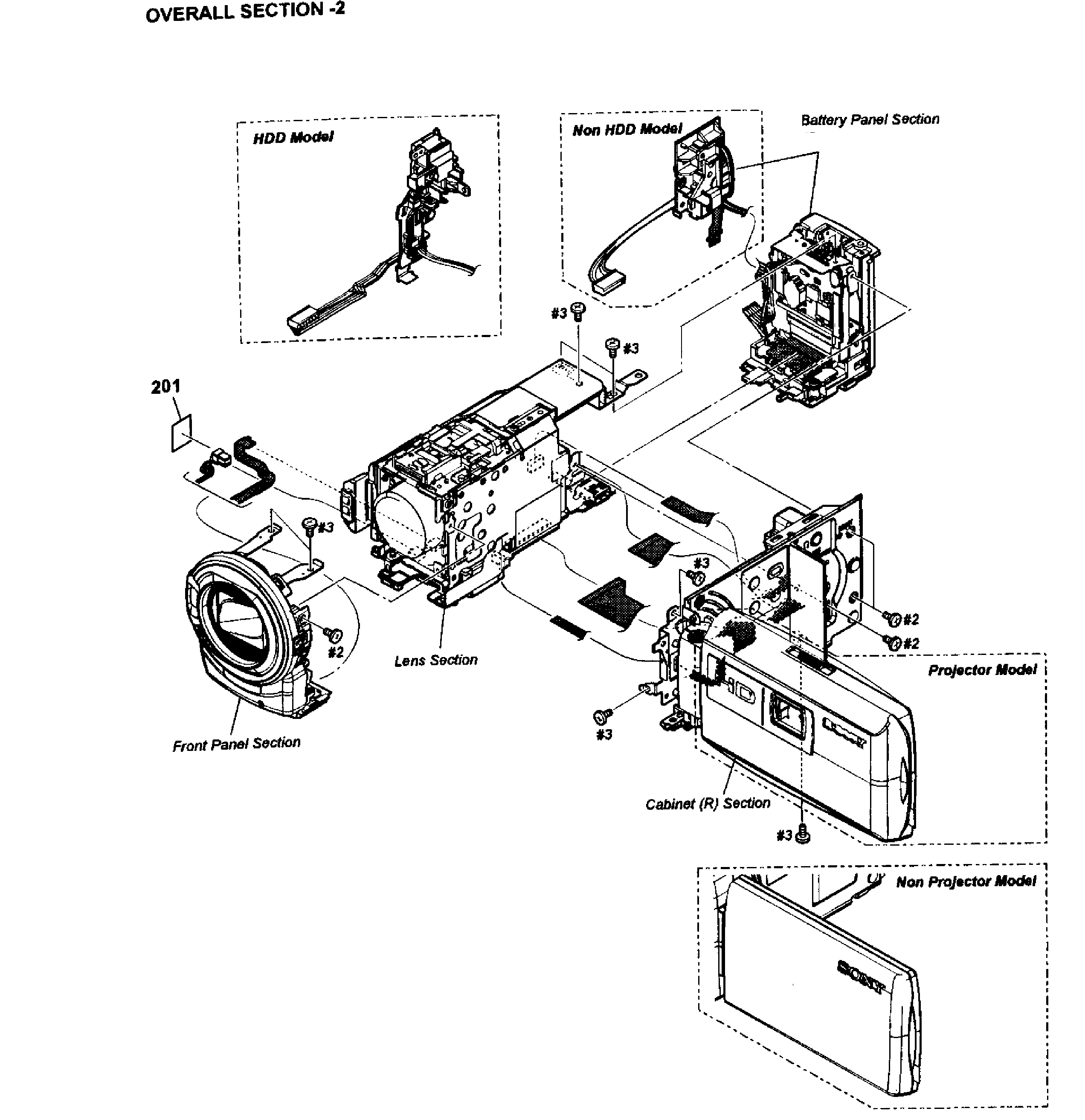

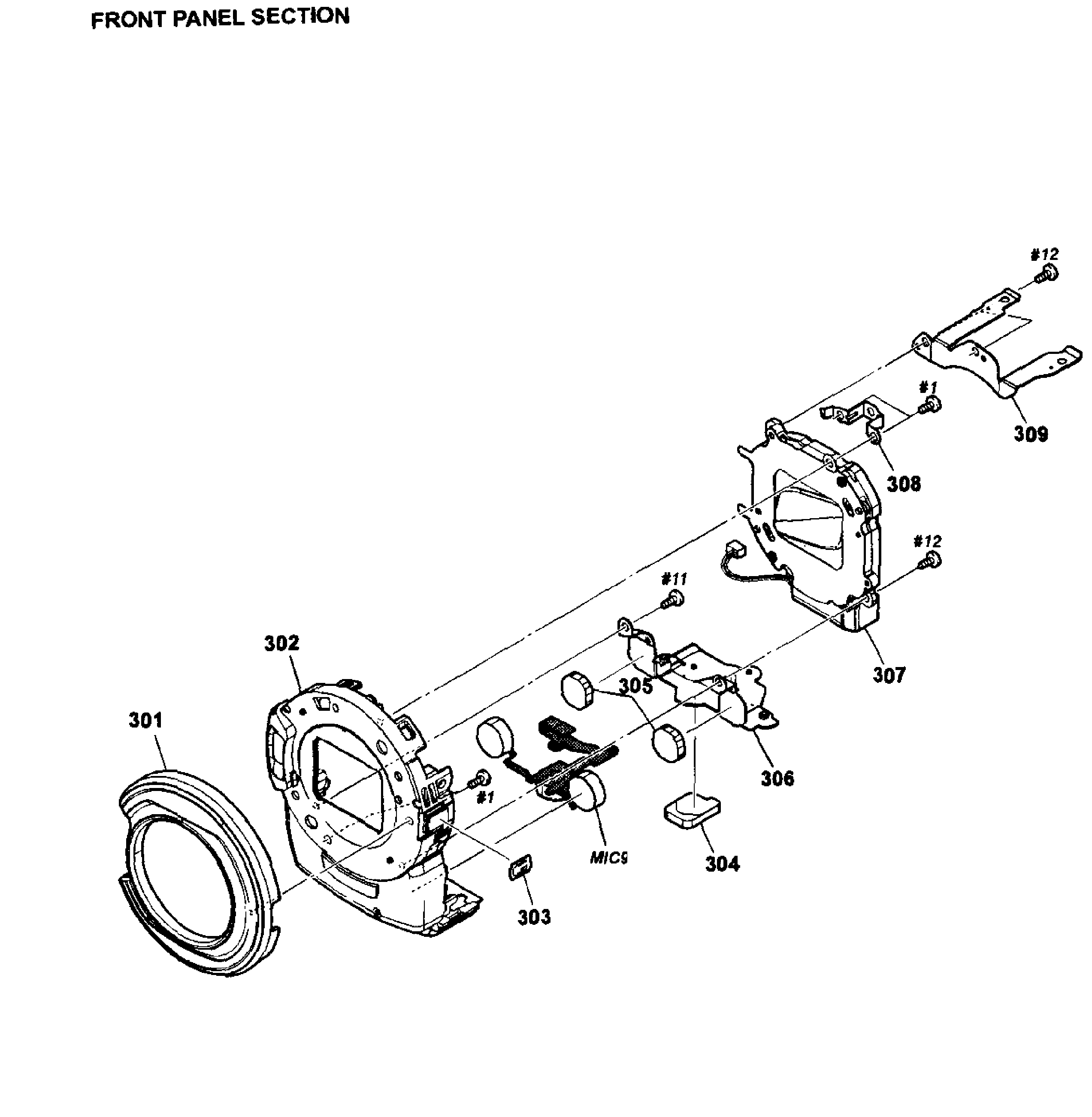

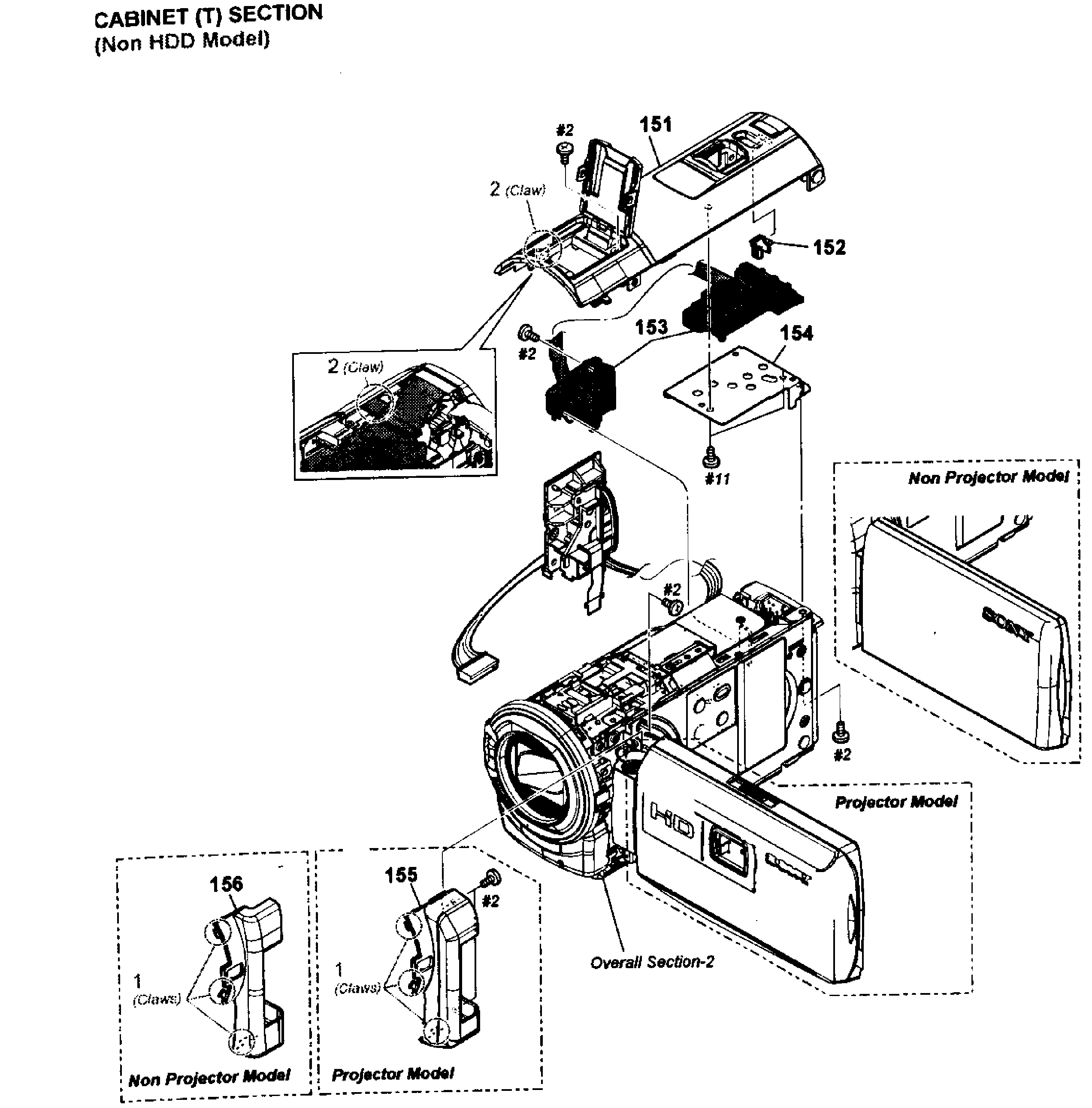

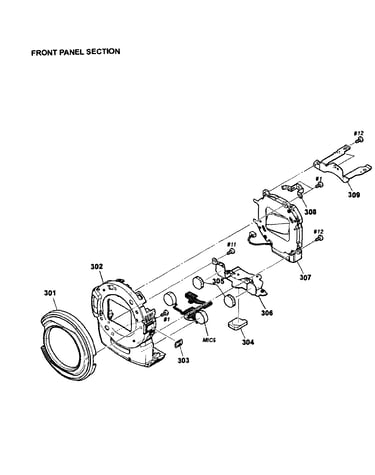

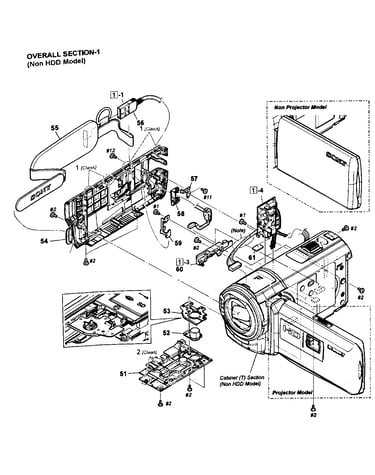

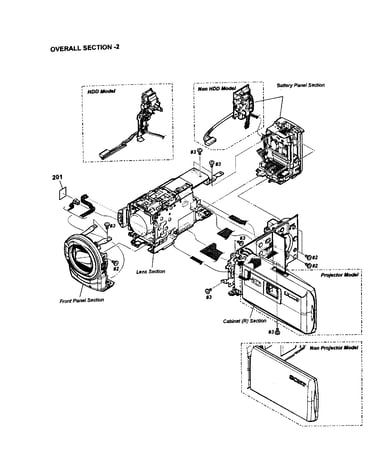

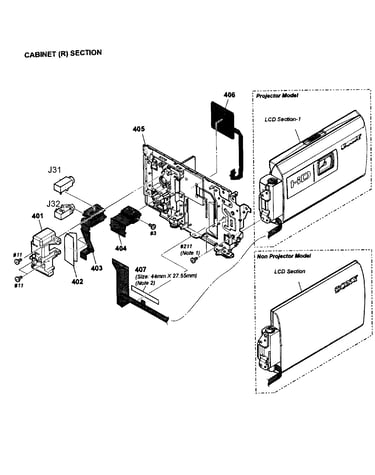

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |

Shield She 427779201
#352

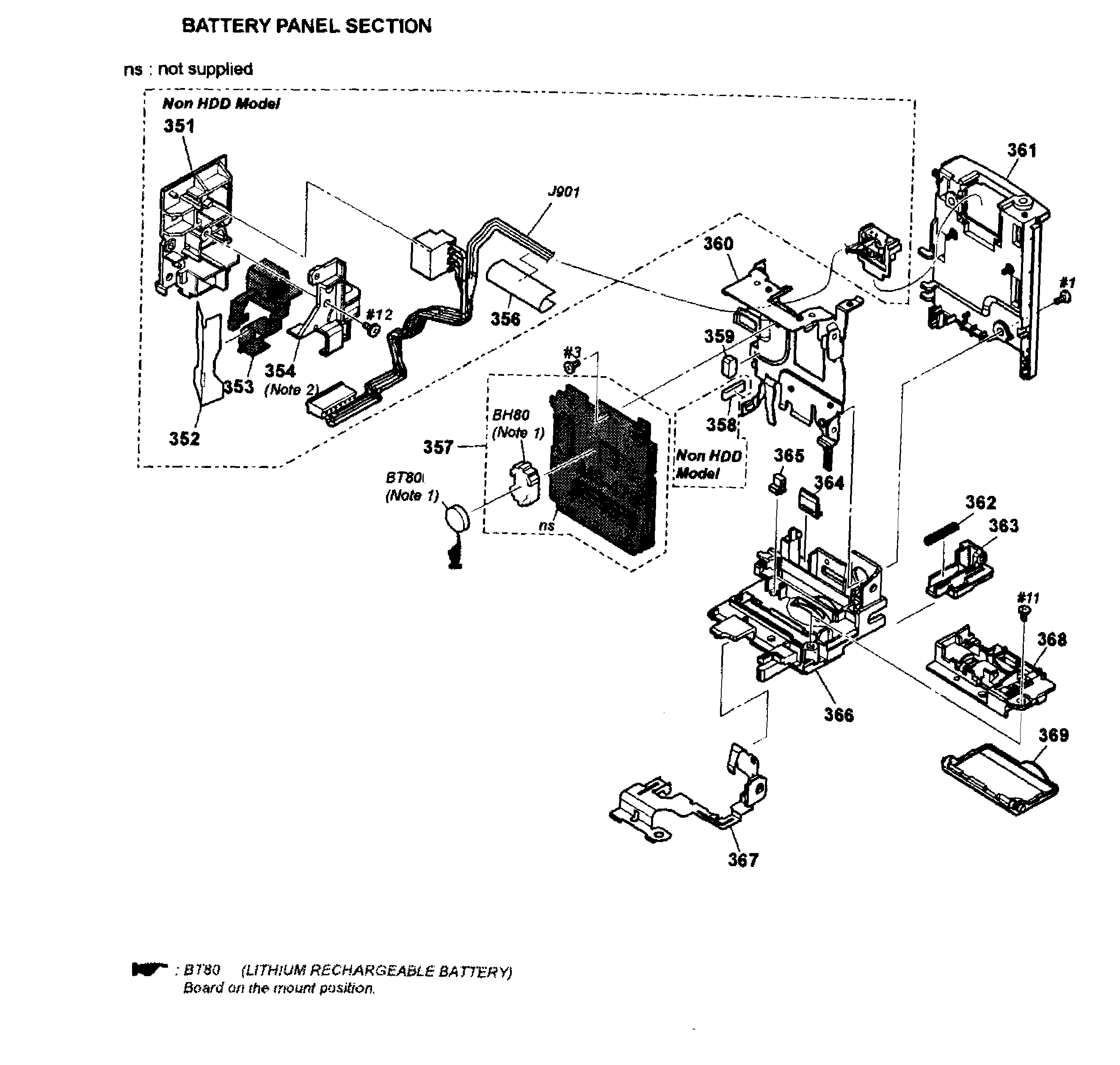

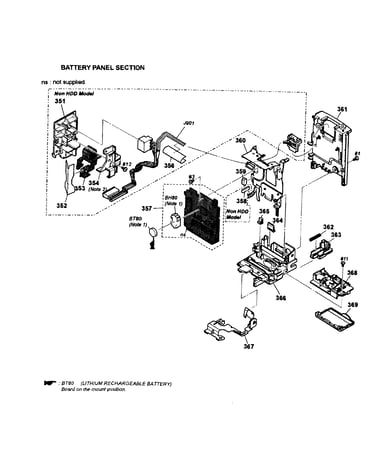

Bp panel diagram

Shield she

Part #427779201

In Stock
Sheet 427196901
#279

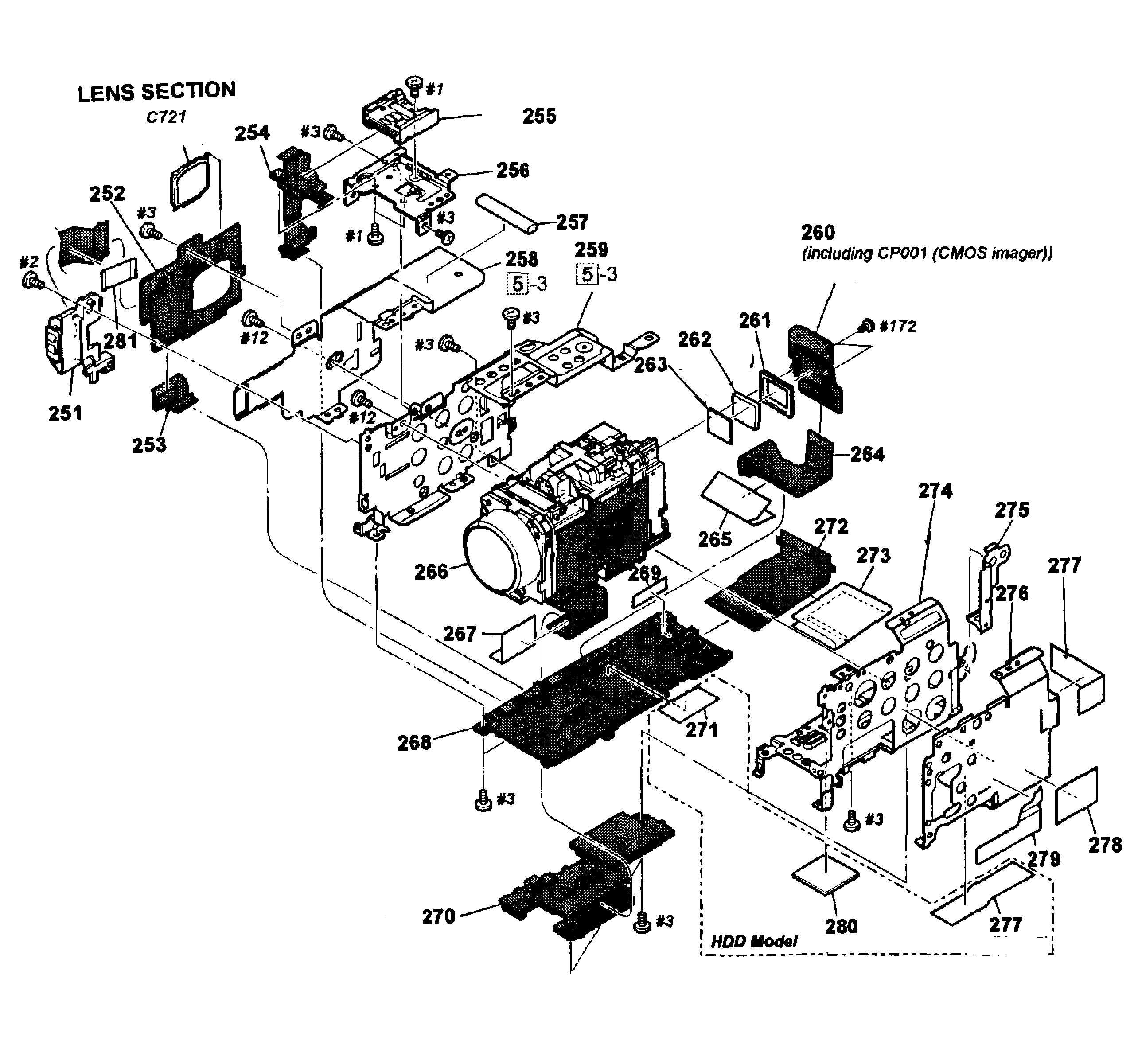

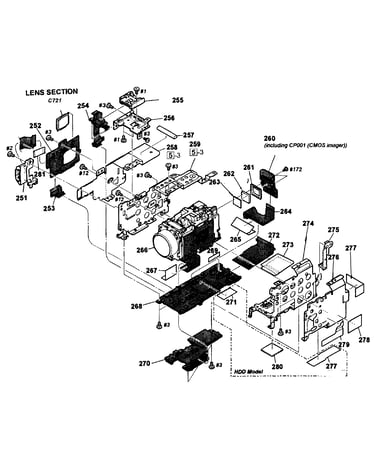

Lens assy diagram

Sheet

Part #427196901

In Stock
Lens Frame 427172301
#259

Lens assy diagram

Lens frame

Part #427172301

In Stock
Filter Blk 185617221
#262

Lens assy diagram

Filter blk

Part #185617221

In Stock
Sheet 427640801
#267

Lens assy diagram

Sheet

Part #427640801

In Stock
Hinge Cover 427235131
#517

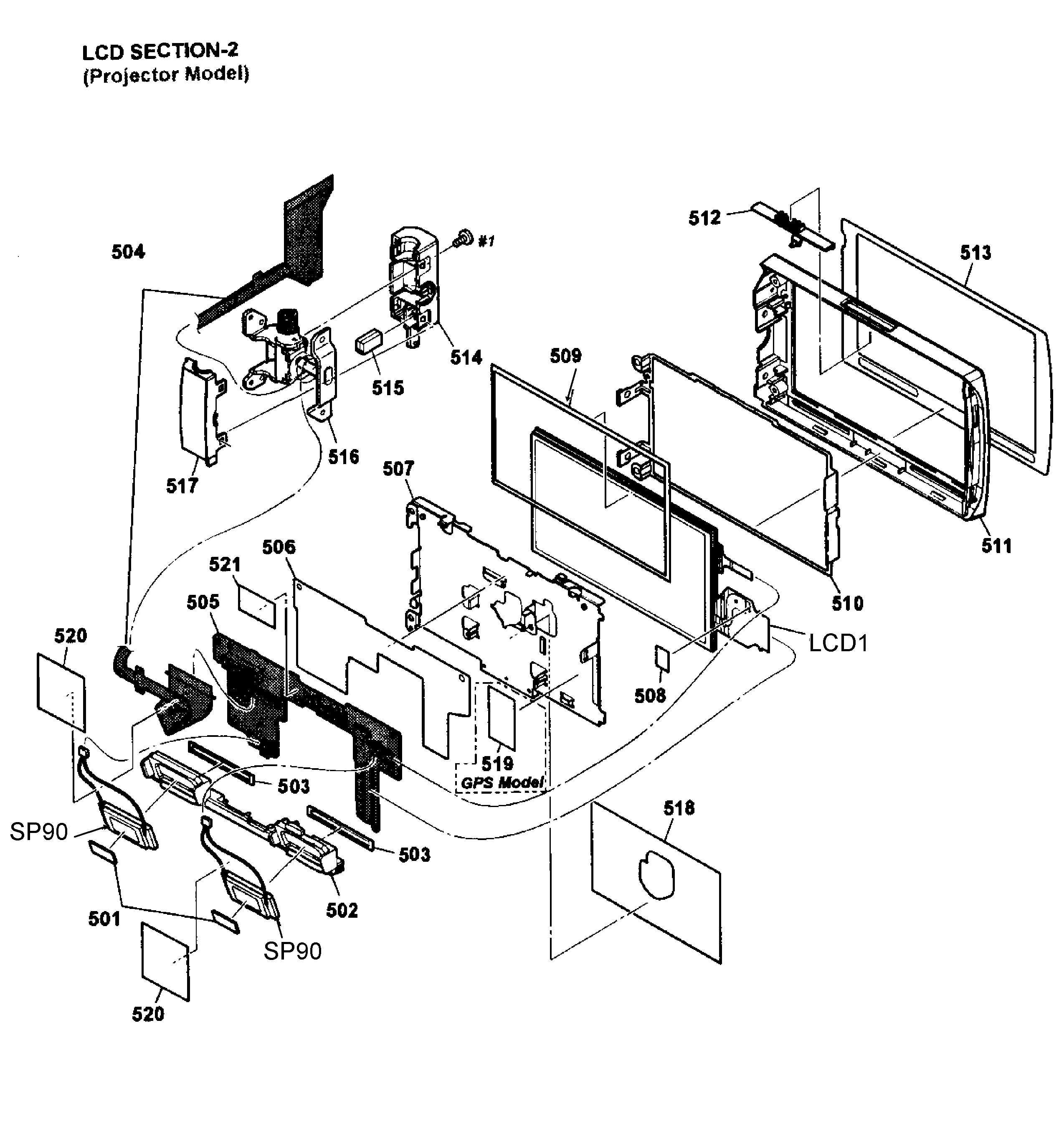

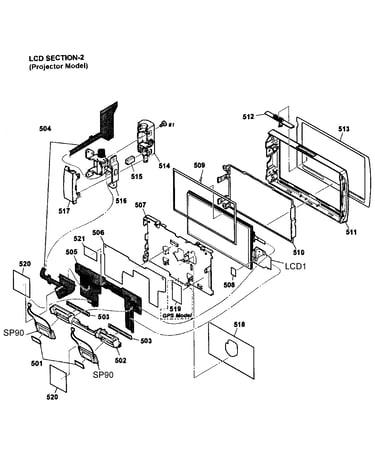

Lcd-2 diagram

Hinge cover

Part #427235131

In Stock
Socket,bat 125192821
#BH80

Bp panel diagram

Socket,bat

Part #125192821

This item is not returnable
In Stock
Sheet 428256401
#269

Lens assy diagram

Sheet

Part #428256401

In Stock
Dc Jack 184265831
#J901

Bp panel diagram

Dc jack

Part #184265831

In Stock
Cabinet Assembly A1854478A
#451

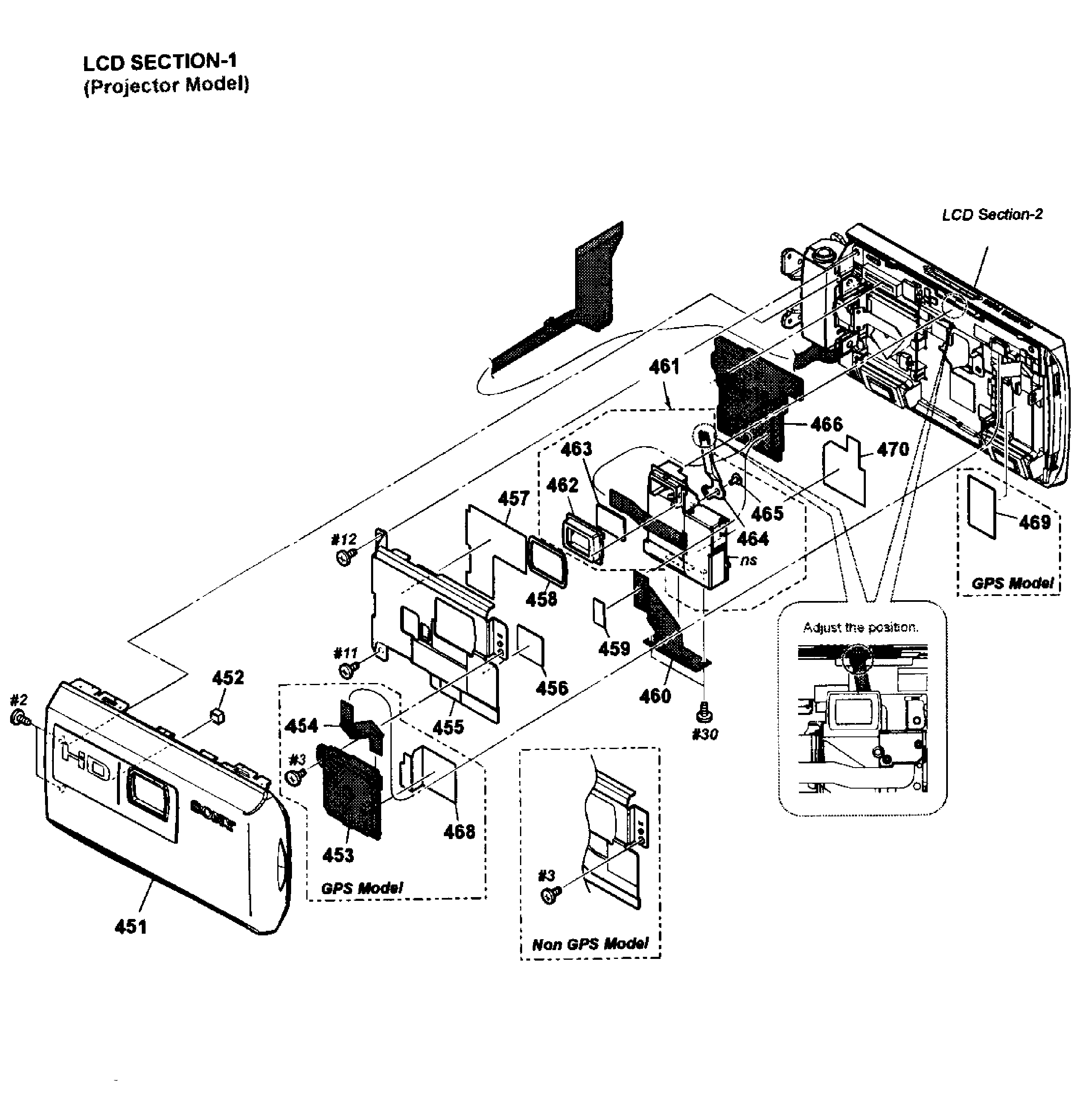

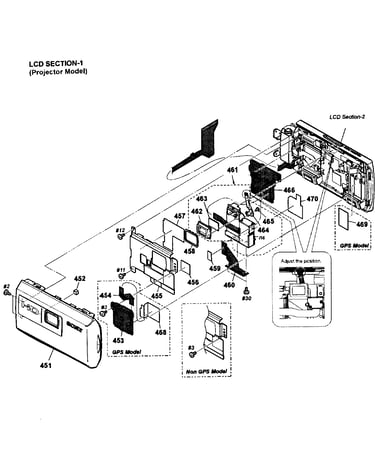

Lcd-1 diagram

Cabinet assembly

Part #A1854478A

In Stock
