Model # KCST48-12 Official Kelvinator salad prep table

Here are the diagrams and repair parts for Official Kelvinator KCST48-12 salad prep table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

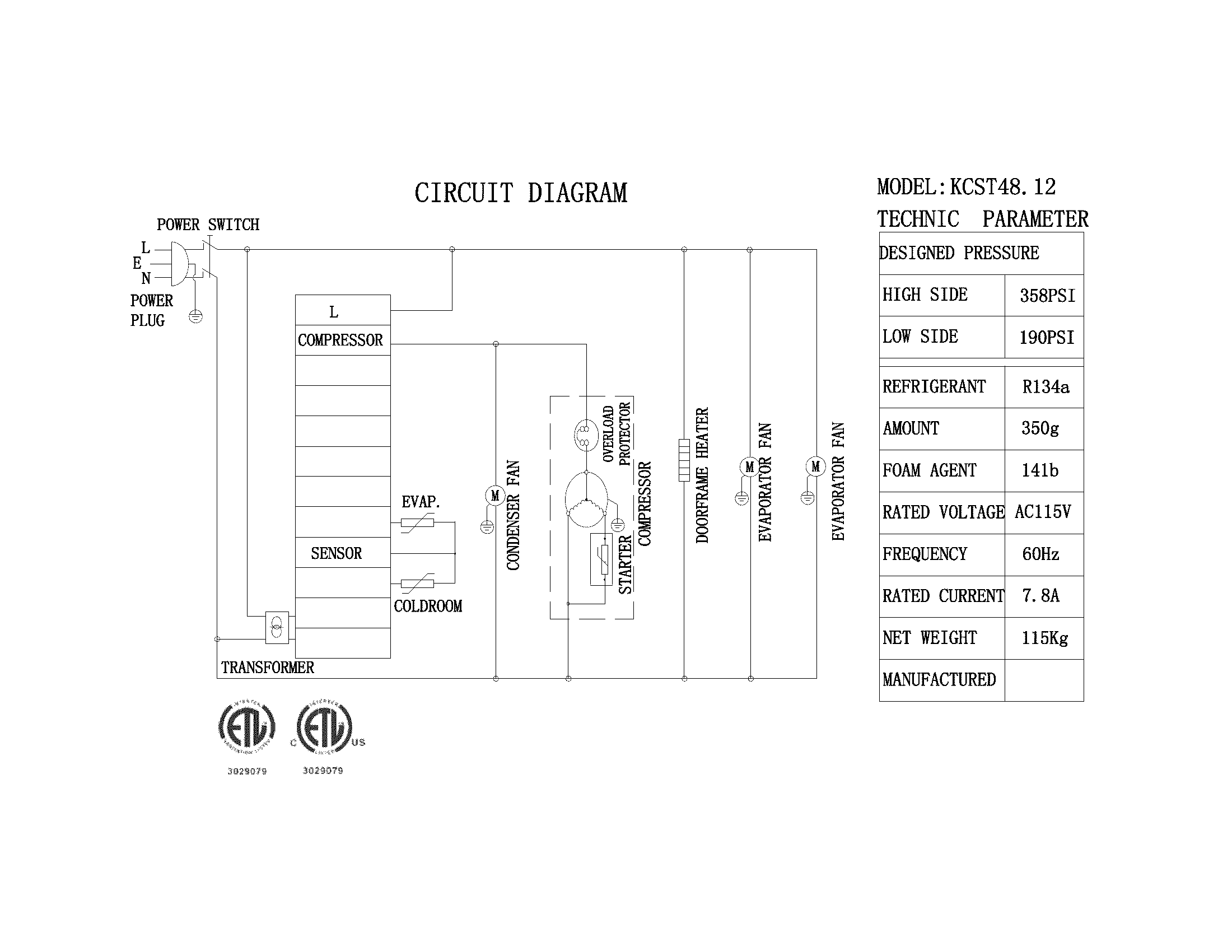

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Relay/starte 5304493173
#52

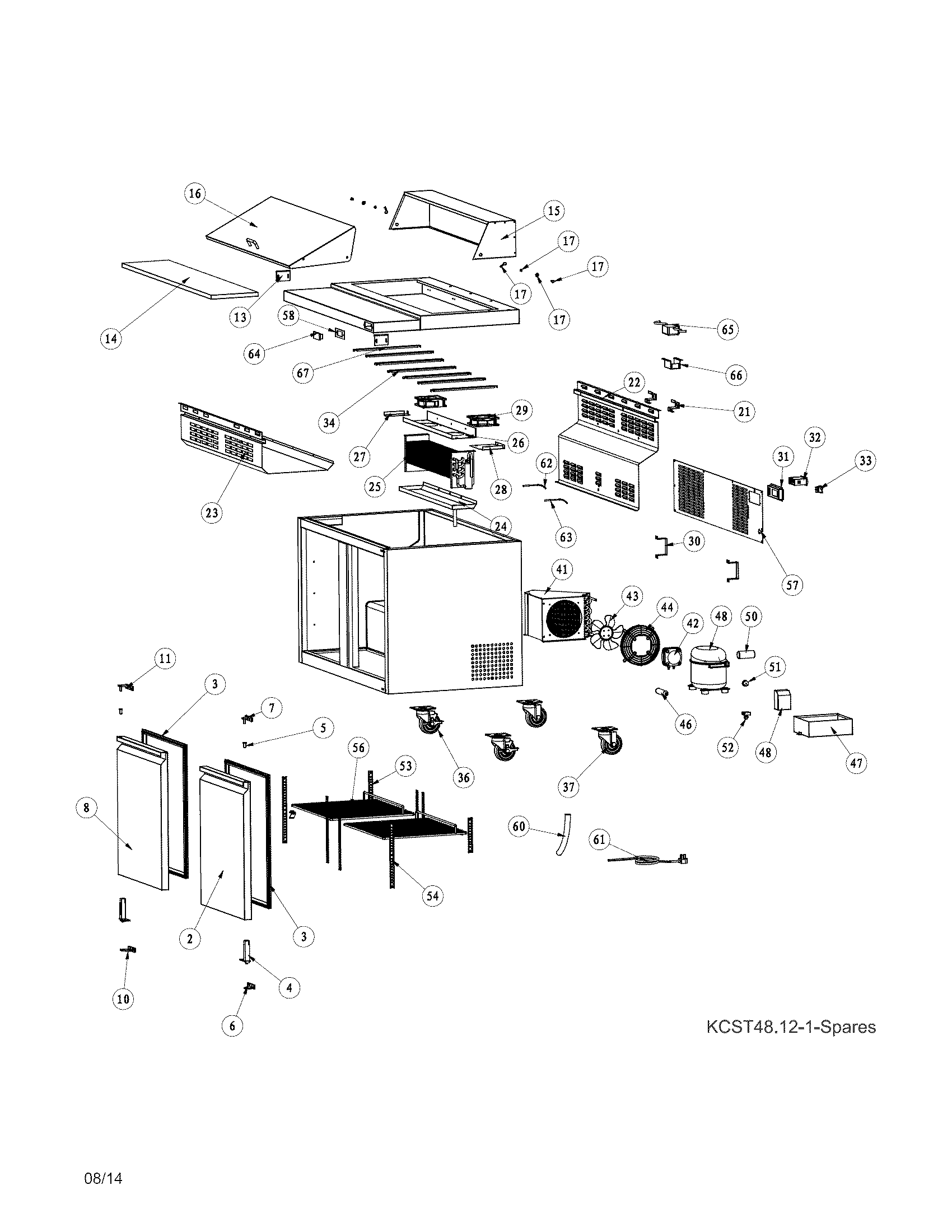

Recommended spare parts diagram

Relay/starte

Part #5304493173

The manufacturer no longer makes this part, and there's no substitute part

Motor 5304492359
#42

Recommended spare parts diagram

Motor

Part #5304492359

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bracket 5304493451
#34

Recommended spare parts diagram

Refrigerator bracket

Part #5304493451

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser 5304493455
#41

Recommended spare parts diagram

Refrigerator condenser

Part #5304493455

The manufacturer no longer makes this part, and there's no substitute part

Control Box 5304493383
#31

Recommended spare parts diagram

Control box

Part #5304493383

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Panel 5304493459
#57

Recommended spare parts diagram

Refrigerator panel

Part #5304493459

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 5304493032
#50

Recommended spare parts diagram

Capacitor

Part #5304493032

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Bracket 5304493403
#66

Recommended spare parts diagram

Refrigerator bracket

Part #5304493403

The manufacturer no longer makes this part, and there's no substitute part

Hinge 5304493409
#10

Recommended spare parts diagram

Hinge

Part #5304493409

The manufacturer no longer makes this part, and there's no substitute part

Shelf 5304493458
#56

Recommended spare parts diagram

Shelf

Part #5304493458

The manufacturer no longer makes this part, and there's no substitute part
