Model # 315269221 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315269221 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

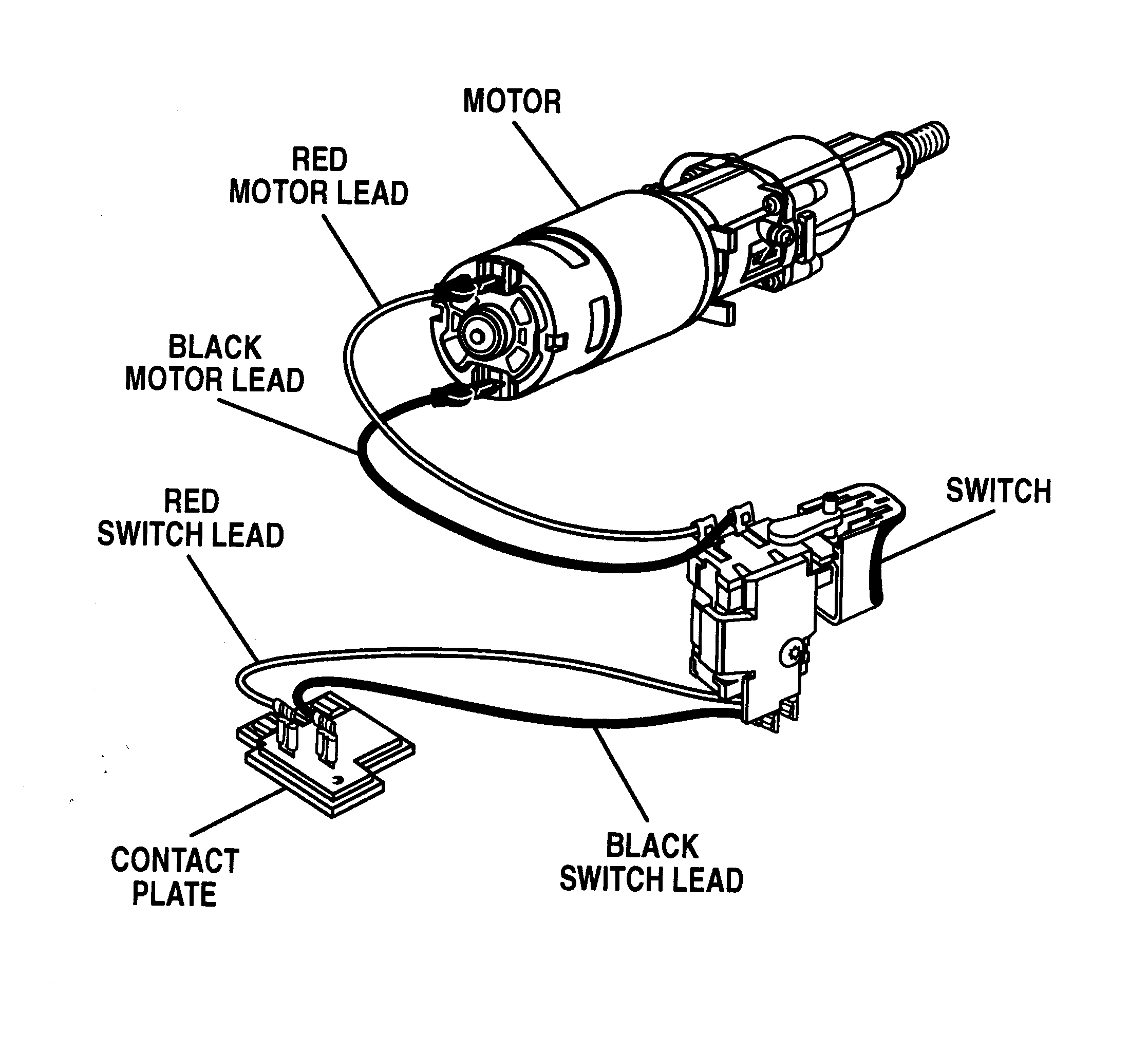

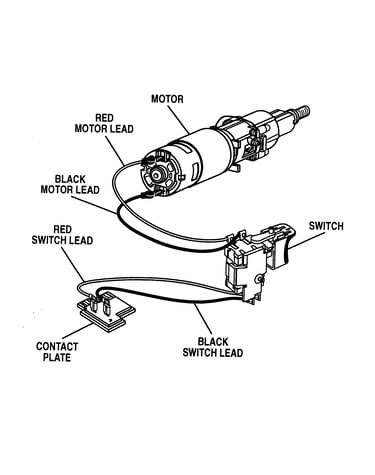

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Power Tool Steel Ball 6721901
#4

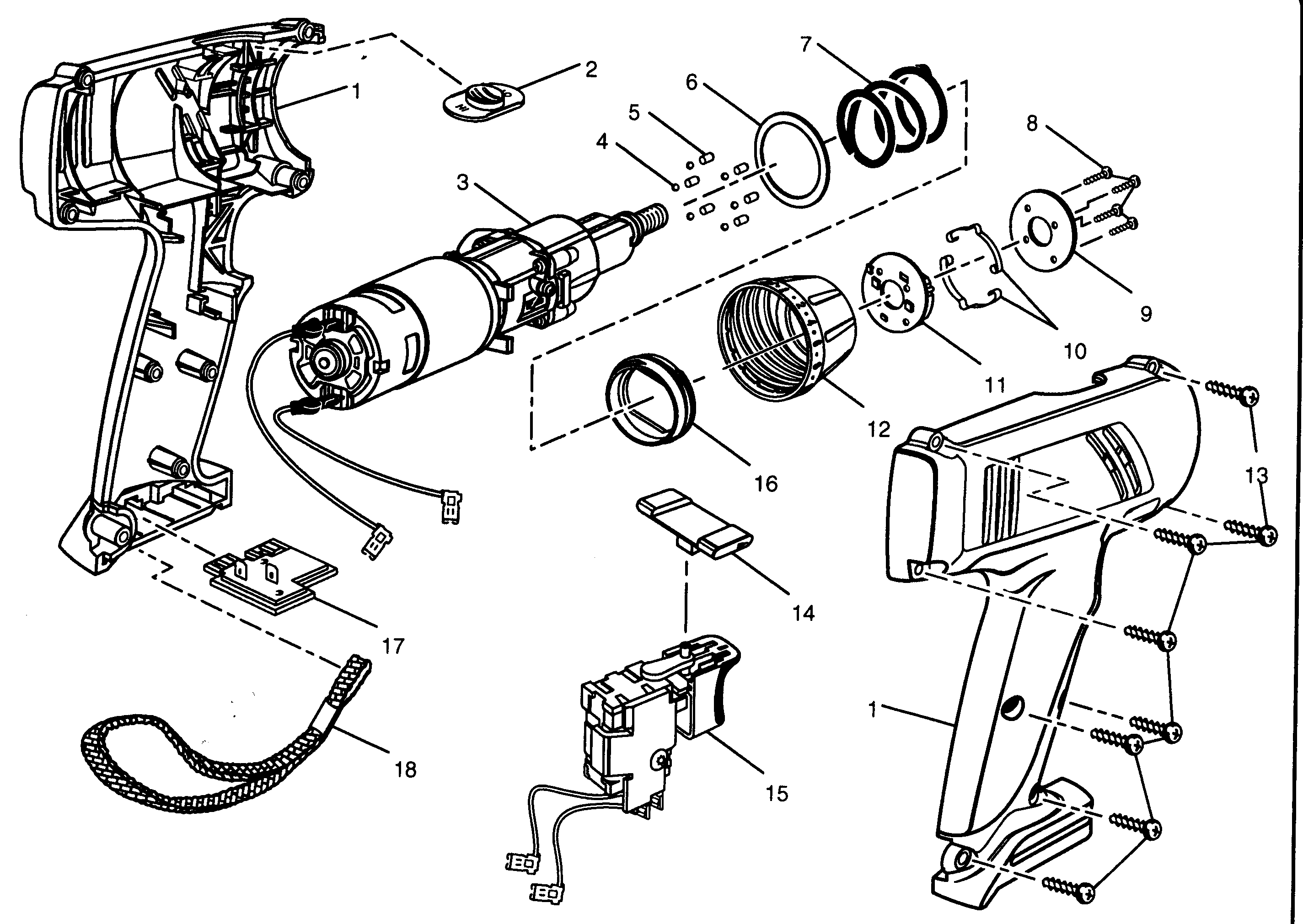

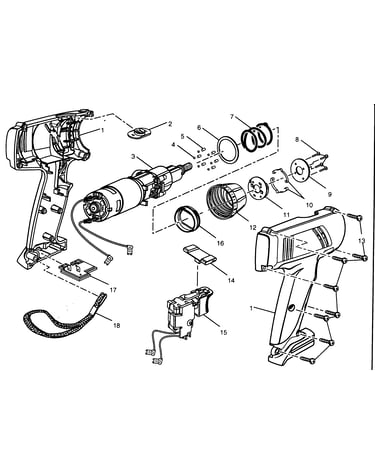

Housing assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 6833302
#5

Housing assy diagram

Lock pin

Part #6833302

The manufacturer no longer makes this part, and there's no substitute part

Actuator 3801301
#14

Housing assy diagram

Actuator

Part #3801301

The manufacturer no longer makes this part, and there's no substitute part

Chuck 981502-001
#2

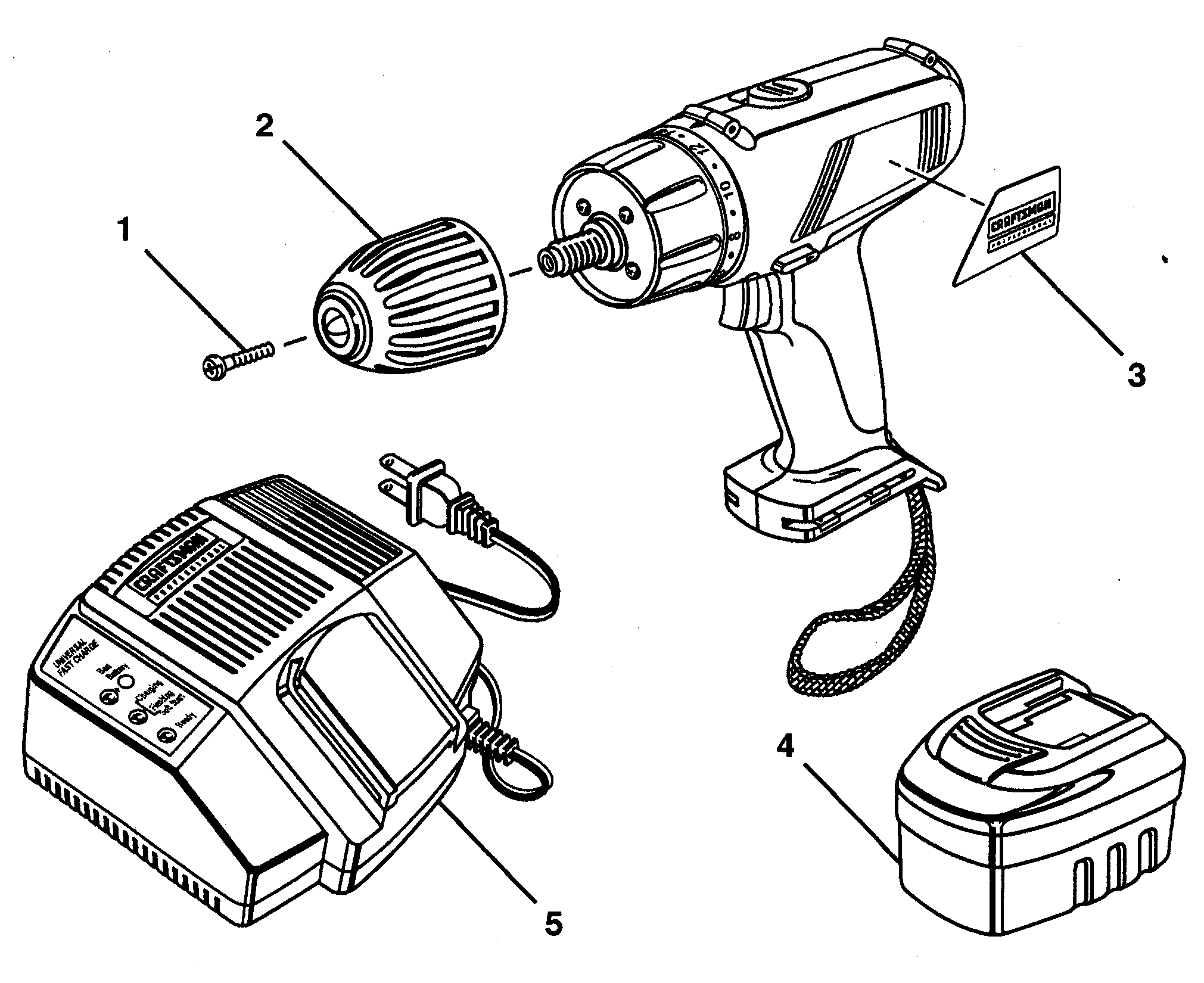

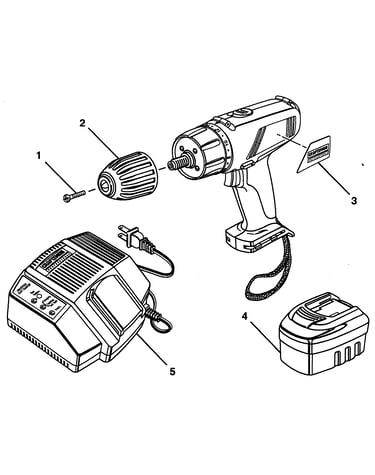

Drill diagram

Chuck

Part #981502-001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Hub 5434603
#11

Housing assy diagram

Clutch hub

Part #5434603

The manufacturer no longer makes this part, and there's no substitute part

Motor 983597-001
#3

Housing assy diagram

Motor

Part #983597-001

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000-188R
#NI

Drill diagram

Repair sheet

Part #983000-188R

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 984699-001
#12

Housing assy diagram

Clutch cap

Part #984699-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 6843401
#7

Housing assy diagram

Spring

Part #6843401

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Chuck Screw 6612003
#1

Drill diagram

Drill/driver chuck screw

Part #6612003

The manufacturer no longer makes this part, and there's no substitute part
