Carrier 58DLX11010016 furnace Parts

Here are the diagrams and repair parts for Carrier 58DLX11010016 furnace, as well as links to manuals and error code tables, if available.

Carrier 58DLX11010016 furnace
By Schematic

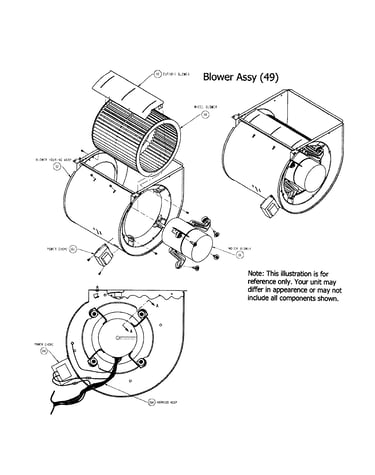

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for58DLX11010016 Furnace

  • Control Box for Carrier 58DLX11010016 - Part 327271-701

    #33

    All parts diagram

    Control Box

    Part #327271-701

    The manufacturer no longer makes this part, and there's no substitute part

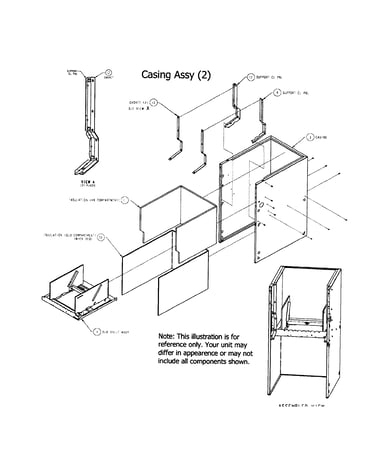

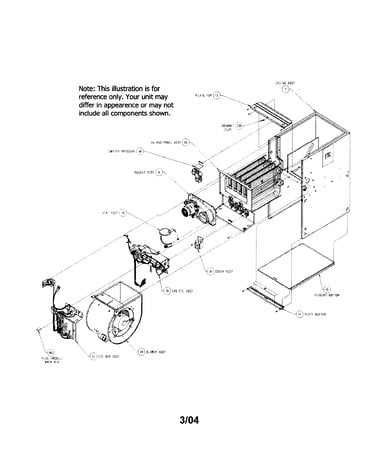

  • Casing Assembly (incl. Keys 2a-12) for Carrier 58DLX11010016 - Part 326605-730

    #2

    All parts diagram

    Casing Assembly (incl. Keys 2a-12)

    Part #326605-730

    The manufacturer no longer makes this part, and there's no substitute part

  • E;bpw Vemt for Carrier 58DLX11010016 - Part 326637-401

    #26

    All parts diagram

    E;bpw Vemt

    Part #326637-401

    The manufacturer no longer makes this part, and there's no substitute part

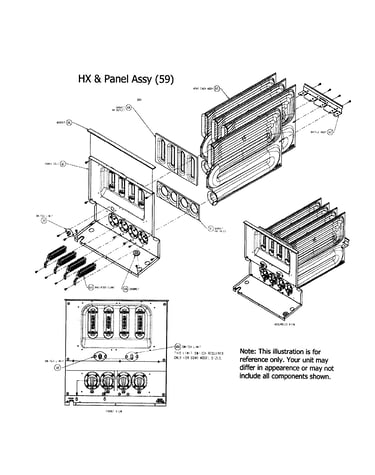

  • Hx & Panel Assy for Carrier 58DLX11010016 - Part 326608-719

    #59

    All parts diagram

    Hx & Panel Assy

    Part #326608-719

    The manufacturer no longer makes this part, and there's no substitute part

  • Top Cover for Carrier 58DLX11010016 - Part 326717-404

    #82

    All parts diagram

    Top Cover

    Part #326717-404

    The manufacturer no longer makes this part, and there's no substitute part

  • Baffle for Carrier 58DLX11010016 - Part 326710-401

    #65

    All parts diagram

    Baffle

    Part #326710-401

    The manufacturer no longer makes this part, and there's no substitute part

  • Vinly for Carrier 58DLX11010016 - Part 327553-101

    #1A

    All parts diagram

    Vinly

    Part #327553-101

    The manufacturer no longer makes this part, and there's no substitute part

  • Retaine Filter for Carrier 58DLX11010016 - Part 327276-401

    #213

    All parts diagram

    Retaine Filter

    Part #327276-401

    The manufacturer no longer makes this part, and there's no substitute part

  • Speed Nut for Carrier 58DLX11010016 - Part AS41WF002

    #210

    All parts diagram

    Speed Nut

    Part #AS41WF002

    The manufacturer no longer makes this part, and there's no substitute part

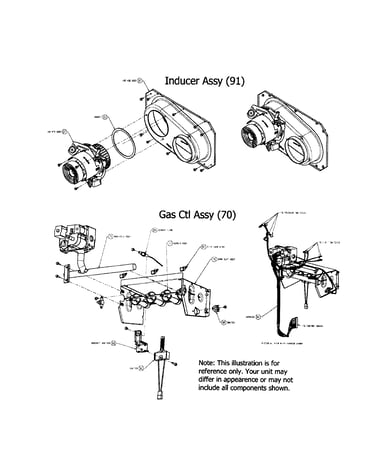

  • 101,gas Orifice Kit-nat for Carrier 58DLX11010016 - Part KGAHA0250N43

    #315

    All parts diagram

    101,gas Orifice Kit-nat

    Part #KGAHA0250N43

    The manufacturer no longer makes this part, and there's no substitute part
