Kenmore
Central Air Conditioner

Model # 25366905 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25366905 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 112 parts  |
Refrigerator Wire Harness Clamp
#26

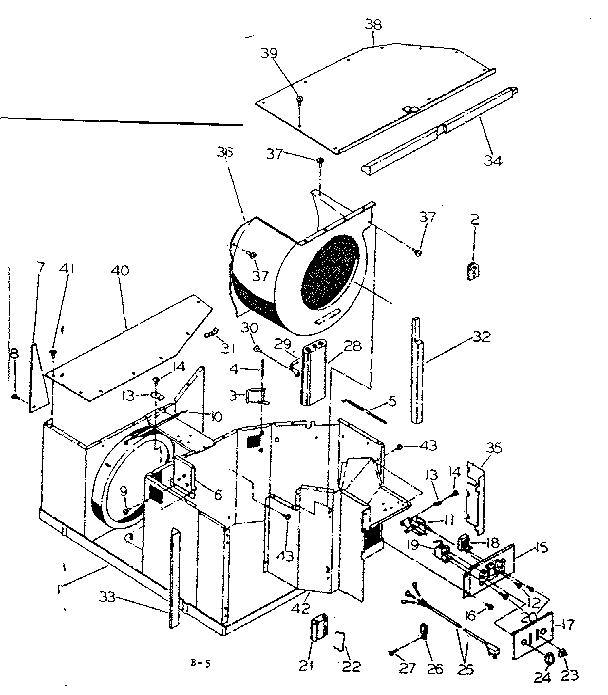

Electrical system & air handling diagram

Clamp

Part #96777

Replaced by #5303001199

?
Manufacturer substitution
This part replaces 96777. Substitute parts can look different from the original.
$50.60
In Stock
Cord
#25

Electrical system & air handling diagram

Cord

Part #145312-16

Replaced by #5303302611

?
Manufacturer substitution
This part replaces 145312-16. Substitute parts can look different from the original.
$56.24
In Stock
Link
#13

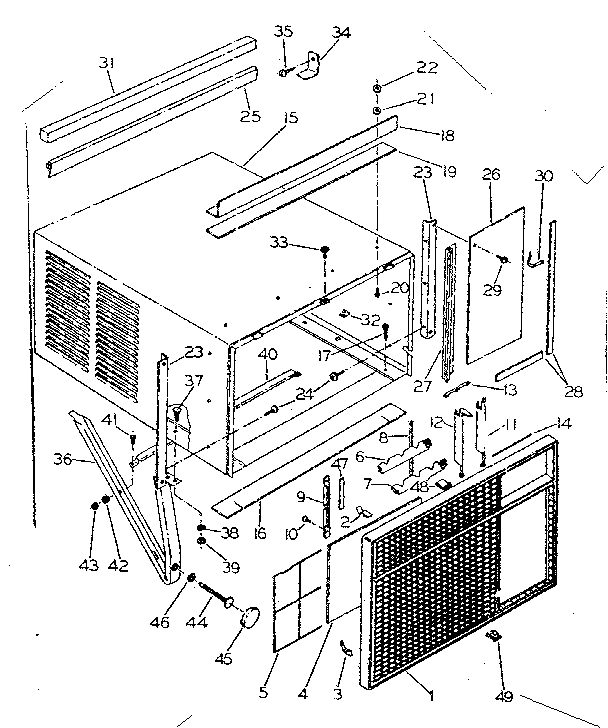

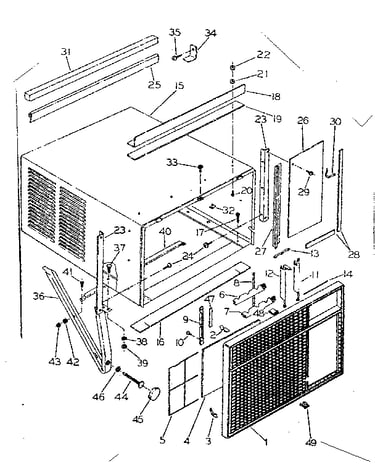

Cabinet and front diagram

Link

Part #100365

Replaced by #08047498

?
Manufacturer substitution
This part replaces 100365. Substitute parts can look different from the original.
This item is not returnable
$2.22
In Stock
Screw
#10

Cabinet and front diagram

Screw

Part #141793

The manufacturer no longer makes this part, and there's no substitute part

Screw
#24

Cabinet and front diagram

Screw

Part #100823

The manufacturer no longer makes this part, and there's no substitute part

Condenser
#23

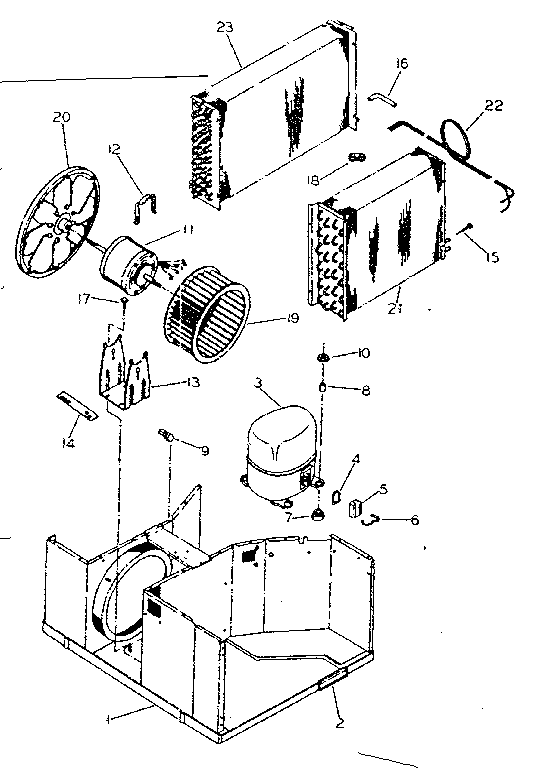

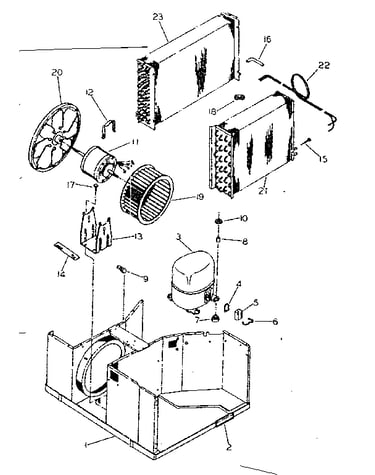

Refrigeration system & air handling diagram

Condenser

Part #154989

The manufacturer no longer makes this part, and there's no substitute part

Panel
#17

Electrical system & air handling diagram

Panel

Part #123584

The manufacturer no longer makes this part, and there's no substitute part

Clip
#3

Cabinet and front diagram

Clip

Part #112571

The manufacturer no longer makes this part, and there's no substitute part

Condenser Cover
#40

Electrical system & air handling diagram

Condenser cover

Part #150487

The manufacturer no longer makes this part, and there's no substitute part

Compressor
#3

Refrigeration system & air handling diagram

Compressor

Part #AH152GT-010

The manufacturer no longer makes this part, and there's no substitute part
