DeWalt
Hammer Drill

Model # DW515KTY2 Official DeWalt hammer drill

Here are the diagrams and repair parts for Official DeWalt DW515KTY2 hammer drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

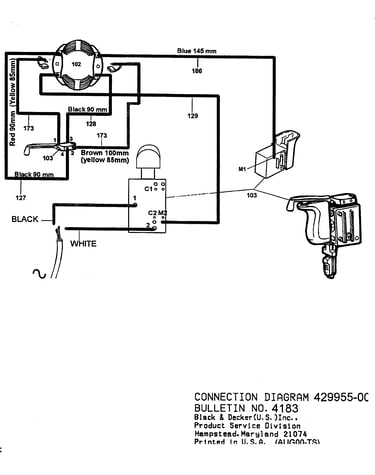

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Case Carry 577646-01
#861

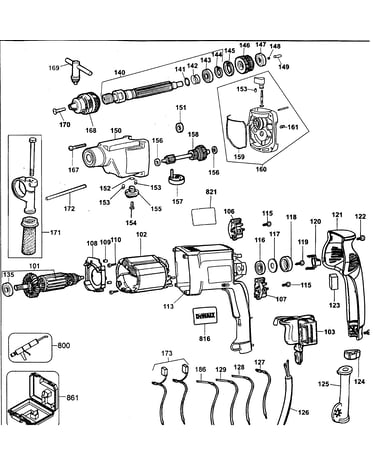

Drill diagram

Case carry

Part #577646-01

The manufacturer no longer makes this part, and there's no substitute part

Drill Side Handle 939794-00
#171

Drill diagram

Drill side handle

Part #939794-00

The manufacturer no longer makes this part, and there's no substitute part

Ball 917725-00
#148

Drill diagram

Ball

Part #917725-00

The manufacturer no longer makes this part, and there's no substitute part

Np Dw515t2 328988-20
#821

Drill diagram

Np dw515t2

Part #328988-20

The manufacturer no longer makes this part, and there's no substitute part

Baffle Fan 327293-00
#108

Drill diagram

Baffle fan

Part #327293-00

The manufacturer no longer makes this part, and there's no substitute part

Protector 401751-00
#125

Drill diagram

Protector

Part #401751-00

The manufacturer no longer makes this part, and there's no substitute part

O-ring 930028-00
#141

Drill diagram

O-ring

Part #930028-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 327291-00
#159

Drill diagram

Seal

Part #327291-00

The manufacturer no longer makes this part, and there's no substitute part

Lead Black 940988-70
#128

Drill diagram

Lead black

Part #940988-70

The manufacturer no longer makes this part, and there's no substitute part

Guide 327296-00
#120

Drill diagram

Guide

Part #327296-00

The manufacturer no longer makes this part, and there's no substitute part
