Panasonic
Speaker

Model # SB-HF490P Official Panasonic audio speakers

Here are the diagrams and repair parts for Official Panasonic SB-HF490P audio speakers, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

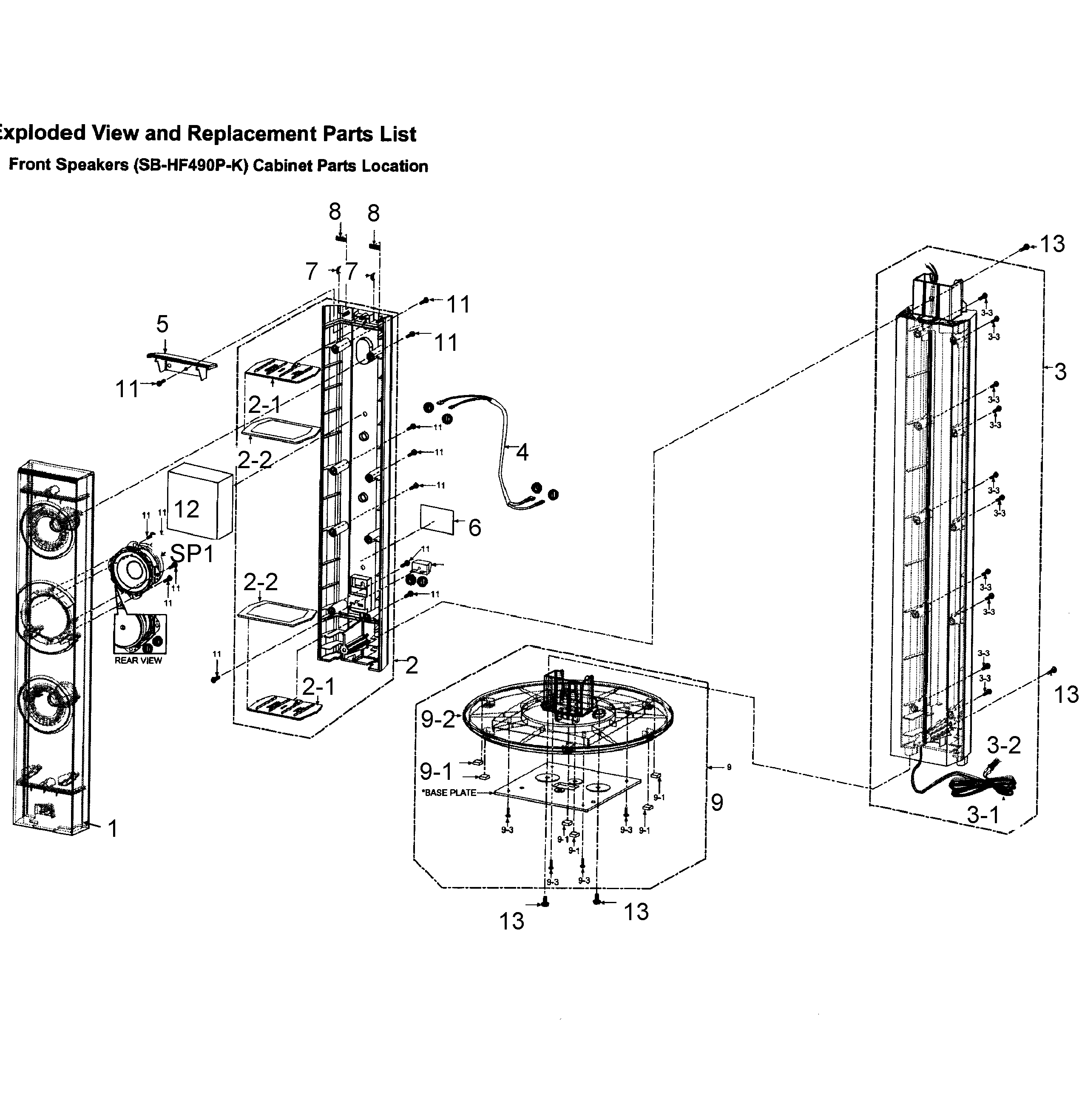

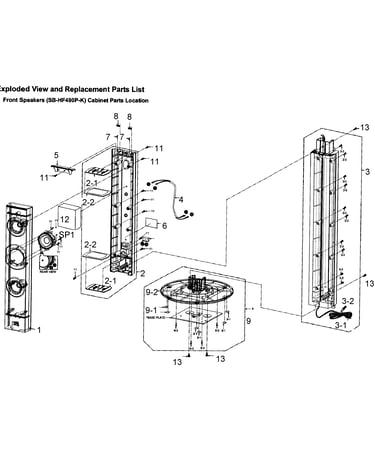

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Screw XTB310GFJ
Screw

Part #XTB310GFJ

The manufacturer no longer makes this part, and there's no substitute part

Himelon RMF0501
#7

Speaker diagram

Himelon

Part #RMF0501

The manufacturer no longer makes this part, and there's no substitute part

Wire REE1595
#4

Speaker diagram

Wire

Part #REE1595

The manufacturer no longer makes this part, and there's no substitute part

Low Box Rt RYP1714B-K
#3A

Speaker diagram

Low box rt

Part #RYP1714B-K

The manufacturer no longer makes this part, and there's no substitute part

Base Stand RYP1745-K
#9

Speaker diagram

Base stand

Part #RYP1745-K

The manufacturer no longer makes this part, and there's no substitute part

Himelon RMF0500A
#2-2

Speaker diagram

Himelon

Part #RMF0500A

The manufacturer no longer makes this part, and there's no substitute part

Low Box Lt RYP1714A-K
#3

Speaker diagram

Low box lt

Part #RYP1714A-K

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front RYP1735-K
#1

Speaker diagram

Cabinet front

Part #RYP1735-K

The manufacturer no longer makes this part, and there's no substitute part

Leg RKAX0033-K
#9-1

Speaker diagram

Leg

Part #RKAX0033-K

The manufacturer no longer makes this part, and there's no substitute part

Absorber RMF0245
#12

Speaker diagram

Absorber

Part #RMF0245

The manufacturer no longer makes this part, and there's no substitute part
