Model # 52FCA012310EC Official Carrier window air conditioner

Here are the diagrams and repair parts for Official Carrier 52FCA012310EC window air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Cover 3550U-L004A
#NI

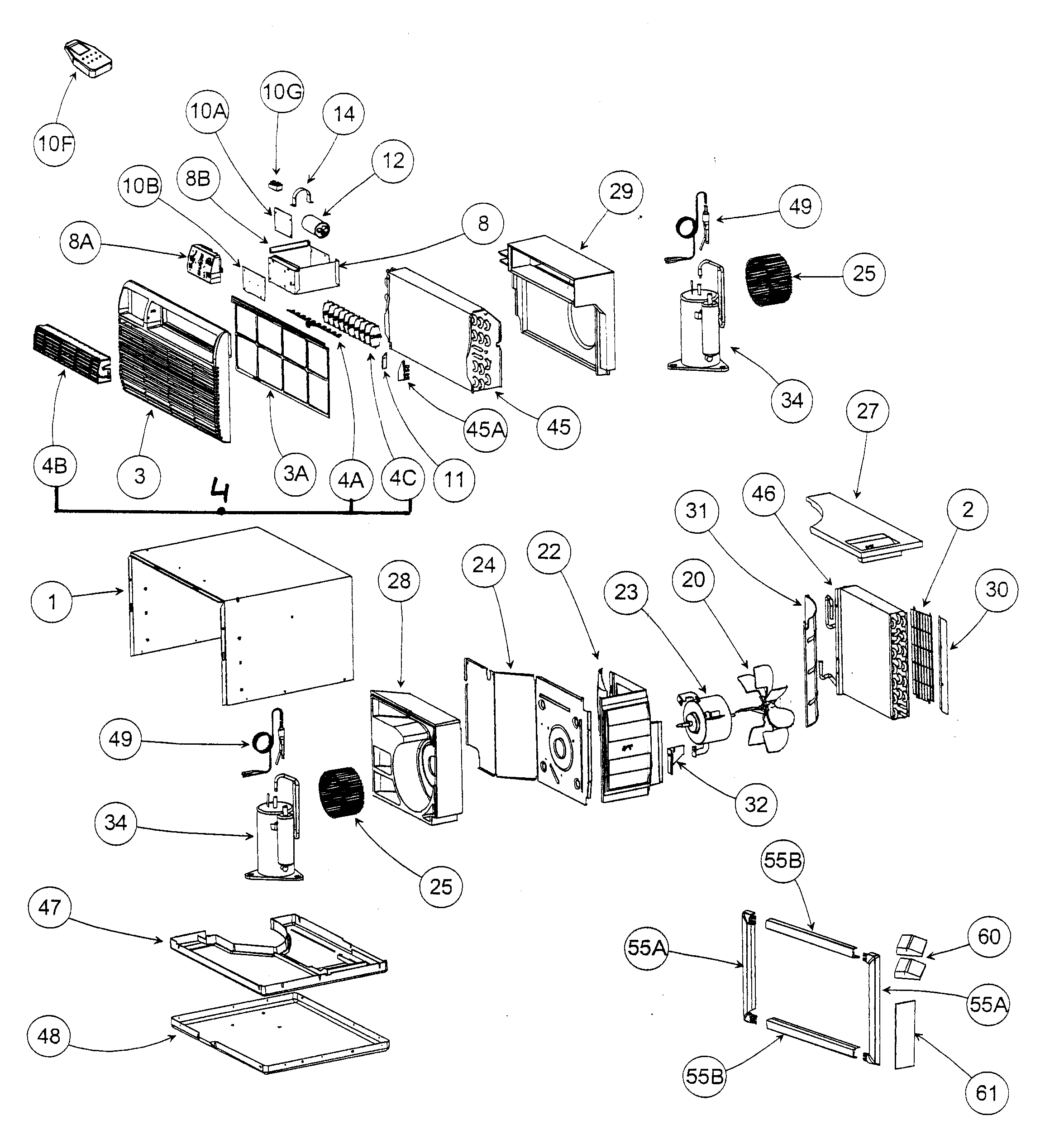

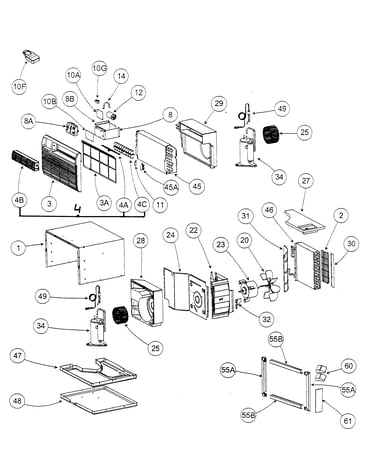

Cabinet parts diagram

Cover

Part #3550U-L004A

$10.60
In Stock
Switch 3200761
#NI

Cabinet parts diagram

Switch

Part #3200761

$60.85
In Stock
Screw 3202975
#NI

Cabinet parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Control Box 309200301
#8

Cabinet parts diagram

Control box

Part #309200301

The manufacturer no longer makes this part, and there's no substitute part

Coil Condenser 309632507
#46

Cabinet parts diagram

Coil condenser

Part #309632507

The manufacturer no longer makes this part, and there's no substitute part

Cover 309628802
#27

Cabinet parts diagram

Cover

Part #309628802

The manufacturer no longer makes this part, and there's no substitute part

Grommet 5303283877
#NI

Cabinet parts diagram

Grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Holder 08017123
#45A

Cabinet parts diagram

Holder

Part #08017123

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 309629102
#20

Cabinet parts diagram

Fan blade

Part #309629102

The manufacturer no longer makes this part, and there's no substitute part

55k,block Chassis 5304409310
#NI

Cabinet parts diagram

55k,block chassis

Part #5304409310

The manufacturer no longer makes this part, and there's no substitute part
