Model # 14343204 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 14343204 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

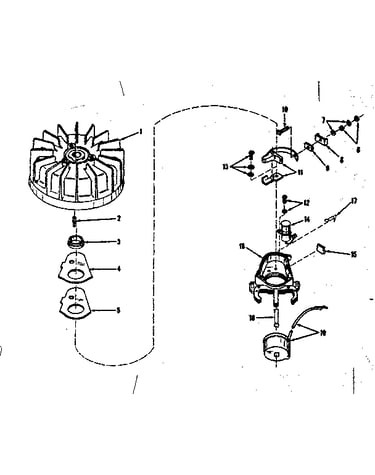

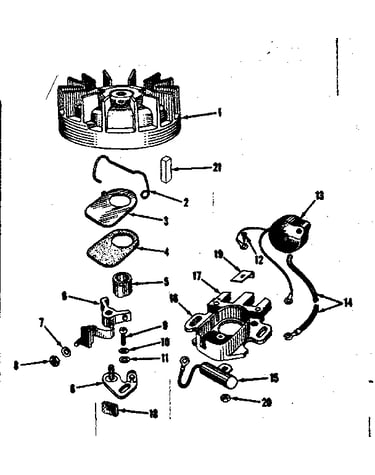

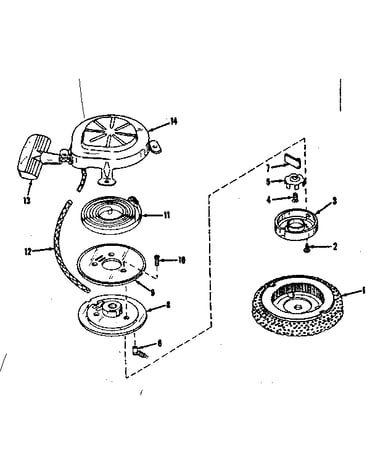

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 217 parts  |

Gasket 27110
#20

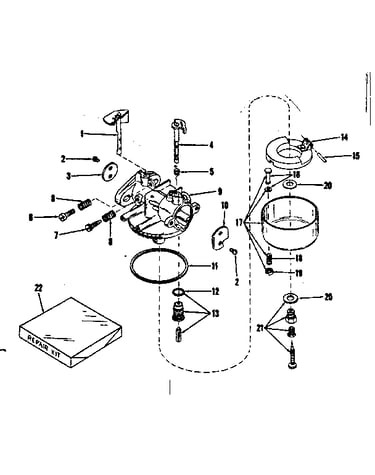

Carburetor no. 28627 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Tube 27627
#48

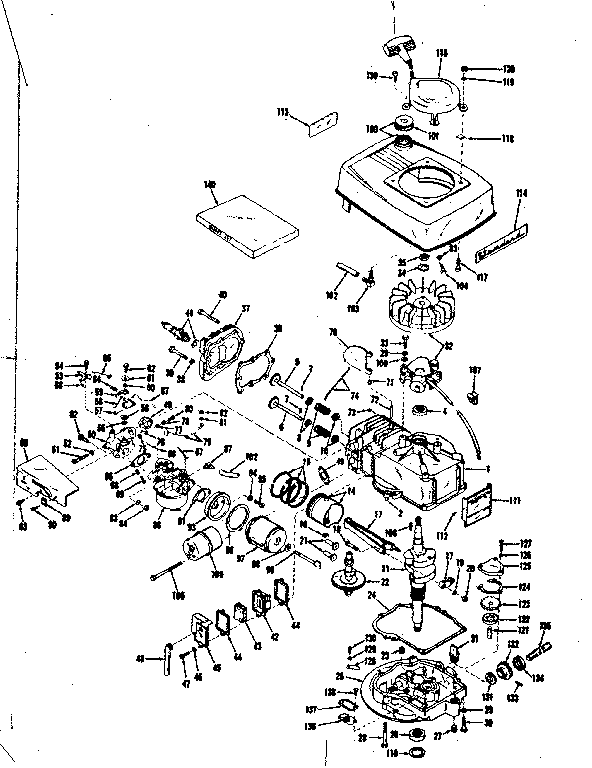

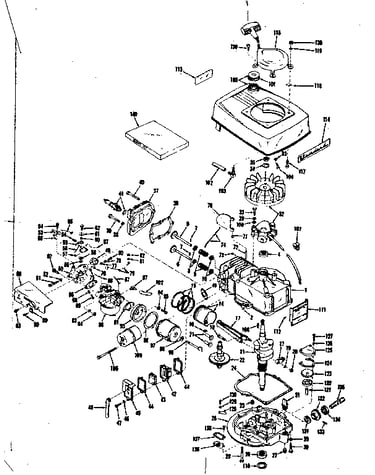

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#14

Carburetor no. 28627 diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Cap Screw, 1/4-28 X 7/8-in 6201
#92

Basic engine diagram

Hex head cap screw, 1/4-28 x 7/8-in

Part #6201

The manufacturer no longer makes this part, and there's no substitute part

Spring 27114
#8

Carburetor no. 28627 diagram

Spring

Part #27114

The manufacturer no longer makes this part, and there's no substitute part

Washer 28563
#61

Basic engine diagram

Washer

Part #28563

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Int Valve 27602
#5

Basic engine diagram

Int valve

Part #27602

The manufacturer no longer makes this part, and there's no substitute part

Washer 8345
#109

Basic engine diagram

Washer

Part #8345

The manufacturer no longer makes this part, and there's no substitute part

Screw 28553
#51

Basic engine diagram

Screw

Part #28553

The manufacturer no longer makes this part, and there's no substitute part
