Model # GL-105E/P96302-1F Official Amana gas furnace - gl series

Here are the diagrams and repair parts for Official Amana GL-105E-P96302-1F gas furnace - gl series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

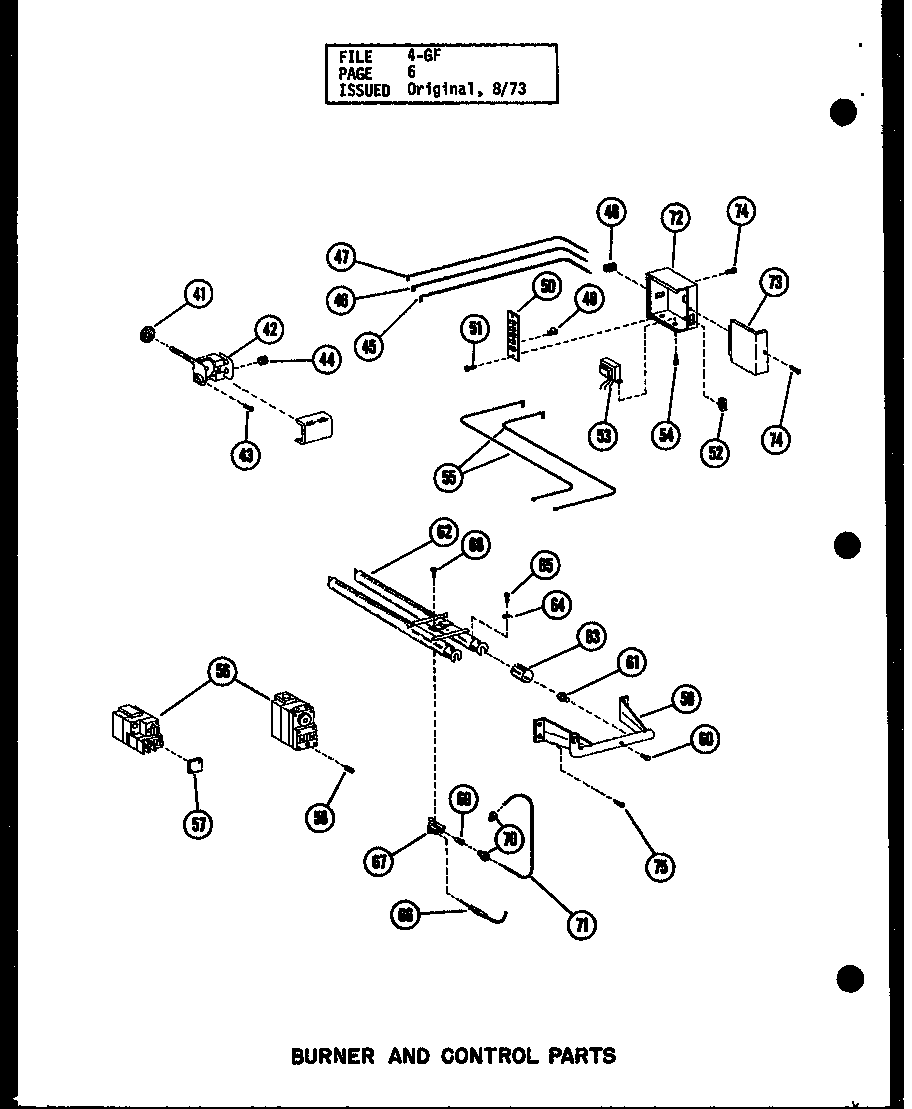

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |
Screw M0211030
Screw

Part #M0211030

Replaced by #R9800670

?
Manufacturer substitution
This part replaces M0211030. Substitute parts can look different from the original.
This item is not returnable
$4.89 |
17% OFF Phone Price : $5.89
In Stock
Amana Nameplate, Pressure Sensitive, 17-7/8" C9446802
Amana nameplate, pressure sensitive, 17-7/8"

Part #C9446802

The manufacturer no longer makes this part, and there's no substitute part

Top Rear Panel B9258603
#1C

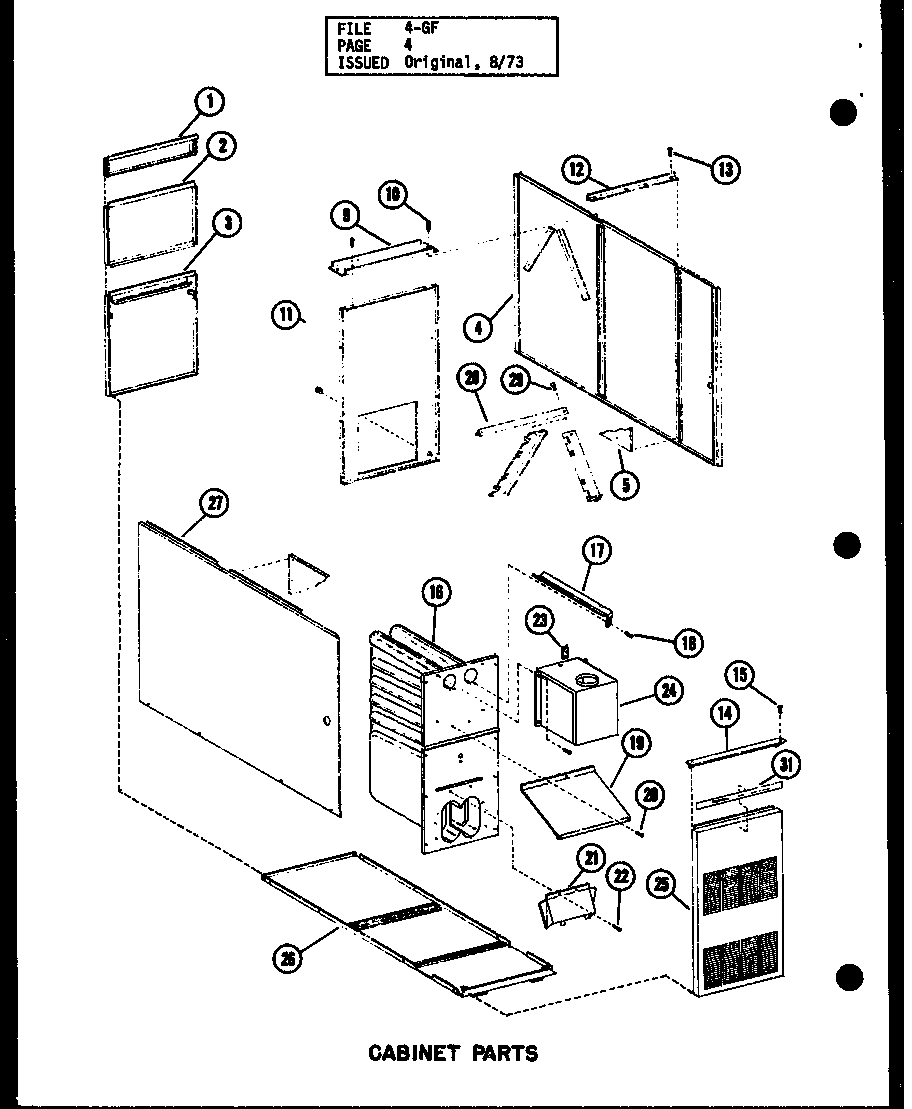

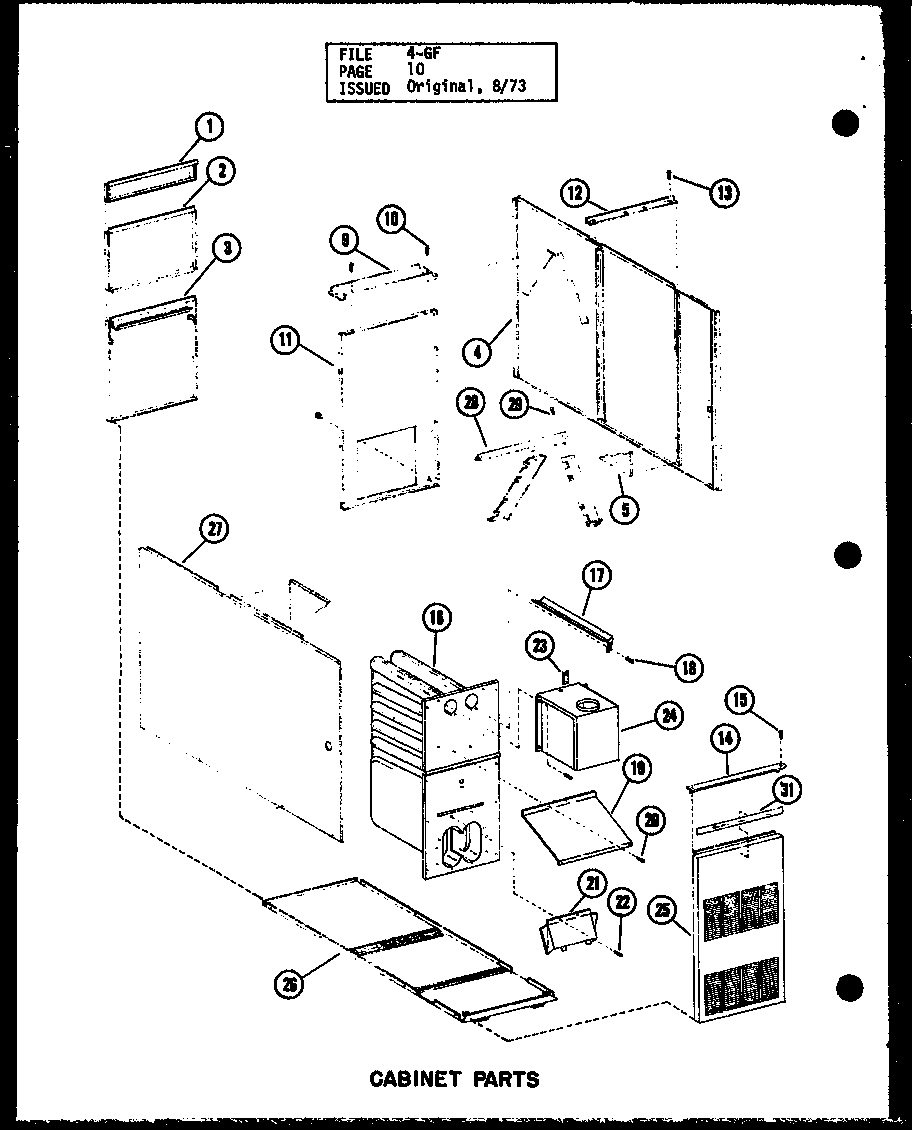

Cabinet parts (gl-105e/p96253-1f) (gl-105e/p96302-1f) (gl-120e/p96253-3f) (gl-120e/p96302-3f) (gl-140e/p96253-5f) (gl-140e/p96302-5f) (gl-160e/p96253-7f) (gl-160e/p96302-7f) (gl-200e/p96253-8f) (gl-200e/p96302-8f) diagram

Top rear panel

Part #B9258603

The manufacturer no longer makes this part, and there's no substitute part

Blower Shaft, 22-1/2" X 3/4" M0875605
#93C

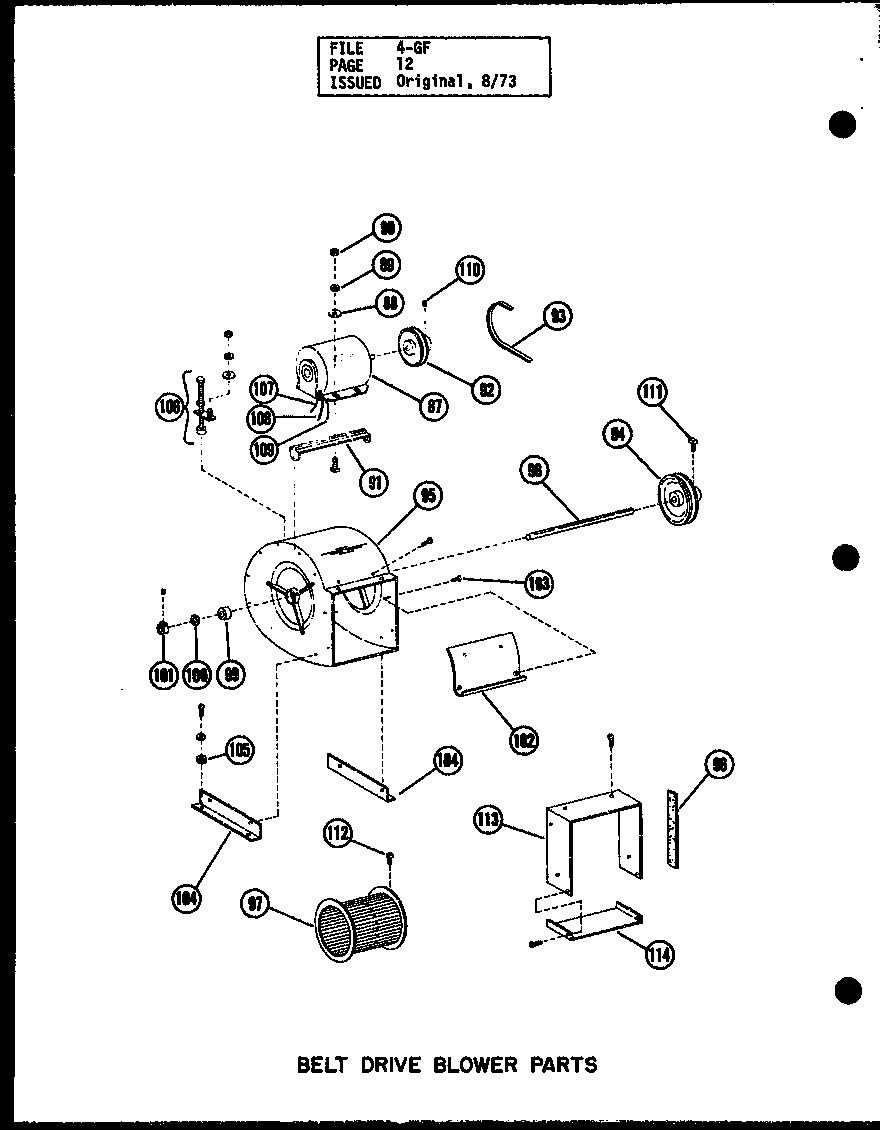

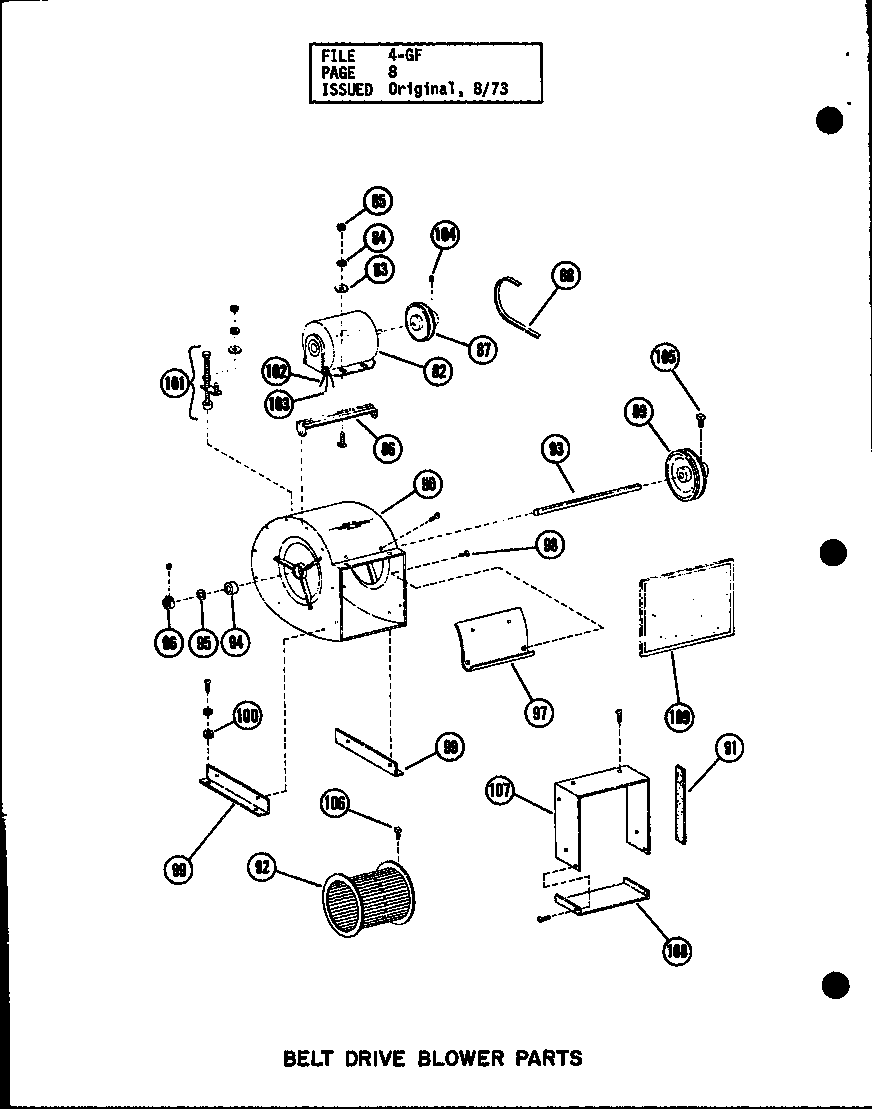

Belt drive blower parts (gl-105e/p96253-1f) (gl-105e/p96302-1f) (gl-120e/p96253-3f) (gl-120e/p96302-3f) (gl-140e/p96253-5f) (gl-140e/p96302-5f) (gl-160e/p96253-7f) (gl-160e/p96302-7f) (gl-200e/p96253-8f) (gl-200e/p96302-8f) diagram

Blower shaft, 22-1/2" x 3/4"

Part #M0875605

The manufacturer no longer makes this part, and there's no substitute part

Name Plate Tab Fastened B9200001
Name plate tab fastened

Part #B9200001

The manufacturer no longer makes this part, and there's no substitute part

Access Door Filter B9256803
#2C

Cabinet parts (gl-105e/p96253-1f) (gl-105e/p96302-1f) (gl-120e/p96253-3f) (gl-120e/p96302-3f) (gl-140e/p96253-5f) (gl-140e/p96302-5f) (gl-160e/p96253-7f) (gl-160e/p96302-7f) (gl-200e/p96253-8f) (gl-200e/p96302-8f) diagram

Access door filter

Part #B9256803

The manufacturer no longer makes this part, and there's no substitute part

Motor, 1/3 H.p. M0304301
Motor, 1/3 h.p.

Part #M0304301

The manufacturer no longer makes this part, and there's no substitute part

Screw M1252043
Screw

Part #M1252043

The manufacturer no longer makes this part, and there's no substitute part

Relief Tray B9231002
Relief tray

Part #B9231002

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Shaft M0804805
Furnace blower shaft

Part #M0804805

The manufacturer no longer makes this part, and there's no substitute part
