Model # BAR 5F Official Fridgette refrigerator

Here are the diagrams and repair parts for Official Fridgette BAR-5F refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Trim Strip 411500-0
#34

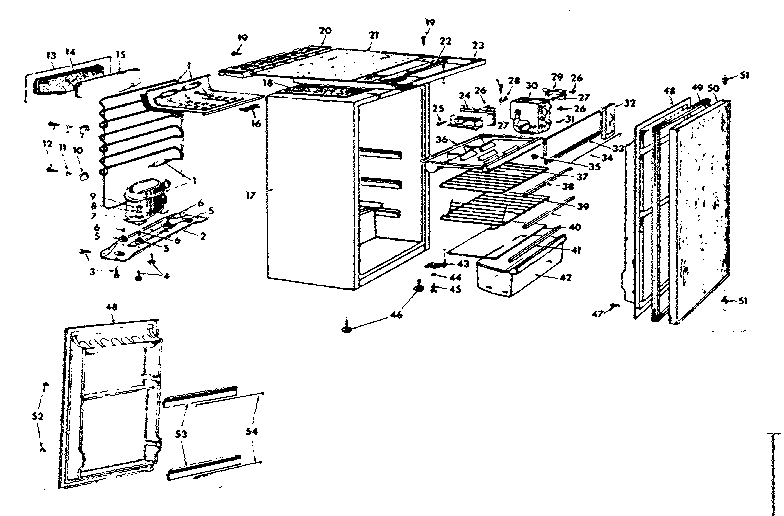

Cabinet and unit parts diagram

Trim strip

Part #411500-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 930026-0

#NI

All parts diagram

Screw

Part #930026-0

The manufacturer no longer makes this part, and there's no substitute part

Overload 102024-3
#15

Wiring diagram diagram

Overload

Part #102024-3

The manufacturer no longer makes this part, and there's no substitute part

Condenser 400205-2
#1B

Cabinet and unit parts diagram

Condenser

Part #400205-2

The manufacturer no longer makes this part, and there's no substitute part

Hinge Plate 400007-2
#22

Cabinet and unit parts diagram

Hinge plate

Part #400007-2

The manufacturer no longer makes this part, and there's no substitute part

Frame 400015-0
#23

Cabinet and unit parts diagram

Frame

Part #400015-0

The manufacturer no longer makes this part, and there's no substitute part

Washer 942036-0
#7

Cabinet and unit parts diagram

Washer

Part #942036-0

The manufacturer no longer makes this part, and there's no substitute part

Relay 400216-3
Relay

Part #400216-3

The manufacturer no longer makes this part, and there's no substitute part

Ground Plate 123005-0

#NI

All parts diagram

Ground plate

Part #123005-0

The manufacturer no longer makes this part, and there's no substitute part

Bushing 122006-0
#6

Cabinet and unit parts diagram

Bushing

Part #122006-0

The manufacturer no longer makes this part, and there's no substitute part
