Model # 16153740 Official Sears communicator 1 typewriter

Here are the diagrams and repair parts for Official Sears 16153740 communicator 1 typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

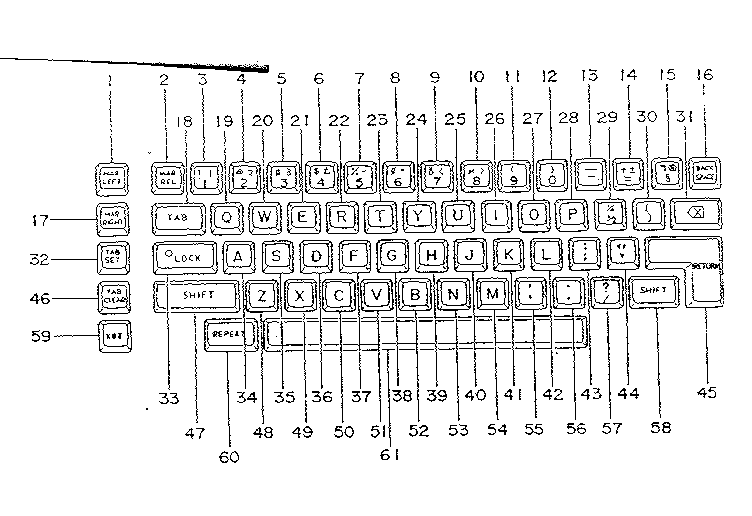

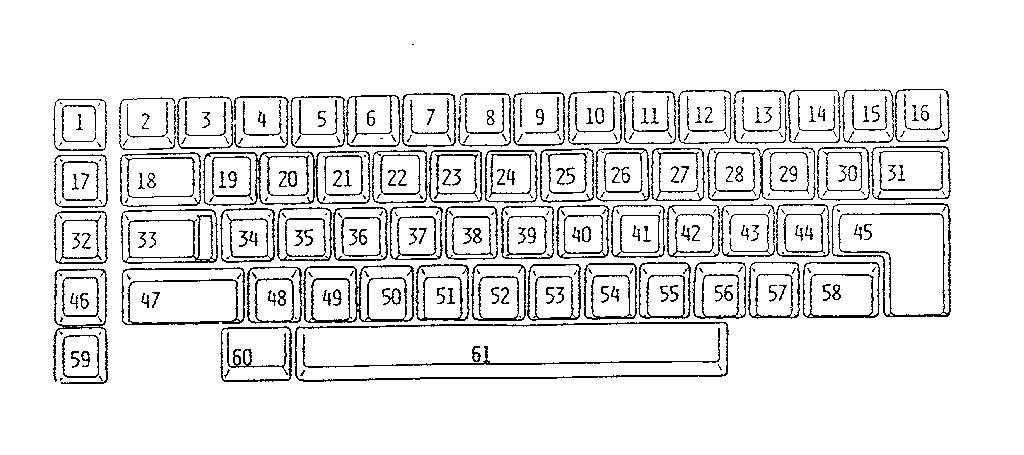

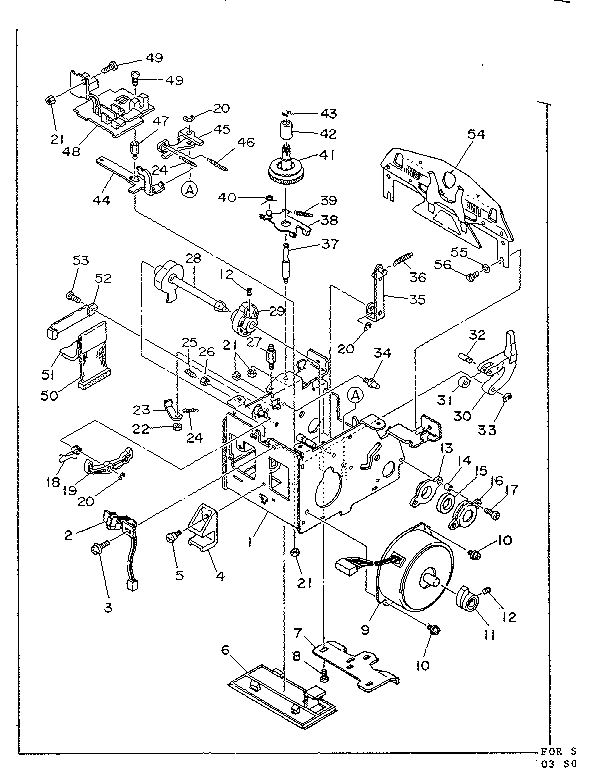

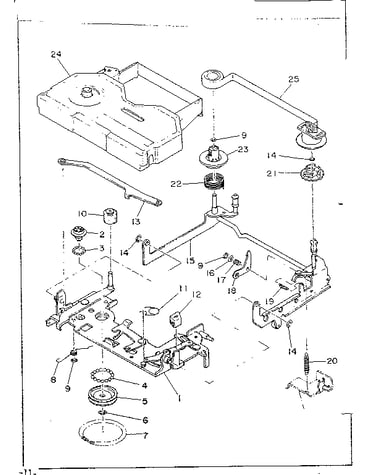

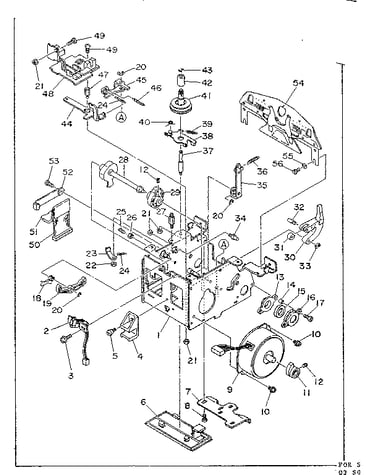

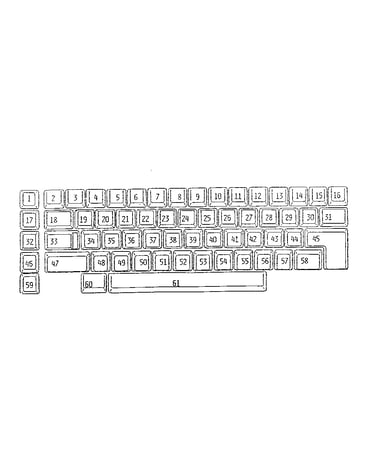

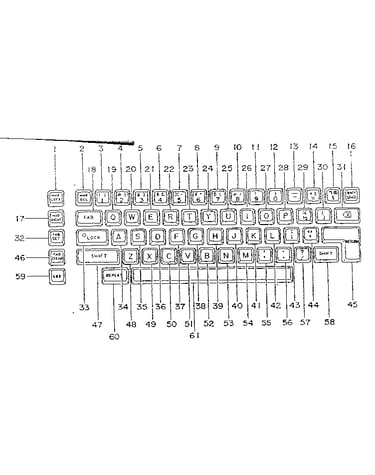

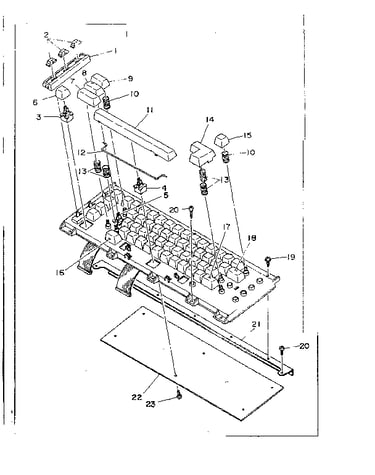

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 401 parts  |
2.6x4 Mach P 301-00760
#36

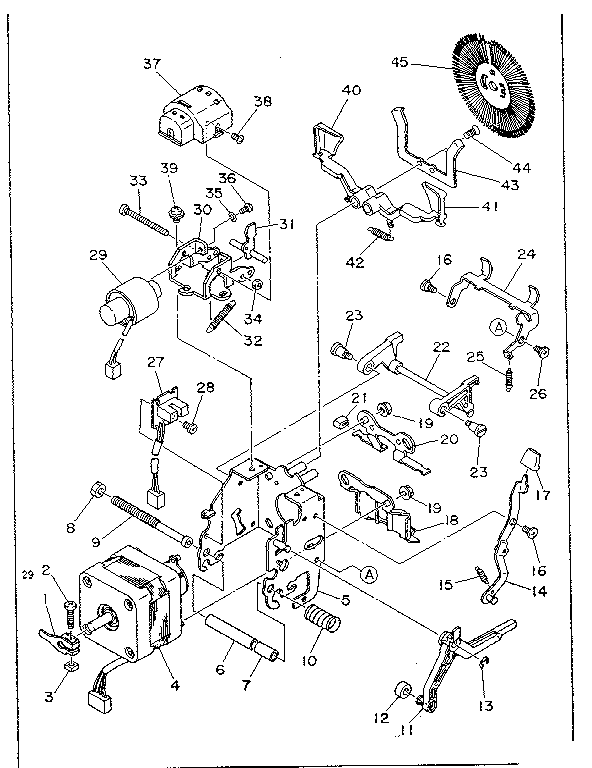

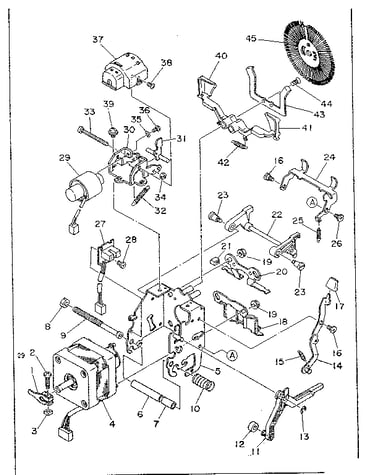

Printer head mechanism diagram

2.6x4 mach p

Part #301-00760

The manufacturer no longer makes this part, and there's no substitute part

Screw 880-90170
Screw

Part #880-90170

The manufacturer no longer makes this part, and there's no substitute part

1.6 Ohm 2w 330-21300
#20

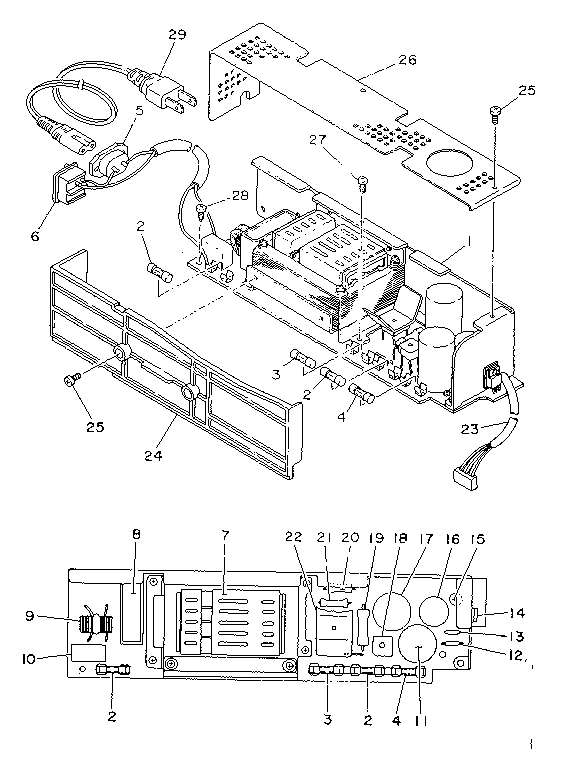

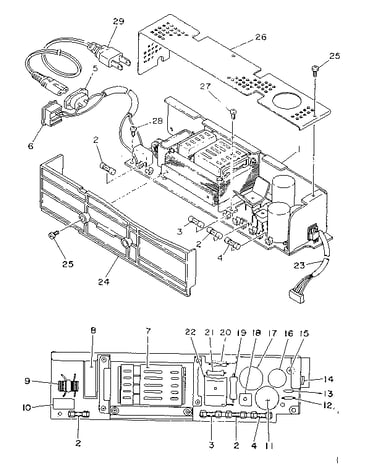

Power supply mechanism diagram

1.6 ohm 2w

Part #330-21300

The manufacturer no longer makes this part, and there's no substitute part

Flange Nut 330-00020
#19

Printer head mechanism diagram

Flange nut

Part #330-00020

The manufacturer no longer makes this part, and there's no substitute part

Screw 330-51850
#23

Printer head mechanism diagram

Screw

Part #330-51850

The manufacturer no longer makes this part, and there's no substitute part

Sq. Nut 330-52420
#3

Printer head mechanism diagram

Sq. nut

Part #330-52420

The manufacturer no longer makes this part, and there's no substitute part

Cap 3300uf 5 330-21080
#11

Power supply mechanism diagram

Cap 3300uf 5

Part #330-21080

The manufacturer no longer makes this part, and there's no substitute part

Washer 330-61300
#17B

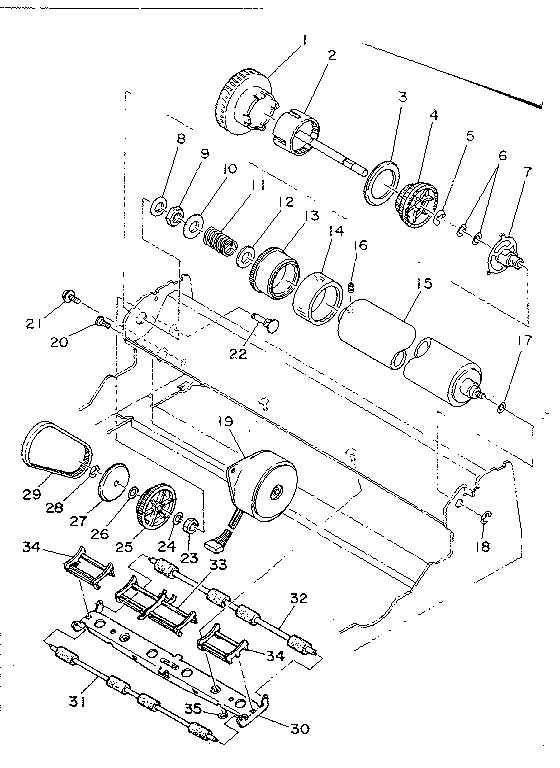

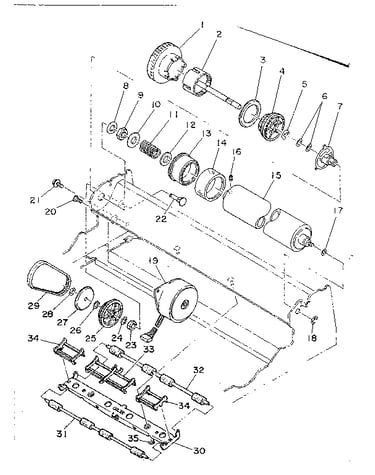

Paper feed mechanism diagram

Washer

Part #330-61300

The manufacturer no longer makes this part, and there's no substitute part

Screm 3x4mm 011-00010
#33

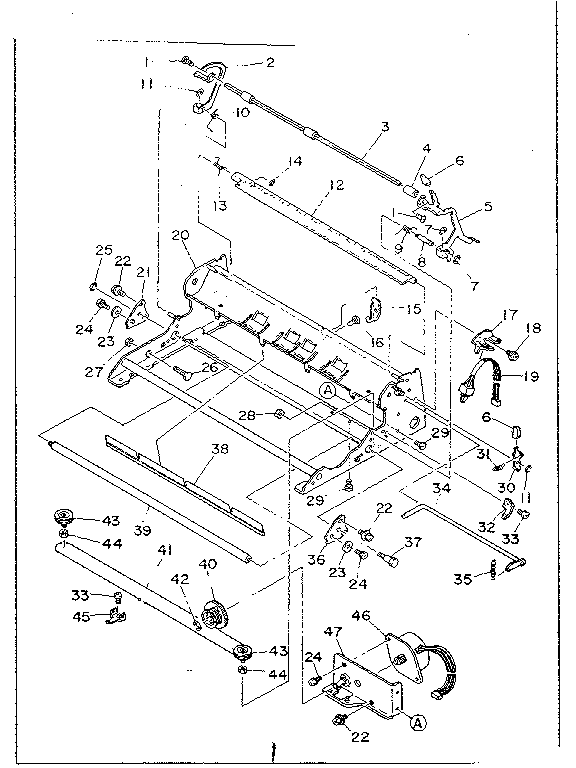

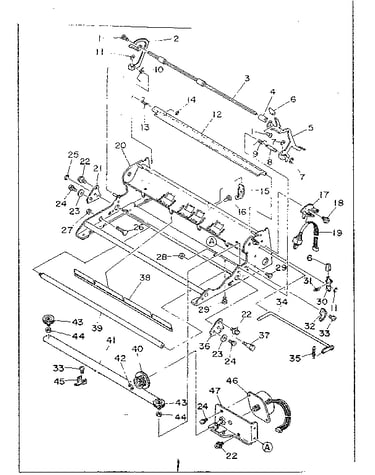

Chassis mechanism diagram

Screm 3x4mm

Part #011-00010

The manufacturer no longer makes this part, and there's no substitute part

Washer 820-90510
#6

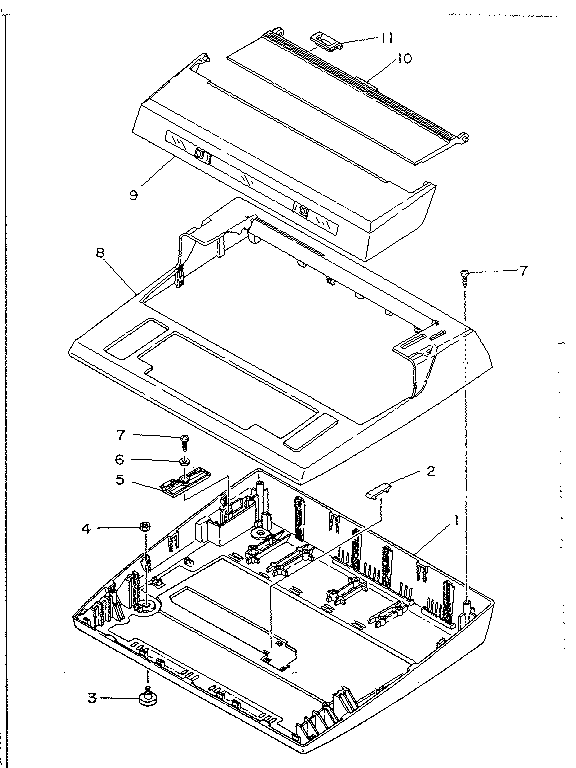

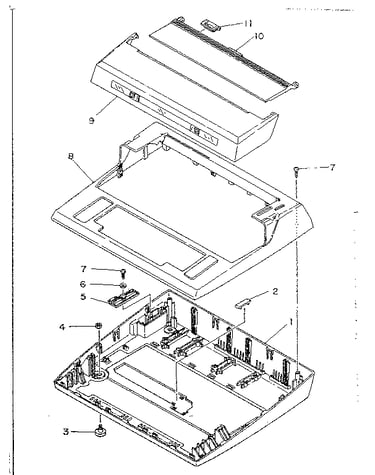

Housing diagram

Washer

Part #820-90510

The manufacturer no longer makes this part, and there's no substitute part
