Carrier NH09AMM room air conditioner Parts
Here are the diagrams and repair parts for Carrier NH09AMM room air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM
Browse Parts forNH09AMM Room Air Conditioner
#18

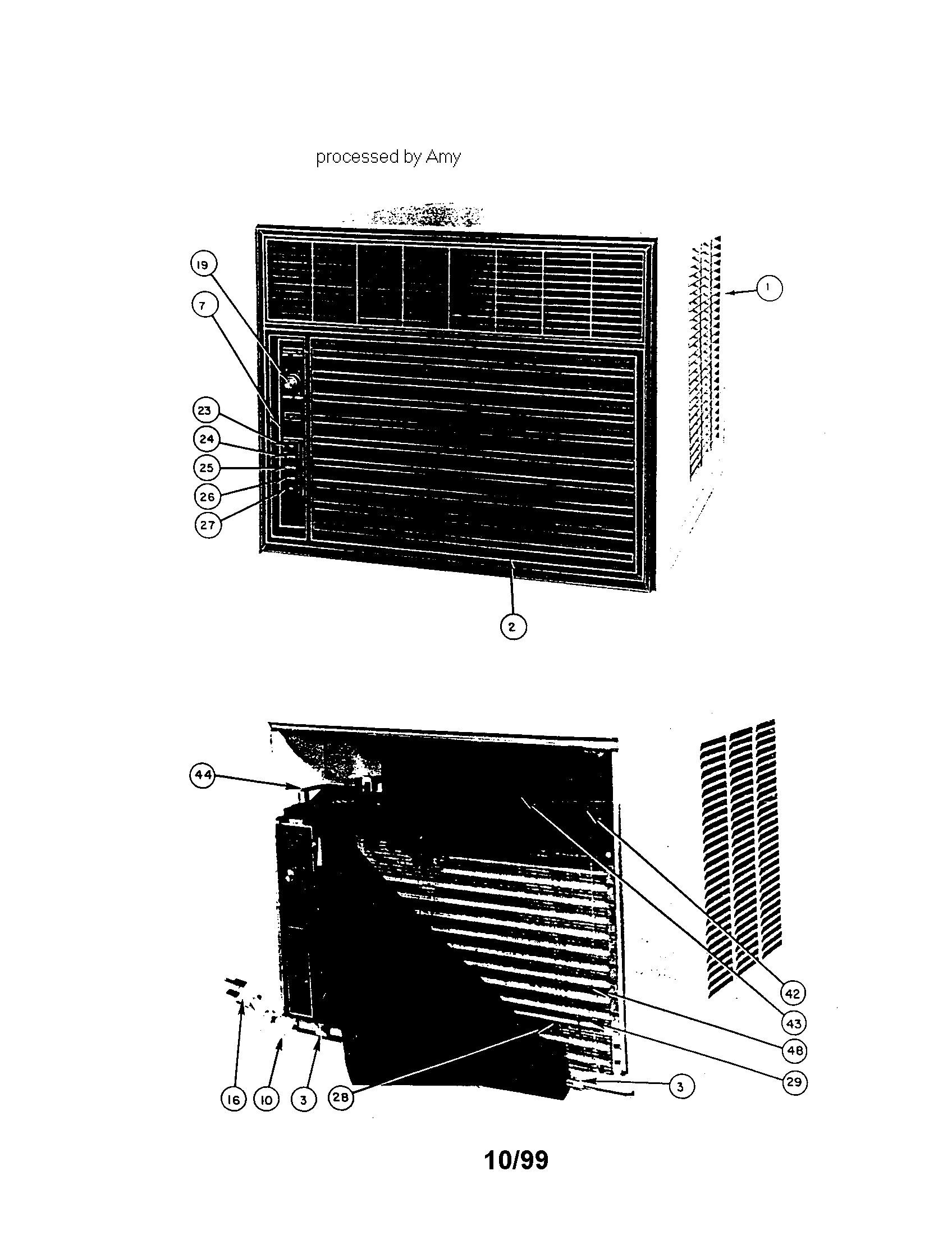

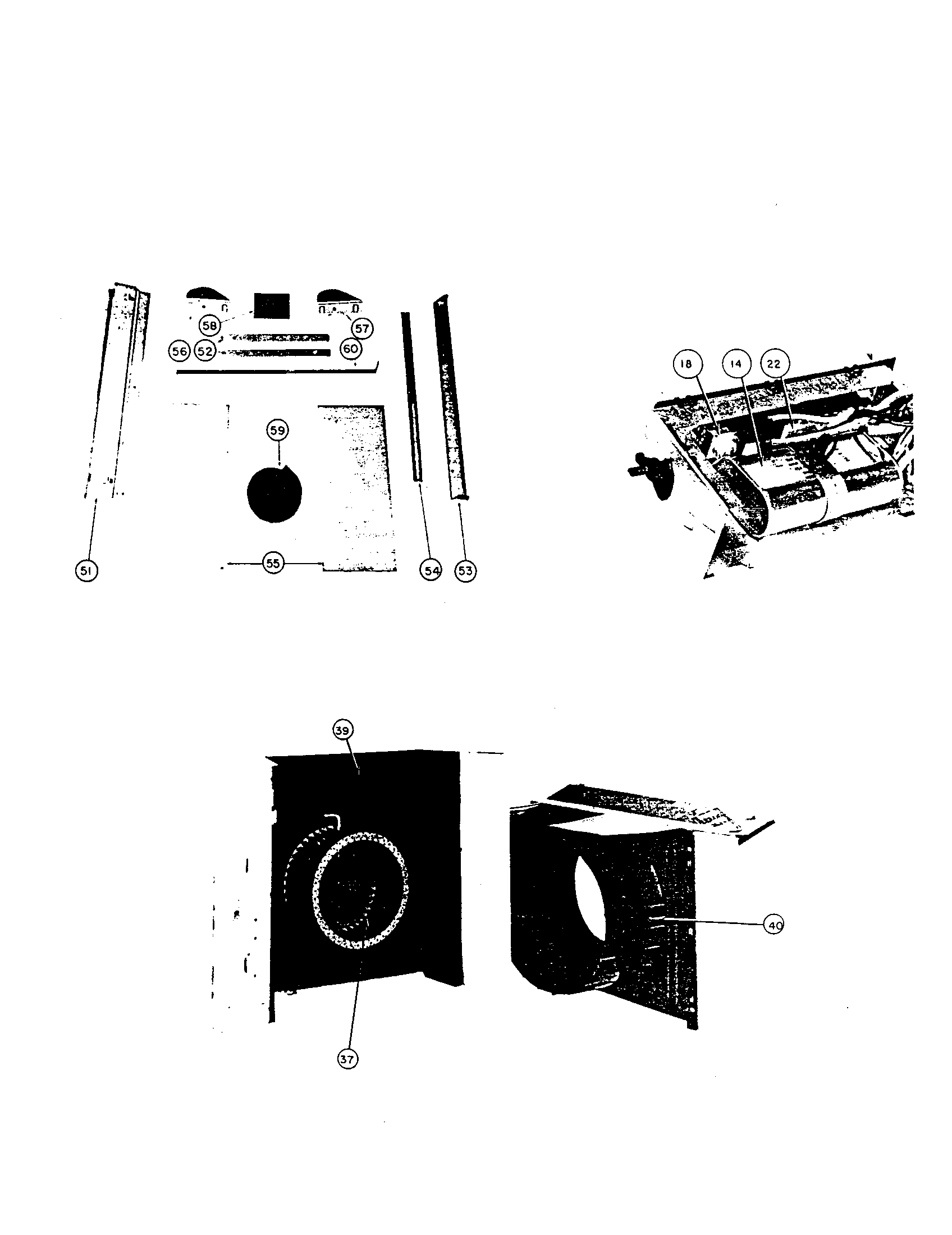

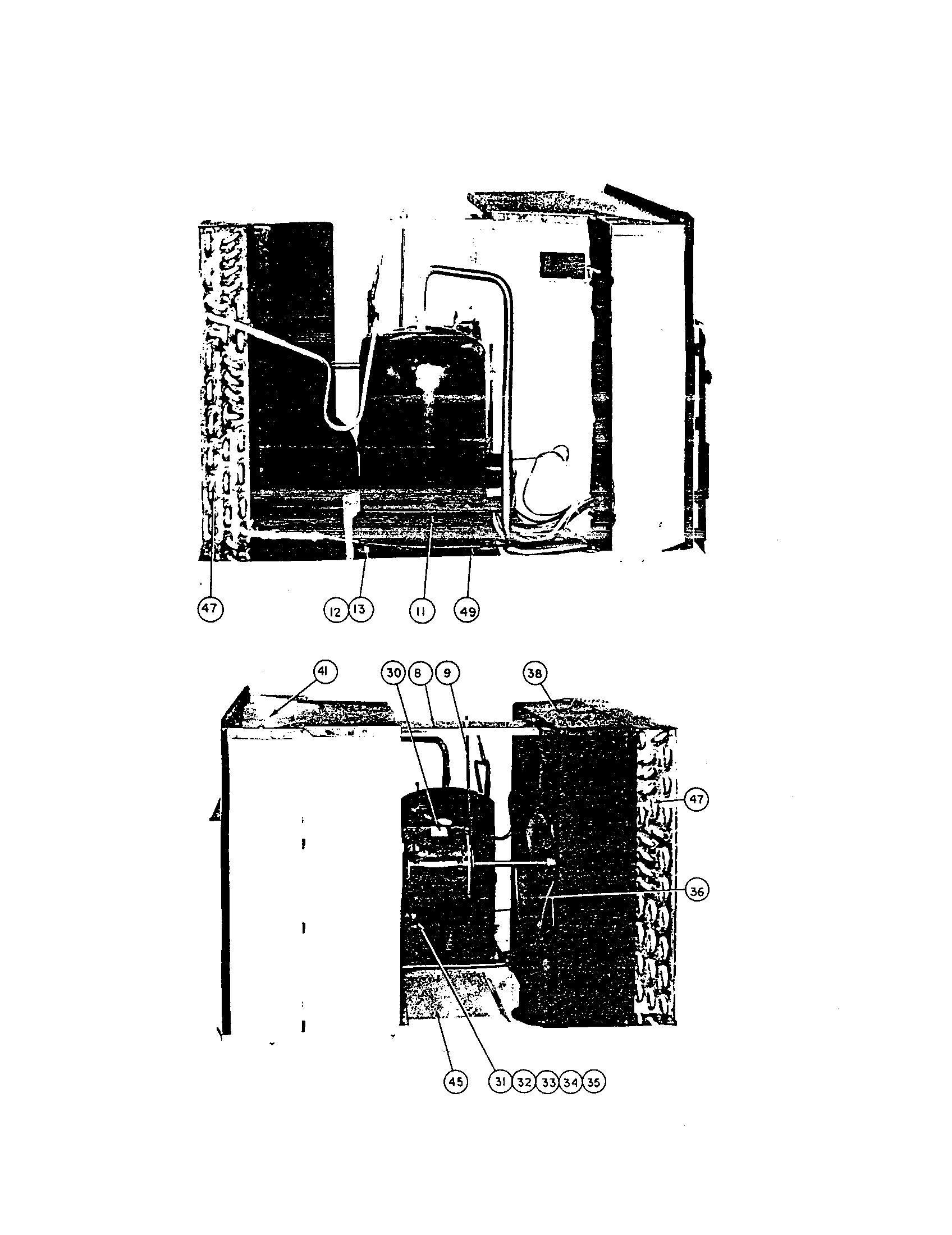

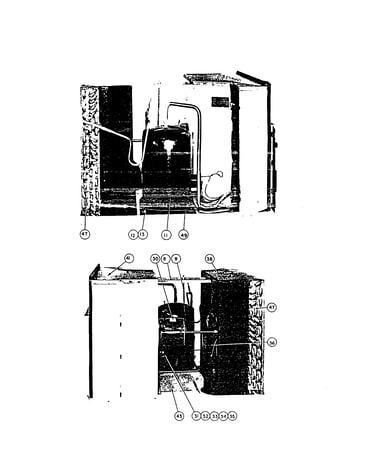

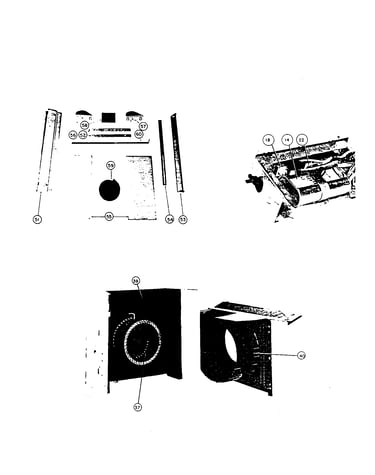

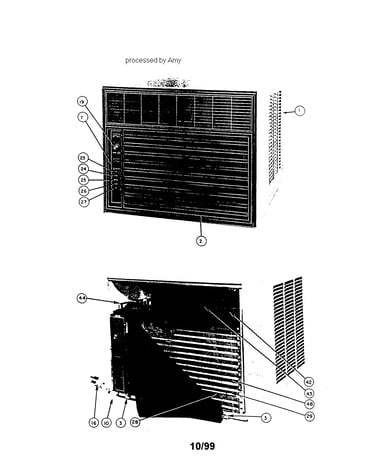

All parts diagram
Thermostat
In Stock$349.99
Qty
#2
All parts diagram
Grille Assembly (includes 2a And 2b)
Part #51HK401764
The manufacturer no longer makes this part, and there's no substitute part
#47B
All parts diagram
Condenser Coil 51hka230300, 51hka329300, 51hkb329300
Part #51HK401541
The manufacturer no longer makes this part, and there's no substitute part
#56
All parts diagram
Angle (left Side)
Part #51TA500363
The manufacturer no longer makes this part, and there's no substitute part
#1
All parts diagram
Wrapper
Part #51HK400131
The manufacturer no longer makes this part, and there's no substitute part
#36
All parts diagram
Propellar Fan
Part #LA01AA179
The manufacturer no longer makes this part, and there's no substitute part
#10
All parts diagram
Strain Relief (not Shown)
Part #AS84ZJ430
The manufacturer no longer makes this part, and there's no substitute part
#2A
All parts diagram
Friction Clip (2)
Part #51EA500623
The manufacturer no longer makes this part, and there's no substitute part
#7A
All parts diagram
Escutcheon
Part #51HK501754
The manufacturer no longer makes this part, and there's no substitute part
#9
All parts diagram
Support Rod
Part #51HK660003
The manufacturer no longer makes this part, and there's no substitute part
