Model # DGAH056BBSB Official Coleman furnace

Here are the diagrams and repair parts for Official Coleman DGAH056BBSB furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Furnace Upper Door Panel 7900-7631
#17

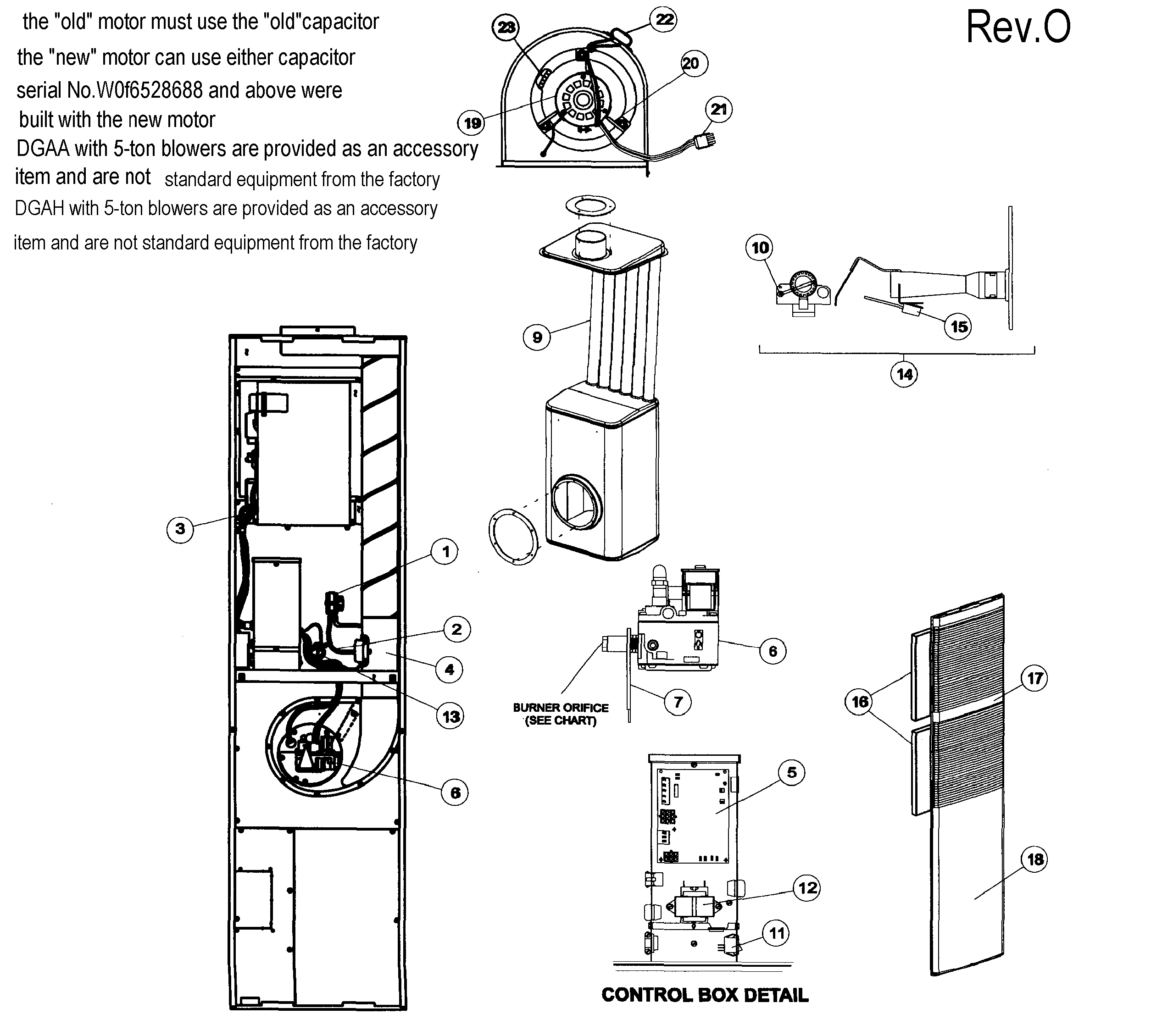

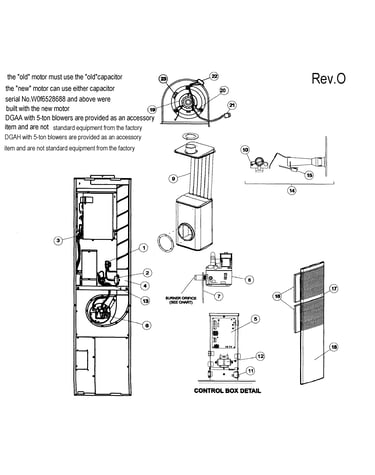

Furnace assy diagram

Furnace upper door panel

Part #7900-7631

BEST SELLER
$182.73
5% OFF Phone Price : $192.73
Back Order
Valve 02543267000
#6

Furnace assy diagram

Valve

Part #02543267000

Replaced by #S1-02543267000

?
Manufacturer substitution
This part replaces 02543267000. Substitute parts can look different from the original.
$196.73
5% OFF Phone Price : $206.73
In Stock
Igniter 02541021000
#15

Furnace assy diagram

Igniter

Part #02541021000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Control 03101932002
#5

Furnace assy diagram

Pcb control

Part #03101932002

The manufacturer no longer makes this part, and there's no substitute part

Rckr Switc 7681-3301
#11

Furnace assy diagram

Rckr switc

Part #7681-3301

The manufacturer no longer makes this part, and there's no substitute part

Furnace Temperature Limit Switch 02535380000
#13

Furnace assy diagram

Furnace temperature limit switch

Part #02535380000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Door Latch 02118364000
#NI

Furnace assy diagram

Furnace door latch

Part #02118364000

The manufacturer no longer makes this part, and there's no substitute part

Pressure Switch 32435972000
#1

Furnace assy diagram

Pressure switch

Part #32435972000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Wheel 02619654003
#23

Furnace assy diagram

Furnace blower wheel

Part #02619654003

The manufacturer no longer makes this part, and there's no substitute part

Orfice Ng 9951-1361
#NI

Furnace assy diagram

Orfice ng

Part #9951-1361

The manufacturer no longer makes this part, and there's no substitute part
