Model # 2582358271 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582358271 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Briq Grate 10222-20
#39

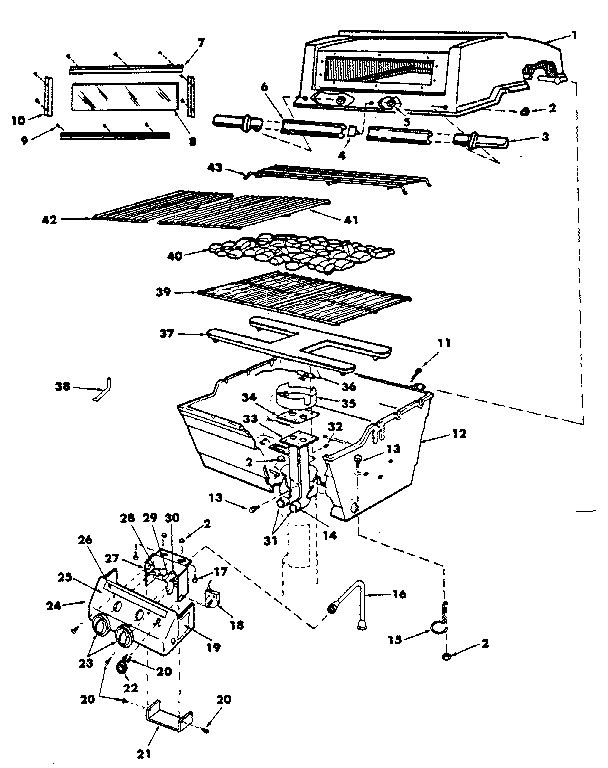

Grill and burner section diagram

Briq grate

Part #10222-20

Replaced by #04170107

?
Manufacturer substitution
This part replaces 10222-20. Substitute parts can look different from the original.
$44.39 |
10% OFF Phone Price : $49.39
In Stock
Screw STD611005
#32

Grill and burner section diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw STD522507
#83A

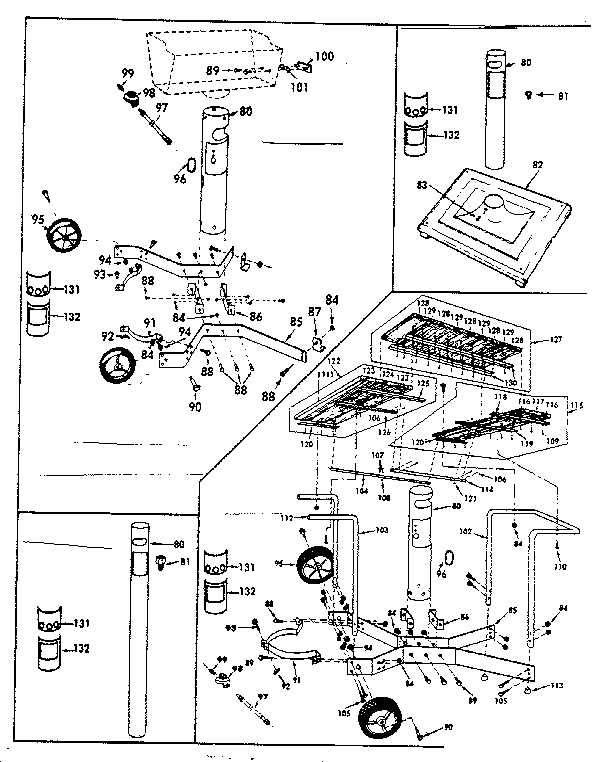

Post, patio base, standard cart & deluxe diagram

Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Drive Assembly 7540-2
#128

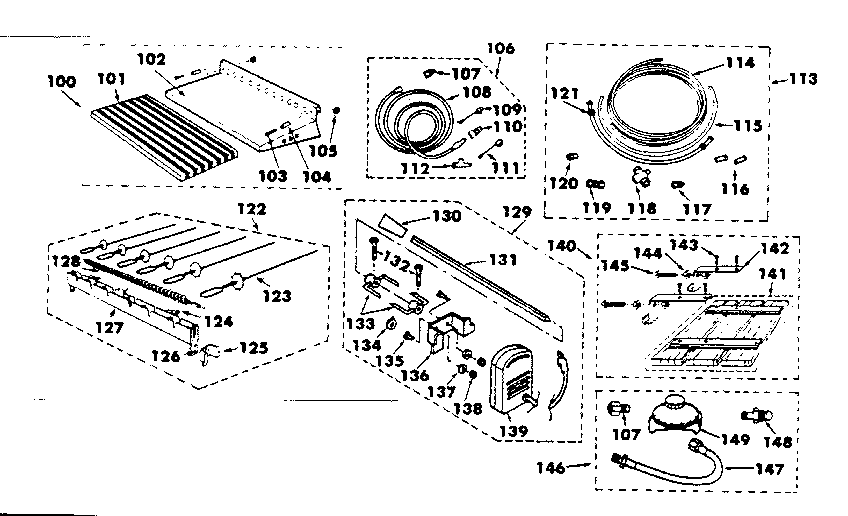

Optional accessories diagram

Drive assembly

Part #7540-2

The manufacturer no longer makes this part, and there's no substitute part

Shelf 10724-37
#141

Optional accessories diagram

Shelf

Part #10724-37

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-162
#126

Post, patio base, standard cart & deluxe diagram

Support

Part #10184-162

The manufacturer no longer makes this part, and there's no substitute part

Cart Handle 10338-57
#6

Cart section diagram

Cart handle

Part #10338-57

The manufacturer no longer makes this part, and there's no substitute part

Base 10956-8
#82A

Post, patio base, standard cart & deluxe diagram

Base

Part #10956-8

The manufacturer no longer makes this part, and there's no substitute part

Shiskabob 7720
#122

Optional accessories diagram

Shiskabob

Part #7720

The manufacturer no longer makes this part, and there's no substitute part

Wheel 10892-11
Wheel

Part #10892-11

The manufacturer no longer makes this part, and there's no substitute part
