Model # 4757 Official Kenmore slicer

Here are the diagrams and repair parts for Official Kenmore 4757 slicer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Set Screw 633
Set screw

Part #633

The manufacturer no longer makes this part, and there's no substitute part

Retanng Ring 1257
#4

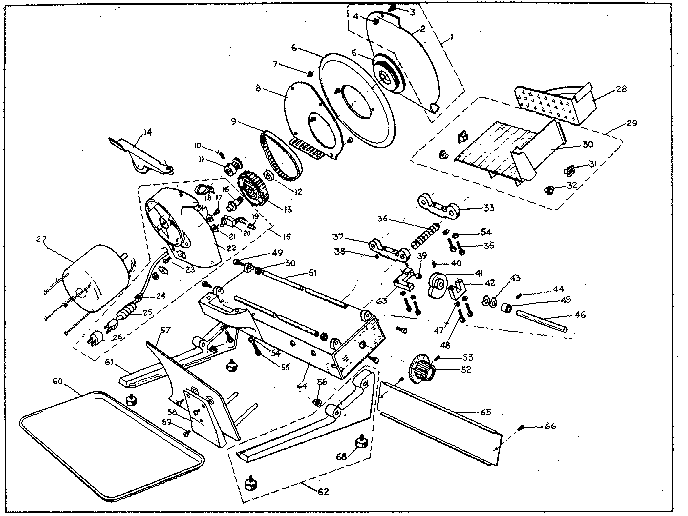

Replacement parts diagram

Retanng ring

Part #1257

The manufacturer no longer makes this part, and there's no substitute part

Knife Housing (includes Motor Bearing & Sharpener Pin) 600R
#22

Replacement parts diagram

Knife housing (includes motor bearing & sharpener pin)

Part #600R

The manufacturer no longer makes this part, and there's no substitute part

Screws-4 772-6
#49

Replacement parts diagram

Screws-4

Part #772-6

The manufacturer no longer makes this part, and there's no substitute part

Nut 769-6
#56

Replacement parts diagram

Nut

Part #769-6

The manufacturer no longer makes this part, and there's no substitute part

Knife Pulley 7880
#13

Replacement parts diagram

Knife pulley

Part #7880

The manufacturer no longer makes this part, and there's no substitute part

Set Screw 480
#38

Replacement parts diagram

Set screw

Part #480

The manufacturer no longer makes this part, and there's no substitute part

Reg Knob 481
#52

Replacement parts diagram

Reg knob

Part #481

The manufacturer no longer makes this part, and there's no substitute part

Washer 459
#21

Replacement parts diagram

Washer

Part #459

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 1246
#47

Replacement parts diagram

Lock washer

Part #1246

The manufacturer no longer makes this part, and there's no substitute part
