Model # 917253380 Official Craftsman 42" & 48" rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917253380 42" & 48" rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Lawn Tractor Grease Fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, Lp-706) 6855M
#46

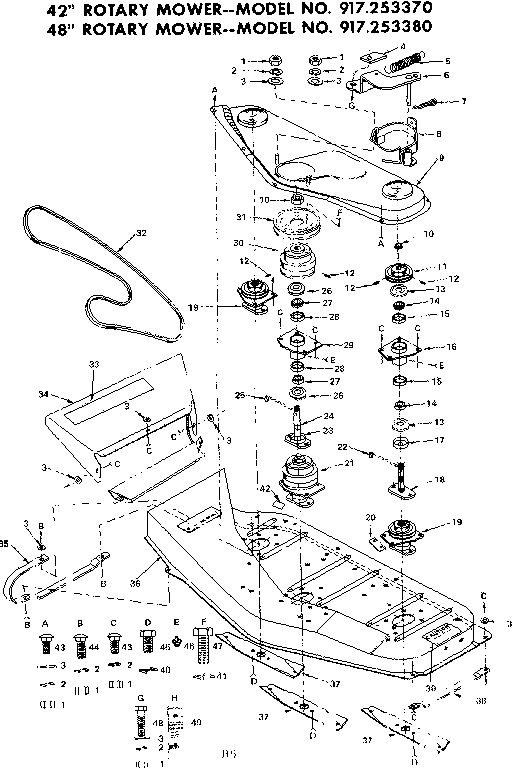

Mower deck diagram

Lawn tractor grease fitting (replaces 1641, 40493, 532006855, 532124836, 532155595, 62569, 706, lp-706)

Part #6855M

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Mower Attachment Idler Pulley 634A566
#11

Idler pulley assembly diagram

Lawn tractor mower attachment idler pulley

Part #634A566

Replaced by #583771501

?
Manufacturer substitution
This part replaces 634A566. Substitute parts can look different from the original.
$24.13
In Stock
Spring 3770R
#5

Mower deck diagram

Spring

Part #3770R

Replaced by #583733001

?
Manufacturer substitution
This part replaces 3770R. Substitute parts can look different from the original.
$24.09 |
17% OFF Phone Price : $29.09
In Stock
Cotter Pin 2505P
#18

Lift assembly diagram

Cotter pin

Part #2505P

The manufacturer no longer makes this part, and there's no substitute part

Idler 634A565
#9

Idler pulley assembly diagram

Idler

Part #634A565

Replaced by #583771401

?
Manufacturer substitution
This part replaces 634A565. Substitute parts can look different from the original.
$28.59 |
23% OFF MSRP : $37.00
In Stock
Lock Washer 1003P
Lock washer

Part #1003P

The manufacturer no longer makes this part, and there's no substitute part

Hitch Pin, 2-pack 4939M
#2

Idler pulley assembly diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Flat Washer 1556P
Flat washer

Part #1556P

The manufacturer no longer makes this part, and there's no substitute part

Idler 2083R
#29

Lift assembly diagram

Idler

Part #2083R

Replaced by #532102403

?
Manufacturer substitution
This part replaces 2083R. Substitute parts can look different from the original.
$24.99 |
22% OFF MSRP : $32.00
In Stock
Bolt 16P
Bolt

Part #16P

The manufacturer no longer makes this part, and there's no substitute part
