Frigidaire
Warming Drawer

Model # FGWD3065PF Official Frigidaire warming drawer

Here are the diagrams and repair parts for Official Frigidaire FGWD3065PF warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

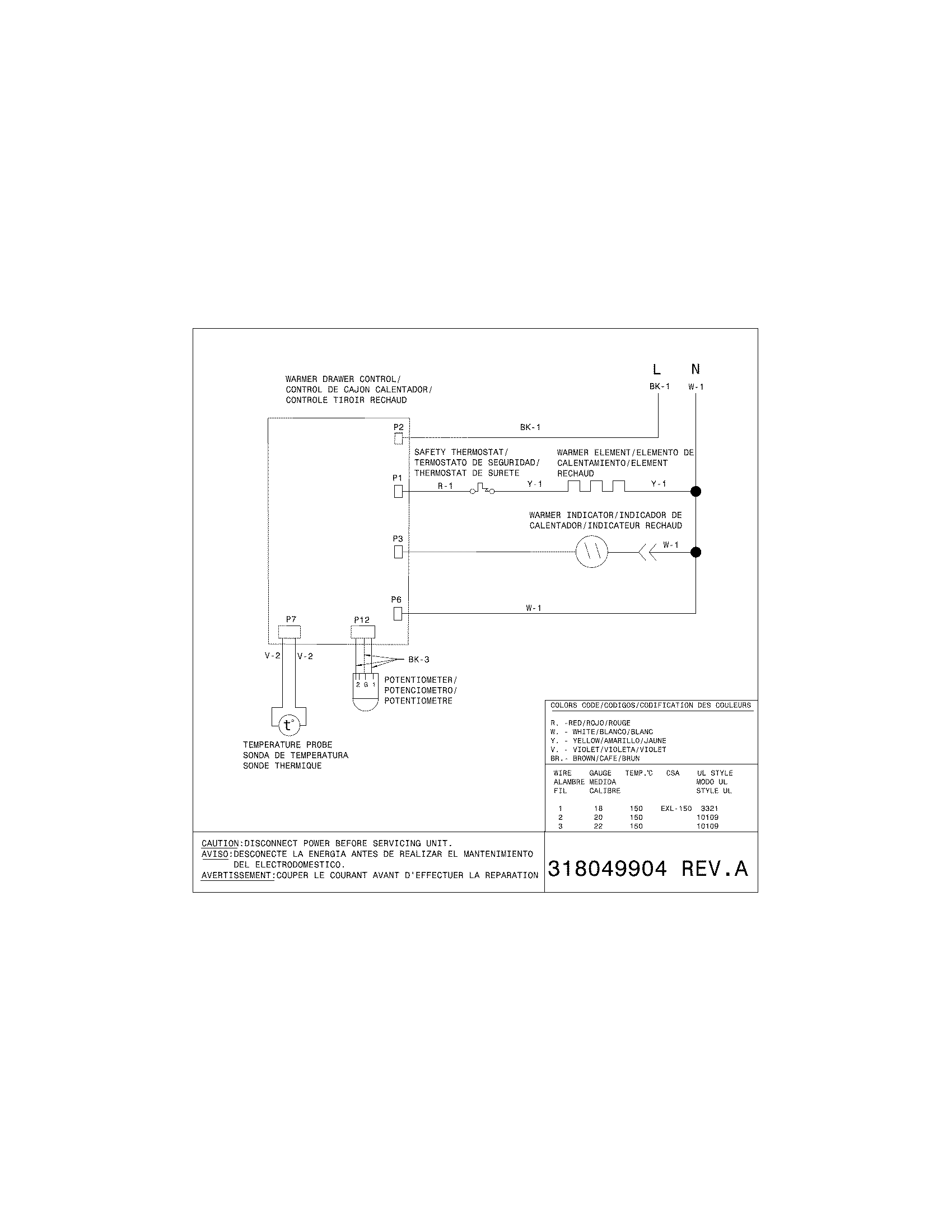

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Range Oven Temperature Sensor 318562500
#11

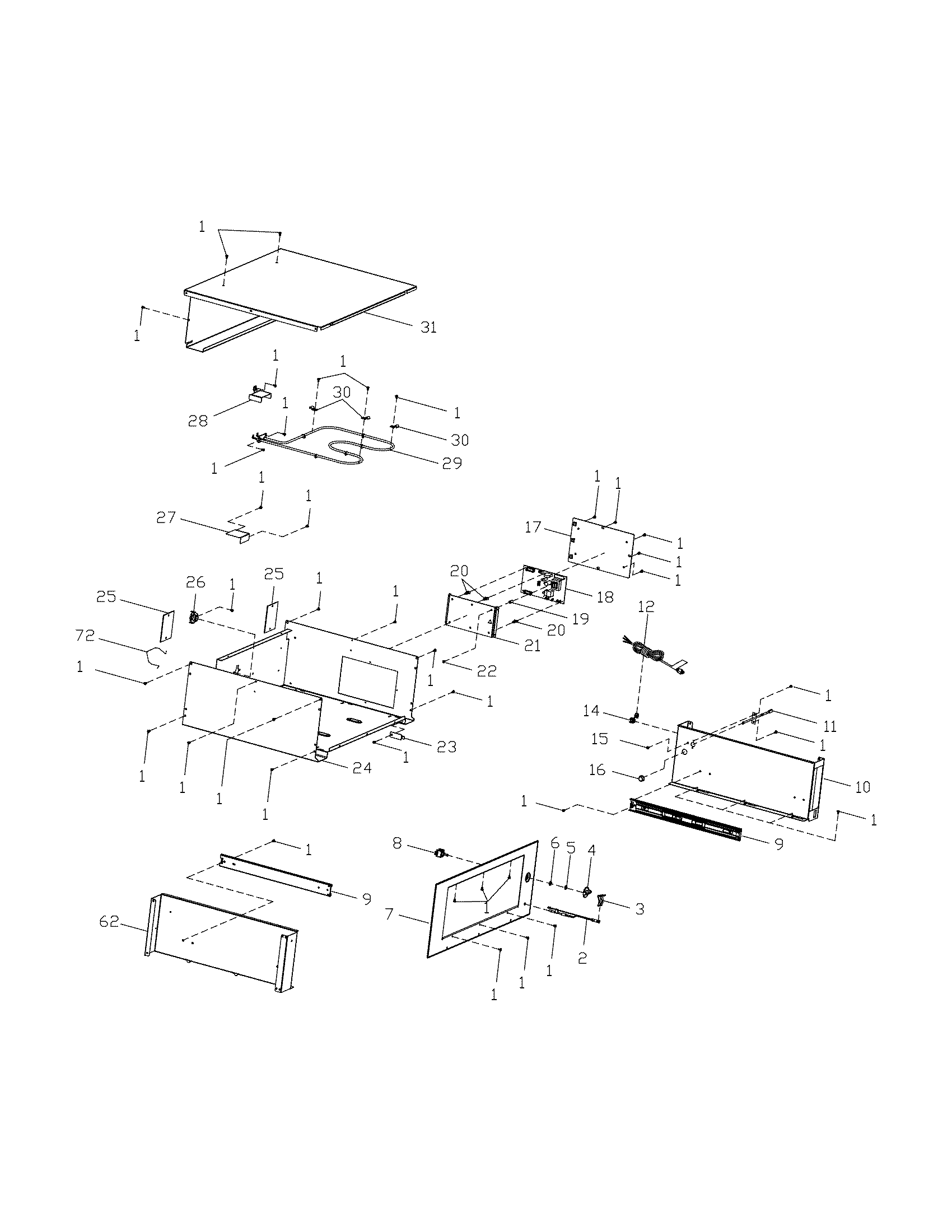

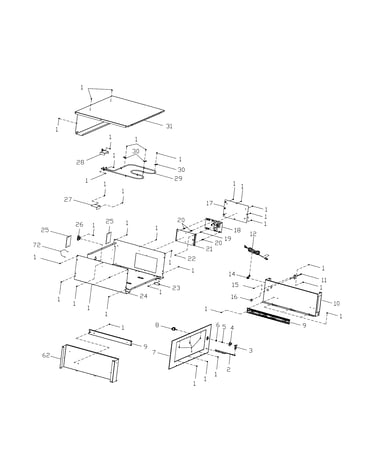

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$34.58 |
13% OFF Phone Price : $39.58
In Stock
Range Warming Drawer Element 318255301
#29

Body diagram

Range warming drawer element

Part #318255301

$84.76 |
6% OFF Phone Price : $89.76
In Stock
Screw 305376108
#58

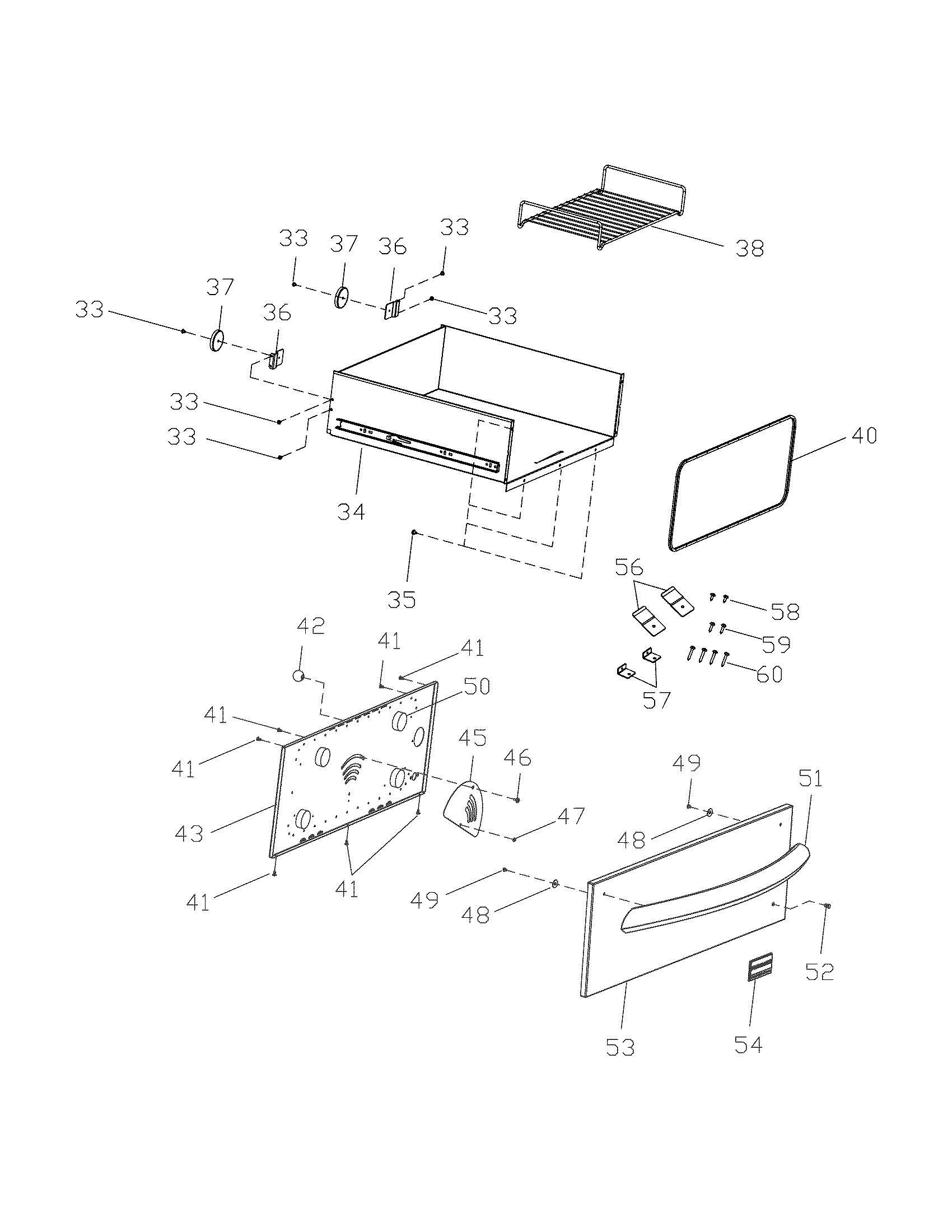

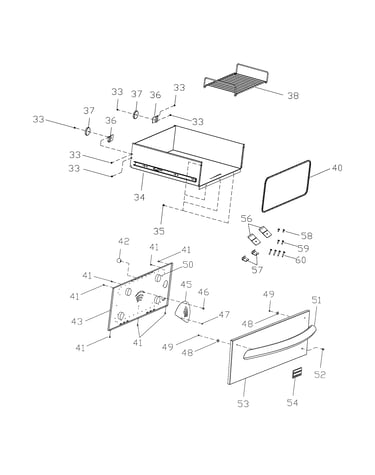

Drawer diagram

Screw

Part #305376108

This item is not returnable
$3.49
In Stock
Shield 807221601
#10

Body diagram

Shield

Part #807221601

$109.20
In Stock
Washer 305338306
#48

Drawer diagram

Washer

Part #305338306

This item is not returnable
$5.46
In Stock
Screw 305376110
#60

Drawer diagram

Screw

Part #305376110

$7.69
In Stock
Wrapper 807319601
#24

Body diagram

Wrapper

Part #807319601

$241.62
In Stock
Holder 202855101
#72

Body diagram

Holder

Part #202855101

This item is not returnable
$2.16
In Stock
Screw 305615800
#49

Drawer diagram

Screw

Part #305615800

This item is not returnable
$4.36
In Stock
Panel 808122301
#53

Drawer diagram

Panel

Part #808122301

$258.89
In Stock
