Black & Decker
Power Drill

Model # FSD182RC2 TYPE 1 Official Black & Decker 18-v firestorm drill

Here are the diagrams and repair parts for Official Black & Decker FSD182RC2-TYPE-1 18-v firestorm drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Term Block 5100976-00
#20

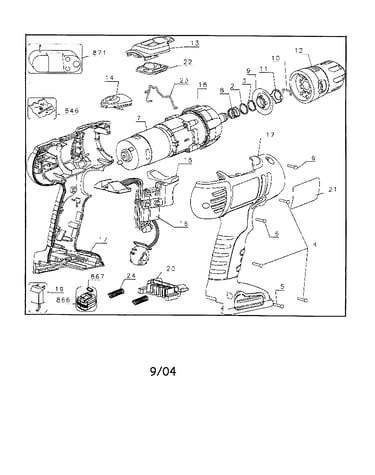

18v firestorm drill diagram

Term block

Part #5100976-00

The manufacturer no longer makes this part, and there's no substitute part

Shifter Wi 5100153-01
#23

18v firestorm drill diagram

Shifter wi

Part #5100153-01

The manufacturer no longer makes this part, and there's no substitute part

Actuator 5100101-03
#22

18v firestorm drill diagram

Actuator

Part #5100101-03

The manufacturer no longer makes this part, and there's no substitute part

Actuator 5100111-00
#15

18v firestorm drill diagram

Actuator

Part #5100111-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 5100035-01
#24

18v firestorm drill diagram

Spring

Part #5100035-01

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 5100788-04
#21

18v firestorm drill diagram

Nameplate

Part #5100788-04

The manufacturer no longer makes this part, and there's no substitute part

Motor 5102349-06
#7

18v firestorm drill diagram

Motor

Part #5102349-06

The manufacturer no longer makes this part, and there's no substitute part

Screw 311993-00
#4

18v firestorm drill diagram

Screw

Part #311993-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 5100117-00
#8

18v firestorm drill diagram

Spring

Part #5100117-00

The manufacturer no longer makes this part, and there's no substitute part

Hardware 5103609-00
#846

18v firestorm drill diagram

Hardware

Part #5103609-00

The manufacturer no longer makes this part, and there's no substitute part
