Model # 6KCDB250T0 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid 6KCDB250T0 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Stopper Assembly 4211300
#1

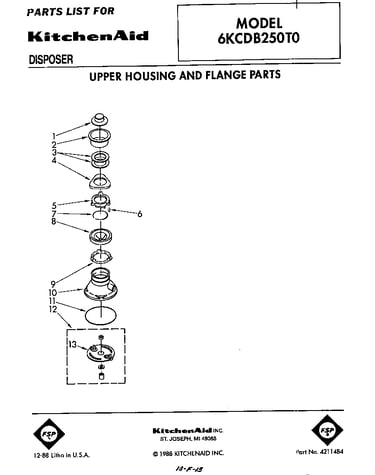

Upper housing and flange diagram

Stopper assembly

Part #4211300

The manufacturer no longer makes this part, and there's no substitute part

End Frame Assembly (lower) 4211327
#10

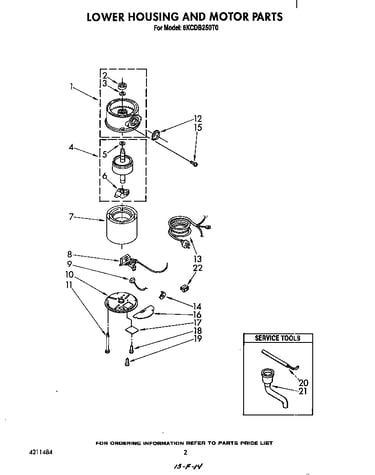

Lower housing and motor diagram

End frame assembly (lower)

Part #4211327

The manufacturer no longer makes this part, and there's no substitute part

Stator Assembly 4211448
#7

Lower housing and motor diagram

Stator assembly

Part #4211448

The manufacturer no longer makes this part, and there's no substitute part

Container, Body Assembly 4211309
#10

Upper housing and flange diagram

Container, body assembly

Part #4211309

The manufacturer no longer makes this part, and there's no substitute part

Screw, Backup 4211305
#6

Upper housing and flange diagram

Screw, backup

Part #4211305

The manufacturer no longer makes this part, and there's no substitute part

Tailpipe Gasket 4211453
#12

Lower housing and motor diagram

Tailpipe gasket

Part #4211453

The manufacturer no longer makes this part, and there's no substitute part

Terminal Cover 4211328
#17

Lower housing and motor diagram

Terminal cover

Part #4211328

The manufacturer no longer makes this part, and there's no substitute part

Protect, Overload 4211450
#9

Lower housing and motor diagram

Protect, overload

Part #4211450

The manufacturer no longer makes this part, and there's no substitute part

Plug & Cord 4211459
#13

Lower housing and motor diagram

Plug & cord

Part #4211459

The manufacturer no longer makes this part, and there's no substitute part

End Bell Assembly, Upper 4211313
#1

Lower housing and motor diagram

End bell assembly, upper

Part #4211313

The manufacturer no longer makes this part, and there's no substitute part
