Weed Eater
Electric Line Trimmer

Model #RTE112C Weed Eater line trimmer

Here are the diagrams and repair parts for Weed Eater RTE112C line trimmer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

    Showing 10 of 22 parts

    Line Trimmer Spool Retainer Clip

    #18

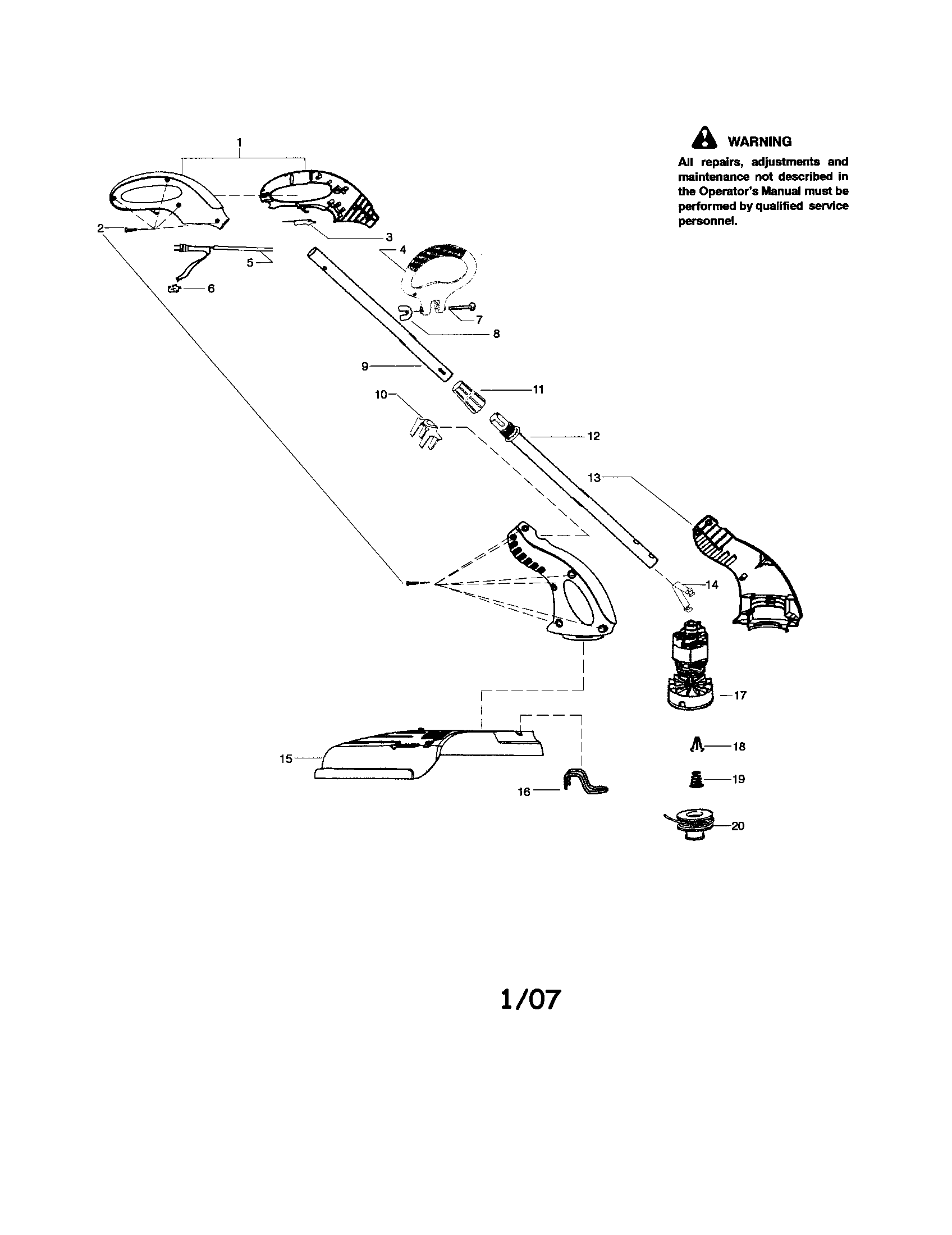

    Line trimmer Diagram

    Line trimmer spool retainer clip

    Part #530401957
    This item is not returnable
    $3.73

    In Stock

    Line Trimmer On/Off Switch

    #6

    Line trimmer Diagram

    Line trimmer on/off switch

    Part #530402879
    This item is not returnable
    $3.46 |
    9% OFF MSRP:$3.80

    In Stock

    Lawn & Garden Equipment Screw

    #2

    Line trimmer Diagram

    Lawn & garden equipment screw

    Part #530016120
    This item is not returnable
    $2.99

    In Stock

    Line Trimmer Spool Spring

    #19

    Line trimmer Diagram

    Line trimmer spool spring

    Part #530401958
    This item is not returnable
    $3.62

    In Stock

    Line Trimmer Nut

    #8

    Line trimmer Diagram

    Line trimmer nut

    Part #530091373
    ?
    Manufacturer substitution
    This part replaces 530016152. Substitute parts can look different from the original.
    This part replaces 530016152
    This item is not returnable
    $3.55 |
    6% OFF MSRP:$3.76

    In Stock

    Line Trimmer Spool Assembly

    #20

    Line trimmer Diagram

    Line trimmer spool assembly

    Part #530404133
    ?
    Manufacturer substitution
    This part replaces 952701663. Substitute parts can look different from the original.
    This part replaces 952701663
    $12.80

    Back Order

    Assembly Tube

    #12

    Line trimmer Diagram

    Assembly tube

    Part #545088302

    The manufacturer no longer makes this part, and there's no substitute part

    DECAL-WARNING

    #NI02

    All parts Diagram

    Decal-warning

    Part #545127201

    The manufacturer no longer makes this part, and there's no substitute part

    Edging Guide

    #16

    Line trimmer Diagram

    Edging guide

    Part #530403845

    The manufacturer no longer makes this part, and there's no substitute part

    Handle Set

    #1

    Line trimmer Diagram

    Handle set

    Part #545077901

    The manufacturer no longer makes this part, and there's no substitute part
