Kenmore 229960130 hot water boiler Parts

Name: Kenmore 229960130 Parts | Diagrams | Sears PartsDirect
Brand: Kenmore
SKU: 229960130
Availability: InStock

Here are the diagrams and repair parts for Kenmore 229960130 hot water boiler, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

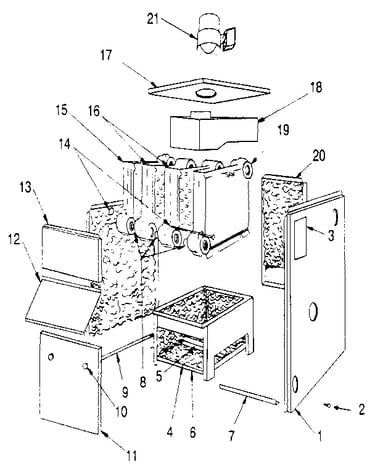

Browse Parts for 229960130 Hot Water Boiler

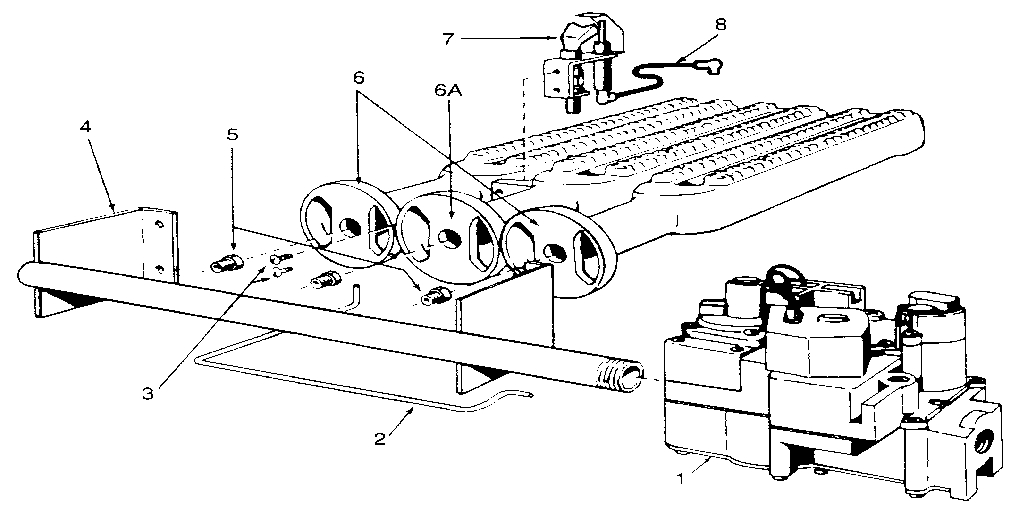

Gas burners and manifold diagram
Thermocouple
Part #146-62-037
Replaced by #H06E-36
Manufacturer substitution
This part replaces 146-62-037. Substitute parts can look different from the original.
In Stock
$16.89
11% OFF Phone Price : $18.89
Qty
Gas burners and manifold diagram
Gas Valve
Part #146-62-052
The manufacturer no longer makes this part, and there's no substitute part

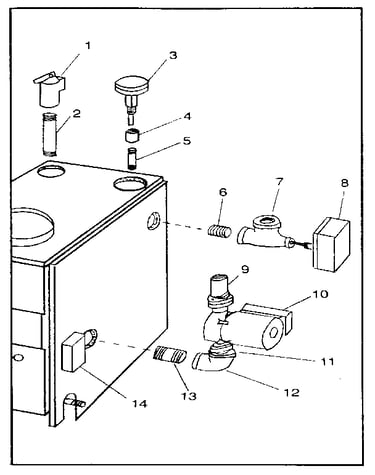

Boiler controls and piping diagram
Circulator
Part #146-26-045
Replaced by #103251
Manufacturer substitution
This part replaces 146-26-045. Substitute parts can look different from the original.
In Stock
$274.41
$12.00 OFF Phone Price : $286.41
Qty
Gas burners and manifold diagram
Ignitn Cable
Part #146-62-074
The manufacturer no longer makes this part, and there's no substitute part
Boiler controls and piping diagram
Relief Valve
Part #146-22-011
Replaced by #10-408-05
Manufacturer substitution
This part replaces 146-22-011. Substitute parts can look different from the original.
In Stock
$62.18
9% OFF Phone Price : $68.18
Qty
Boiler controls and piping diagram
Vent Damper
Part #146-28-003
Replaced by #FC46487201
Manufacturer substitution
This part replaces 146-28-003. Substitute parts can look different from the original.
In Stock
$233.99
Qty
Gas burners and manifold diagram
Burner
Part #146-62-054
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Roll Shield
Part #425-00-933
The manufacturer no longer makes this part, and there's no substitute part
Gas burners and manifold diagram
Boiler Burner
Part #146-15-523
The manufacturer no longer makes this part, and there's no substitute part
Boiler controls and piping diagram
Control Nat
Part #146-62-303
The manufacturer no longer makes this part, and there's no substitute part
