DeWalt
Reciprocating Saw

Model # DW305K TYPE 2 Official DeWalt reciprocating saw

Here are the diagrams and repair parts for Official DeWalt DW305K-TYPE-2 reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Pin 158466-00
#27

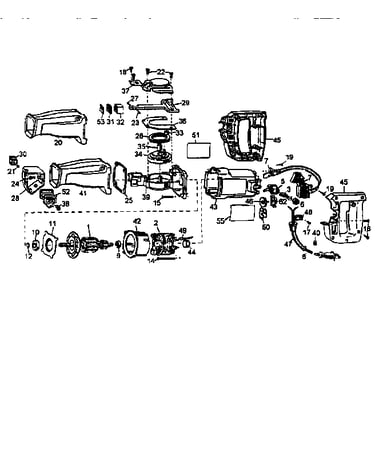

Unit parts diagram

Pin

Part #158466-00

The manufacturer no longer makes this part, and there's no substitute part

Shaft 679869-00
#29

Unit parts diagram

Shaft

Part #679869-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Screw, #6-19 X 5/8-in 330013-03
#17

Unit parts diagram

Power tool screw, #6-19 x 5/8-in

Part #330013-03

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush Cap 448084-01
#6

Unit parts diagram

Reciprocating saw motor brush cap

Part #448084-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 445217-02
#44

Unit parts diagram

Sleeve

Part #445217-02

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Finger Guard 157325-00
#52

Unit parts diagram

Reciprocating saw finger guard

Part #157325-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330013-02
#19

Unit parts diagram

Screw

Part #330013-02

The manufacturer no longer makes this part, and there's no substitute part

Field Case 447799-07
#43

Unit parts diagram

Field case

Part #447799-07

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 330072-98
#8

Unit parts diagram

Power tool power cord

Part #330072-98

The manufacturer no longer makes this part, and there's no substitute part

Terminal 448172-00
#49

Unit parts diagram

Terminal

Part #448172-00

The manufacturer no longer makes this part, and there's no substitute part
