Model # NTC6050FBA1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NTC6050FBA1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Furnace Blower Assembly 1010975
#19

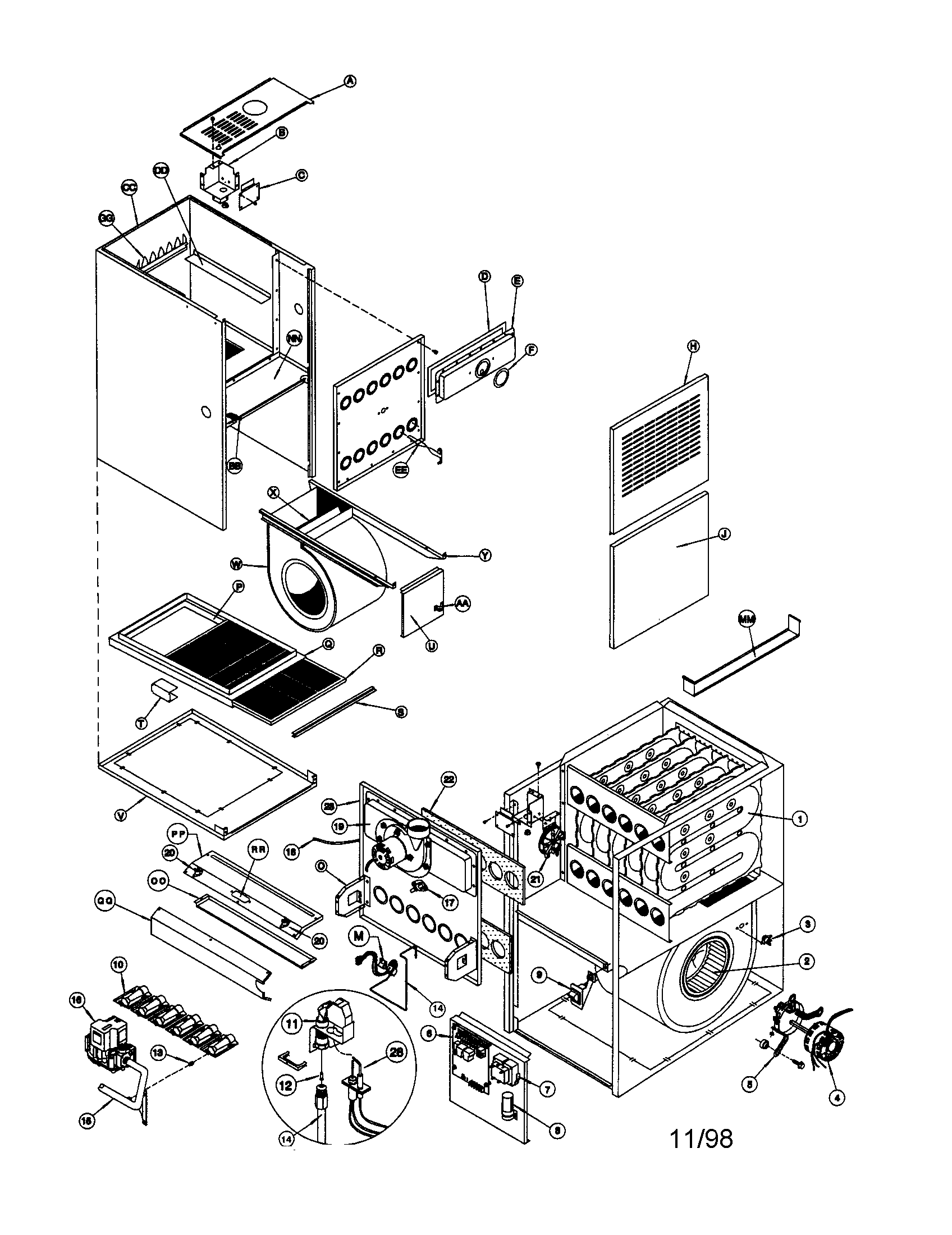

Replacement parts diagram

Furnace blower assembly

Part #1010975

Replaced by #1013833

?
Manufacturer substitution
This part replaces 1010975. Substitute parts can look different from the original.
$237.41 |
$10.00 OFF Phone Price : $247.41
In Stock
Cont Fan Tmr 1009838
#6

Replacement parts diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$227.07 |
$10.00 OFF Phone Price : $237.07
In Stock
Valve-nat 1011024
#16

Replacement parts diagram

Valve-nat

Part #1011024

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1011024. Substitute parts can look different from the original.
$674.90 |
$10.00 OFF Phone Price : $684.90
In Stock
Cap Rnrd 1094954
#8

Replacement parts diagram

Cap rnrd

Part #1094954

Replaced by #12005

?
Manufacturer substitution
This part replaces 1094954. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Limit Switch 1005549
#20

Replacement parts diagram

Limit switch

Part #1005549

Replaced by #1013102

?
Manufacturer substitution
This part replaces 1005549. Substitute parts can look different from the original.
$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#2

Replacement parts diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Tubing 64930
#14

Replacement parts diagram

Tubing

Part #64930

$77.80
In Stock
Furnace Blower Fan Motor Mounting Kit 609227
#5

Replacement parts diagram

Furnace blower fan motor mounting kit

Part #609227

$113.60
In Stock
Vnt Pres Swt 1010898
#21

Replacement parts diagram

Vnt pres swt

Part #1010898

Replaced by #1170926

?
Manufacturer substitution
This part replaces 1010898. Substitute parts can look different from the original.
$89.93 |
5% OFF Phone Price : $94.93
In Stock
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#28

Replacement parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
