Model # NEX-3K/R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony NEX-3K-R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

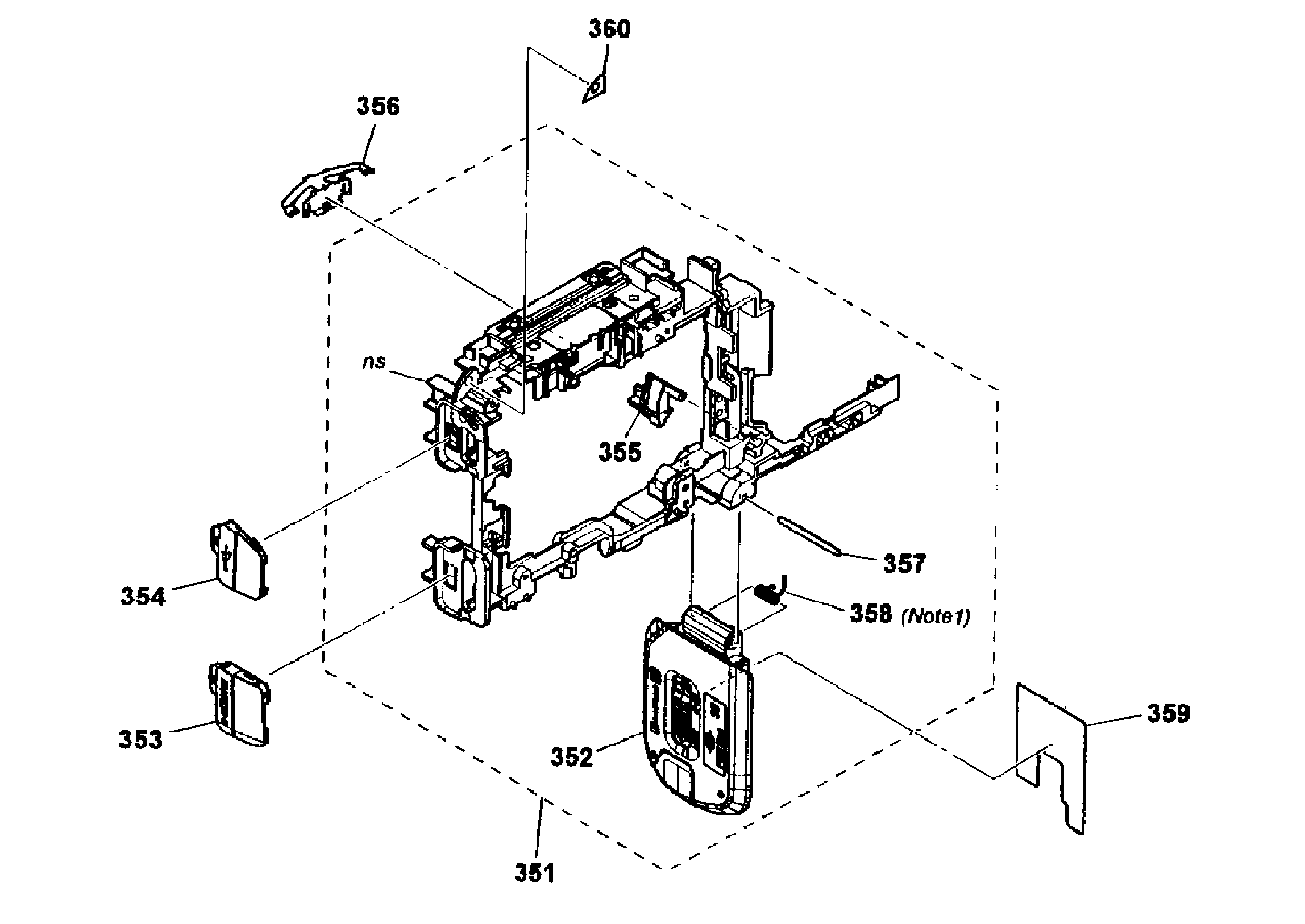

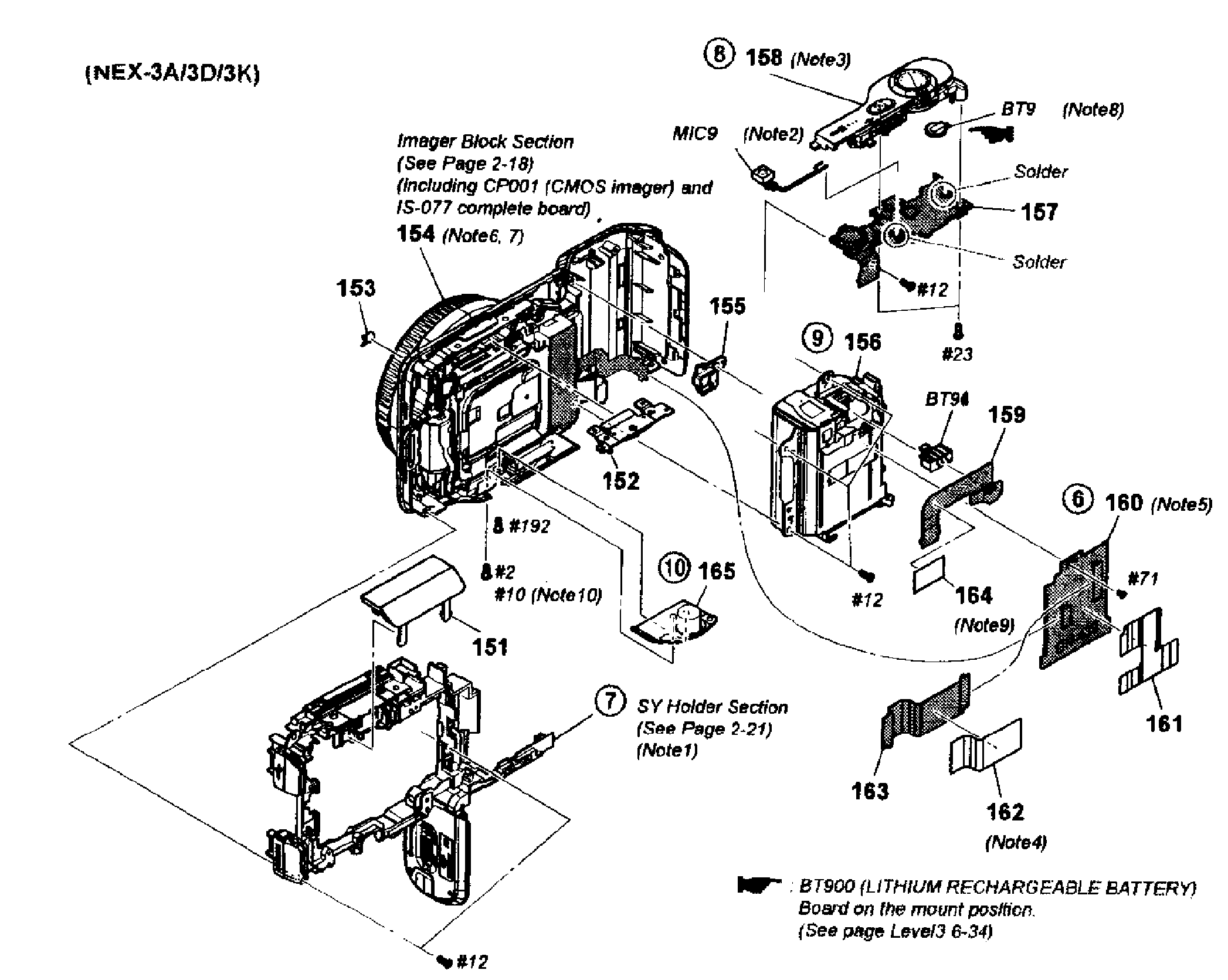

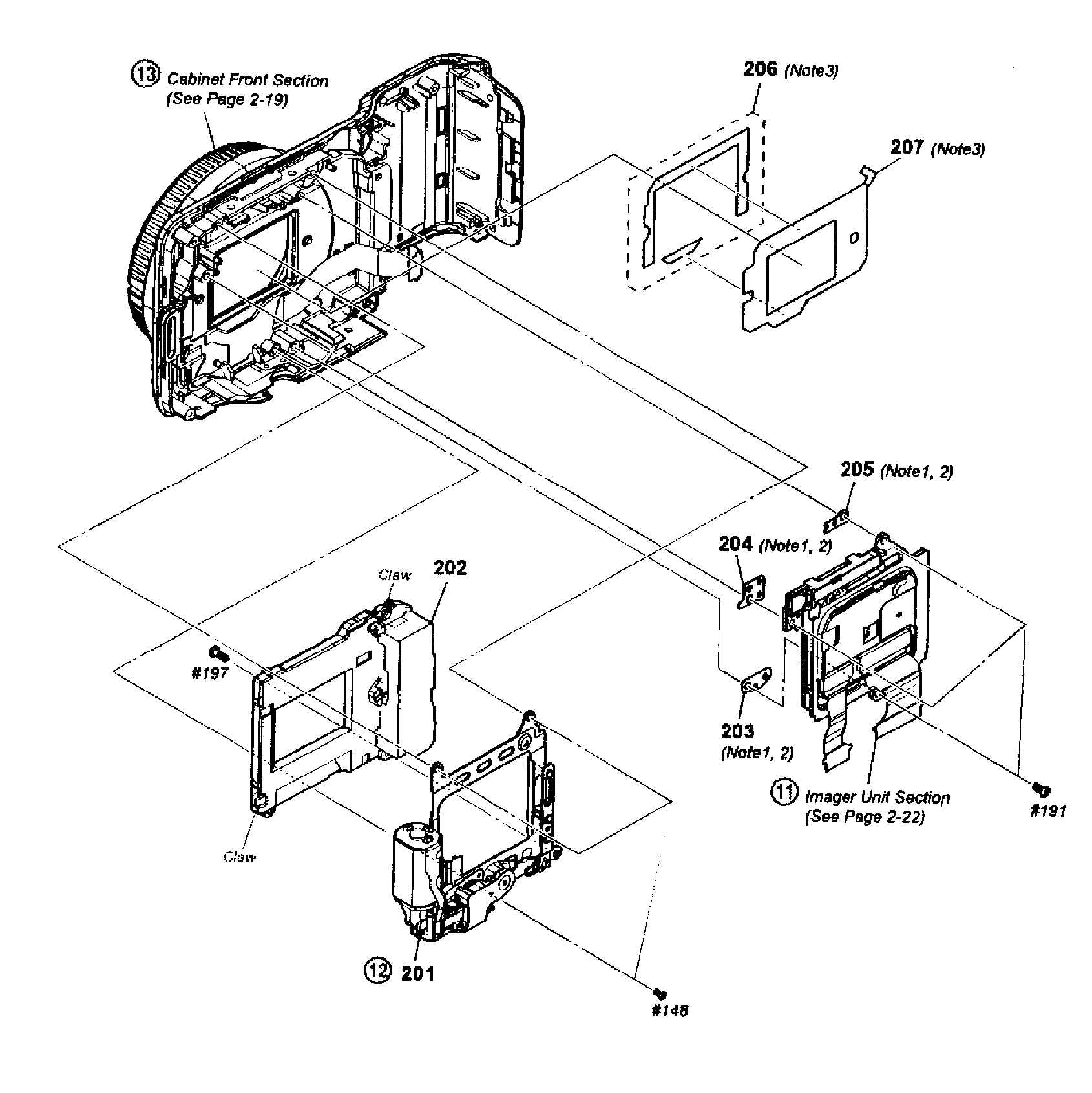

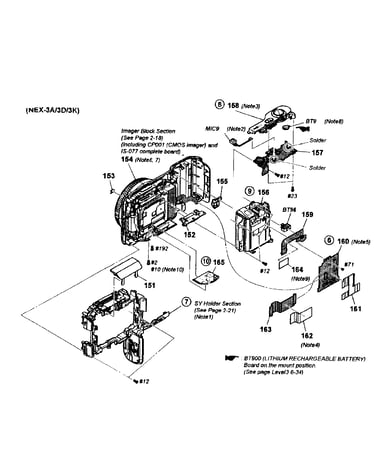

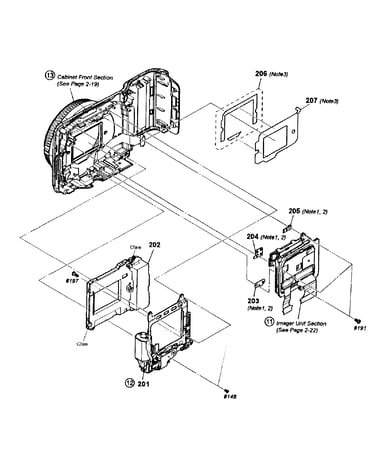

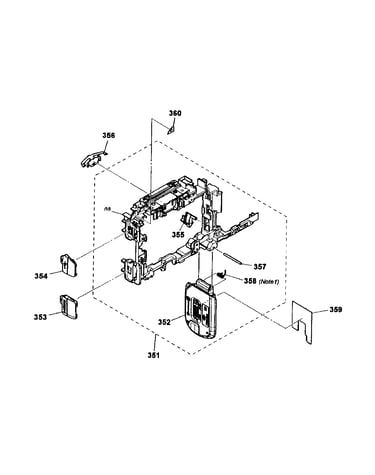

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Bracket 418941701
#262

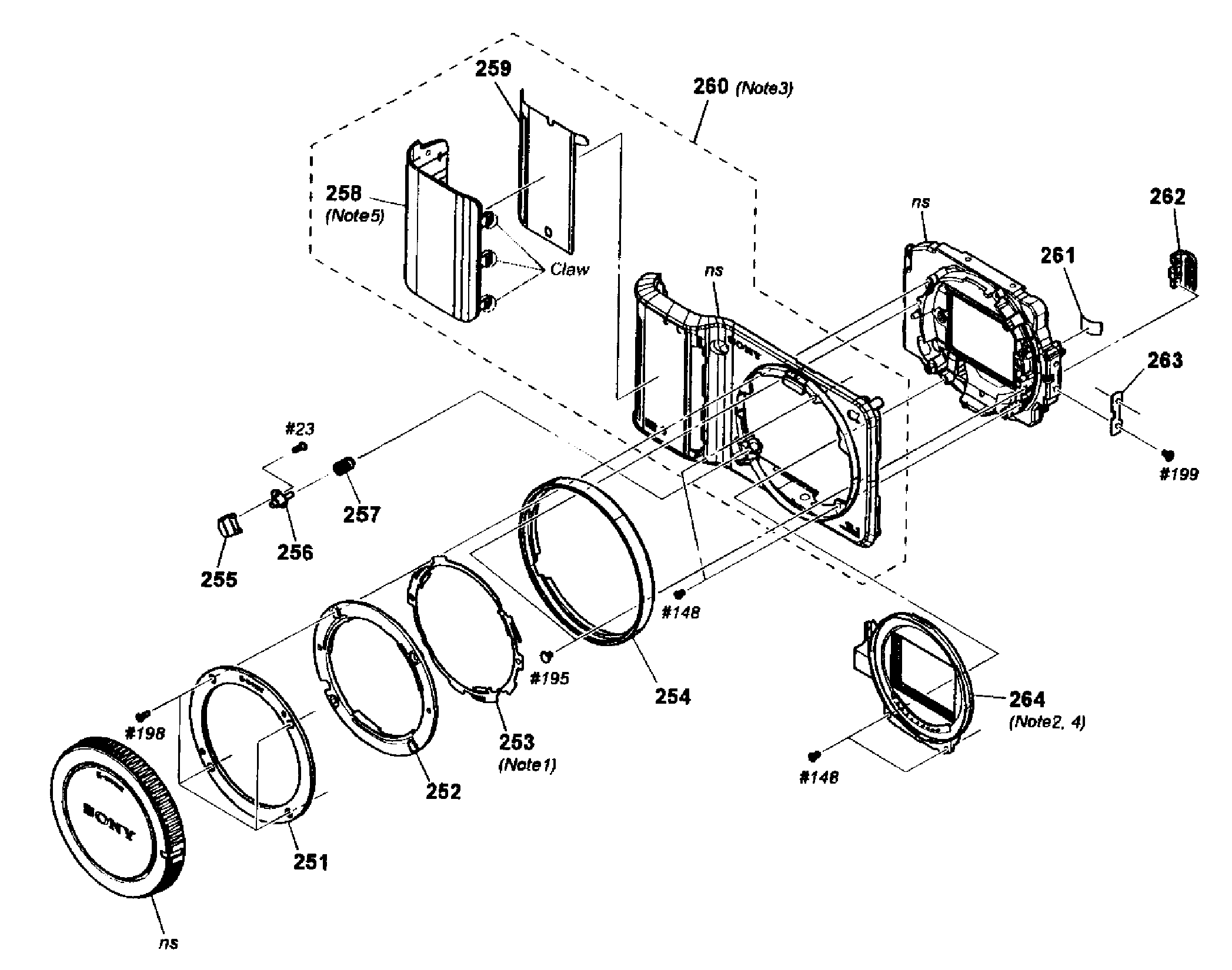

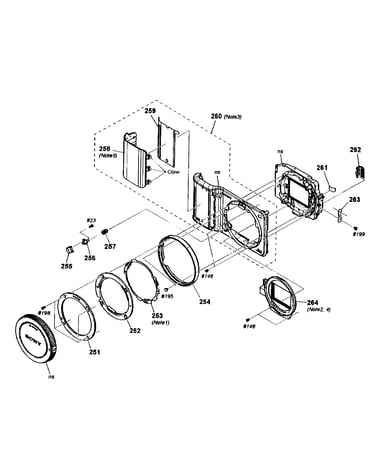

Fr cabinet diagram

Bracket

Part #418941701

This item is not returnable
$4.80
In Stock
Sheet Radi 419103501
#108

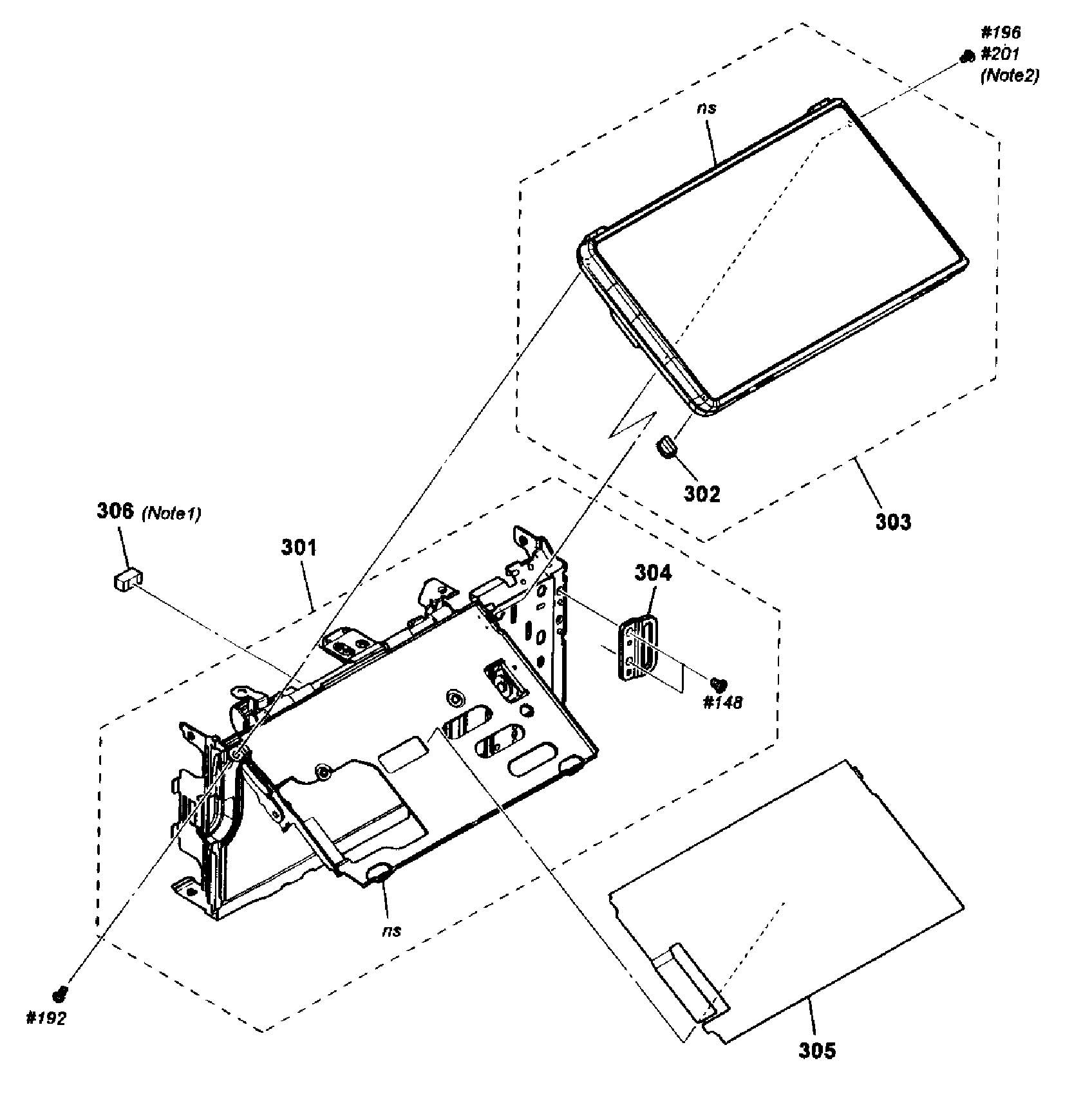

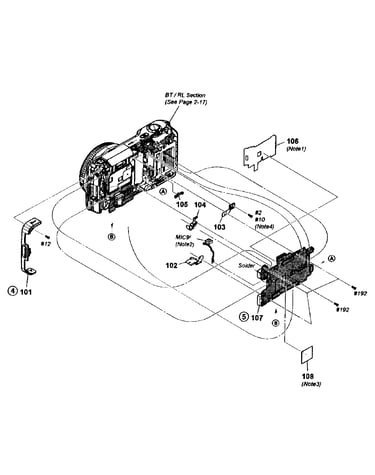

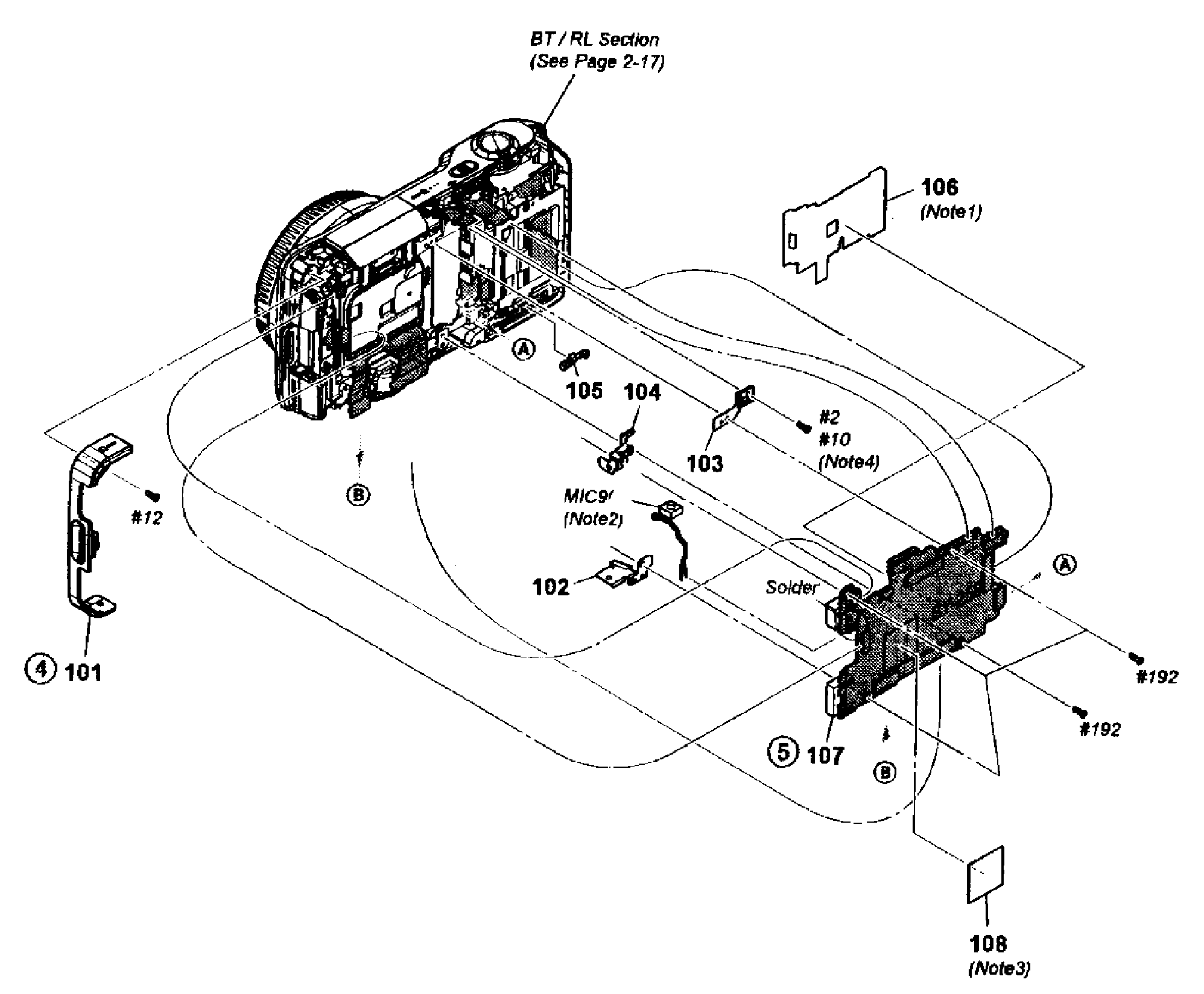

Main frame diagram

Sheet radi

Part #419103501

This item is not returnable
$6.03
In Stock
Mb-n-plate 418596301
#253

Fr cabinet diagram

Mb-n-plate

Part #418596301

This item is not returnable
$4.41
In Stock
Bracket 419076301
#304

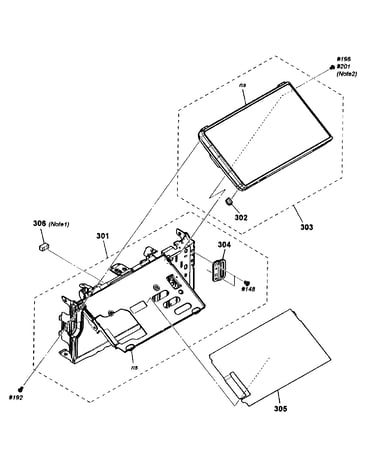

Main frame diagram

Bracket

Part #419076301

This item is not returnable
$6.49
In Stock
Flash A1774691A
#NI

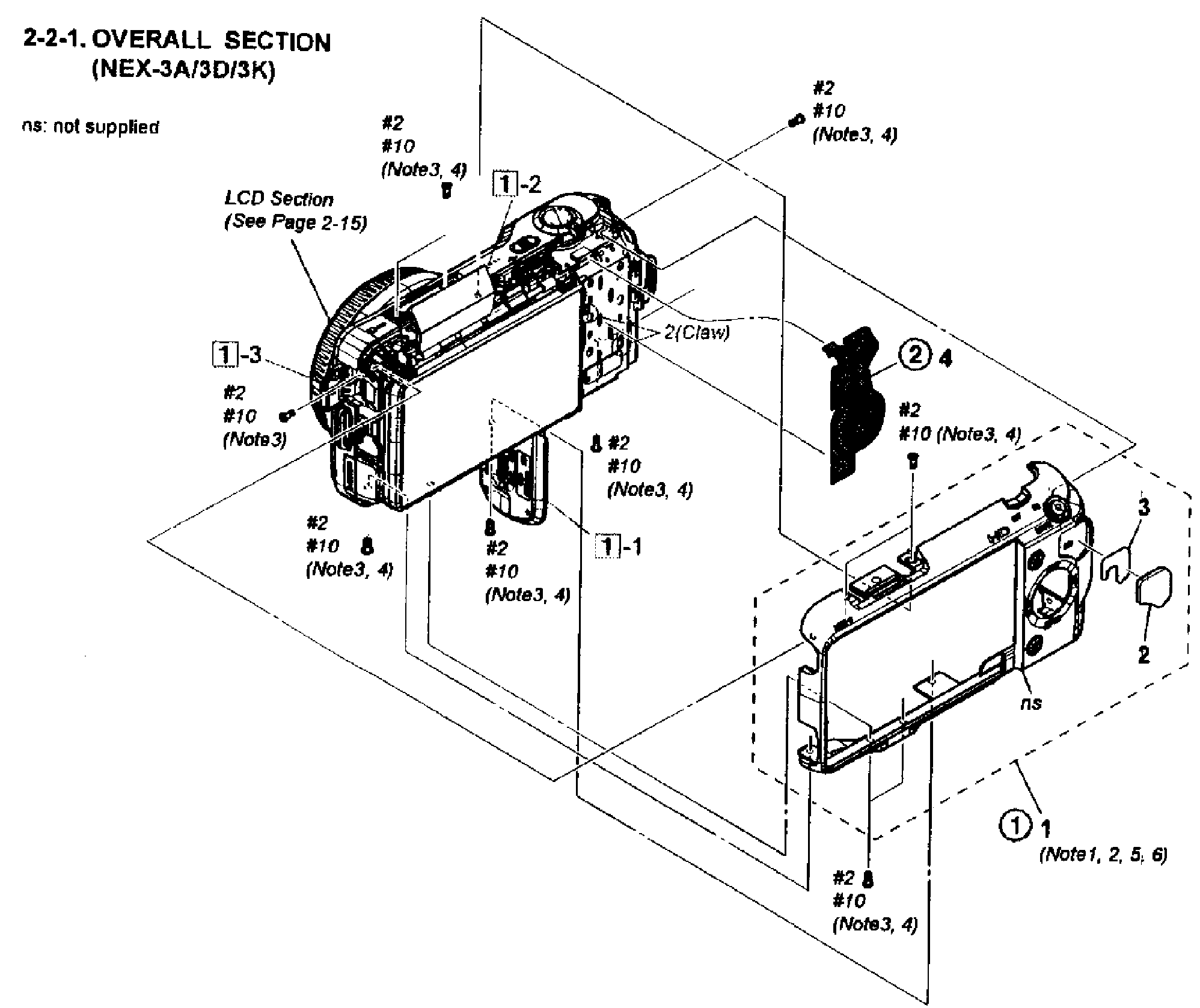

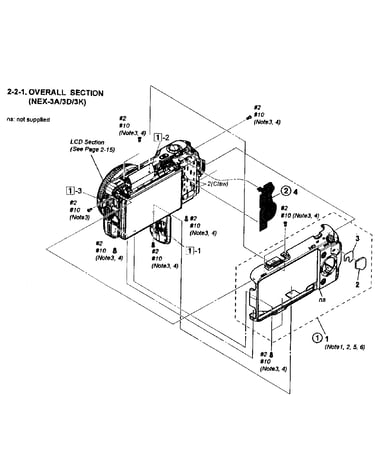

Overall view diagram

Flash

Part #A1774691A

$100.07
In Stock
Imager,pla 418599601
#401

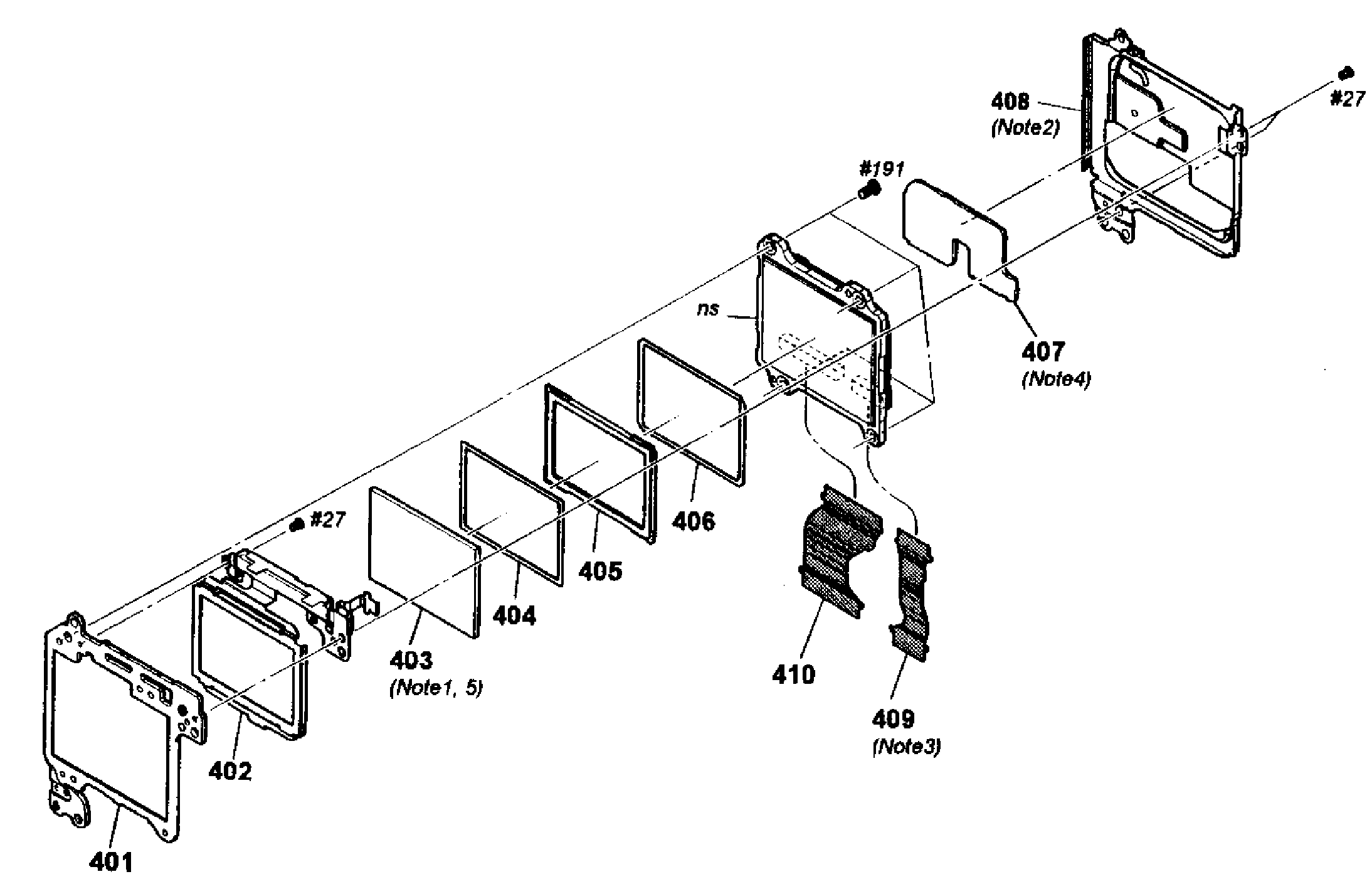

Imager unit diagram

Imager,pla

Part #418599601

$37.50
In Stock
Base,red 419096021
#58

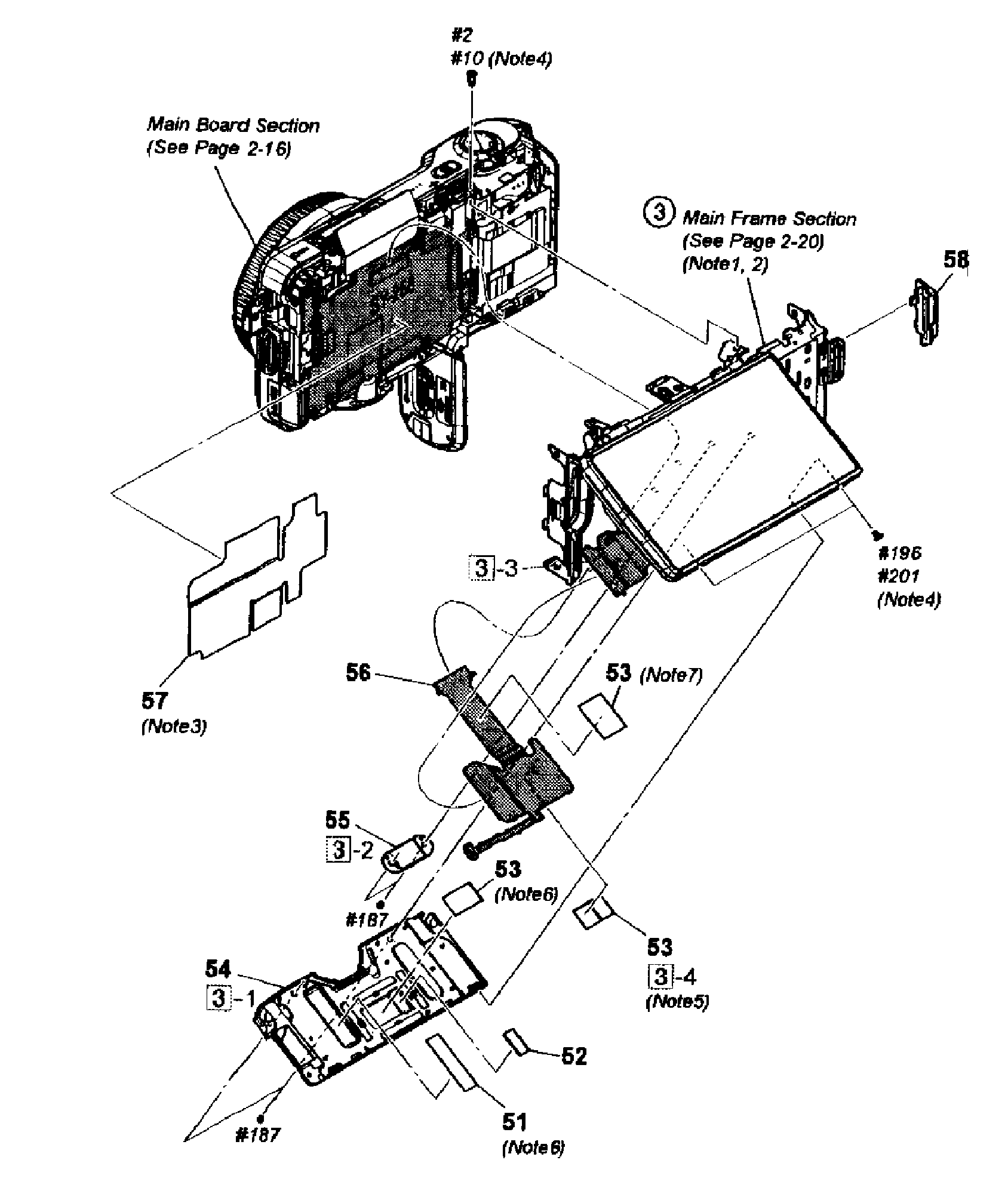

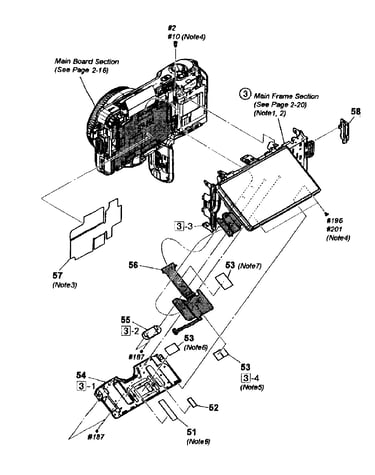

Lcd section diagram

Base,red

Part #419096021

$11.75
In Stock
Ring Ornament 418951201
#254

Fr cabinet diagram

Ring ornament

Part #418951201

$23.27
In Stock
Cover Side 419095121
#101

Main frame diagram

Cover side

Part #419095121

$18.61
In Stock
Frame Assembly X25482511
#301

Main frame diagram

Frame assembly

Part #X25482511

$74.80
In Stock
