White-Westinghouse WAK107P1V1 room air conditioner - 5995214771 Parts
Here are the diagrams and repair parts for White-Westinghouse WAK107P1V1 room air conditioner - 5995214771, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for WAK107P1V1 Room Air Conditioner - 5995214771

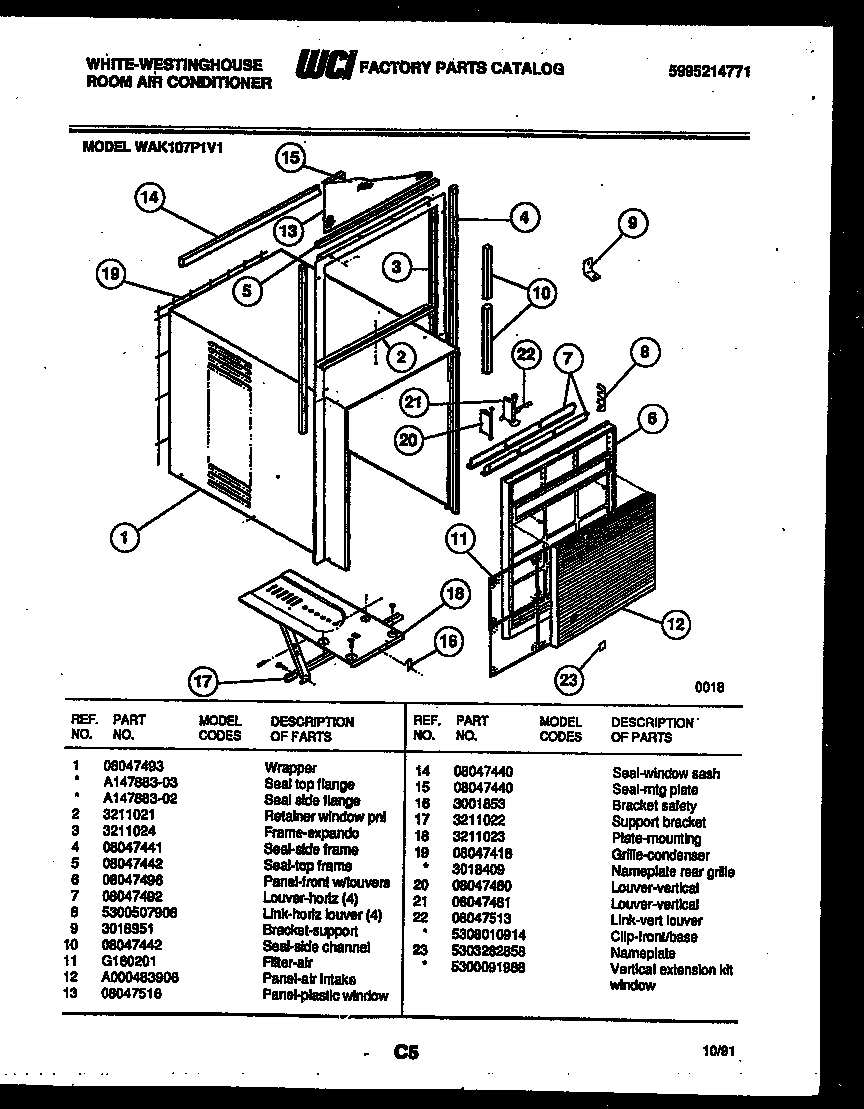

Cabinet parts diagram
Stop Bracket
Part #3018951Replaced by #5303211056
Manufacturer substitutionThis part replaces 3018951. Substitute parts can look different from the original.In Stock$47.66
Qty

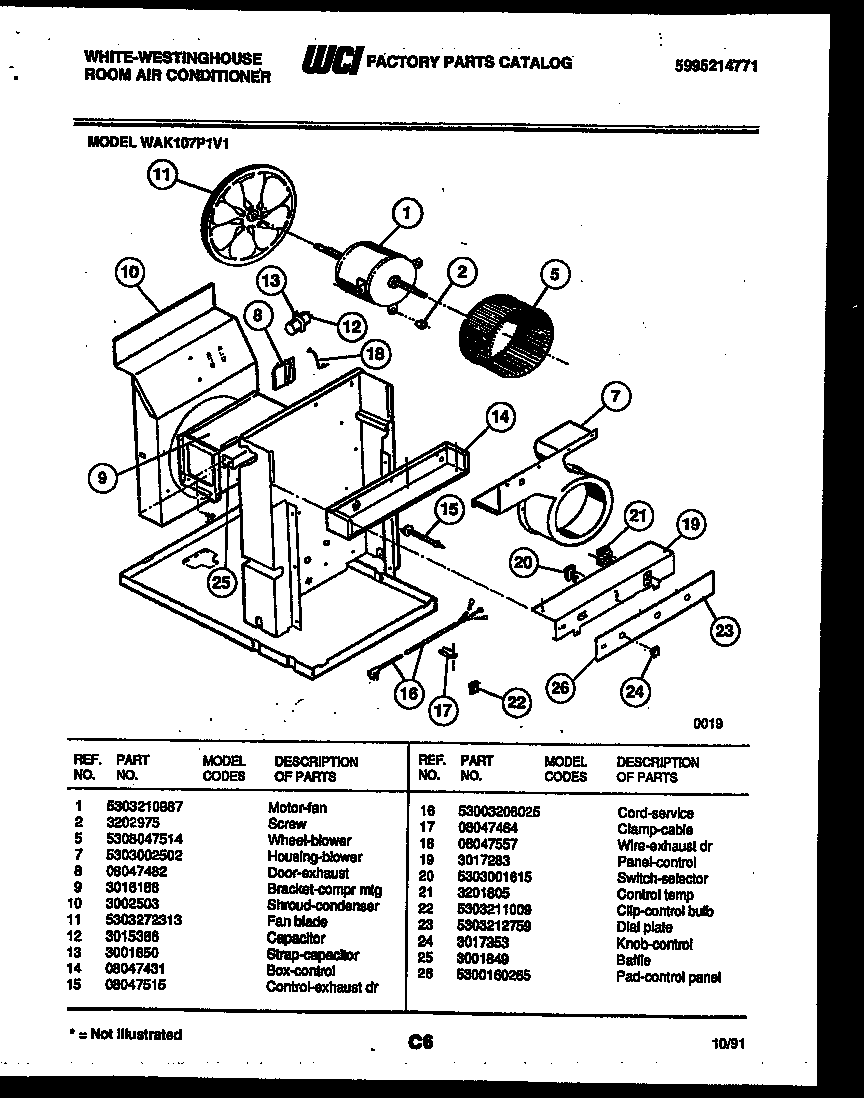

Electrical and air handling parts diagram
Screw
Part #3202975Replaced by #131202300
Manufacturer substitutionThis part replaces 3202975. Substitute parts can look different from the original.This item is not returnableIn Stock$15.5711% OFF Phone Price : $17.57
QtySeal
Part #08047442Replaced by #5314930813
Manufacturer substitutionThis part replaces 08047442. Substitute parts can look different from the original.In Stock$43.62QtyElectrical and air handling parts diagram
Control
Part #08047515Replaced by #5308047515
Manufacturer substitutionThis part replaces 08047515. Substitute parts can look different from the original.In Stock$35.45QtyCabinet parts diagram
Seal
Part #08047441Replaced by #5314930813

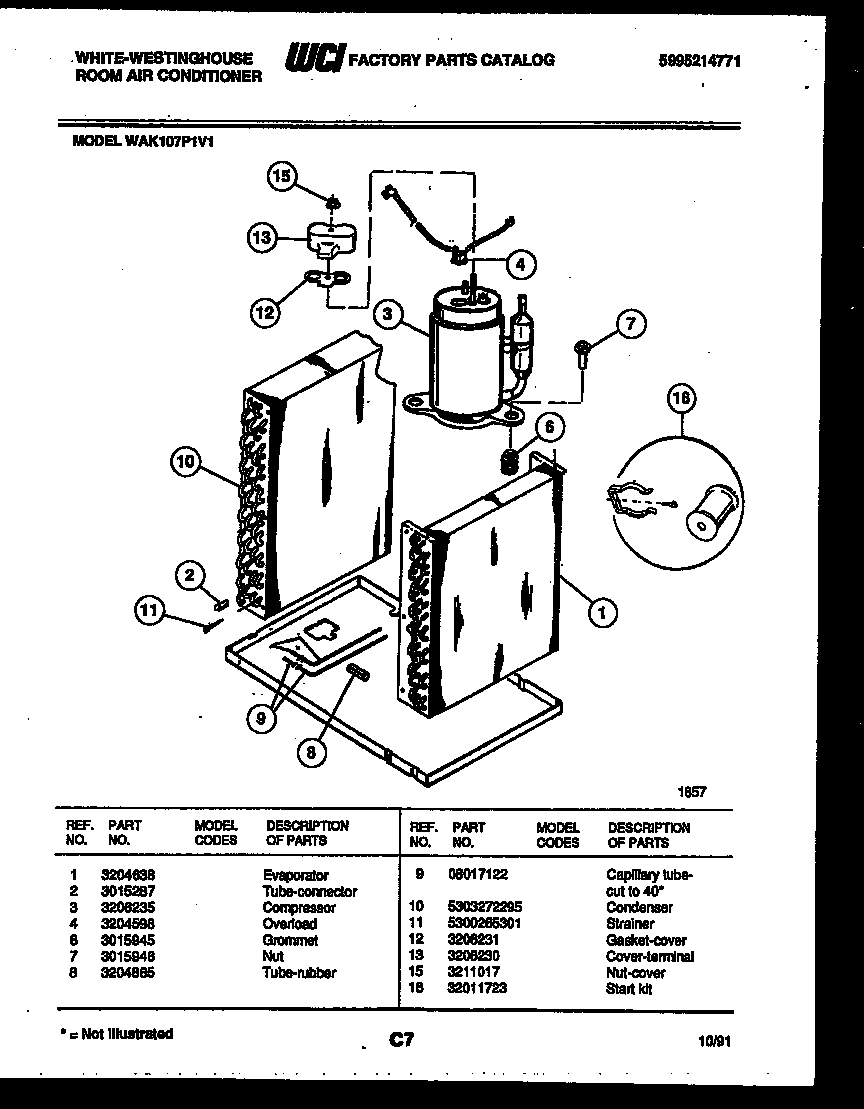

Manufacturer substitutionThis part replaces 08047441. Substitute parts can look different from the original.In Stock$43.62QtySystem parts diagram
Tube
Part #08017122Replaced by #309333001
Manufacturer substitutionThis part replaces 08017122. Substitute parts can look different from the original.In Stock$47.60QtySystem parts diagram
Nut
Part #3211017Replaced by #5303211017
Manufacturer substitutionThis part replaces 3211017. Substitute parts can look different from the original.In Stock$36.79QtyElectrical and air handling parts diagram
Wire
Part #08047557Replaced by #5308047557
Manufacturer substitutionThis part replaces 08047557. Substitute parts can look different from the original.In Stock$37.32QtyCabinet parts diagram
Mounting Plate
Part #3211023Replaced by #5304414857
Manufacturer substitutionThis part replaces 3211023. Substitute parts can look different from the original.In Stock$119.14QtySystem parts diagram
Grommet
Part #3015945Replaced by #5303015945
Manufacturer substitutionThis part replaces 3015945. Substitute parts can look different from the original.In Stock$48.73Qty
Most common symptoms to help you fix your room air conditioners
Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …
Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…
Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…
Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…
Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…
Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…
Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…
Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…
Main causes: clogged drain hole, air conditioner not leveled properly…
