Toshiba
DVD Player

Model # SD-3750 Official Toshiba dvd system

Here are the diagrams and repair parts for Official Toshiba SD-3750 dvd system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

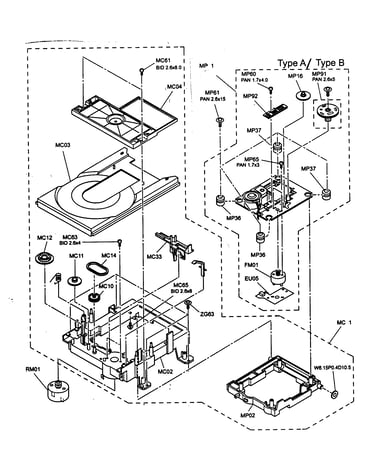

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Integrated Circuit 79040327
#NI

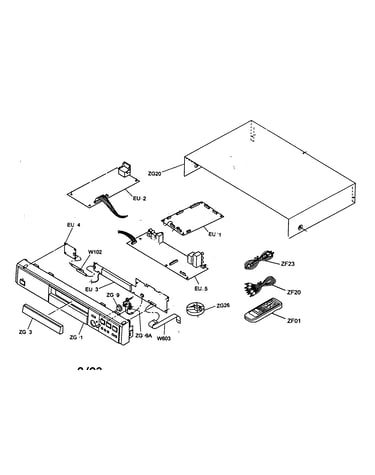

Cabinet parts diagram

Integrated circuit

Part #79040327

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 79077161
#NI

Cabinet parts diagram

Owner's manual

Part #79077161

The manufacturer no longer makes this part, and there's no substitute part

Key,cursor 79071211
#ZG9

Cabinet parts diagram

Key,cursor

Part #79071211

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3.00a 79087013
#NI

Cabinet parts diagram

Fuse 3.00a

Part #79087013

The manufacturer no longer makes this part, and there's no substitute part

Front Pcb 79081099
#EU3

Cabinet parts diagram

Front pcb

Part #79081099

The manufacturer no longer makes this part, and there's no substitute part

Fuse 3.50a 79087009
#NI

Cabinet parts diagram

Fuse 3.50a

Part #79087009

The manufacturer no longer makes this part, and there's no substitute part

Display 79089107
#NI

Cabinet parts diagram

Display

Part #79089107

The manufacturer no longer makes this part, and there's no substitute part

Tact Switch 79089157
#ZG9A

Cabinet parts diagram

Tact switch

Part #79089157

The manufacturer no longer makes this part, and there's no substitute part

Ser Man Cd CDSMMAR02
#NI

Cabinet parts diagram

Ser man cd

Part #CDSMMAR02

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb 79083106
#EU1

Cabinet parts diagram

Main pcb

Part #79083106

The manufacturer no longer makes this part, and there's no substitute part
