GE
Microwave/Hood Combo

Model # LVM1750SP1SS Official GE microwave

Here are the diagrams and repair parts for Official GE LVM1750SP1SS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

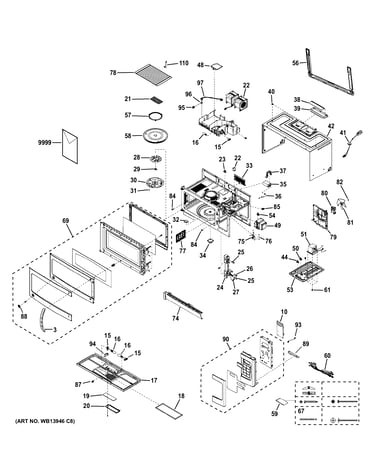

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Switch-micro WB24X10038
#25

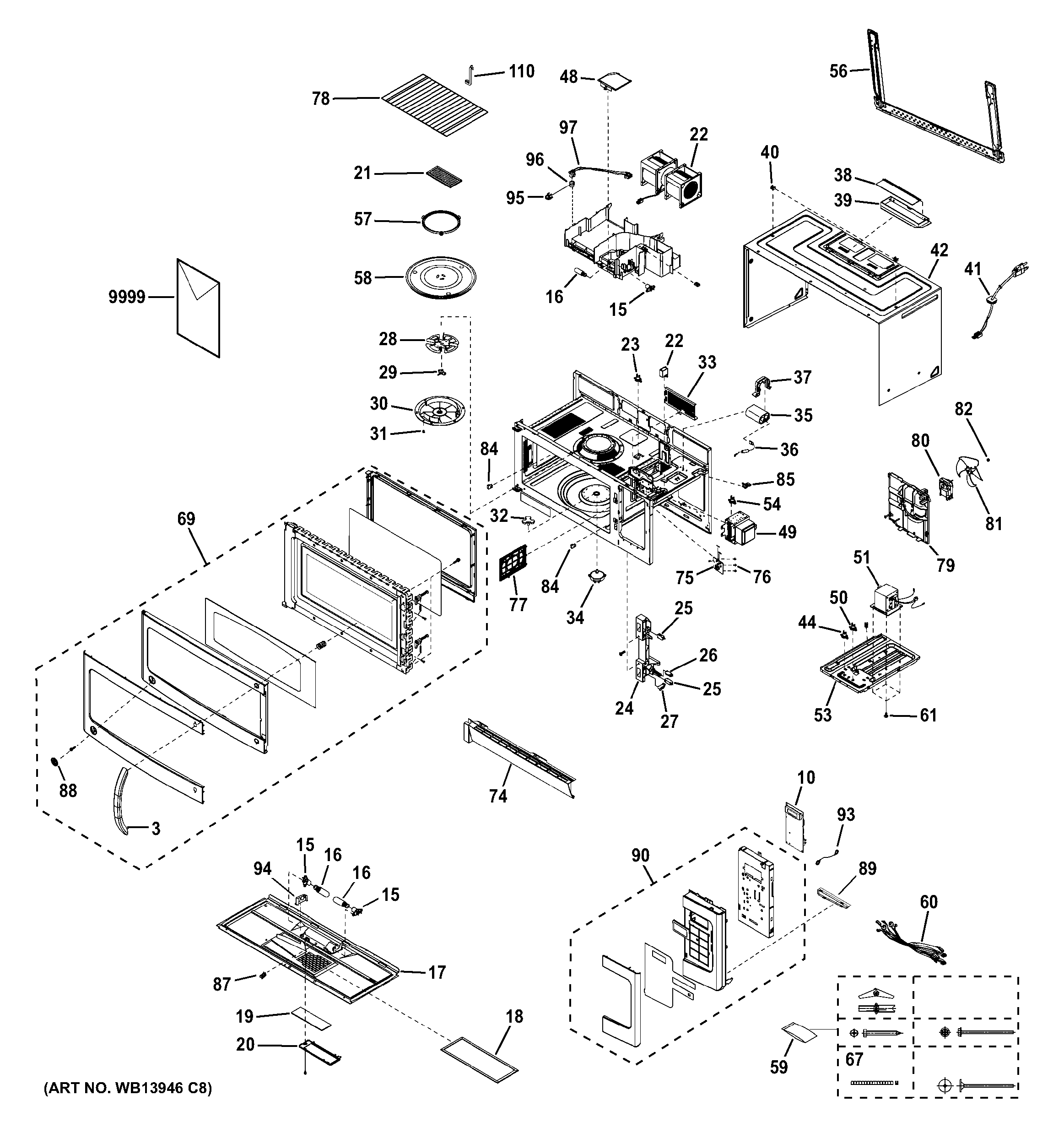

Microwave diagram

Switch-micro

Part #WB24X10038

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X10038. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Micro-switch WB24X10075
#26

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
BEST SELLER
$27.94 |
15% OFF Phone Price : $32.94
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#35

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
10% OFF Phone Price : $51.74
In Stock
H.v. Diode WB27X10817
#36

Microwave diagram

H.v. diode

Part #WB27X10817

Replaced by #WB27X10597

?
Manufacturer substitution
This part replaces WB27X10817. Substitute parts can look different from the original.
BEST SELLER
$40.60 |
11% OFF Phone Price : $45.60
In Stock
Microwave Magnetron (replaces Wb27t10545) WB27X11079
#49

Microwave diagram

Microwave magnetron (replaces wb27t10545)

Part #WB27X11079

BEST SELLER
$132.20 |
7% OFF Phone Price : $142.20
In Stock
Microwave Latch Body WB06X10676
#24

Microwave diagram

Microwave latch body

Part #WB06X10676

BEST SELLER
$58.66 |
8% OFF Phone Price : $63.66
In Stock
Microwave Door Interlock Switch Lever (replaces Wb6x10128) WB06X10128
#27

Microwave diagram

Microwave door interlock switch lever (replaces wb6x10128)

Part #WB06X10128

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Gas Sensor WB24X0799
#96

Microwave diagram

Gas sensor

Part #WB24X0799

Replaced by #WB24X799

?
Manufacturer substitution
This part replaces WB24X0799. Substitute parts can look different from the original.
BEST SELLER
$157.35 |
6% OFF Phone Price : $167.35
In Stock
Microwave Electronic Control Board WB27X11080
#10

Microwave diagram

Microwave electronic control board

Part #WB27X11080

The manufacturer no longer makes this part, and there's no substitute part

Microwave Noise Filter WB02X11200
#75

Microwave diagram

Microwave noise filter

Part #WB02X11200

BEST SELLER
$95.29 |
9% OFF Phone Price : $105.29
In Stock
