Jenn-Air
Wine & Beverage Cooler

Model # JUB248RWRS01 Official Jenn-Air beverage center

Here are the diagrams and repair parts for Official Jenn-Air JUB248RWRS01 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

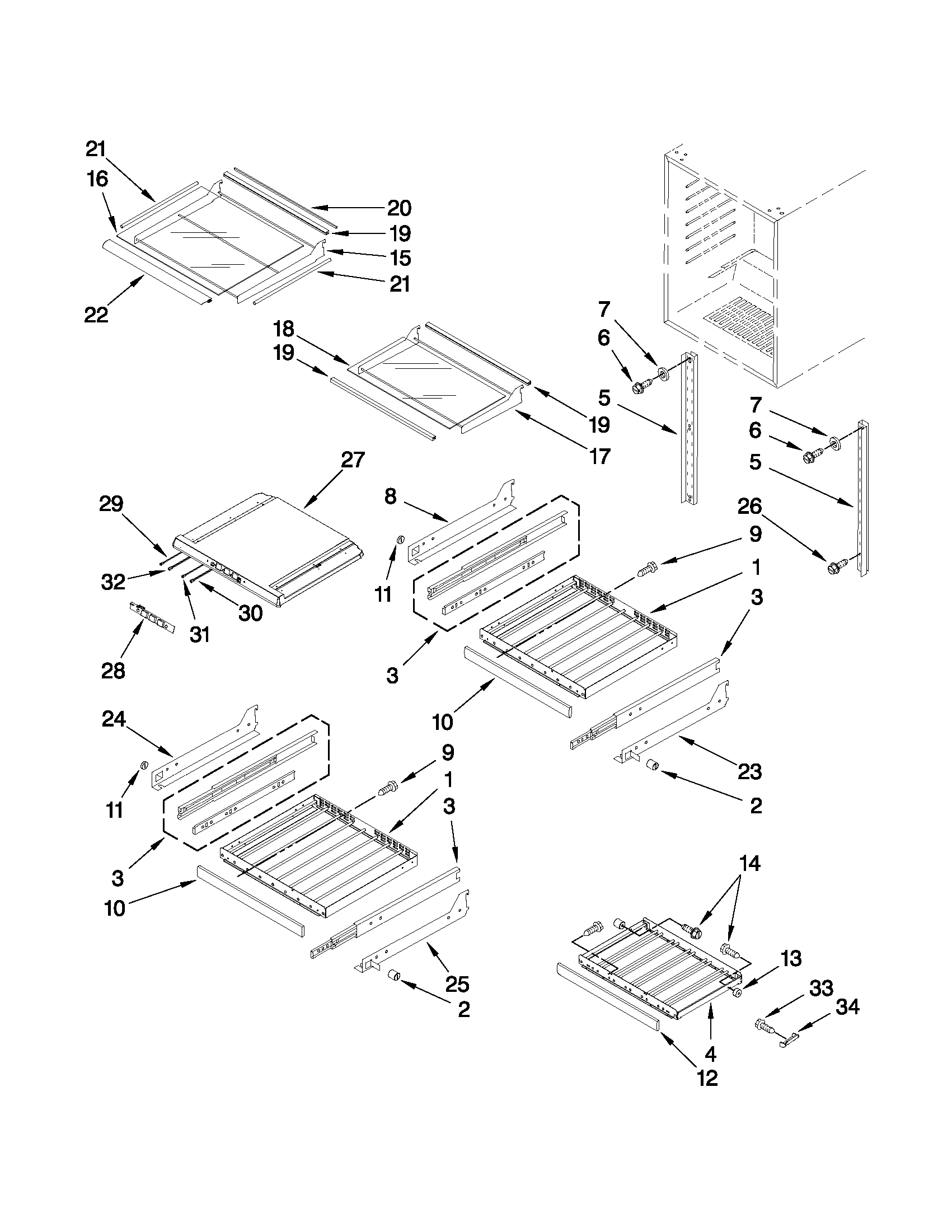

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |

Wine Cooler Door Gasket W10238068
#10

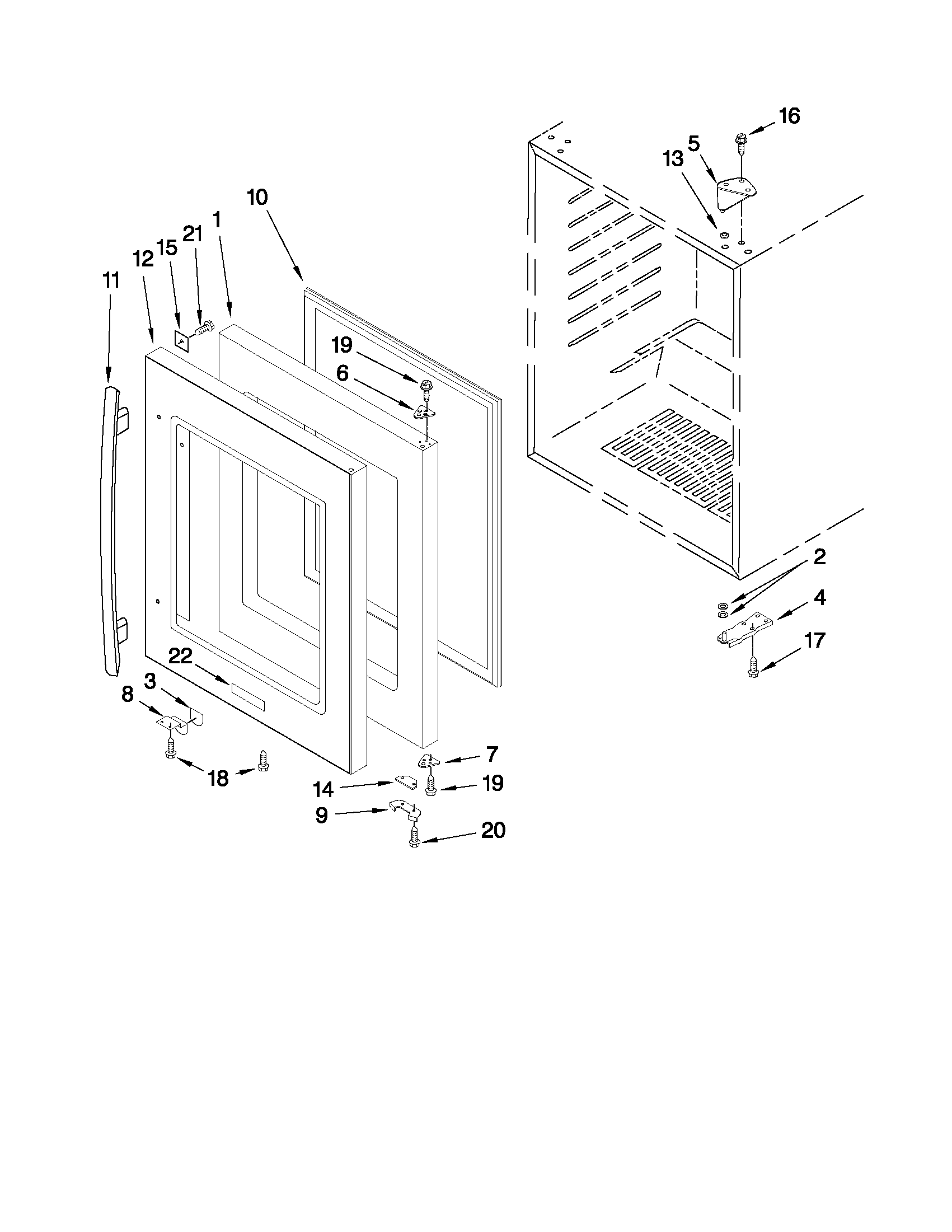

Door parts diagram

Wine cooler door gasket

Part #W10238068

Replaced by #WPW10238068

?
Manufacturer substitution
This part replaces W10238068. Substitute parts can look different from the original.
$133.91
7% OFF Phone Price : $143.91
In Stock
Compressor 4344775
#28

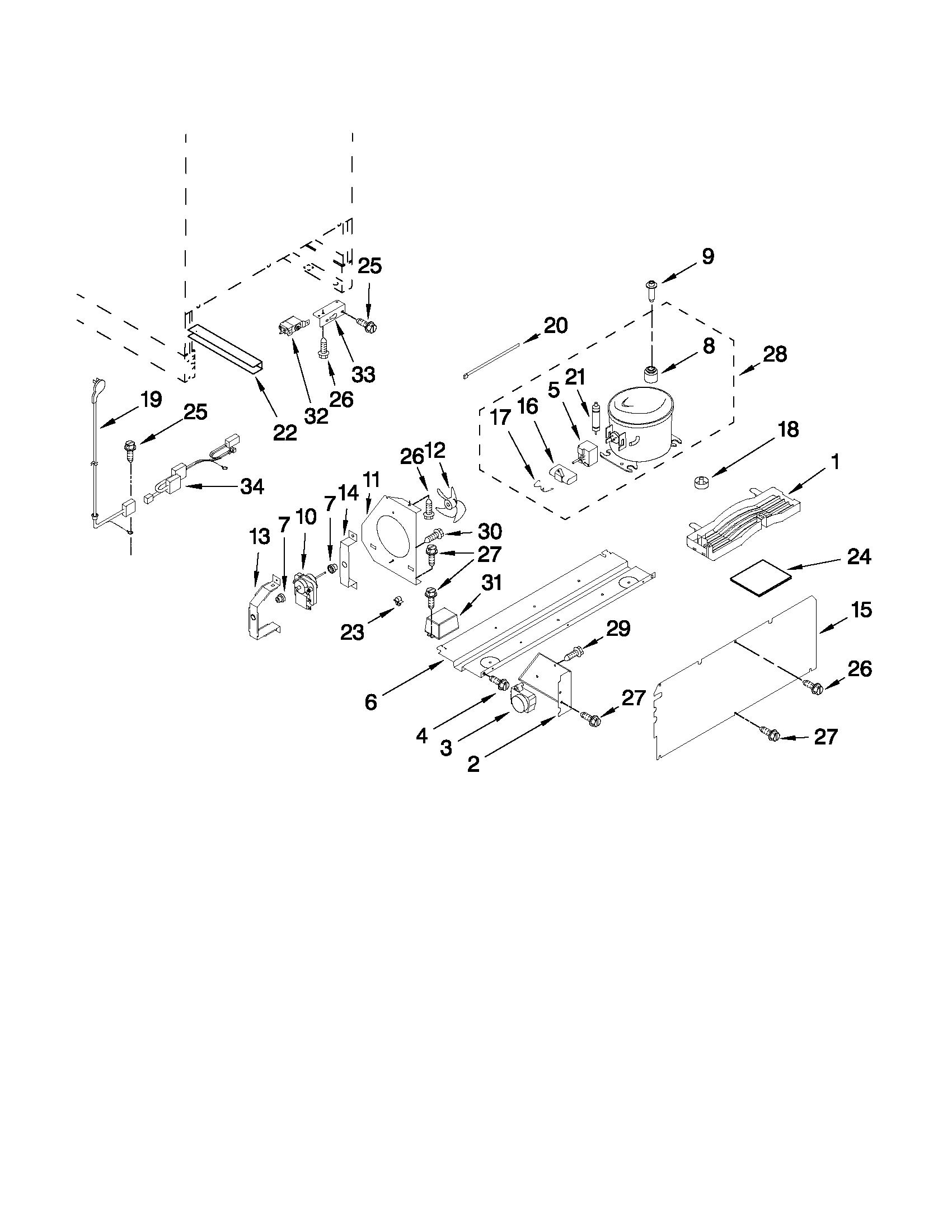

Unit parts diagram

Compressor

Part #4344775

Replaced by #8201787

?
Manufacturer substitution
This part replaces 4344775. Substitute parts can look different from the original.
$405.15
$10.00 OFF Phone Price : $415.15
In Stock
Thermostat Knob 4344768
#16

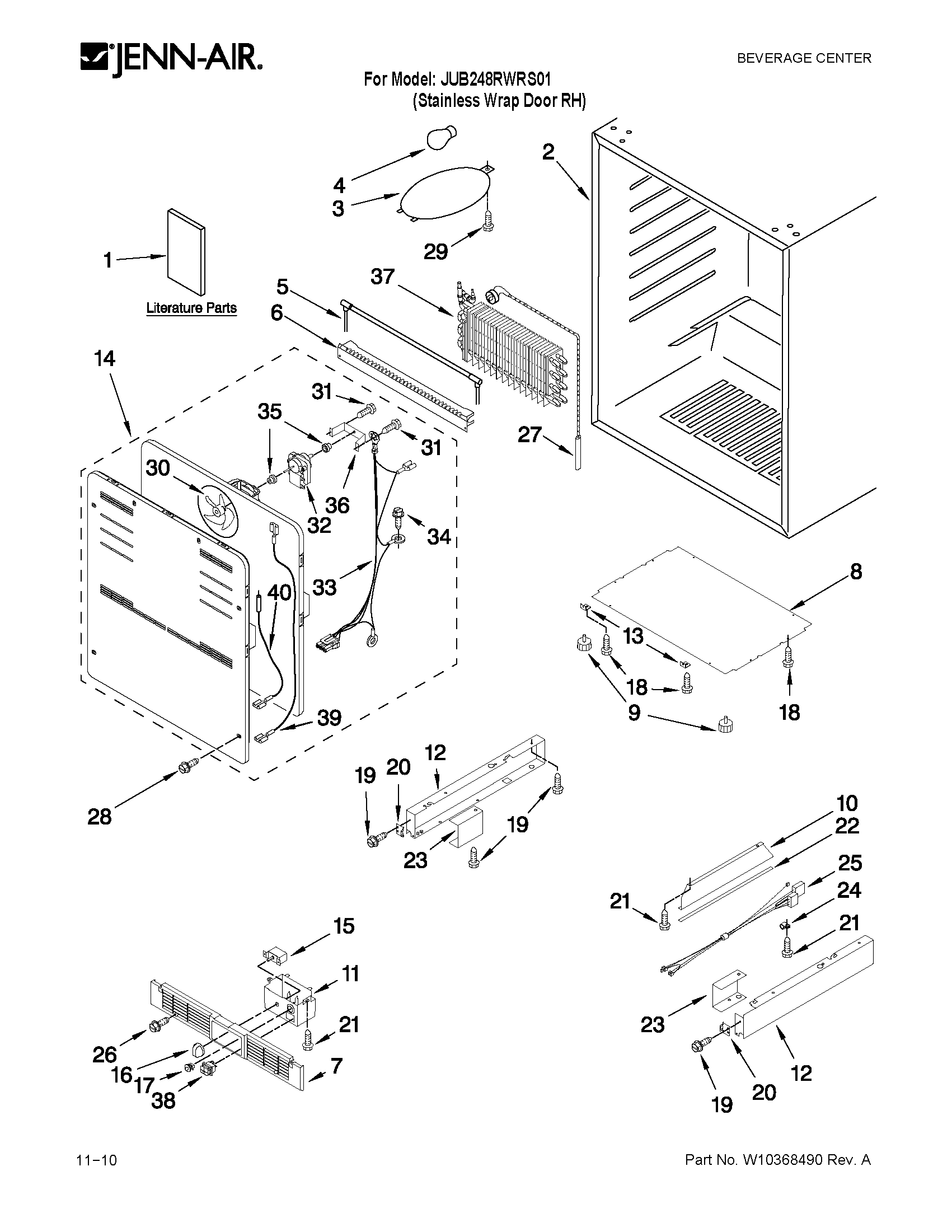

Cabinet parts diagram

Thermostat knob

Part #4344768

Replaced by #WP3402573

?
Manufacturer substitution
This part replaces 4344768. Substitute parts can look different from the original.
In Stock
Defrost Timer W10239390
#3

Unit parts diagram

Defrost timer

Part #W10239390

The manufacturer no longer makes this part, and there's no substitute part

Wine Cooler Temperature Control Thermostat W10163278
#32

Unit parts diagram

Wine cooler temperature control thermostat

Part #W10163278

$93.24
7% OFF MSRP : $100.00
In Stock
Start Device 4344776
#5

Unit parts diagram

Start device

Part #4344776

Replaced by #WP4344776

?
Manufacturer substitution
This part replaces 4344776. Substitute parts can look different from the original.
$74.25
6% OFF Phone Price : $79.25
In Stock
Refrigerator Power Cord W10204676
#19

Unit parts diagram

Refrigerator power cord

Part #W10204676

Replaced by #WPW10204676

?
Manufacturer substitution
This part replaces W10204676. Substitute parts can look different from the original.
In Stock
Wine Cooler Leveling Leg 4344763
#9

Cabinet parts diagram

Wine cooler leveling leg

Part #4344763

Replaced by #W11106296

?
Manufacturer substitution
This part replaces 4344763. Substitute parts can look different from the original.
This item is not returnable
$11.09
15% OFF Phone Price : $13.09
In Stock
Defrost Bi-metal W10299078
#27

Cabinet parts diagram

Defrost bi-metal

Part #W10299078

Replaced by #W10860146

?
Manufacturer substitution
This part replaces W10299078. Substitute parts can look different from the original.
$90.36
25% OFF MSRP : $120.00
In Stock
Rear Cover 4344786
#15

Unit parts diagram

Rear cover

Part #4344786

In Stock
