Whirlpool MH1170XSQ3 microwave Parts

Here are the diagrams and repair parts for Whirlpool MH1170XSQ3 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MH1170XSQ3 microwave
By Schematic

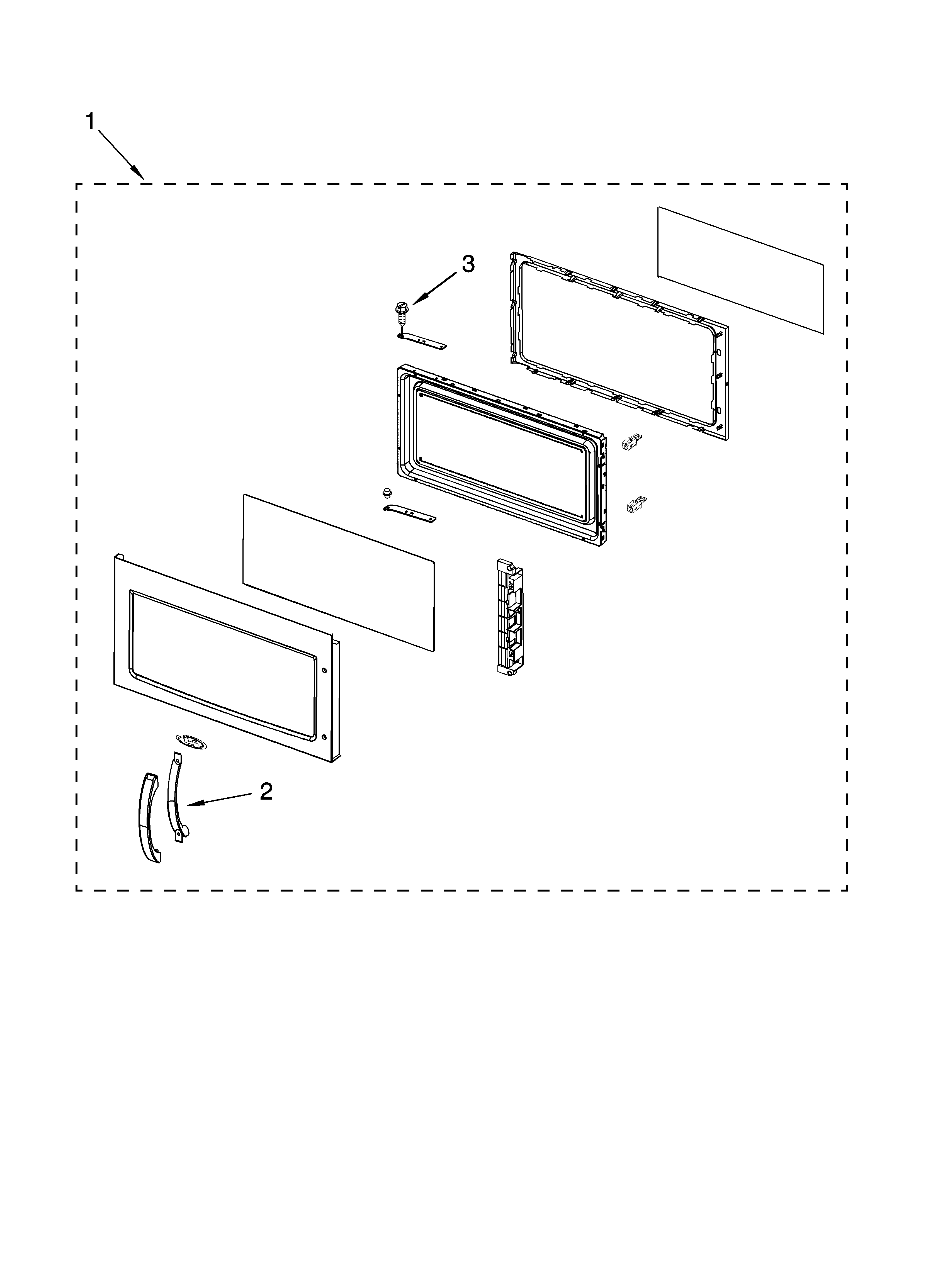

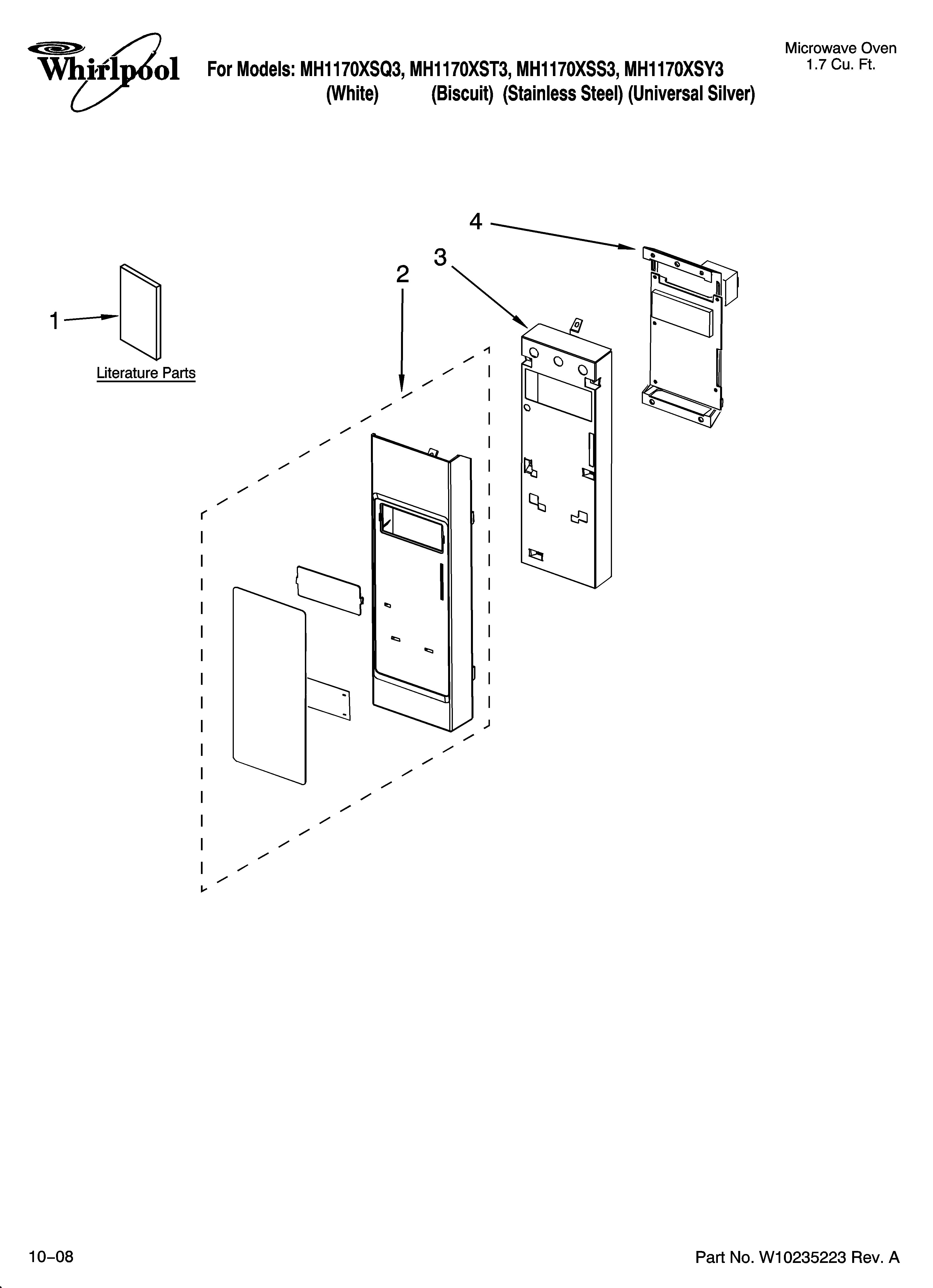

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MH1170XSQ3 Microwave

  • R Ceramic Fu for Whirlpool MH1170XSQ3 - Part W11707984

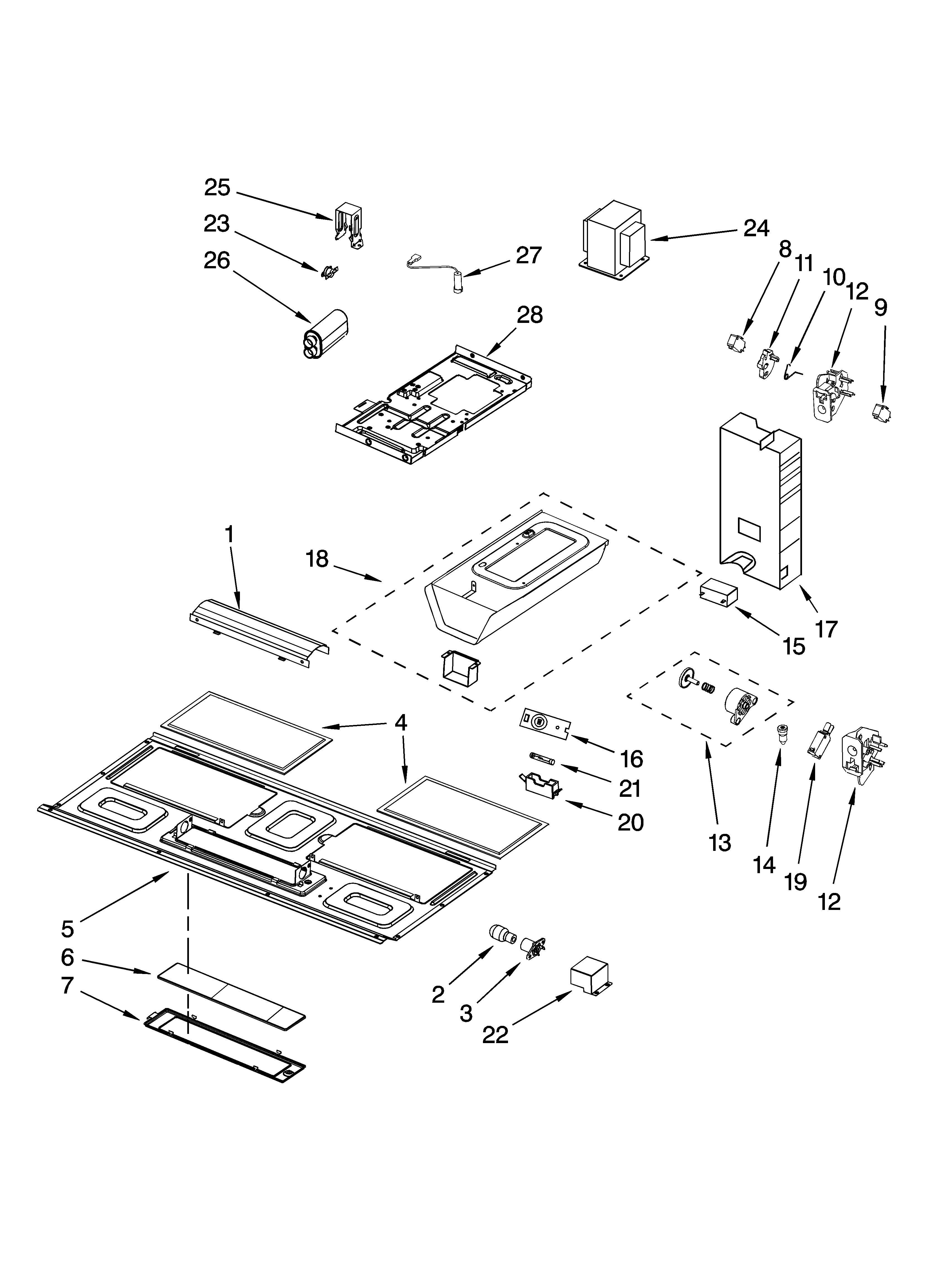

    Interior and ventilation parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for Whirlpool MH1170XSQ3 - Part 8206232A

    Interior and ventilation parts diagram

    Microwave/hood Light Bulb

    Part #8206232

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 8206232. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.91
    14% OFF Phone Price : $6.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Surface Light Bulb, 40-watt for Whirlpool MH1170XSQ3 - Part 8206232A

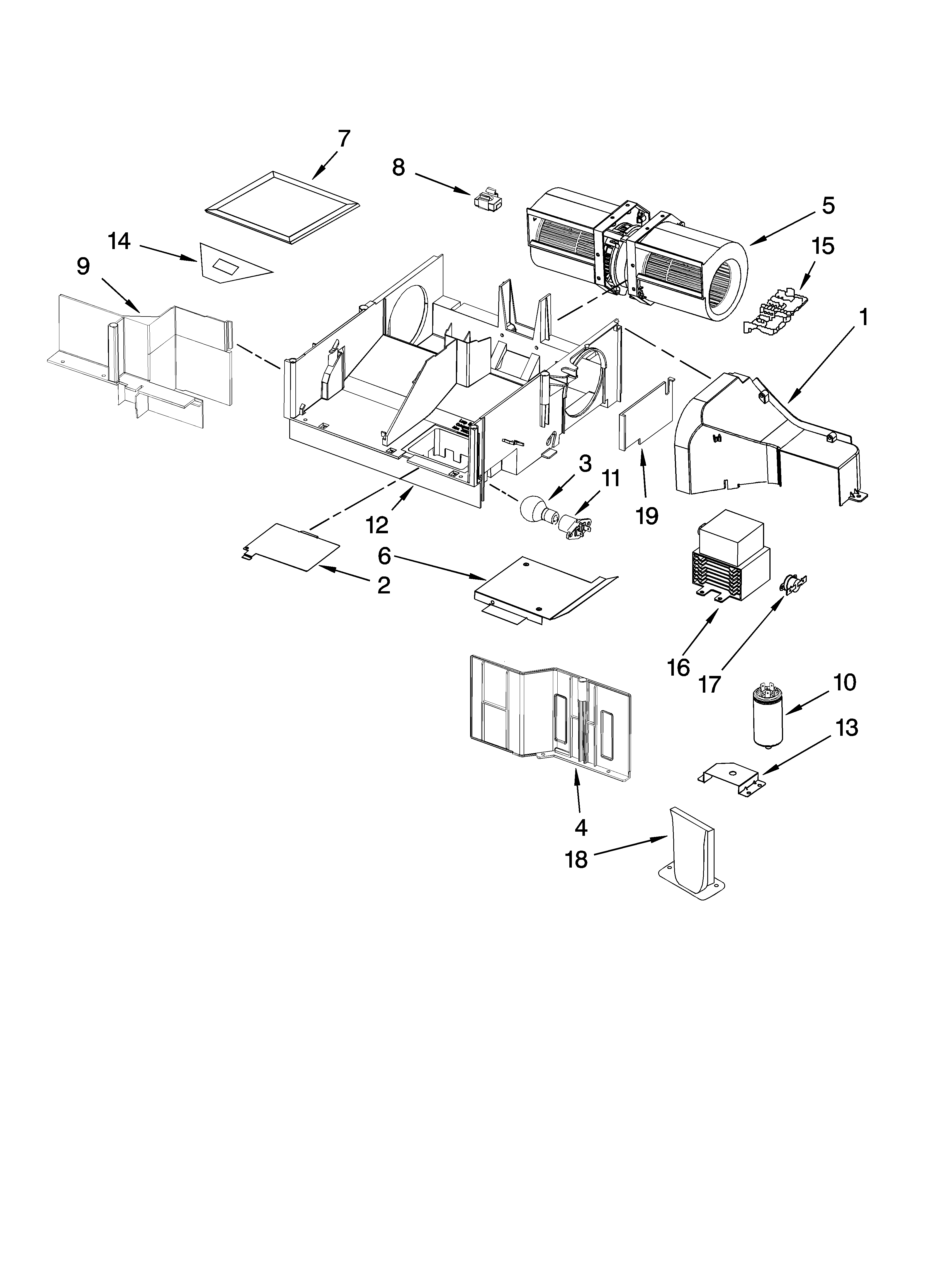

    Air flow parts diagram

    Lamp Assembly

    Part #4393681

    Replaced by #8206232A

    Info Icon
    Manufacturer substitution
    This part replaces 4393681. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.91
    14% OFF Phone Price : $6.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Upper for Whirlpool MH1170XSQ3 - Part WP8206419

    Interior and ventilation parts diagram

    Microwave Door Interlock Support, Upper

    Part #8206419

    Replaced by #WP8206419

    Info Icon
    Manufacturer substitution
    This part replaces 8206419. Substitute parts can look different from the original.
    In Stock
    $13.72
    13% OFF Phone Price : $15.72Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for Whirlpool MH1170XSQ3 - Part W10211974

    Interior and ventilation parts diagram

    Microwave Door Interlock Switch

    Part #W10211974
    In Stock
    $38.26
    14% OFF Phone Price : $44.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support, Lower for Whirlpool MH1170XSQ3 - Part WPW10156813

    Interior and ventilation parts diagram

    Interlock

    Part #W10156813

    Replaced by #WPW10156813

    Info Icon
    Manufacturer substitution
    This part replaces W10156813. Substitute parts can look different from the original.
    In Stock
    $8.14
    11% OFF Phone Price : $9.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Magnetron for Whirlpool MH1170XSQ3 - Part W10210845

    Air flow parts diagram

    Magnetron

    Part #W10210845

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Vent Grille for Whirlpool MH1170XSQ3 - Part W10259625

    Cabinet and installation parts diagram

    Vent Grille (black)

    Part #8206391

    Replaced by #W10259625

    Info Icon
    Manufacturer substitution
    This part replaces 8206391. Substitute parts can look different from the original.
    In Stock
    $49.75
    11% OFF Phone Price : $55.75Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Tray Support for Whirlpool MH1170XSQ3 - Part W11252182

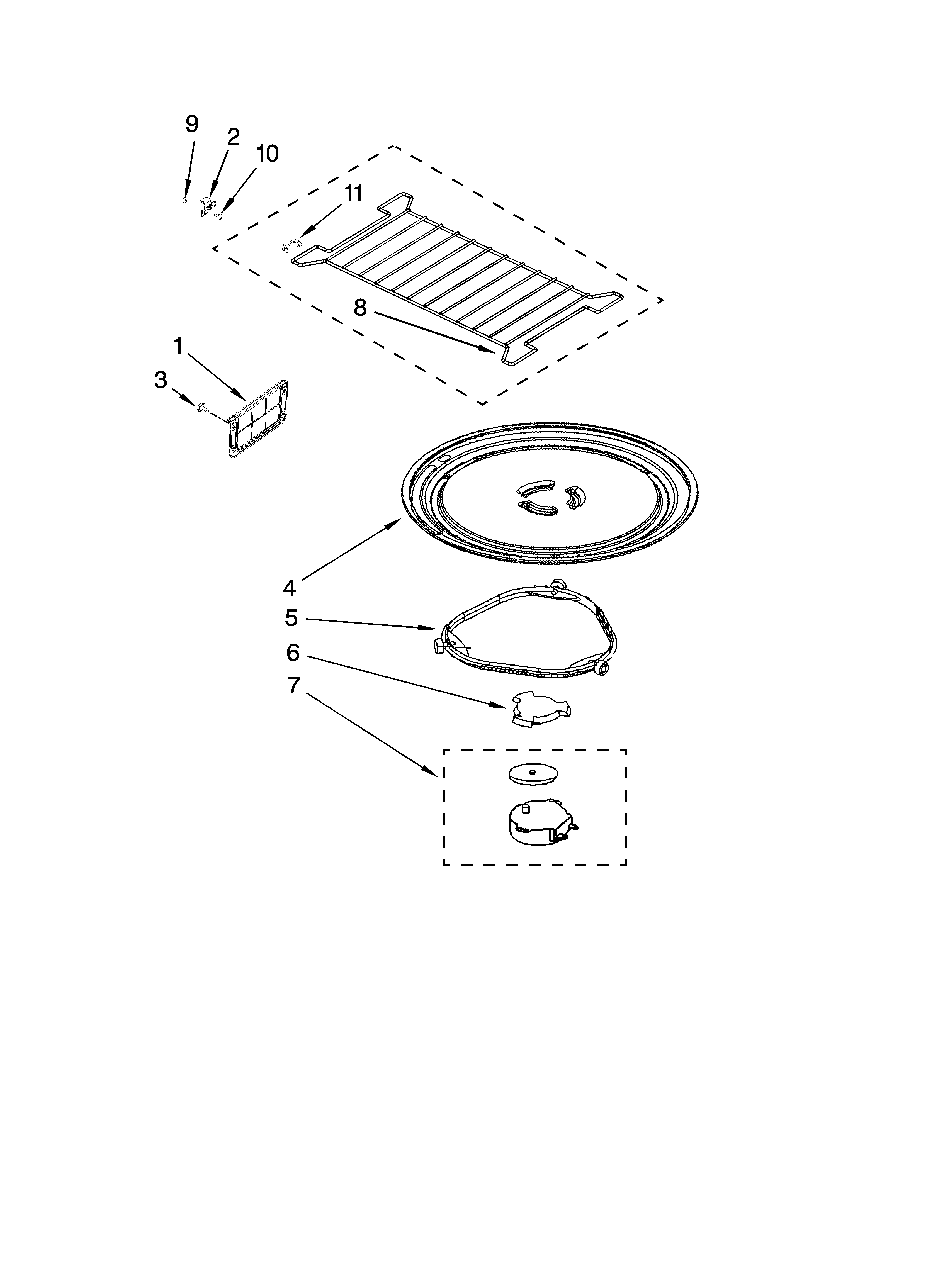

    Turntable parts diagram

    Microwave Turntable Ring

    Part #8206227

    Replaced by #W11252182

    Info Icon
    Manufacturer substitution
    This part replaces 8206227. Substitute parts can look different from the original.
    In Stock
    $31.97
    16% OFF Phone Price : $37.97Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Damper for Whirlpool MH1170XSQ3 - Part W10843943

    Cabinet and installation parts diagram

    Microwave Damper Assembly

    Part #8206442

    Replaced by #W10843943

    Info Icon
    Manufacturer substitution
    This part replaces 8206442. Substitute parts can look different from the original.
    In Stock
    $64.34
    9% OFF Phone Price : $70.34Info Icon
    Minus Item
    Qty
    Plus Item
