Model # AU2075.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana AU2075A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

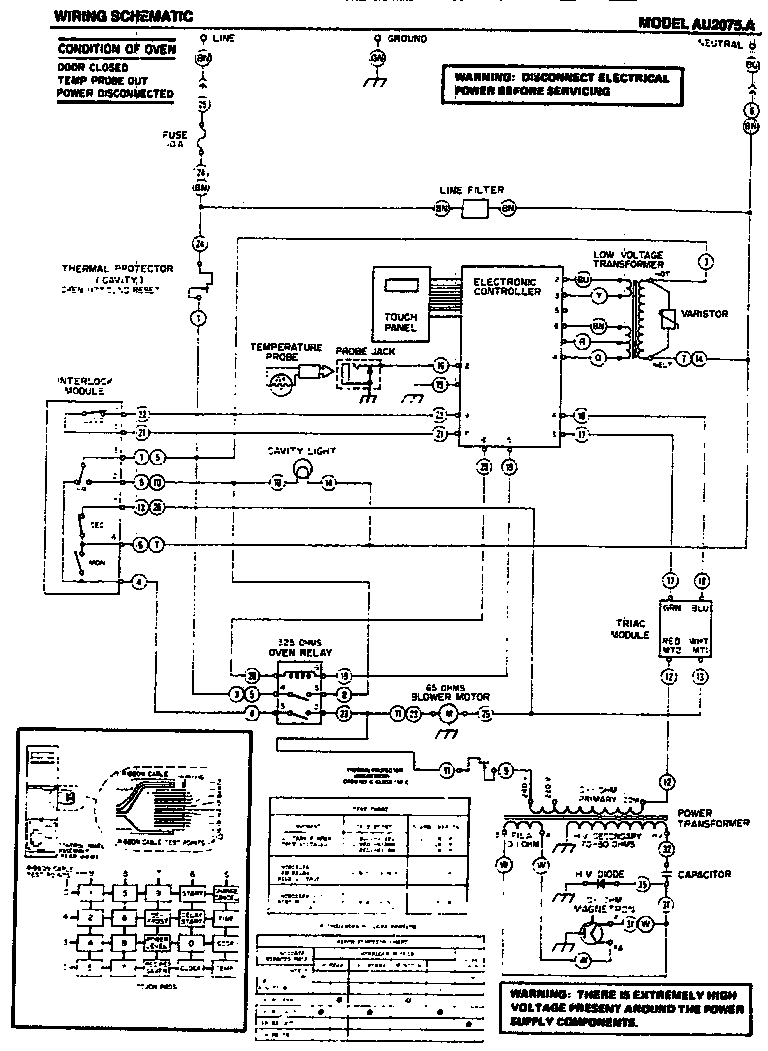

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Lamp Socket M5D356
#5

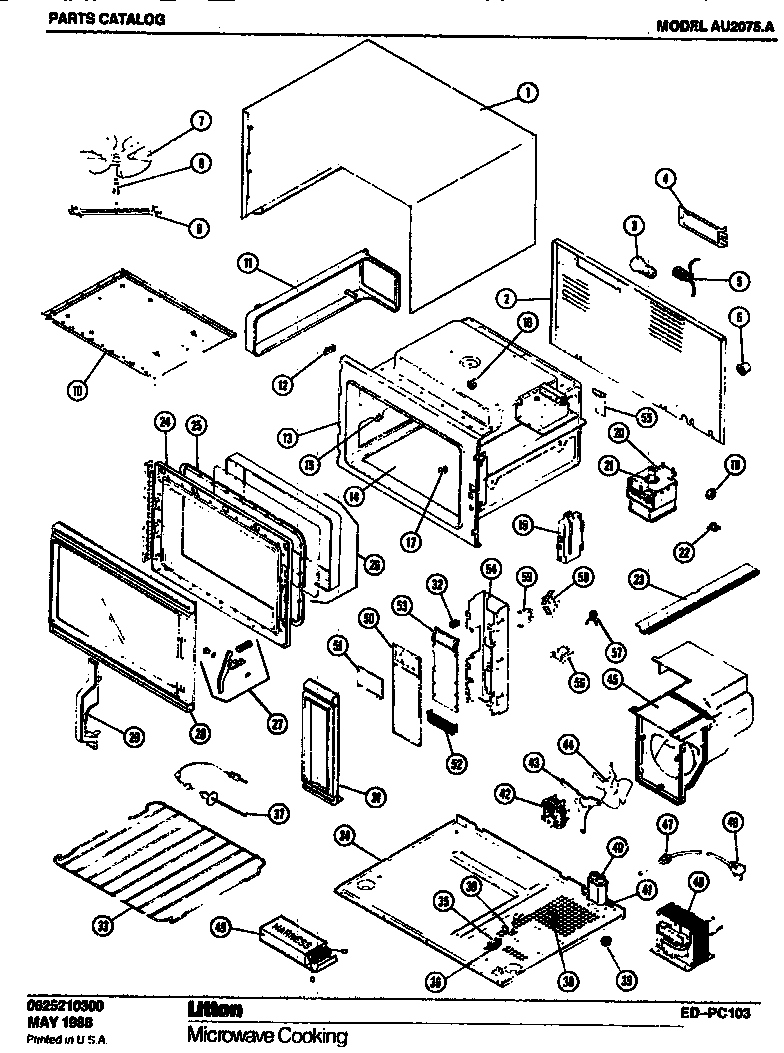

Replacement parts diagram

Lamp socket

Part #M5D356

The manufacturer no longer makes this part, and there's no substitute part

Replacement Thermometer M95D11

#NI

All parts diagram

Replacement thermometer

Part #M95D11

The manufacturer no longer makes this part, and there's no substitute part

Capacitor (1.09 Mfd) M10D107
#40

Replacement parts diagram

Capacitor (1.09 mfd)

Part #M10D107

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Support Bar M20D236
#9A

Replacement parts diagram

Stirrer support bar

Part #M20D236

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame M7D703
#54A

Replacement parts diagram

Control panel frame

Part #M7D703

The manufacturer no longer makes this part, and there's no substitute part

Access Cover M7D309
#4A

Replacement parts diagram

Access cover

Part #M7D309

The manufacturer no longer makes this part, and there's no substitute part

Stand Off M2D232
#6A

Replacement parts diagram

Stand off

Part #M2D232

The manufacturer no longer makes this part, and there's no substitute part

Electronic Circuit Board M32D33
#53A

Replacement parts diagram

Electronic circuit board

Part #M32D33

The manufacturer no longer makes this part, and there's no substitute part

Blower Duct Assembly M65D283
#45A

Replacement parts diagram

Blower duct assembly

Part #M65D283

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (incl. Nos. 14, 15 & 16) M77D132
#13A

Replacement parts diagram

Cavity assembly (incl. nos. 14, 15 & 16)

Part #M77D132

The manufacturer no longer makes this part, and there's no substitute part
