Model # H8MPT075F14A1 Official ICP 80+ 2-stage gas furnace

Here are the diagrams and repair parts for Official ICP H8MPT075F14A1 80+ 2-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Capacitor 1171729
#6

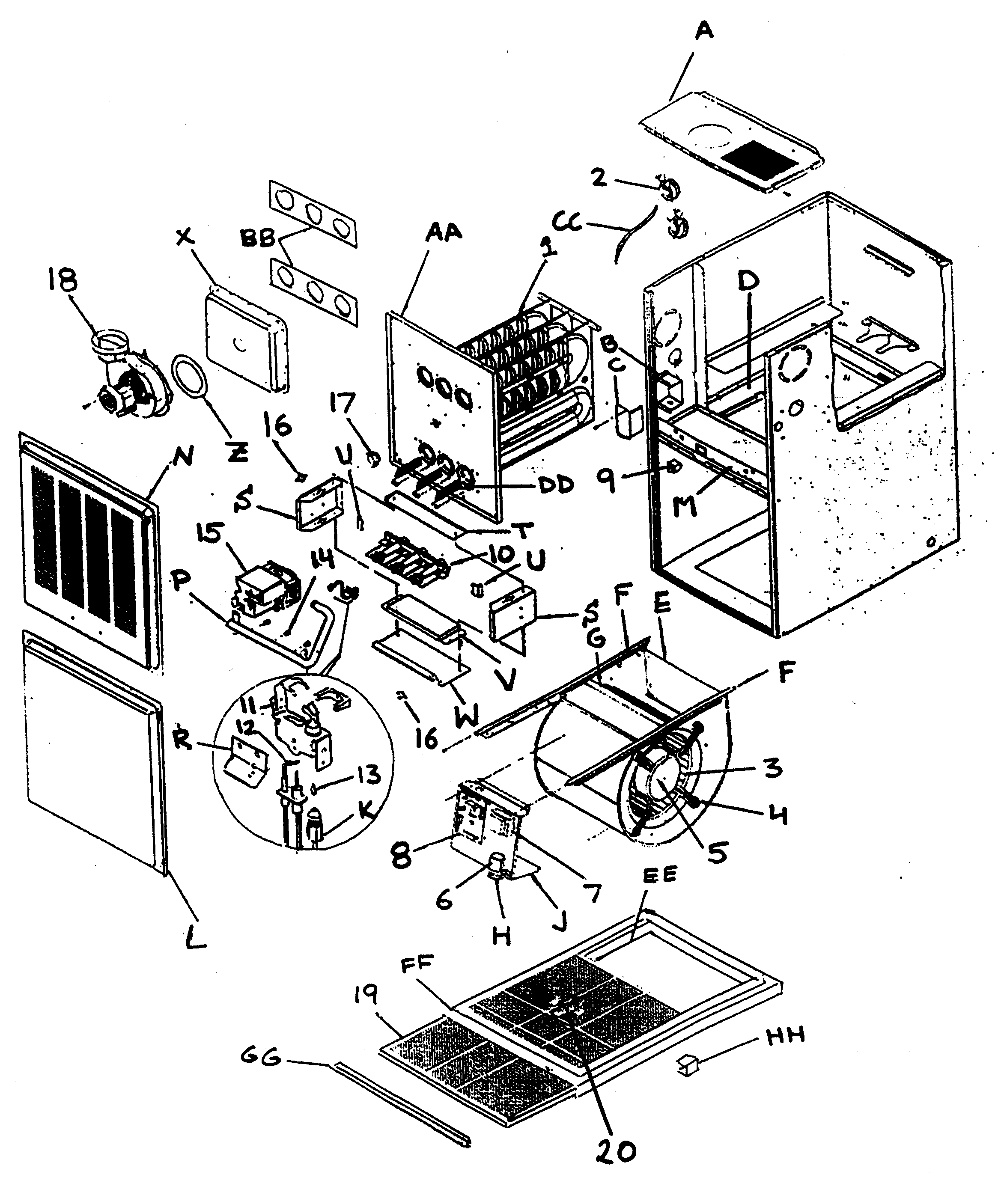

Furnace diagram

Capacitor

Part #1171729

Replaced by #12908

?
Manufacturer substitution
This part replaces 1171729. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Temperature Limit Switch 1013102
#16

Furnace diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#3

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
6% OFF Phone Price : $170.43
In Stock
Furnace Door Switch 1171981
#9

Furnace diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Furnace Burner (replaces 1012383, 1149463) 1008724
#10

Furnace diagram

Furnace burner (replaces 1012383, 1149463)

Part #1008724

$84.88 |
6% OFF Phone Price : $89.88
In Stock
Furnace Blower Fan Motor 1014028
#5

Furnace diagram

Furnace blower fan motor

Part #1014028

$487.15
In Stock
Tubing 1013597
#K

Furnace diagram

Tubing

Part #1013597

Replaced by #64930

?
Manufacturer substitution
This part replaces 1013597. Substitute parts can look different from the original.
$77.80
In Stock
Bracket 1012532
#U

Furnace diagram

Bracket

Part #1012532

$296.29
In Stock
Gasket 1013992
#BB

Furnace diagram

Gasket

Part #1013992

This item is not returnable
$6.54
In Stock
Bracket 1013677
#J

Furnace diagram

Bracket

Part #1013677

$99.80
In Stock
