Model # 867818262 Official Kenmore blower package

Here are the diagrams and repair parts for Official Kenmore 867818262 blower package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Capacitor 87964
#13B

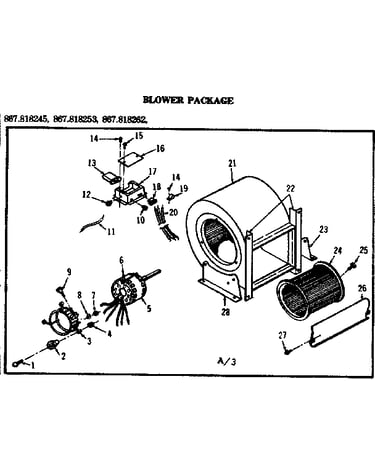

Blower assembly diagram

Capacitor

Part #87964

Replaced by #12910

?
Manufacturer substitution
This part replaces 87964. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Furnace Blower Fan Wheel 601211
#24B

Blower assembly diagram

Furnace blower fan wheel

Part #601211

$267.89
In Stock
Furnace Blower Fan Wheel 600586
#24C

Blower assembly diagram

Furnace blower fan wheel

Part #600586

$127.13 |
7% OFF Phone Price : $137.13
In Stock
Motor 604005
#5C

Blower assembly diagram

Motor

Part #604005

$928.46
In Stock
Motor 92407
#5B

Blower assembly diagram

Motor

Part #92407

$830.87
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#24A

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
7% OFF Phone Price : $140.20
In Stock
Screw STD611005
#14

Blower assembly diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor 604006
#5A

Blower assembly diagram

Blower motor

Part #604006

Replaced by #1012514

?
Manufacturer substitution
This part replaces 604006. Substitute parts can look different from the original.
$345.23 |
$10.00 OFF Phone Price : $355.23
In Stock
Lock Washer, 5/16-in, 8-pack STD551131
#8

Blower assembly diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Foot 88081
#28B

Blower assembly diagram

Air conditioner blower foot

Part #88081

The manufacturer no longer makes this part, and there's no substitute part
