Craftsman
Rolling Tool Cart

Model # 70631016 Official Craftsman 3-drawer premium roll-away

Here are the diagrams and repair parts for Official Craftsman 70631016 3-drawer premium roll-away, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Tool Chest Nameplate (replaces 27194) 1004305
#2

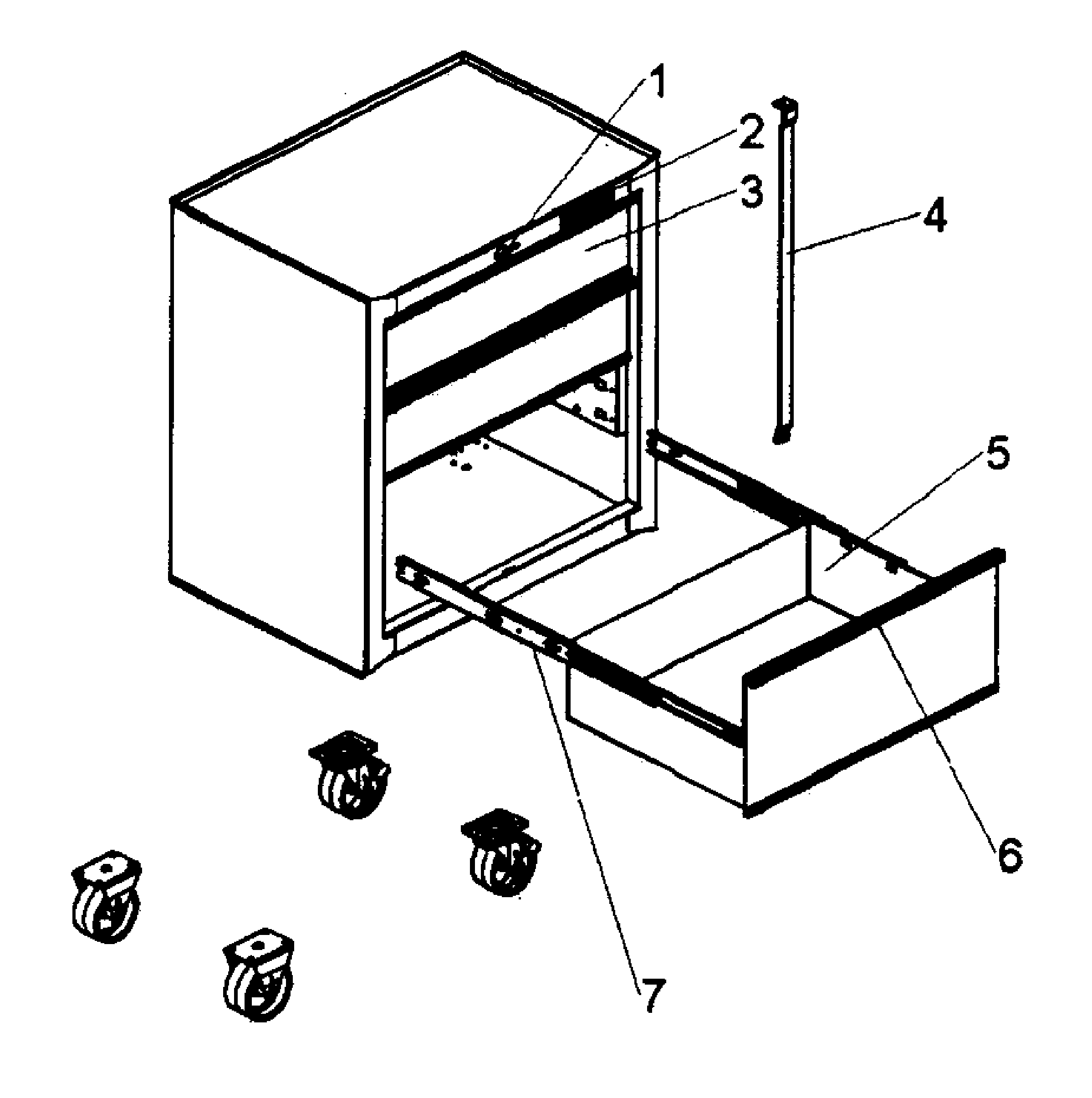

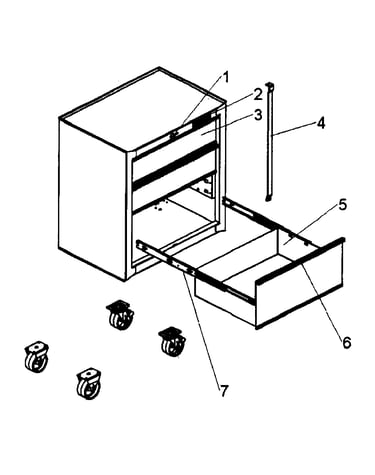

Tool cabinet diagram

Tool chest nameplate (replaces 27194)

Part #1004305

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 6-in 1004833-EBK
#3

Tool cabinet diagram

Tool chest drawer, 6-in

Part #1004833-EBK

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Hardware Bag 14898
#NI

Tool cabinet diagram

Tool chest hardware bag

Part #14898

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer Liner 1006309
#NI

Tool cabinet diagram

Tool chest drawer liner

Part #1006309

The manufacturer no longer makes this part, and there's no substitute part

Workbench Drawer Trim 18914A3
#6

Tool cabinet diagram

Workbench drawer trim

Part #18914A3

The manufacturer no longer makes this part, and there's no substitute part

Instruction Sheet F1847
#NI

Tool cabinet diagram

Instruction sheet

Part #F1847

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 10-in 1006034-EBK
#5

Tool cabinet diagram

Tool chest drawer, 10-in

Part #1006034-EBK

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar 14933-EBK
#4

Tool cabinet diagram

Lock bar

Part #14933-EBK

The manufacturer no longer makes this part, and there's no substitute part

Drawer Slide 1005982
#7

Tool cabinet diagram

Drawer slide

Part #1005982

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Caster Set 27819
#NI

Tool cabinet diagram

Tool chest caster set

Part #27819

The manufacturer no longer makes this part, and there's no substitute part
