Hampton Bay HAW-05CM1FD air conditioner Parts

Here are the diagrams and repair parts for Hampton Bay HAW-05CM1FD air conditioner, as well as links to manuals and error code tables, if available.

Hampton Bay HAW-05CM1FD air conditioner

By Schematic

SELECT DIAGRAM

Browse Parts for HAW-05CM1FD Air Conditioner

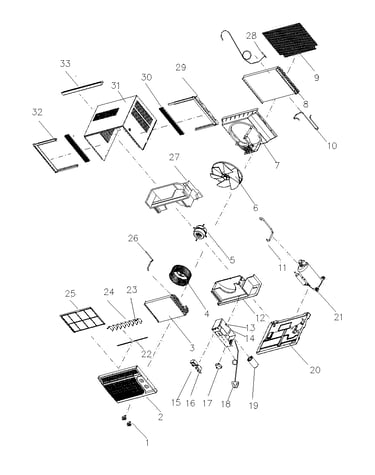

Cabinet parts diagram
Hisense Centrifugal Fan
Part #8101127
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Evaporator Assembly
Part #8130146
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Electrical
Part #81401278
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Pipe
Part #813031331
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Capillary
Part #813031333
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Capacitor
Part #1411702
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Room Air Conditioner Condenser Fan
Part #8101128
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Room Air Conditioner Control Knob
Part #814109
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Switch
Part #141090
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Hisense Fan Motor
Part #8140216
The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your room air conditioners

Why is water leaking into the house from my window air conditioner?

Main causes: clogged condensate drain, air conditioner not leveled properly, leaky window air seals …

Why your window AC compressor is not turning on?

Main causes: bad compressor, lack of refrigerant, bad compressor start relay, electronic control board failure…

Why won't my window air conditioner start?

Main causes: lack of electrical power, bad electronic control board, wiring failure, bad temperature sensor…

Why isn’t my air conditioner cooling?

Thermostat problems, bad compressor/condenser fan capacitor, lack of refrigerant, failed compressor…

Why isn’t my air conditioner cooling well?

Dirty air filter, clogged condenser coils, low refrigerant charge, faulty compressor…

Why does my window air conditioner's compressor hum but not work?

Main causes: turning the air conditioner off and the back on too quickly, dirty or restricted condenser coil, compressor…

Why won't my air conditioner turn on?

Main causes: errant thermostat settings, lack of electrical power, clogged drain line, wiring failure, control failure.…

Why are my window air conditioner's evaporator fins iced up?

Main causes: dirty air filter, air conditioner is too small for the room, temperature set too cold, control failure…

Why won't water draining from my window air conditioner?

Main causes: clogged drain hole, air conditioner not leveled properly…
