Model # HR-A56U Official JVC videocassette player & recorder

Here are the diagrams and repair parts for Official JVC HR-A56U videocassette player & recorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Cassette Door LP20868-003A
#5

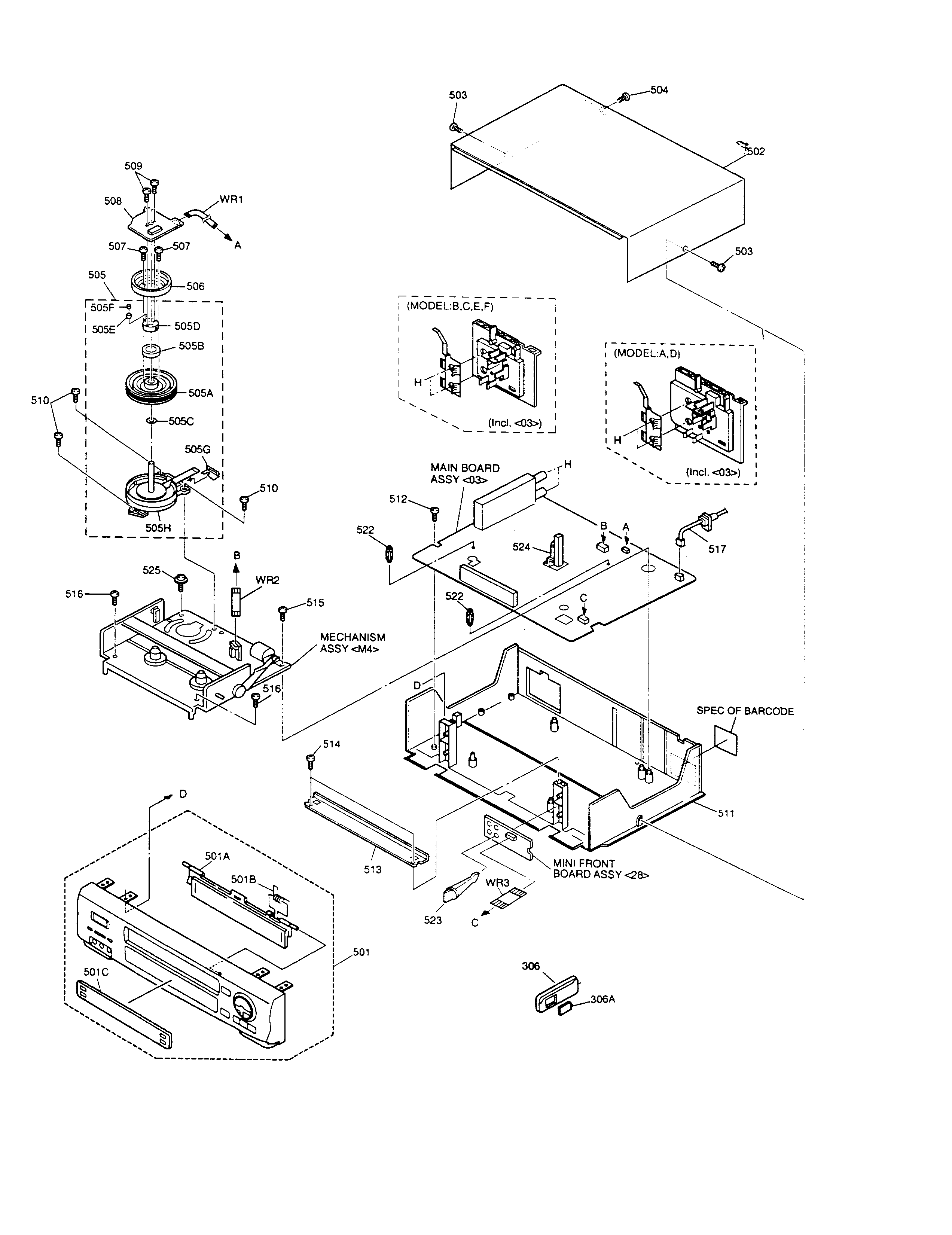

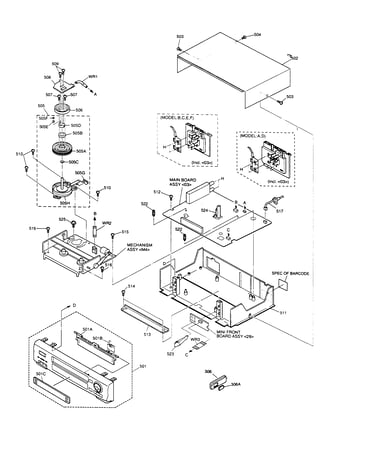

Cabinet parts diagram

Cassette door

Part #LP20868-003A

The manufacturer no longer makes this part, and there's no substitute part

Switch Transformer QQS0031-002
#NI

Cabinet parts diagram

Switch transformer

Part #QQS0031-002

The manufacturer no longer makes this part, and there's no substitute part

Drum Assembly LP20617-001A
#9

Cabinet parts diagram

Drum assembly

Part #LP20617-001A

The manufacturer no longer makes this part, and there's no substitute part

Erase Head NAH0001-001
#NI

Cabinet parts diagram

Erase head

Part #NAH0001-001

The manufacturer no longer makes this part, and there's no substitute part

Tuner QAU0142-002
#NI

Cabinet parts diagram

Tuner

Part #QAU0142-002

The manufacturer no longer makes this part, and there's no substitute part

Stator QAR0119-001
#13

Cabinet parts diagram

Stator

Part #QAR0119-001

The manufacturer no longer makes this part, and there's no substitute part

Lever,idlr LP30236-002B
#NI

Cabinet parts diagram

Lever,idlr

Part #LP30236-002B

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly PDZ0179-1-4
#12

Cabinet parts diagram

Rotor assembly

Part #PDZ0179-1-4

The manufacturer no longer makes this part, and there's no substitute part

Head QAH0010-004
#NI

Cabinet parts diagram

Head

Part #QAH0010-004

The manufacturer no longer makes this part, and there's no substitute part

Motor QAR0023-001
#NI

Cabinet parts diagram

Motor

Part #QAR0023-001

The manufacturer no longer makes this part, and there's no substitute part
