Model #545457830 Official Sears 20" boys' bmx bicycle

Here are the diagrams and repair parts for Sears 545457830 20" boys' bmx bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

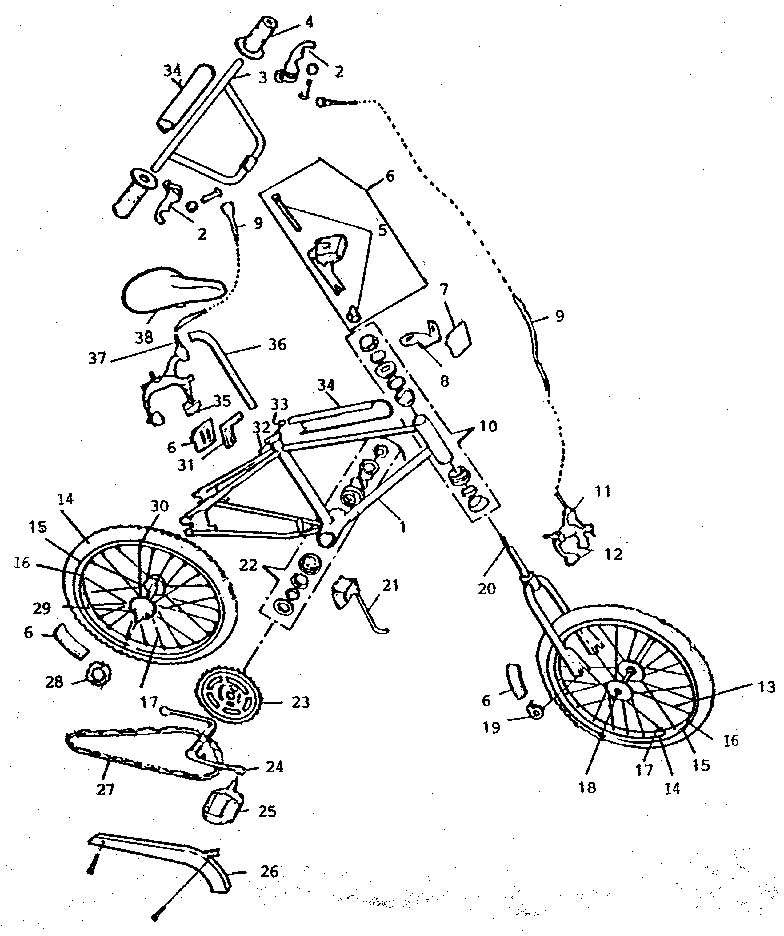

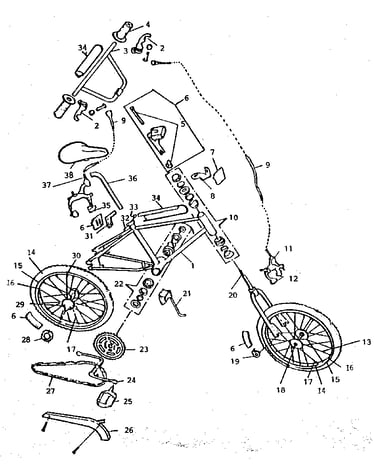

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 48 parts

    Seat Post#36

    Unit parts Diagram

    Seat post

    Part #032012

    The manufacturer no longer makes this part, and there's no substitute part

    Pad Set#34

    Unit parts Diagram

    Pad set

    Part #105026

    The manufacturer no longer makes this part, and there's no substitute part

    Seat Clp Asm#32

    Unit parts Diagram

    Seat clp asm

    Part #035005

    The manufacturer no longer makes this part, and there's no substitute part

    Ft Sprkt 44t#23

    Unit parts Diagram

    Ft sprkt 44t

    Part #068002

    The manufacturer no longer makes this part, and there's no substitute part

    Brake Tool

    #NI

    All parts Diagram

    Brake tool

    Part #103015

    The manufacturer no longer makes this part, and there's no substitute part

    Chain W/link#27

    Unit parts Diagram

    Chain w/link

    Part #072007

    The manufacturer no longer makes this part, and there's no substitute part

    Handlebar#3

    Unit parts Diagram

    Handlebar

    Part #009061

    The manufacturer no longer makes this part, and there's no substitute part

    Bicycle Brake Shoe Set

    See All Related Diagrams

    Bicycle brake shoe set

    Part #104002

    The manufacturer no longer makes this part, and there's no substitute part

    R Spk/npl#17

    Unit parts Diagram

    R spk/npl

    Part #049511

    The manufacturer no longer makes this part, and there's no substitute part

    Bicycle Wheel, Front#13

    Unit parts Diagram

    Bicycle wheel, front

    Part #045006

    The manufacturer no longer makes this part, and there's no substitute part
