Model # 109-5JH/P54390-82R Official Amana portable room air conditioner - compact series

Here are the diagrams and repair parts for Official Amana 109-5JH-P54390-82R portable room air conditioner - compact series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

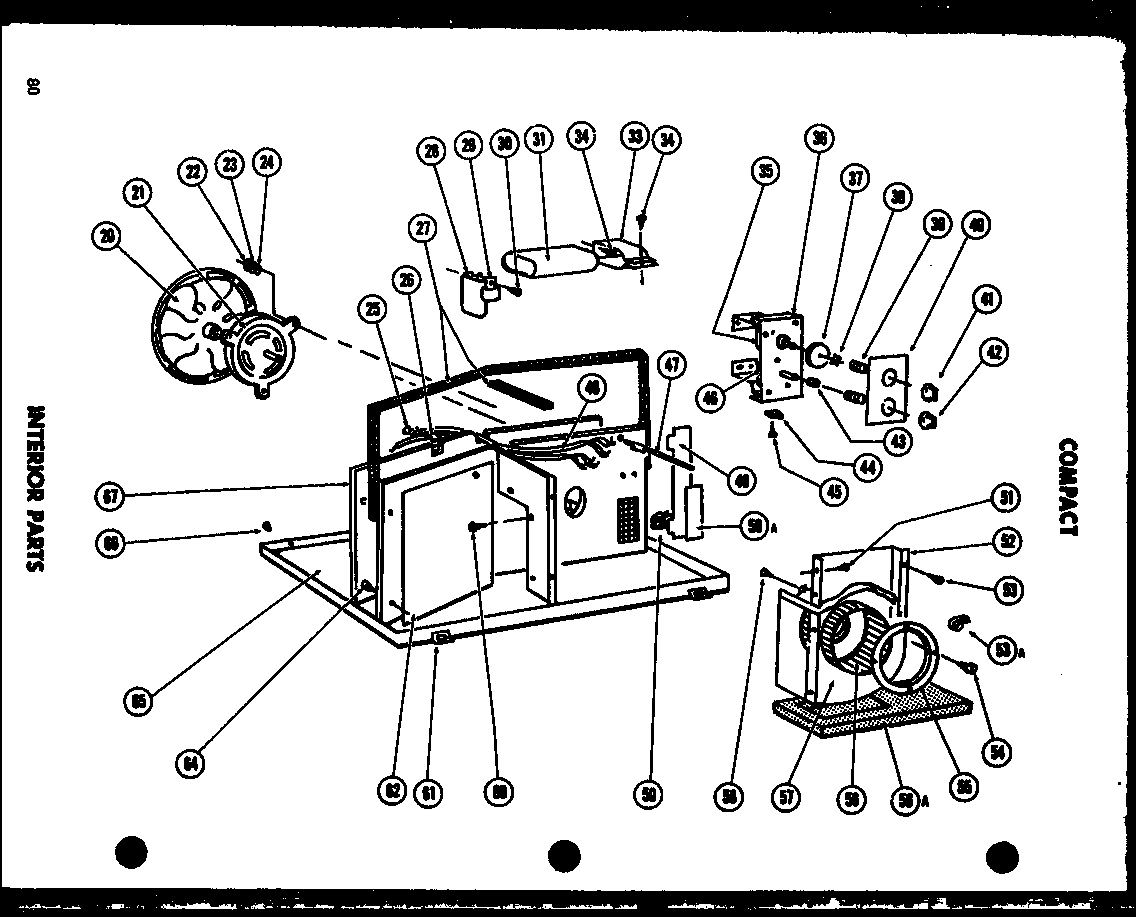

Screw M0211018
#25

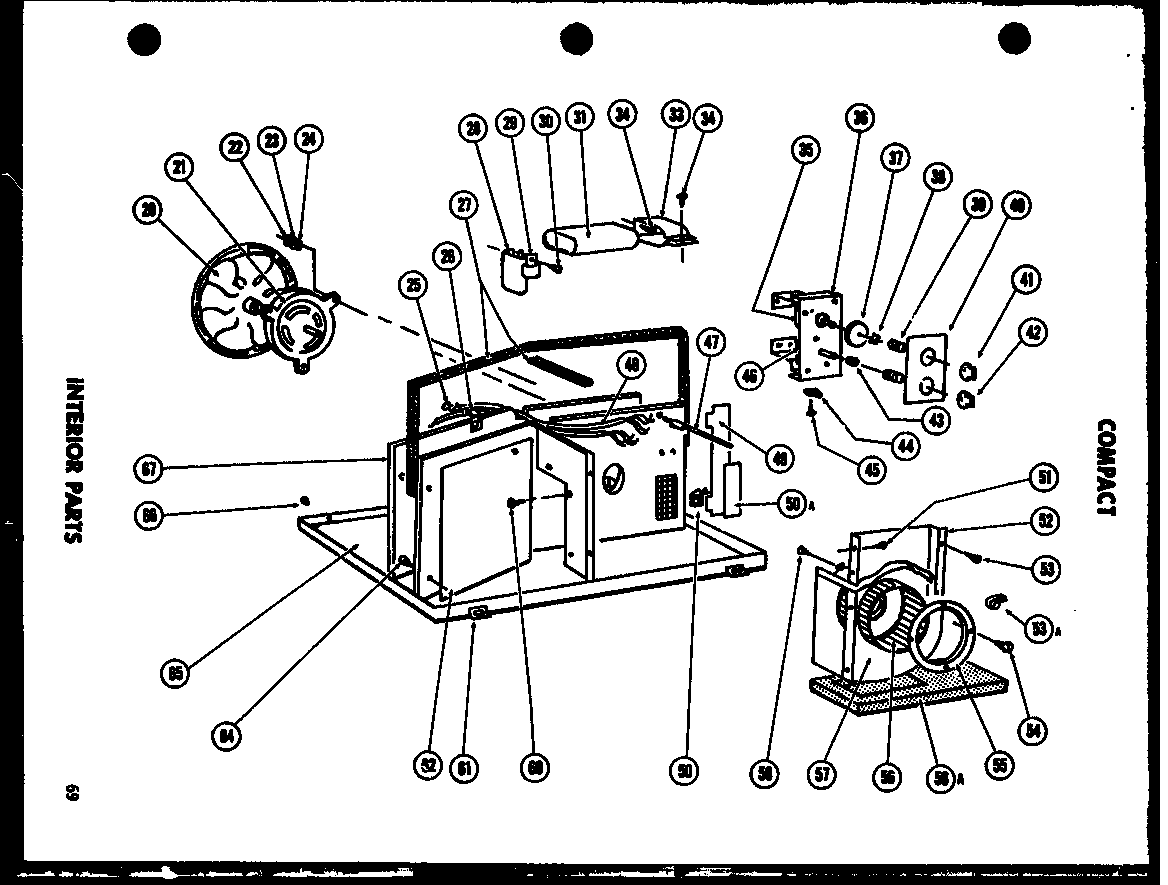

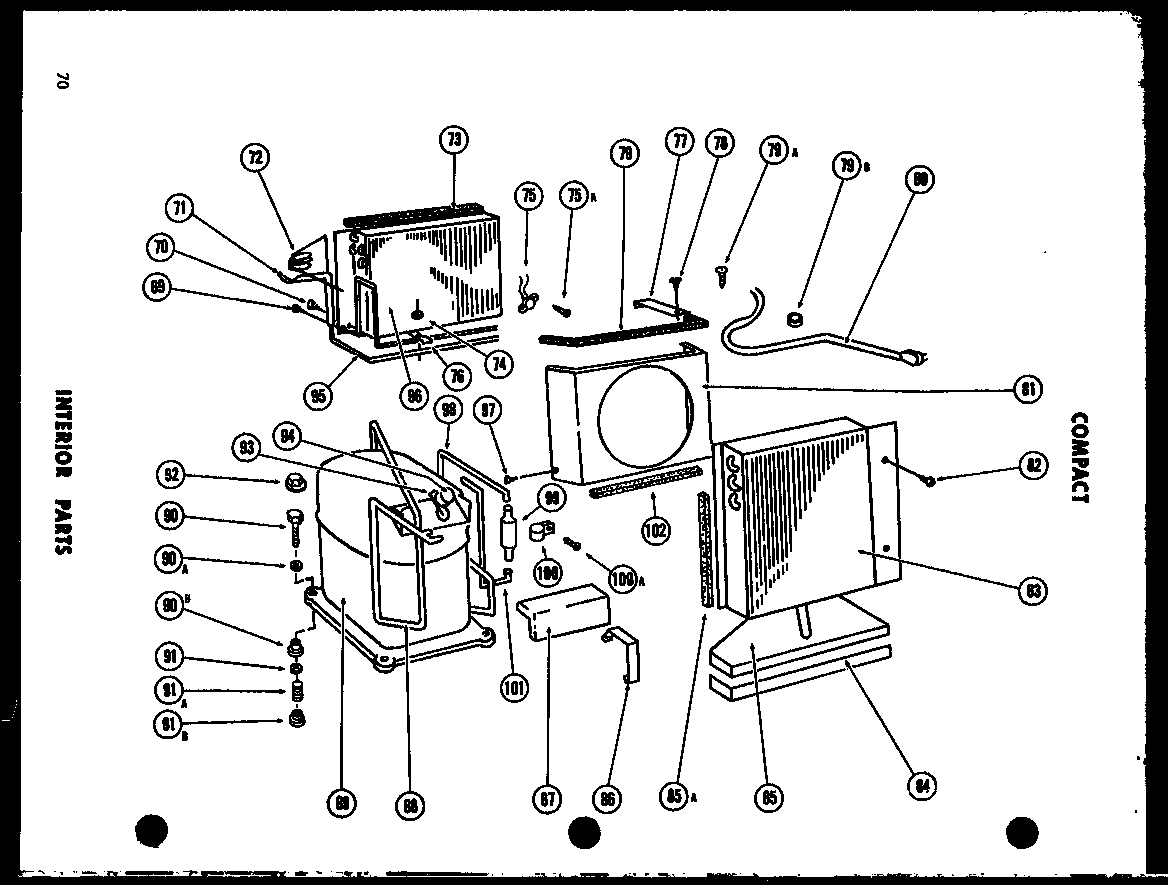

Interior parts (12-3jh/p54390-77r) (12-3jh/p54390-92r) diagram

Screw

Part #M0211018

Replaced by #M0211018

?
Manufacturer substitution
This part replaces M0211018. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
#169

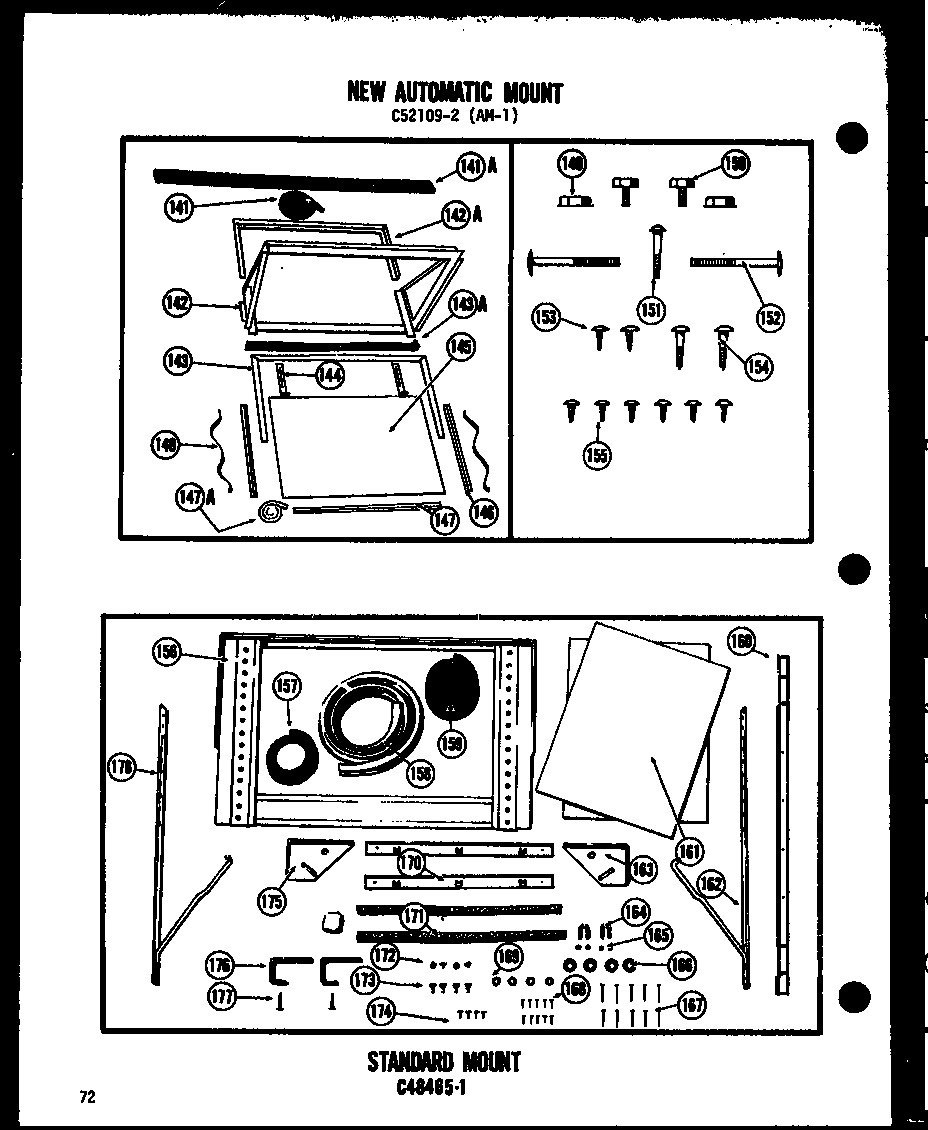

New automatic mount (106-2j/p54390-78r) (106-2jh/p54390-79r) (109-3j/p54390-80r) (109-5g-1/p54390-81r) (109-5j/p54390-81r) (109-5jh/p54390-82r) (109-2j/p54390-83r) (109-2gm/p54336-38r) (109-2jm/p54336-38r) (109-2gh/p54390-84r) (109-2jh/p54390-84r) diagram

Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
$12.49
In Stock
Grommet M0282015
#149B

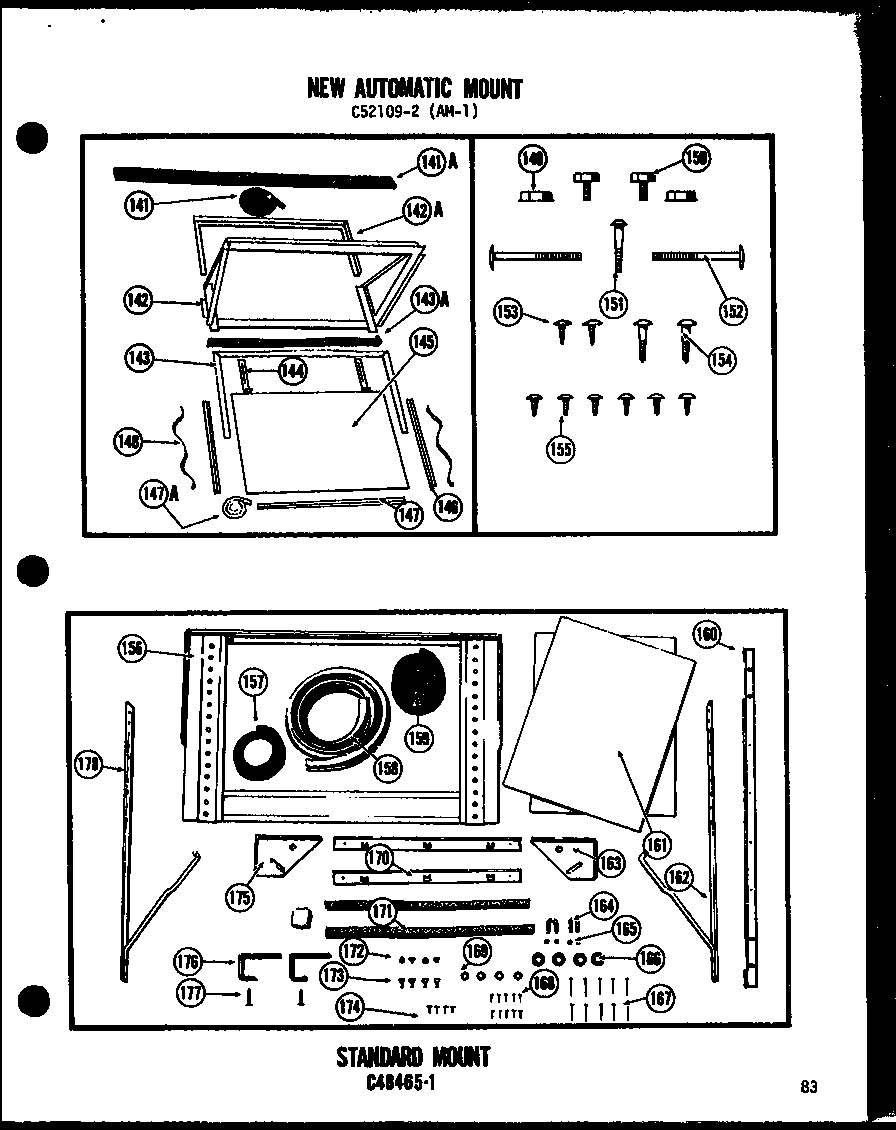

New automatic mount (106-2j/p54390-78r) (106-2jh/p54390-79r) (109-3j/p54390-80r) (109-5g-1/p54390-81r) (109-5j/p54390-81r) (109-5jh/p54390-82r) (109-2j/p54390-83r) (109-2gm/p54336-38r) (109-2jm/p54336-38r) (109-2gh/p54390-84r) (109-2jh/p54390-84r) diagram

Grommet

Part #M0282015

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282015. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211029

#NI

All parts diagram

Screw

Part #M0211029

Replaced by #WP4312464

?
Manufacturer substitution
This part replaces M0211029. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock

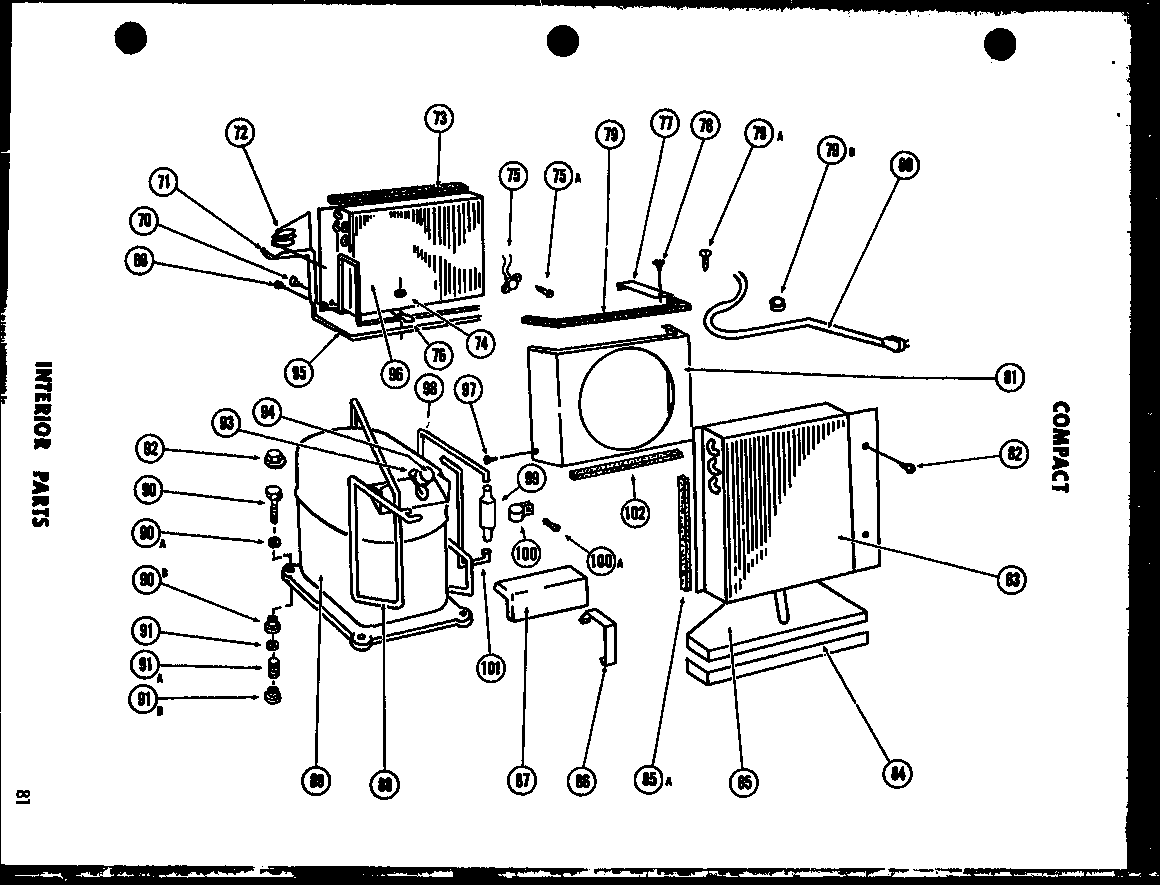

Screw M0212517
#75A

Interior parts (12-3jh/p54390-77r) (12-3jh/p54390-92r) diagram

Screw

Part #M0212517

Replaced by #WPW10253196

?
Manufacturer substitution
This part replaces M0212517. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw M0211016

#NI

All parts diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Air Filter B5183301

#NI

All parts diagram

Air filter

Part #B5183301

The manufacturer no longer makes this part, and there's no substitute part

Outer Case W C5215703
#4A

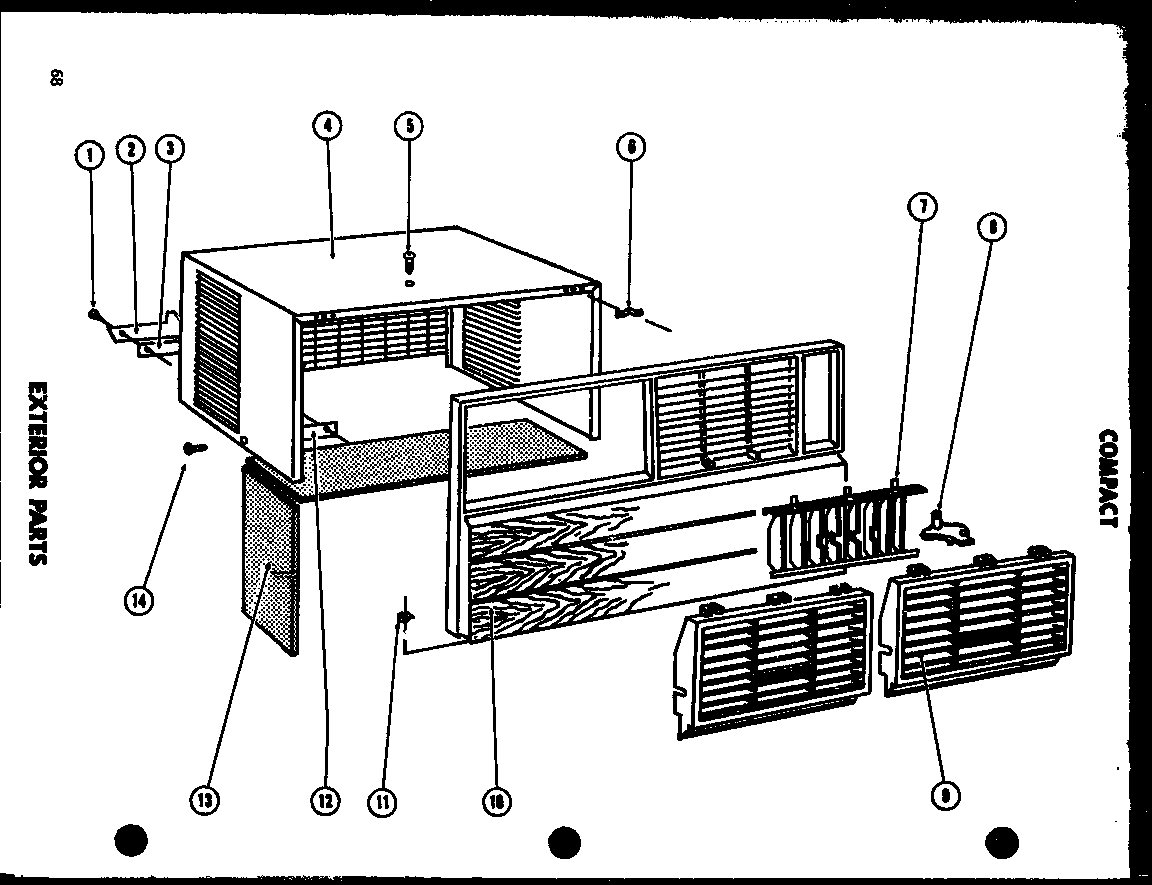

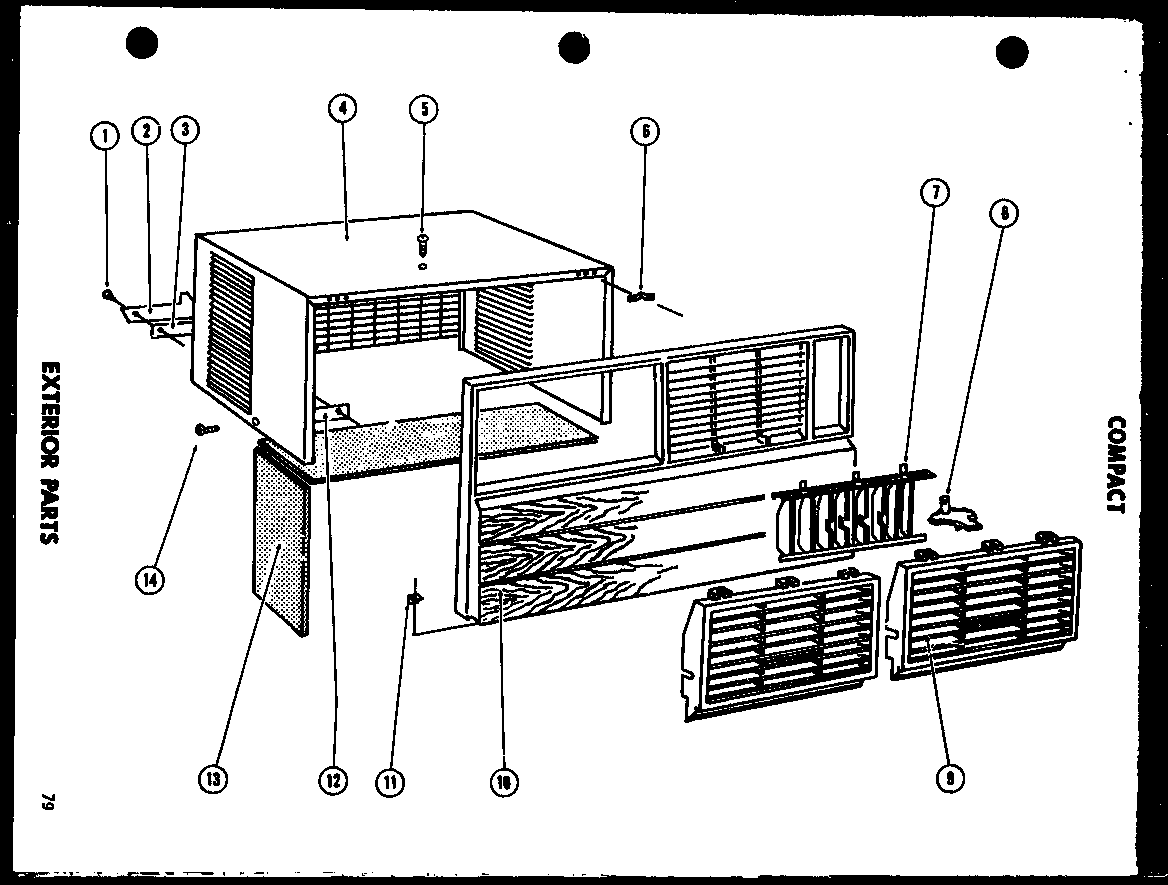

Exterior parts (12-3jh/p54390-77r) (12-3jh/p54390-92r) diagram

Outer case w

Part #C5215703

The manufacturer no longer makes this part, and there's no substitute part

Muffler C5885803
#99B

Interior parts (12-3jh/p54390-77r) (12-3jh/p54390-92r) diagram

Muffler

Part #C5885803

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-18 X 5/8" M0211532
#130B

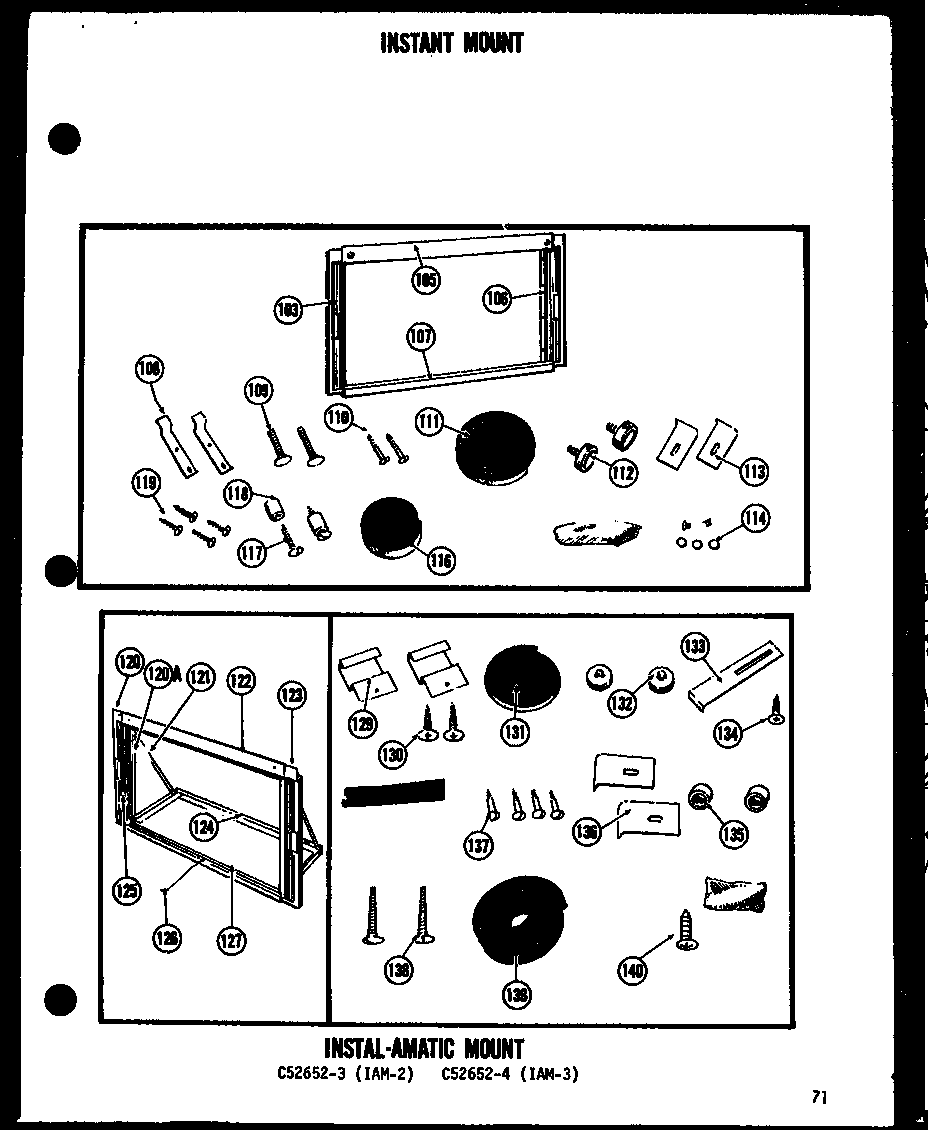

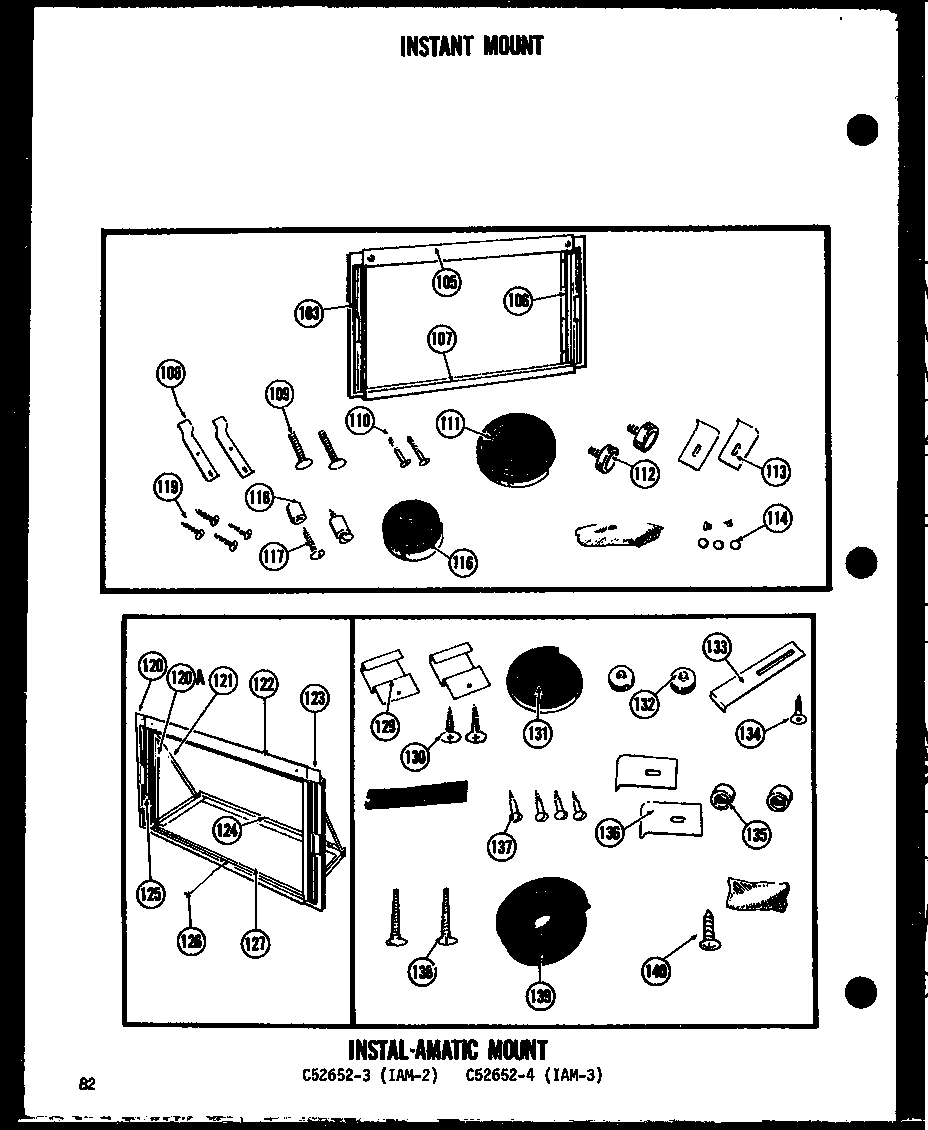

Instant mount (106-2j/p54390-78r) (106-2jh/p54390-79r) (109-3j/p54390-80r) (109-5g-1/p54390-81r) (109-5j/p54390-81r) (109-5jh/p54390-82r) (109-2j/p54390-83r) (109-2gm/p54336-38r) (109-2jm/p54336-38r) (109-2gh/p54390-84r) (109-2jh/p54390-84r) diagram

Screw, #8-18 x 5/8"

Part #M0211532

The manufacturer no longer makes this part, and there's no substitute part
