Craftsman
Lawn & Garden Engine

Model # 14360225 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 14360225 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

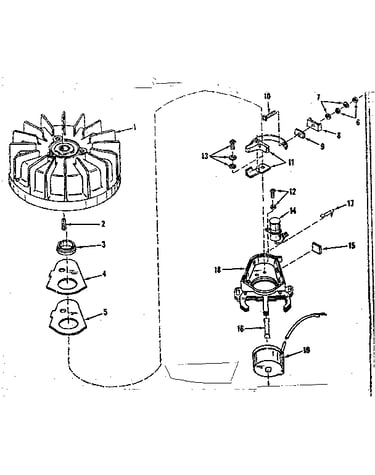

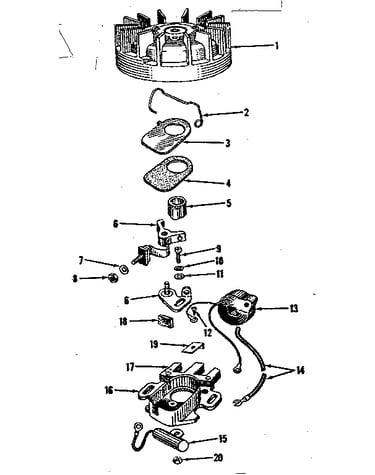

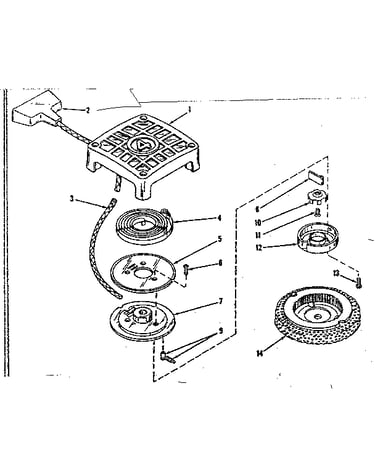

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 211 parts  |

Gasket 27110
#29

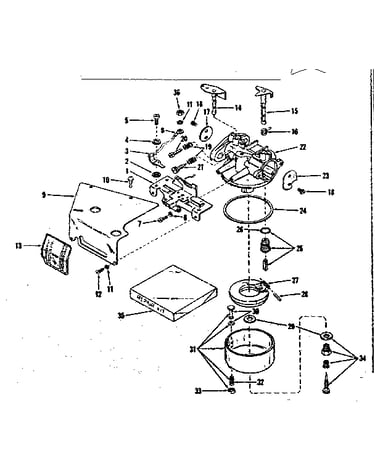

Carburetor and speed control diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#31

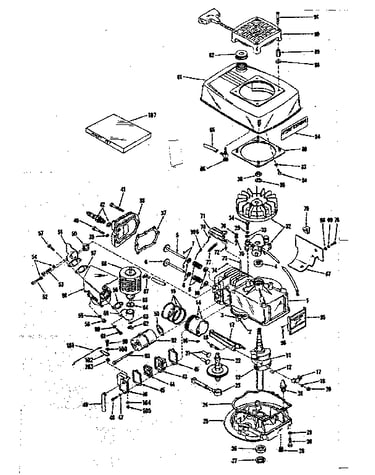

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Element 27233
#44

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Int Valve 27602
#5A

Basic engine diagram

Int valve

Part #27602

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#42

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Fuel Shutoff 27803
#86

Basic engine diagram

Fuel shutoff

Part #27803

The manufacturer no longer makes this part, and there's no substitute part

Screw 27116
#18

Carburetor and speed control diagram

Screw

Part #27116

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27234
#45

Basic engine diagram

Gasket

Part #27234

The manufacturer no longer makes this part, and there's no substitute part

Spring 27114
#19

Carburetor and speed control diagram

Spring

Part #27114

The manufacturer no longer makes this part, and there's no substitute part
