Model # 706623880 Official Craftsman professional tool chest

Here are the diagrams and repair parts for Official Craftsman 706623880 professional tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Drawer, 3-in A15395A9-ERD
#7

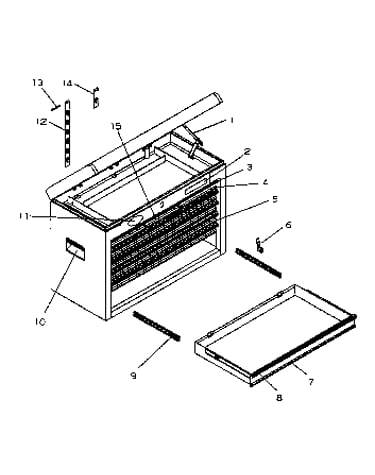

Cabinet parts diagram

Drawer, 3-in

Part #A15395A9-ERD

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 2-in A15393A3-ERD
#15

Cabinet parts diagram

Drawer, 2-in

Part #A15393A3-ERD

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Bar T16948-ERD
#14

Cabinet parts diagram

Tool chest lock bar

Part #T16948-ERD

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M12833
#10

Cabinet parts diagram

Tool chest handle

Part #M12833

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Lock Bar T16514-ERD
#12

Cabinet parts diagram

Tool chest lock bar

Part #T16514-ERD

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Drawer, 2-in A15394A1-ERD
#4

Cabinet parts diagram

Tool chest drawer, 2-in

Part #A15394A1-ERD

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Clip M9371
#NI

Cabinet parts diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Drawer Trim M12842A3
#3

Cabinet parts diagram

Drawer trim

Part #M12842A3

The manufacturer no longer makes this part, and there's no substitute part

Label M16303
#11

Cabinet parts diagram

Label

Part #M16303

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Door Hinge Pin M1495
#13

Cabinet parts diagram

Tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part
