Model # N8MPN125J22A1 Official ICP 80+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP N8MPN125J22A1 80+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Furnace Temperature Limit Switch 1013102
#16

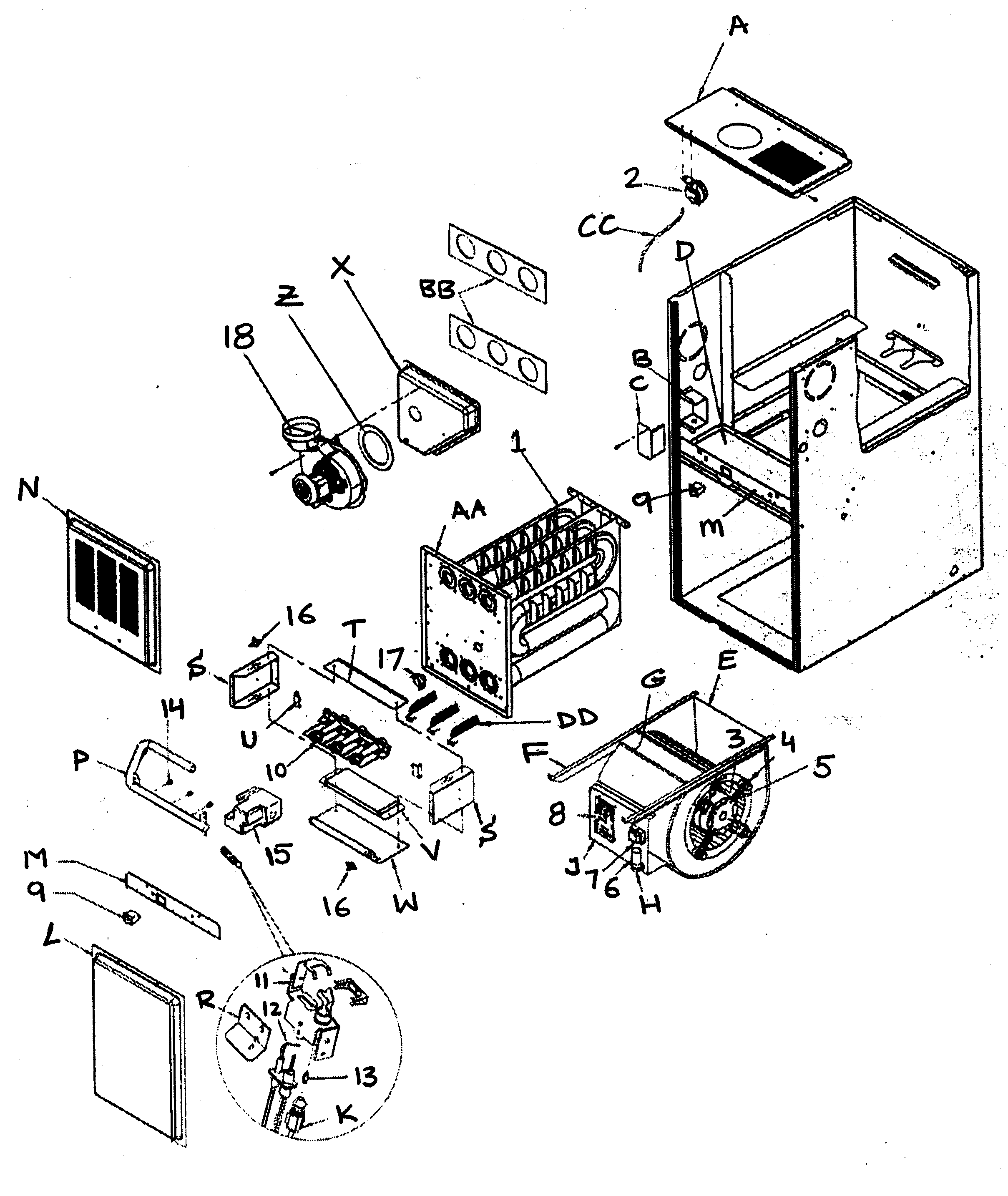

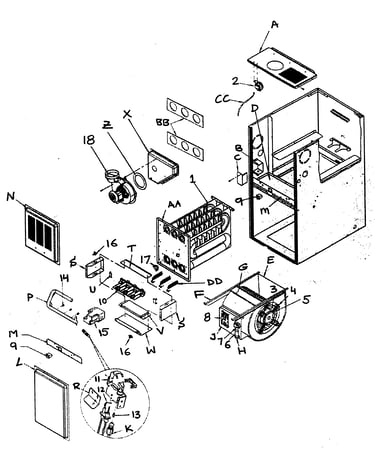

Cabinet parts diagram

Furnace temperature limit switch

Part #1013102

$15.62 |
11% OFF Phone Price : $17.62
In Stock
Control Timer 1014460
#8

Cabinet parts diagram

Control timer

Part #1014460

Replaced by #ST9120U1011

?
Manufacturer substitution
This part replaces 1014460. Substitute parts can look different from the original.
$278.27 |
$10.00 OFF Phone Price : $288.27
In Stock
Switch 1013529
#2

Cabinet parts diagram

Switch

Part #1013529

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1013529. Substitute parts can look different from the original.
$62.55 |
7% OFF Phone Price : $67.55
In Stock
Gas Valve 1013350
#15

Cabinet parts diagram

Gas valve

Part #1013350

Replaced by #SV9641M4510

?
Manufacturer substitution
This part replaces 1013350. Substitute parts can look different from the original.
$659.47 |
$10.00 OFF Phone Price : $669.47
In Stock
Furnace Door Switch 1171981
#9

Cabinet parts diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#3

Cabinet parts diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
6% OFF Phone Price : $170.43
In Stock
Conv Kit 1009509
#NI

Cabinet parts diagram

Conv kit

Part #1009509

$170.80
In Stock
Tubing 1014022
#K

Cabinet parts diagram

Tubing

Part #1014022

Replaced by #64930

?
Manufacturer substitution
This part replaces 1014022. Substitute parts can look different from the original.
$77.80
In Stock
Furnace Pilot Burner Bracket 1010901
#R

Cabinet parts diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
Furnace Pilot Igniter And Sensor (replaces B14010-11s, Q3400a1040) 1009524
#12

Cabinet parts diagram

Furnace pilot igniter and sensor (replaces b14010-11s, q3400a1040)

Part #1009524

$166.19 |
6% OFF Phone Price : $176.19
In Stock
