Model # 143154092 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143154092 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |

/carb Float 631023
#14

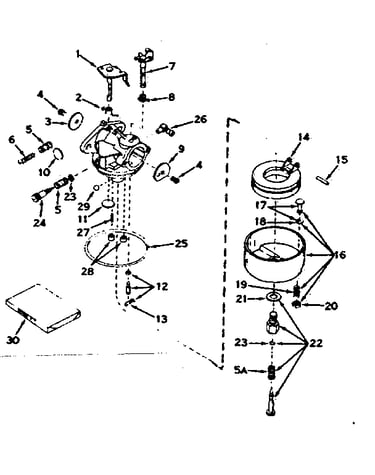

Carburetor diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

/fuel Bowl 631025
#16

Carburetor diagram

/fuel bowl

Part #631025

The manufacturer no longer makes this part, and there's no substitute part

Fitting 631038
#26

Carburetor diagram

Fitting

Part #631038

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#36

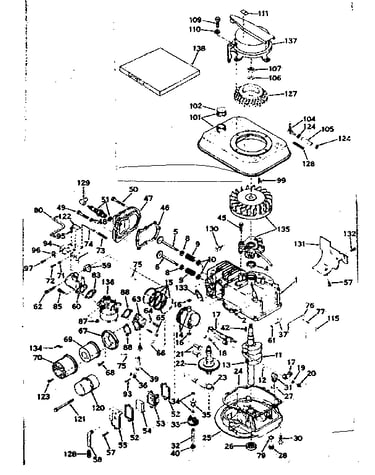

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#31

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

Element 27233
#54

Basic engine diagram

Element

Part #27233

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A
#35

Basic engine diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#51

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#32

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

/intke Valve 29314A
#5

Basic engine diagram

/intke valve

Part #29314A

The manufacturer no longer makes this part, and there's no substitute part
