Model # 143541012 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143541012 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 186 parts  |

Fuel Line 29774
#118

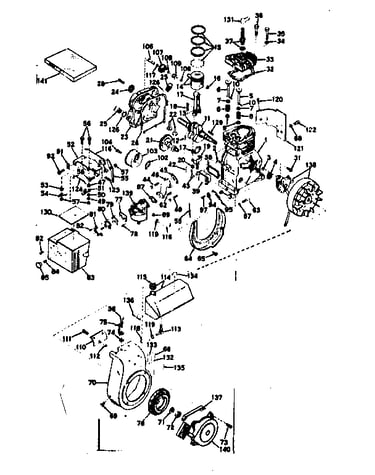

Basic engine diagram

Fuel line

Part #29774

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Lever 31510
#95

Basic engine diagram

Lever

Part #31510

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#67

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

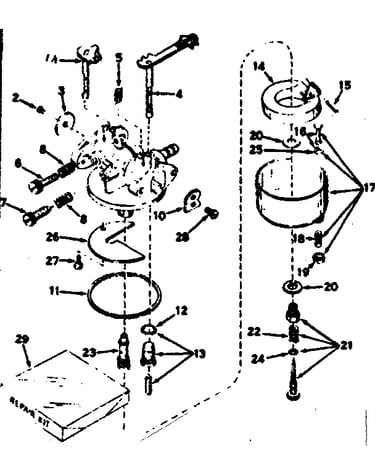

Carburetor diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#106

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Cap 30998
#115

Basic engine diagram

Cap

Part #30998

The manufacturer no longer makes this part, and there's no substitute part

Pin 26727
#2

Basic engine diagram

Pin

Part #26727

The manufacturer no longer makes this part, and there's no substitute part

/top Seal 29183
#4

Basic engine diagram

/top seal

Part #29183

The manufacturer no longer makes this part, and there's no substitute part

Needle 27112
#7

Carburetor diagram

Needle

Part #27112

The manufacturer no longer makes this part, and there's no substitute part
